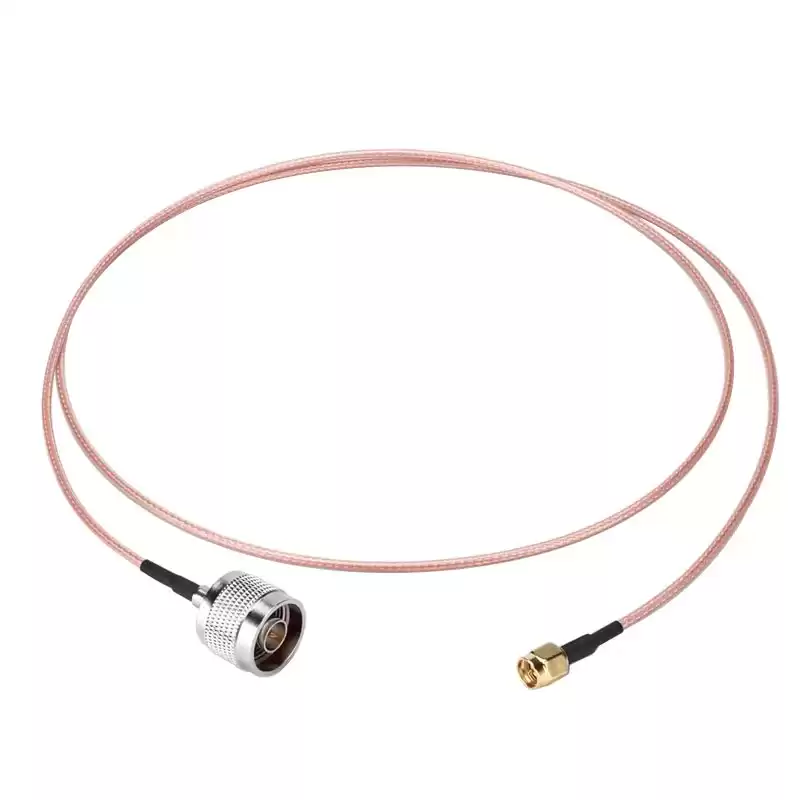

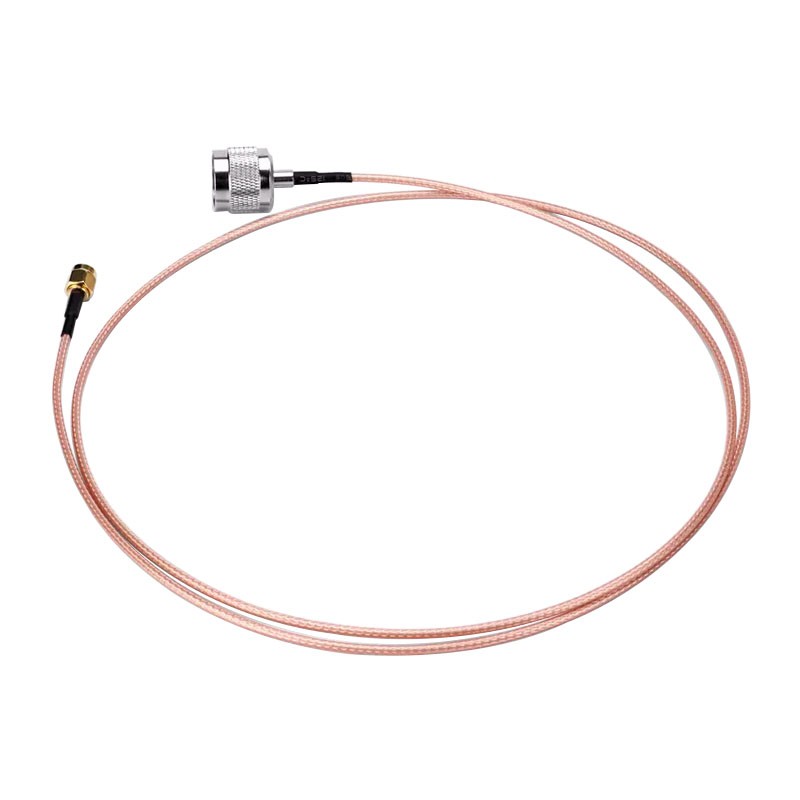

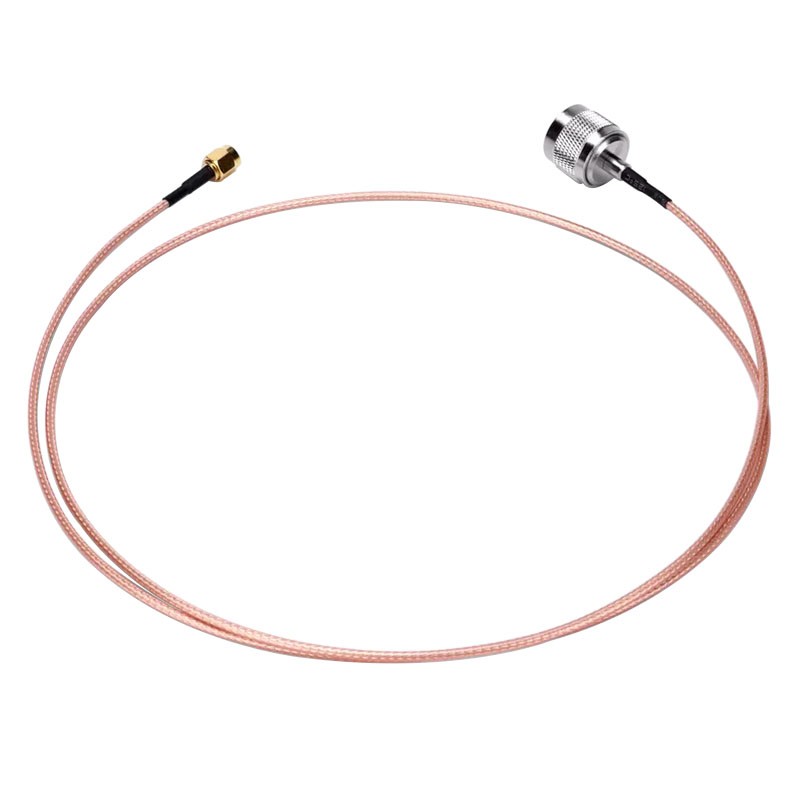

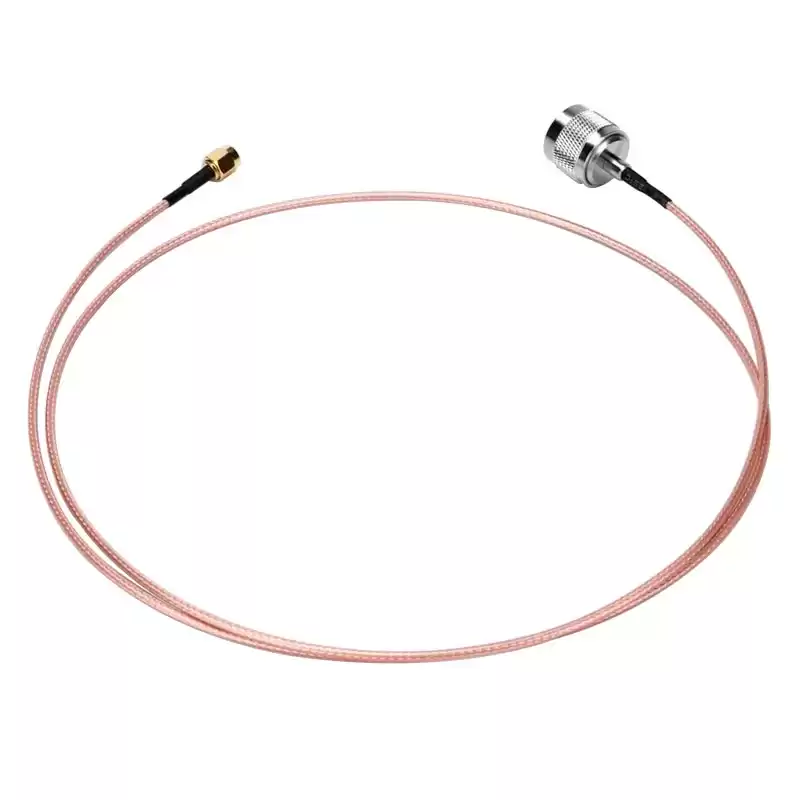

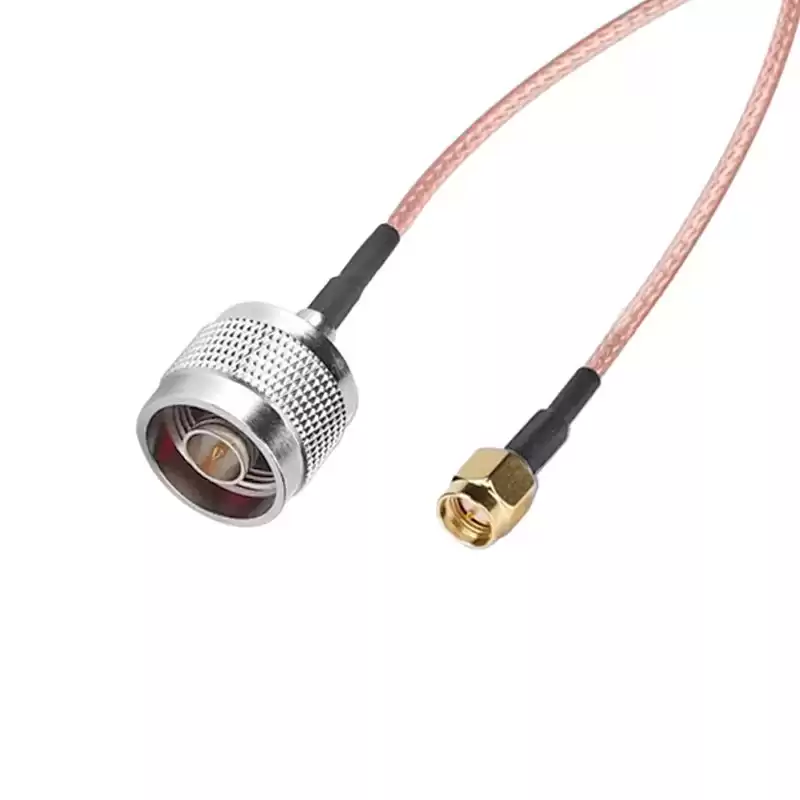

Straight SMA Male to N Male Coaxial Connector Jumper Cable Assembly with RG316 Cable

SMA Cable assembly Features:

  • Can be combined with 1.85mm, 2.4mm, 2.92mm, 3.5mm, 4.3-10, 7-16 DIN, BNC, FAKRA, MCX, MMCX, N, NEX10, QMA, QN, SMA, SMB, SMP, TNC, Trimmed Lead or U.FL connectors;
  • Body Can be 2 hole panel, 4 hole panel, bulkhead or standard mount connectors;
  • Body Can be right angle or straight connectors;
  • Cable Can use corrugated, flexible, formable or semirigid cable.



Straight SMA Male to N Male Coaxial Connector Jumper Cable Assembly with RG316 Cable



The SMA cable assembly can use corrugated, flexible, formable or semirigid coaxial cablesuch as 0.81mm, 1.13mm, 1.37mm, 1/4" Superflexible, LMR100, LMR-195, LMR200, LMR-240, LMR400, RG141, RG142, RG174, RG178, RG179, RG180, RG187, RG188, RG196, RG213, RG214, RG223, RG303, RG316, RG393, RG400, RG401, RG402, RG405, RG55, RG58, RG59, RG62, RG8, TFT-402 or Tinned 047 cable; the body of SMA to N cable assembly is right angle or straight connectors which is female to female, male to to female, female to to male or male to male gender. This SMA male to N male cable assembly uses a 50ohm straight SMA for connector 1 and a 50ohm straight N type for connector 2, Cable is 50ohm RG316.



Specifications

ELECTRICAL DATA
Connector 1 Series SMA
Connector 1 Style Str Male
Cable Type RG316
Connector 2 Series N Type
Connector 2 Style Str Male
Contact Termination Solder
Shield Termination Crimp
Impedance (Ohms) 50
Low PIM No
Max Frequency 6GHz
Working Temperature -65°C  to +165°C
MATERIAL DATA
Body Material
Brass
Body Finish
Nickel/Ternary alloy
Contact Material
Phosphor Bronze/Beryllium Copper
Contact Finish
Gold/Silver
Insulator Material PTFE



Applications

  • Used as an RF Test Probe to 6 GHz
  • RF PCB board measurements
  • Signal injection




Product Tags SMA Male to N Male Cable Assembly          SMA Male to N Connector Assembly          SMA Male to N Cable Assembly          SMA to N Connector Assembly          SMA to N Cable Assembly          SMA to N Connector Cable Assembly
