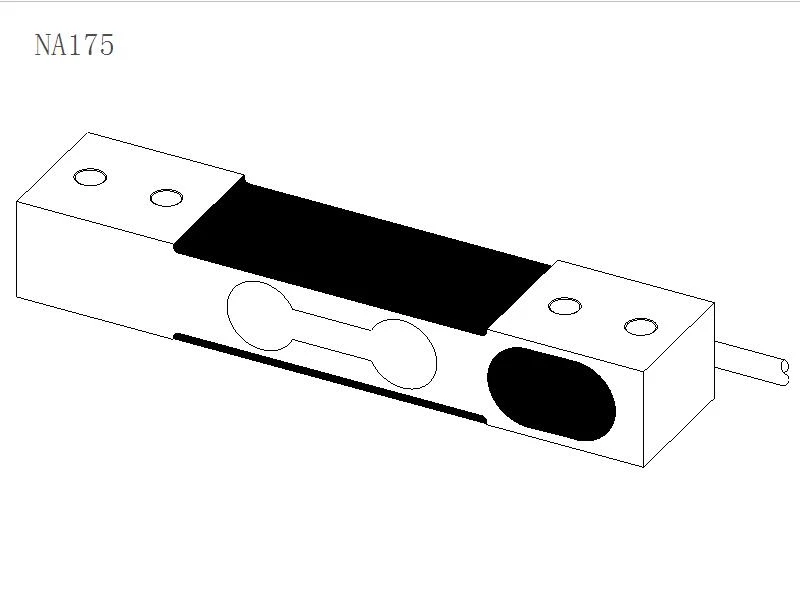

Single point Load Cell NA175 (10-50kg)
NA175 single point load cell is made with aluminum alloy element. The strain gauge installed load cell is commonly used in weighting equipment for small loads up to 50kg.
Key Features：
Aluminum
alloy construction
Easy
to install
Long
term, reliable operation
Usage & Applications：
price
computing scales
counting scales
weighing scales
retail scales

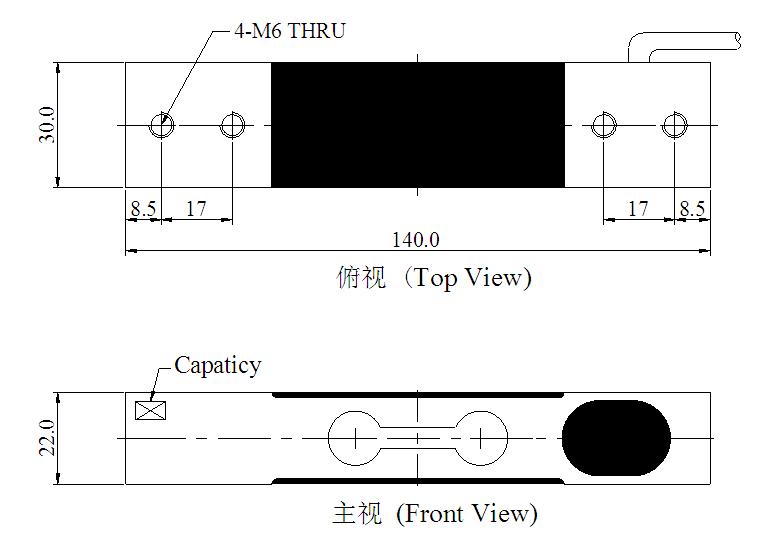

Dimension：
NA175 Specification：
|
Rated
Capacities
|
10,
20 ,30 , 40 , 50 (kg)
|
|
Rated
Output
|
2.0
mV/V±10%
|
|
Zero
Balance
|
±0.0200
mV/V
|
|
Non-linearity
|
0.02
%R.O.
|
|
Hysteresis
|
0.02
%R.O.
|
|
Repeatability
|
0.02
%R.O.
|
|
30mins
Creep
|
0.02
%R.O.
|
|
30mins
Return
|
0.02
%R.O.
|
|
Safe
Overload
|
150
%R.O.
|
|
Ultimate
Overload
|
200
%R.O.
|
|
Temperature
Effect On Output
|
0.002
%R.O./℃
|
|
Temperature
Effect On Zero
|
0.003
%R.O./℃
|
|
Input
Impedance
|
410±15
Ω
|
|
Output
Impedance
|
350±5
Ω
|
|
Insulation
Impedance
|
≥5000
MΩ/(50VDC)
|
|
Recommended
Excitation
|
5~12
VDC
|
|
Maximum
Excitation
|
15
VDC
|
|
OperatingTemperatureRange
|
-20~60 ℃
|
|
Construction
|
Aluminum
Alloy
|
|
Protection
Class
|
IP66
/ IP67
|
|
Cable
|
Φ4*0.75m
|
|
Recommended
Platform Size
|
300x300 mm
|
|
Mode
of Connection
|
Red（EXC+）,Black（EXC-）,
Green（SIG+）,White（SIG-）
|
