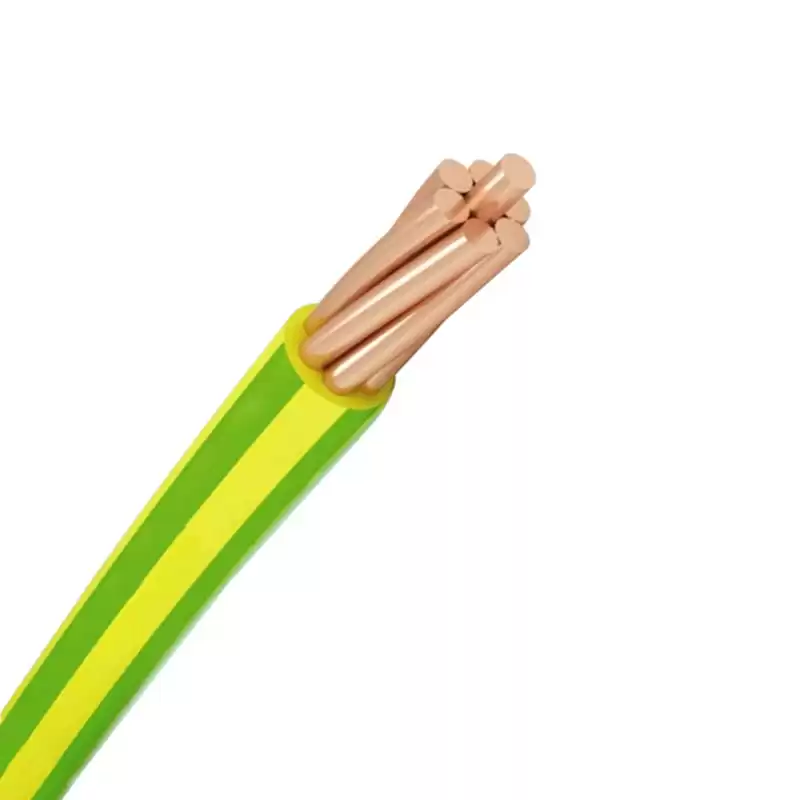

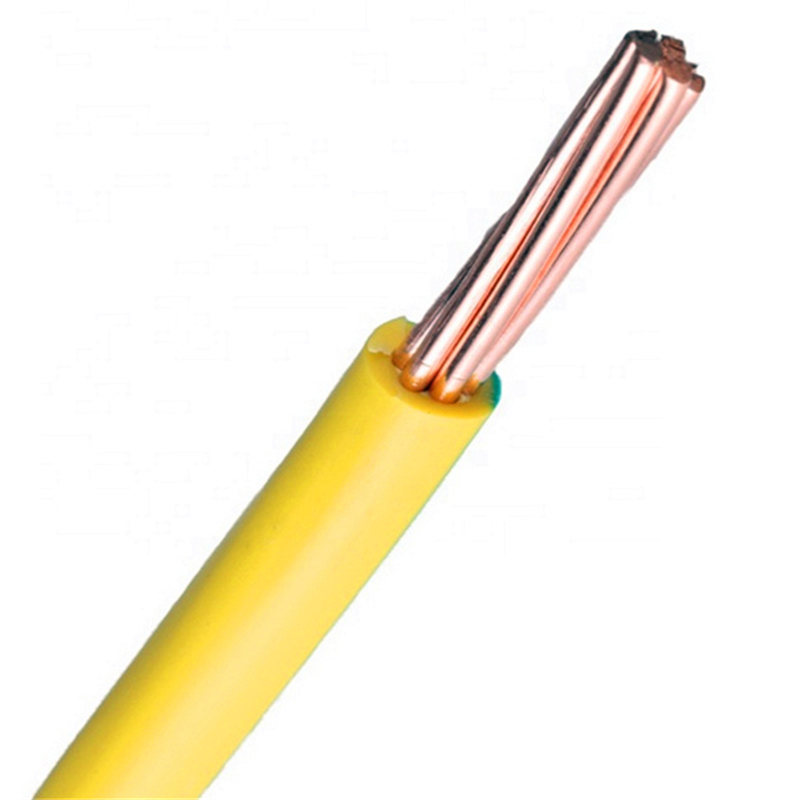

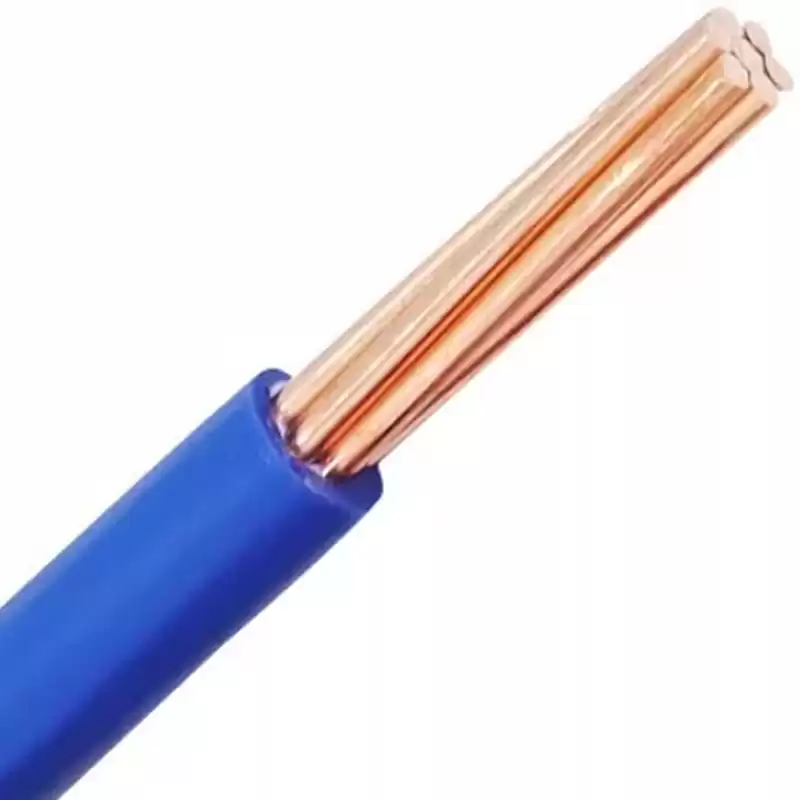

Stranded Copper Conductor H07V-R 6491X BV Electrical Wire and Cables
PRODUCTS FEATURES
- Standard: EN 50563, IEC 60227
- Voltage：450/750V
- Conductor: Class 2 stranded copper conductor
- Insulation: PVC (Polyvinyl Chloride)
- Temperature Rating: -15°C to +70°C

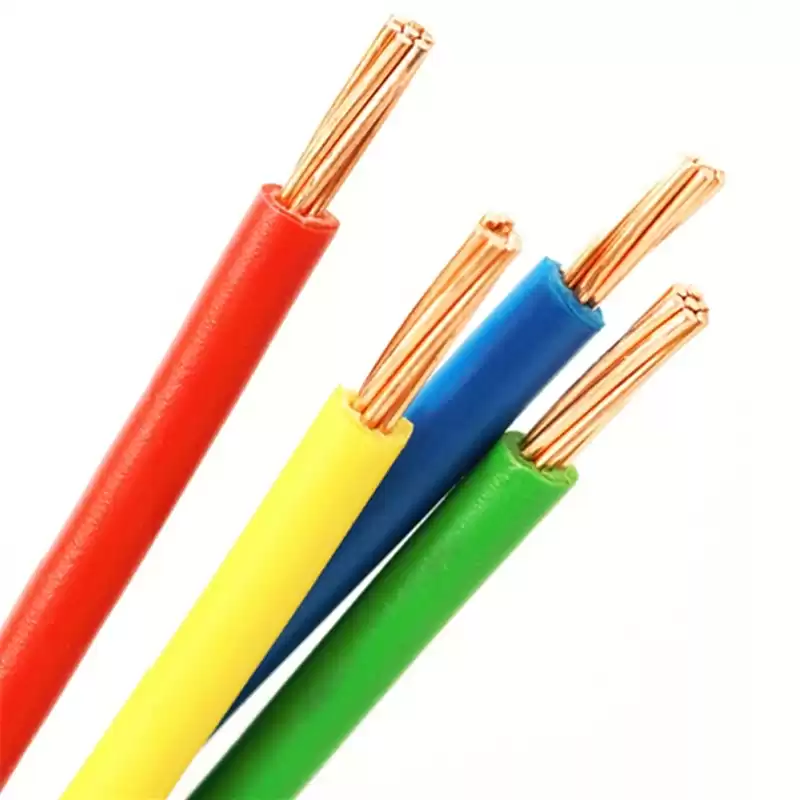

- Insulation Color: Red, Black, Blue, Orange, Yellow, White, Green/Yellow, Grey, Brown or according to your requirements
PRODUCTS APPLICATION
H07V-R BV Stranded Copper Wire PVC Insulated Electrical Wire and Cables, are suitable for power and lighting circuits and building wiring. The cable is intended for use in semi-flush exposed conduits and embedded conduits as well as in closed installation ducts, and is ideal for the internal wiring of appliances.

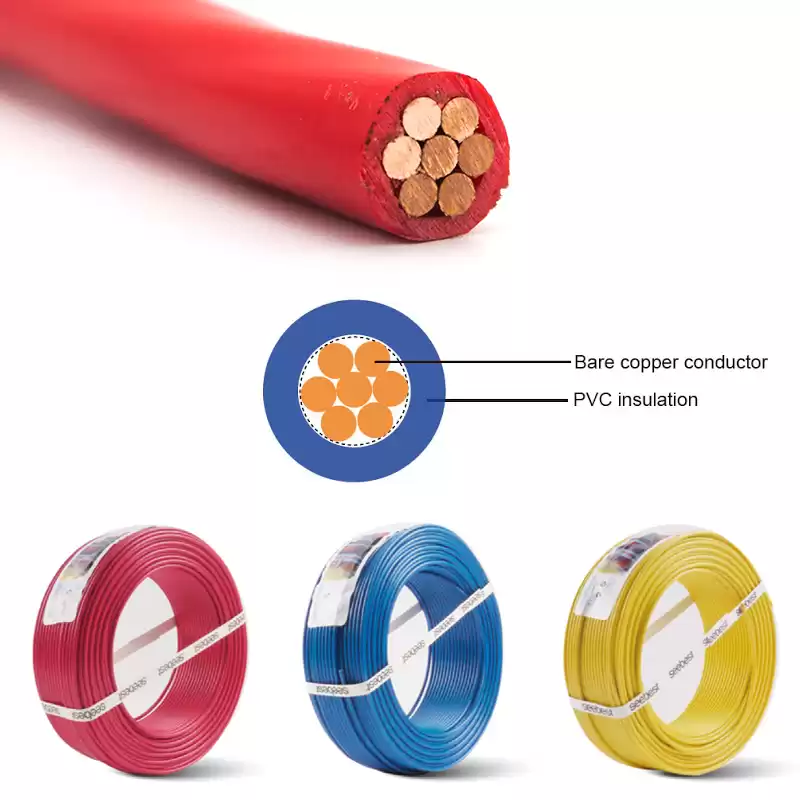

PRODUCTS STRUCTURE

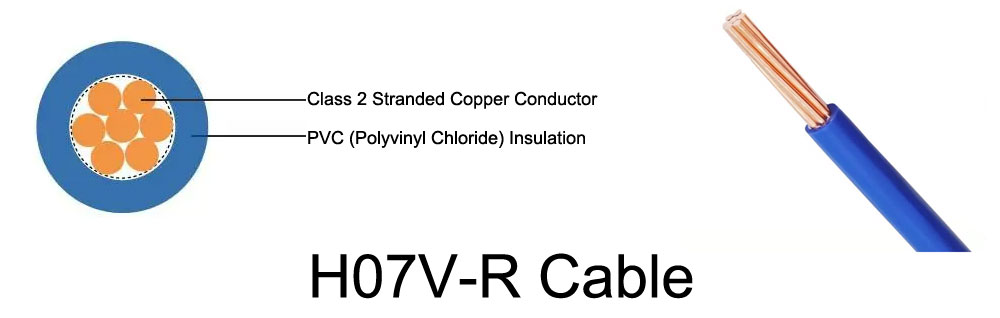

H07V-R Cable structure as below:
---Conductor Material

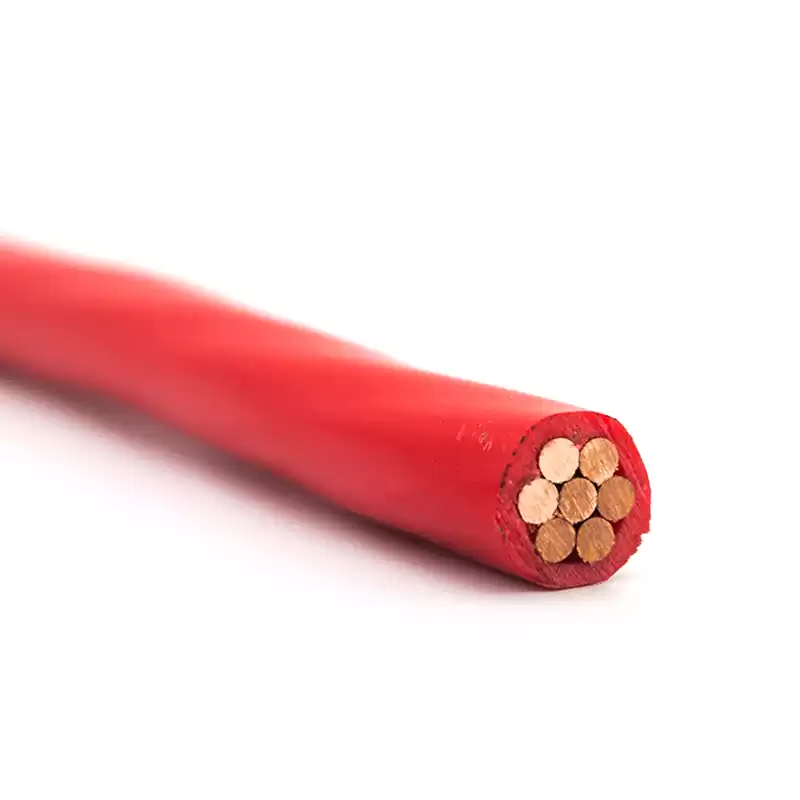

Plain annealed copper wire, stranded Class 2.
---Insulation Material
PVC(polyvinyl chloride).
---Sheath Material
Non-Sheath.
PRODUCTS SPECIFICATION
| Type |
No. Of Cores x Nominal Cross Section |
Conductor Material |
Conductor Structure |
Insulation Material |
Insulation Thickness |
Reference Max. Diameter |
Reference Weight |
Voltage Rating |
Max. DC Resistance at 20℃ |
Min. Insulation Resistance at 70℃ |
Reference Ampacity In Air |
| at 40℃ |
| (mm2) |
(pcs/mm) |
(mm) |
(mm) |
(kg/km) |
(U0/U) |
(Ω/km) |
(MΩ*km) |
(A) |
| H07V-R |
1 x 1.5 |
Class 2
Stranded Copper |
7/0.52 |
PVC |
0.7 |
3.3 |
21 |
450/750V |
12.1 |
0.01 |
21 |
|
| 1 x 2.5 |
Class 2
Stranded Copper |
7/0.68 |
PVC |
0.8 |
4 |
34 |
450/750V |
7.41 |
0.009 |
29 |
|
| 1 x 4 |
Class 2
Stranded Copper |
7/0.85 |
PVC |
0.8 |
4.6 |
49 |
450/750V |
4.61 |
0.0077 |
38 |
|
| 1 x 6 |
Class 2
Stranded Copper |
7/1.04 |
PVC |
0.8 |
5.2 |
69 |
450/750V |
3.08 |
0.0065 |
49 |
|
| 1 x 10 |
Class 2
Stranded Copper |
7/1.35 |
PVC |
1 |
6.7 |
113 |
450/750V |
1.83 |
0.0065 |
68 |
|
| 1 x 16 |
Class 2
Stranded Copper |
7/1.70 |
PVC |
1 |
7.8 |
175 |
450/750V |
1.15 |
0.005 |
91 |
|
MORE INFORMATION
|
H07V-R, H07V-U and H07V-K
|
|
Voltage Rating:
|
450/750V
|
|
Conductor:
|
H07V-U: Class 1 Solid Copper
|
|
H07V-R: Class 2 Stranded Copper
|
|
Conductor:
|
H07V-K: Class 5 Flexible Copper
|
|
Insulation:
|
PVC (Polyvinyl Chloride)
|
