Applications:

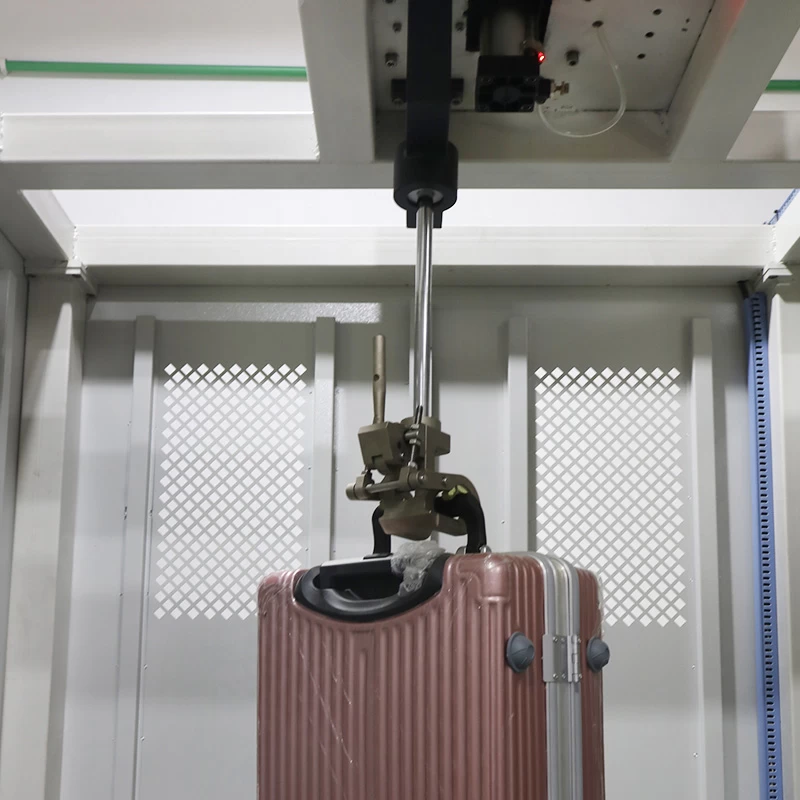

Suitcase Vibration Impact Testing Machine Loading the prescribed load in the luggage, lifting the luggage to the prescribed stroke through the handle, the back strap (or the fully opened tie rod), making free falling motion under the action of gravity (the tie rod test adopts uniform motion), and then through the absorption and release of the impact force by the spring, the luggage is subjected to shock and oscillation, so as to test the anti-oscillation impact of the handle, the back strap, the tie rod and the luggage (package). Vibration Impact Tester is suitable for all kinds of bags and suitcases.
Standards:
QB/T 2922-2007
|
|
Luggage Testing Machine Features:

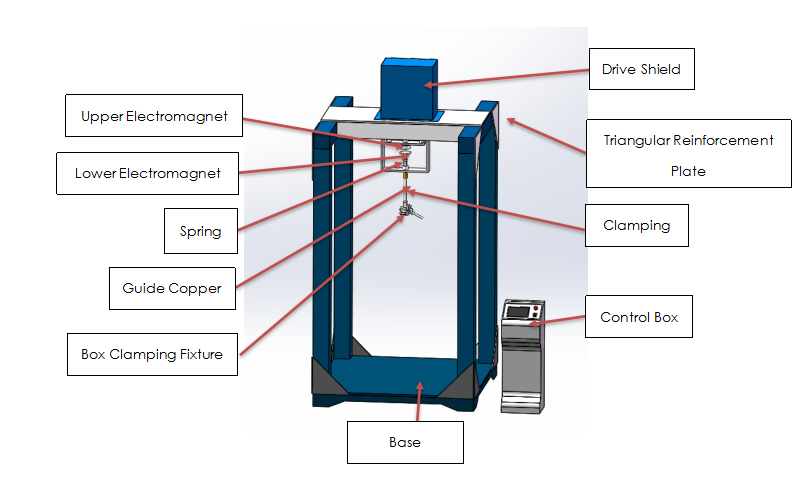

GESTER develops our own control system with times setting and counting functions. There’s starting, stopping, pausing, counting and clearing functions on the test control panel. It can count from 0 to 999,999 times. The machine stops automatically when the setting times are reached or when the backpack strap is damaged. The control system controls cylinders going up and down. When reaching the lower end, the control system induces the release of electromagnets near the lower part of the switch. Making free impact under the action of gravity, impact to the spring end is the force of the spring, in repeated oscillation and the cylinder drive the electromagnet to the lower end repeated the above actions, the impact speed is 25 times per minute.
Key Specification:
