Sunrange High Voltage 51.2V 314AH Lithium Battery

Lithium-ion is a low maintenance battery, which are commonly used for energy storage system off-grid and hybrid battery system.



Sunrange Lithium Battery

The SR51.2V314AH-H lithium ion system ofers reliable backup power for commercial industrial use,enabling load balancing, peak shaving.and renewable energy stability, With high integraion, long life, and wide temp range.its modular 16.076Wh modules (15-series max) scalecapacity from 48.23 to 241.15kWh for flexible storage.

Performance Parameter

Module                                                                     SR51.2V314AH-H
Basic Parameters
Capacity(kWh) 5.12
Nominal Voltage(Vdc) 51.2
Nominal Capacity(AH) 314
Voltage Range(Vdc) 44.8~56.8
Depth of Discharge 80%
Dimension(W*D*H,mm) 885*434*238.2(±5)
Design Life 15+years(25)
Cycle Life >6000(25)
Communication CANBUSModbus RTU/TCP/IP
Protection Class IP20
Weight(kg) 110kg±3kg
Operation Temperature 0~50
Storage Temperature -20~60
Product Certificate                   MSDS&UN38.3





Battery Type : Lithium Iron Phosphate
Module energy: 16.0768KWH
Module Normal Voltage: 51.2V
Module Capacity: 280AH
Battery Module Qty In Series (Optional): 3 4 5 6 7 8 9 10 11 12 13 14 15
System Normal Voltage:(V) 153.6 204.8 256 307.2 358.4 409.6 460.8 512 563.2 614.4 665.6 716.8 768
System normal capacity:(AH) 314 314 314 314 314 314 314 314 314 314 314 314 314
System Capacity:(KWH) 48.23 64.3 80.38 96.46 112.53 144.69 144.69 160.76 176.84 192.92 208.99 225.07 241.15

Packaging & Shipping

Sunrange Packaging & Shipping

Compatible Inverters List

 Sunrange Compatible Inverters List

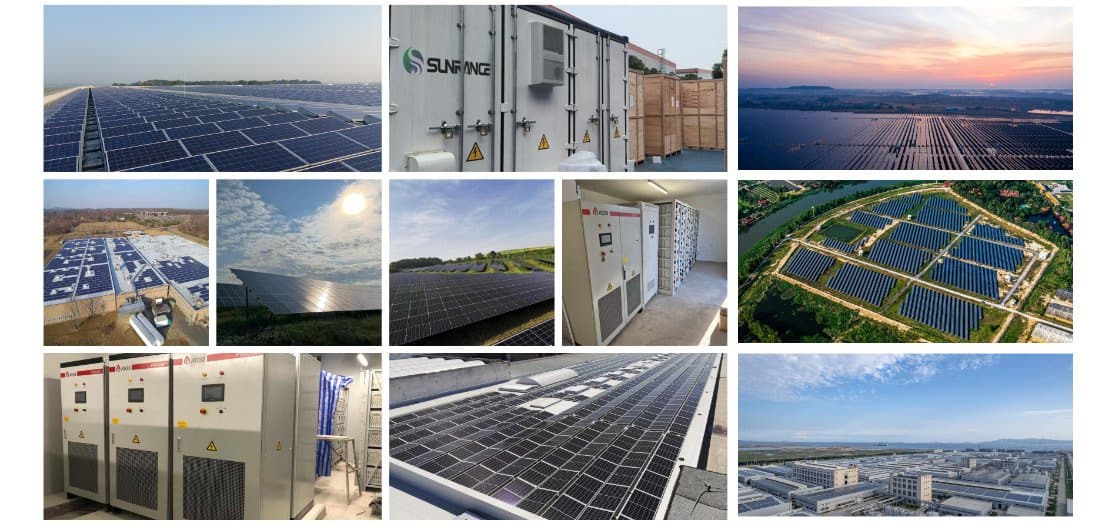

Project Case

Sunrange Project Case





FAQ

1. Comprehensive One-Stop Energy Storage Solution

We provide professional, all-in-one commercial & industrial energy storage system (ESS) solutions.



2. Customizable System Design (5KW–10MW)

Tailored solutions from 5KW to 10MW/more to meet diverse project needs.



3. Higher Real Power Output than Industry Standard

Our 100KW ESS system delivers up to 125KW real output while being rated at 100KW — ensuring more efficient and stable operation.



4. Advanced LFP Battery Technology (LiFePO₄)

Using high-density LFP cells (≥160Wh/kg), our systems are compact, lightweight, and space-saving. Safe and reliable, with over 6,000 cycles at 80% DOD and a lifespan of more than 10 years.



5. Ideal for a Wide Range of Applications

 Designed for hotels, schools, factories, churches, broadcasting stations, and large villas.



6. Professional Installation & Commissioning Team

Backed by a team of experienced engineers for on-site installation, debugging, and technical support.
