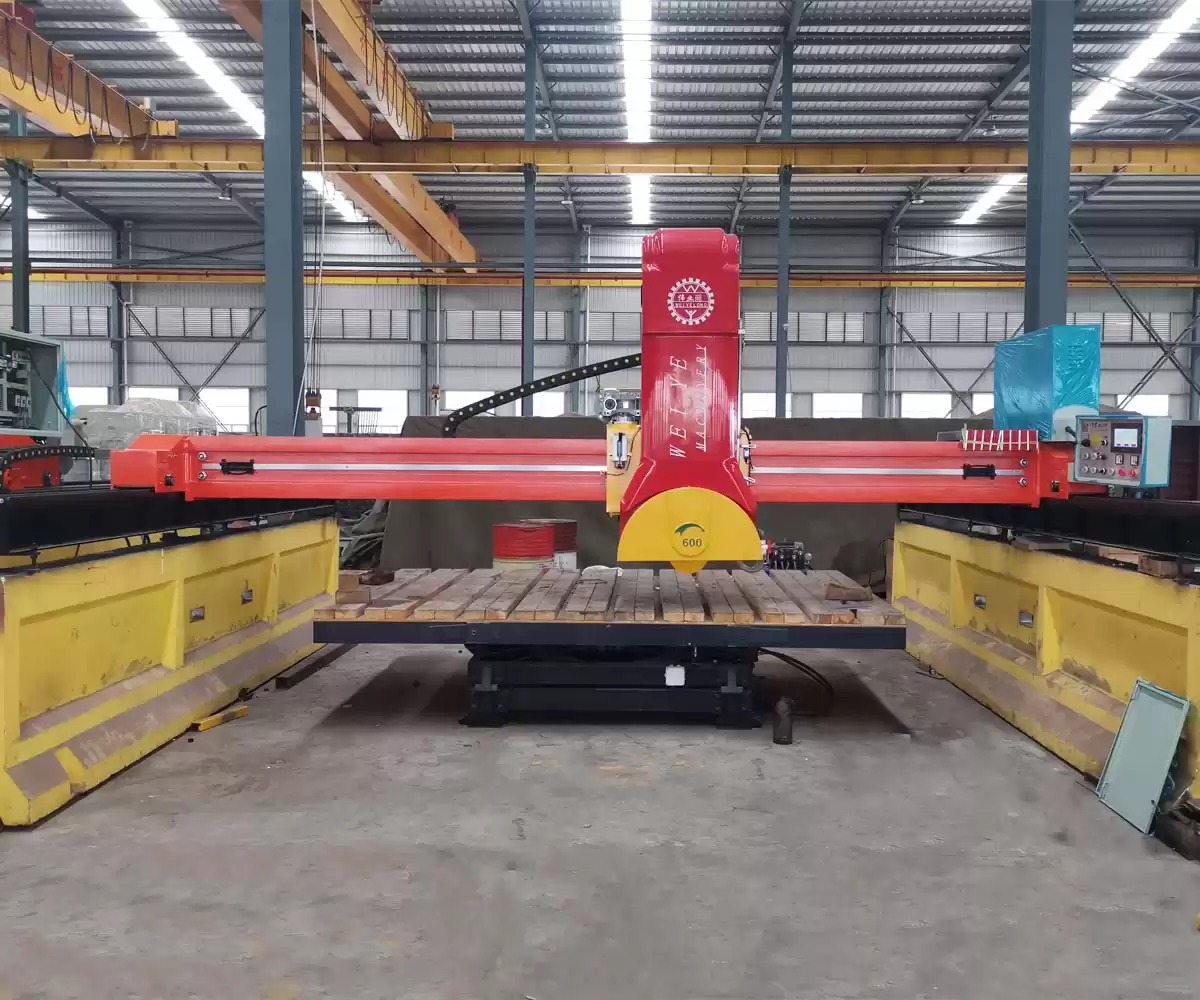

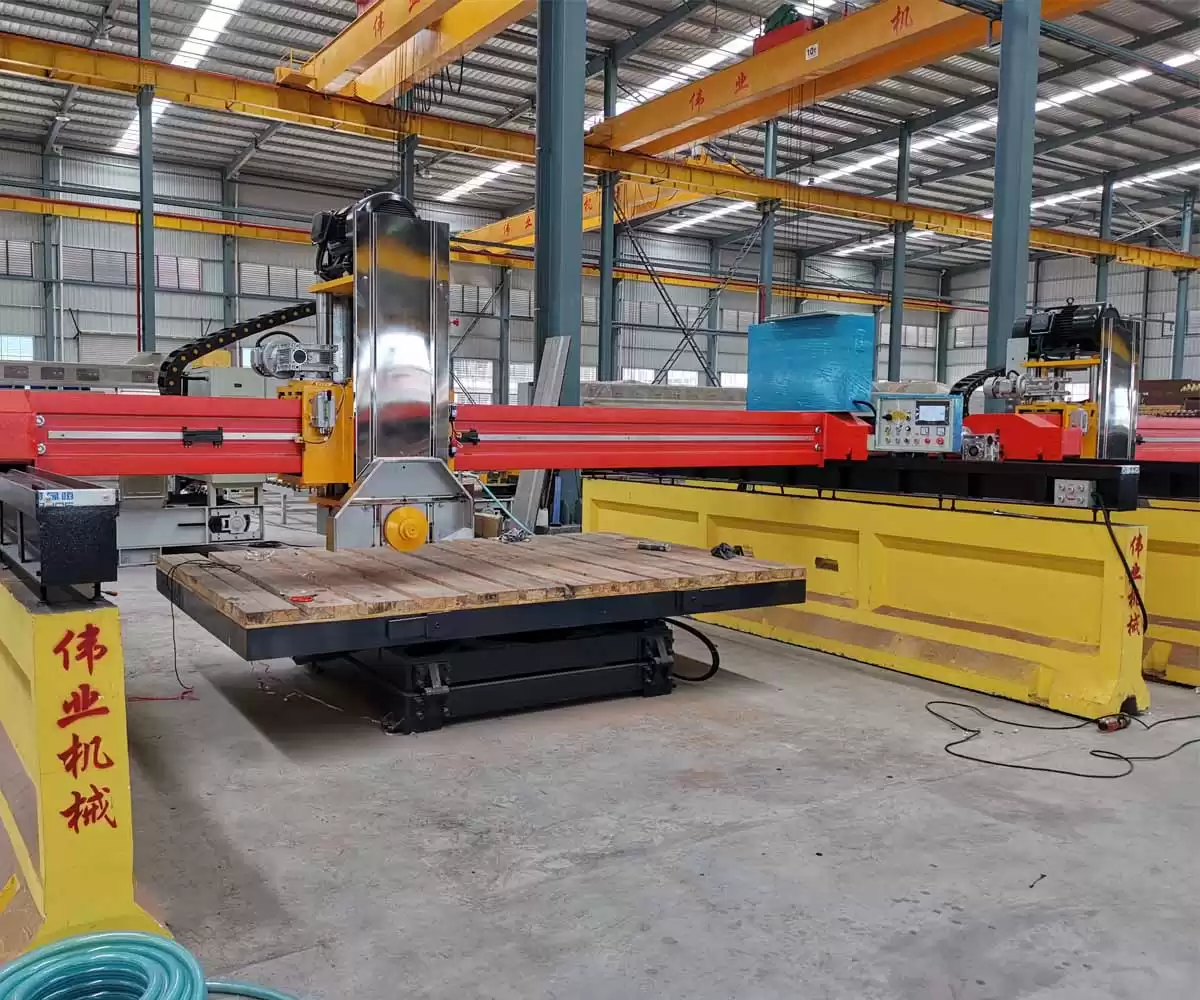

Product Name Super Fast Bridge Cutting Machine
Product Videos https://youtu.be/8jBwxEtNI38
Product specifications
|
Description
|
Unit
|
ZDQJ-450
|
ZDQJ-600
|
ZDQJ-800
|
|
Max.blade diameter
|
MM
|
Φ450
|
Φ600
|
Φ800
|
|
Max.lifting stroke
|
MM
|
220
|
350
|
590
|
|
Worktable size
|
MM
|
3200×2000
|
3200×2000
|
3200×2000
|
|
Worktable horizontal rotation angle
(Optional)
|
°
|
90°/360°
|
90°/360°
|
90°/360°
|
|
Worktable Vertical ascent angle
|
°
|
0°-85°
|
0°-85°
|
0°-85°
|
|
Water consumption
|
M³/H
|
3
|
3
|
3
|
|
Power of main motor
|
KW
|
15
|
18.5
|
22
|
|
Total power
|
KW
|
21
|
24
|
28
|
|
Dimension(L×W×H）
|
MM
|
6000×4800×3100
|
6000×4800×3300
|
6000×4800×3300
|
|
Weight(Without foundation)
|
KGS
|
5400
|
5600
|
5800
|
Products Features
|
|
|
|
|
|
Cross Bridge and Side Beam
|
Cutting System
|
Electric and Program
|
|

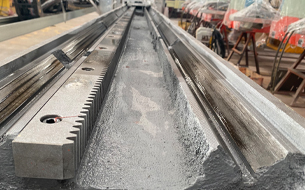

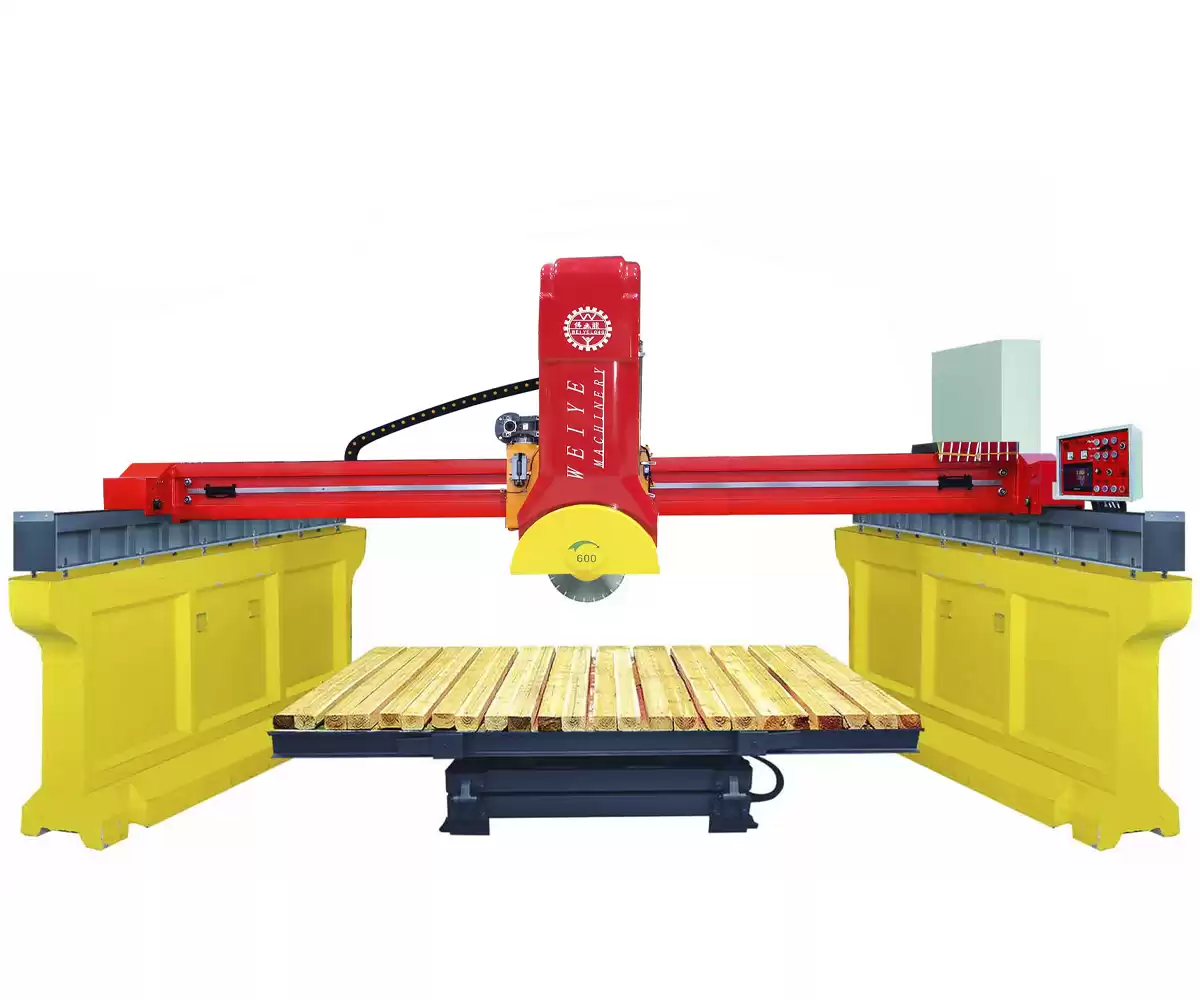

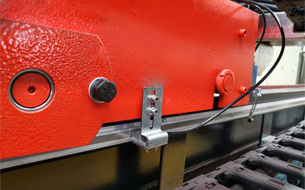

Bridge cutting machine is composed of side beams, cross bridges, worktable and lifting systems. Rely on inverter control, the motor drives the cross bridge to slip on the side beams, and the side beams are embedded with gear tracks and positioning tracks to reduce running errors of bridge, thereby ensuring cutting accuracy. The cross bridge is an important part of the whole machine. Its rigidity and wear resistance are what we must consider. Therefore, we choose pig iron for casting. The entire cross bridge is integrated, without welding. This process perfectly guarantees the wear resistance and hardness , greatly increase the service life of the machine.
|

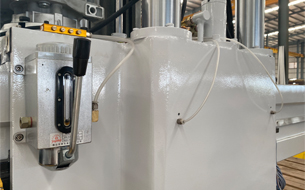

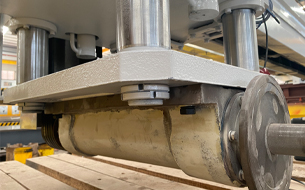

Cutting system includes a housing box, lifting pillars and a motor. The cutting motion of the machine is mainly transmitted by the multi-strand special belts to transmit the rotation of the motor to the cutting spindle, which drives the saw blade to rotate for cutting; as the main body of cutting, we attach great importance to the rotation efficiency of the housing box and the temperature change during cutting. In terms of structure, we use special steel to be high-pressure cast into the rotating spindle, and the casting is used as the housing box shell to ensure the service life and thermal conductivity.
|

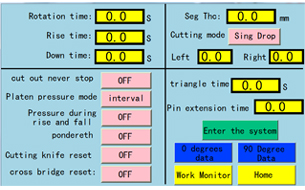

1）Bridge cutting machine series use PLC system and HDMI touch screen control, combined with ultra -high precision magnetic grid to locate and infrared device, uses inverter to control left-right running, adjusts the speed according to the stone material.
2）The operating program is the soul of the machine. We have equipped this machine with an automated operating program. This program integrates fully automatic operation, fault detection, and data statistics to achieve an intelligent human-computer interaction experience. And it is mounted on the world first class PLC control platform to accurately calculate the cutting path, optimize the cutting efficiency, and ensure the cutting quality.
|
our advantage
1)Average annual sales over 300 sets of bridge cutting machines;
2)Cutting error range is within 0.5mm.
Quality Service
We provide free installation service and one year warranty time to our customers.

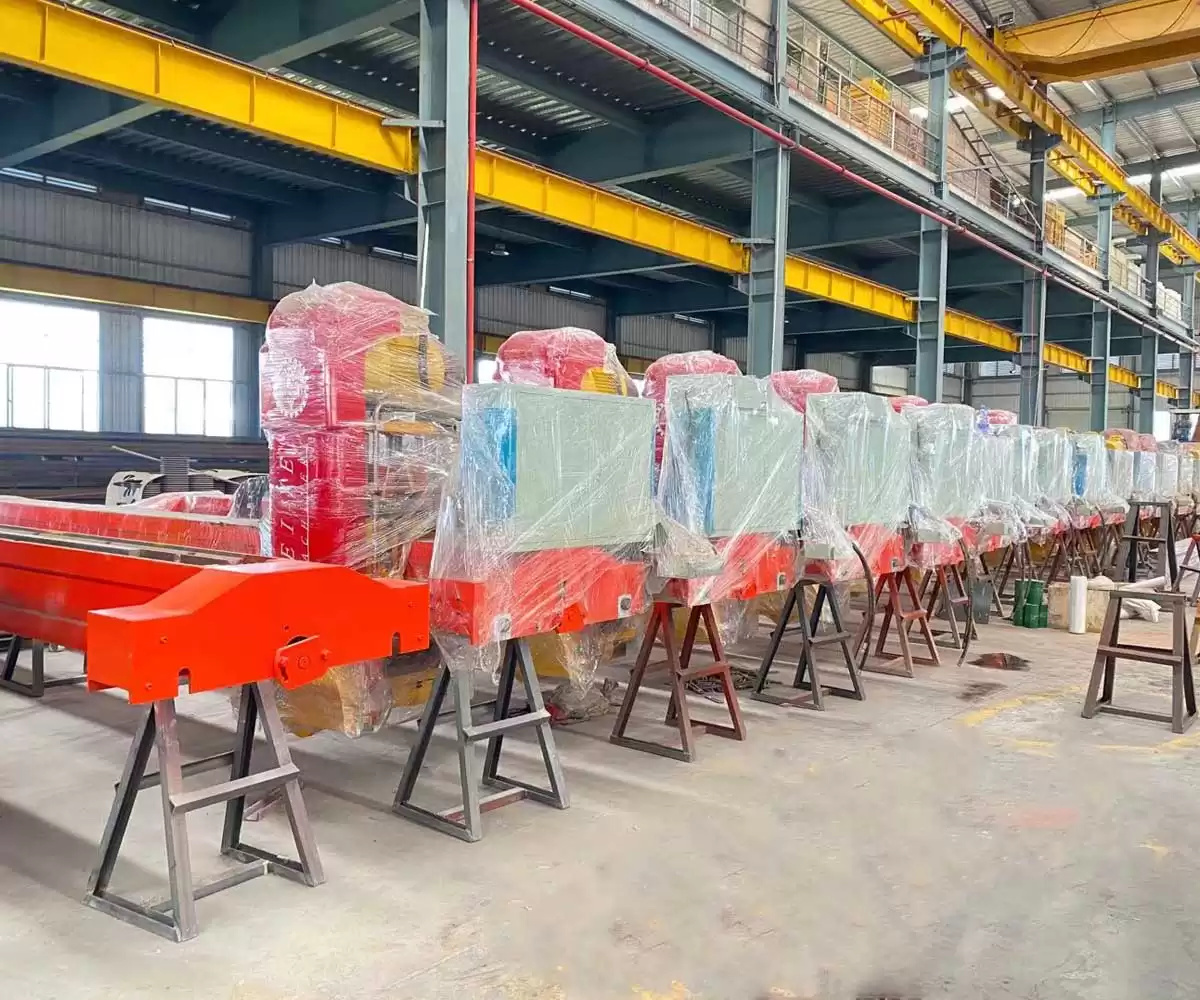

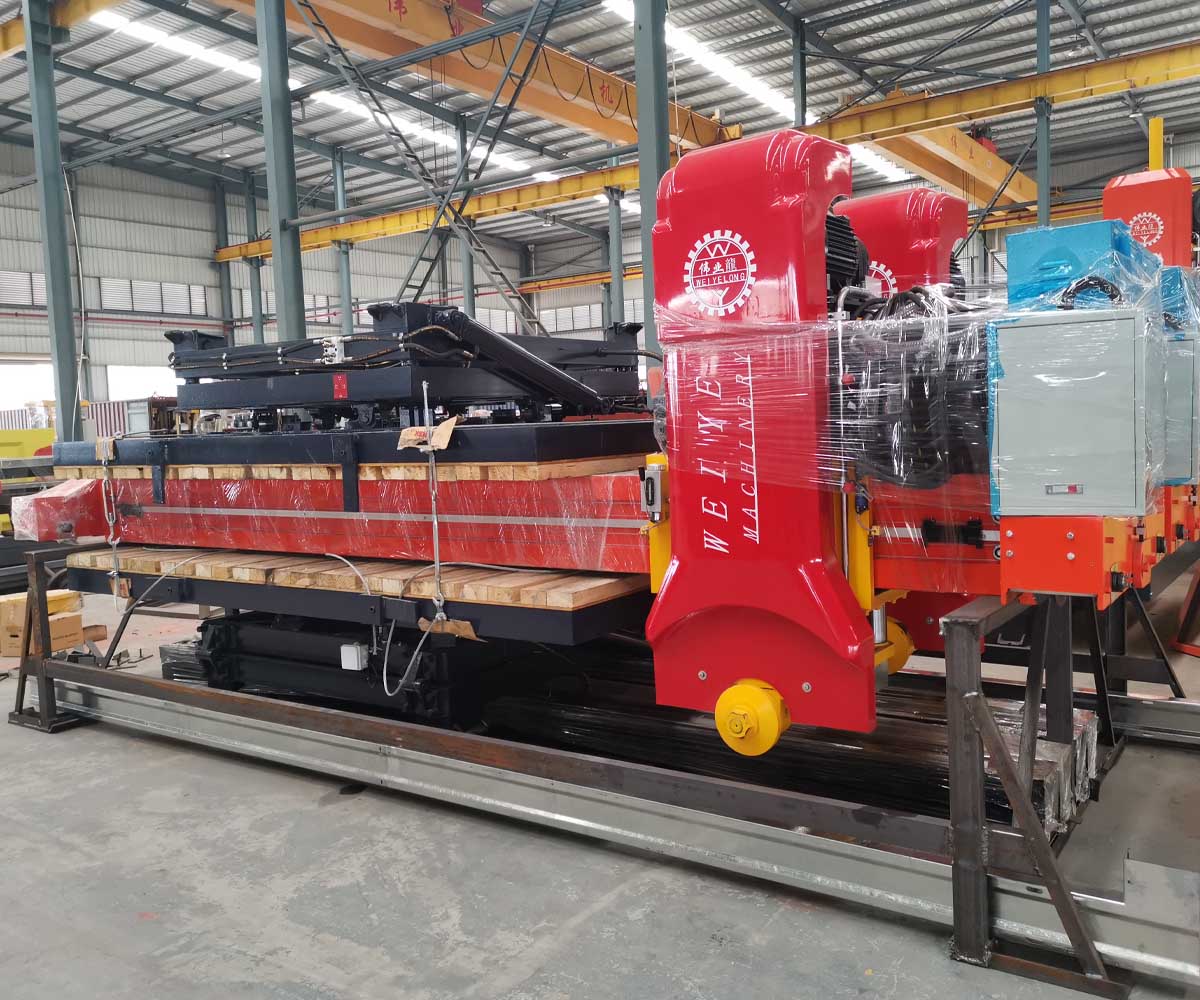

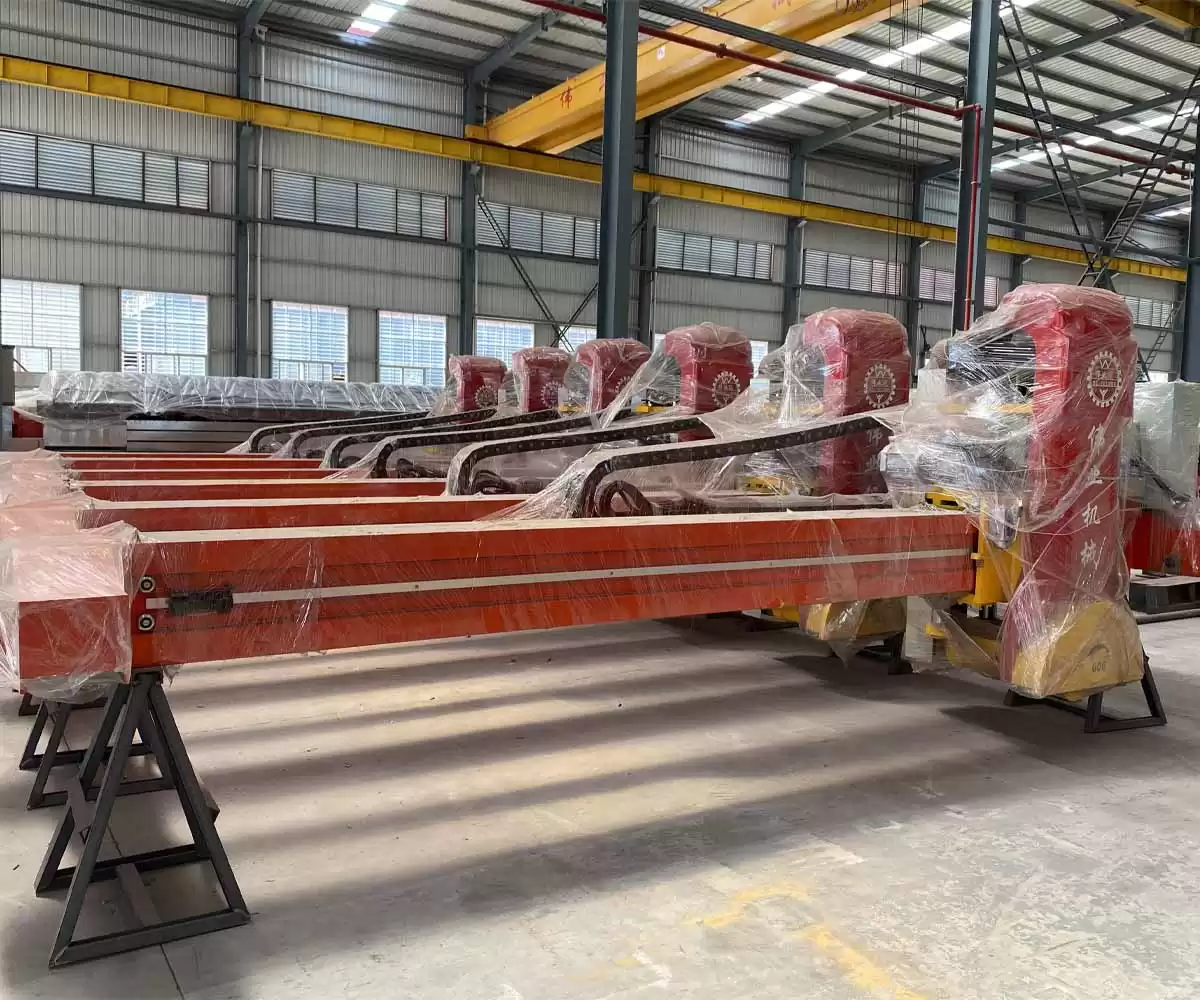

Packaging and shipment
Waterproof plastic film, well fixed in container suitable for long transportation.
FAQ
Q: When will you ship my order ?
A: Normally 7-10 days after deposit received, If urgent, it can be negotiated further.
Q: Does this machine pass CE certificate?
A: Yes, this machine passed European CE certificate and meet safety standard.
