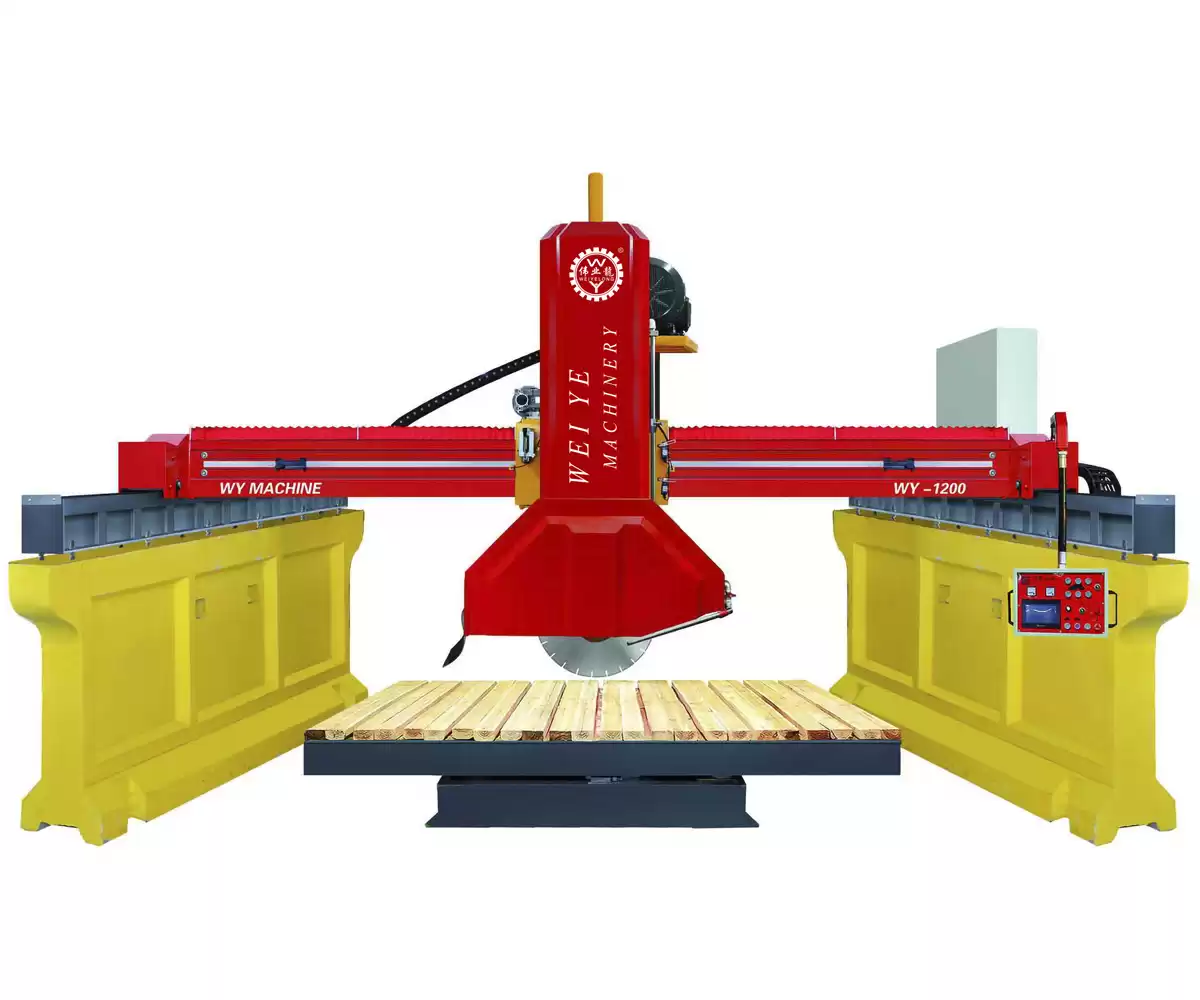

Product name:Super Large Bridge Cutting Machine
Product Specifications
|
Description
|
Unit
|
ZDQJ-1200
|
ZDQJ-1600
|
ZDQJ-1800
|
|
Max.blade diameter
|
MM
|
Φ1200
|
Φ600
|
Φ800
|
|
Max.lifting stroke
|
MM
|
820
|
950
|
950
|
|
Worktable size
|
MM
|
3200×2000
|
3200×2000
|
3200×2000
|
|
Worktable horizontal rotation angle
(Optional)
|
°
|
90°/360°
|
90°/360°
|
90°/360°
|
|
Max.processing height
|
MM
|
30
|
30
|
30
|
|
Water consumption
|
M³/H
|
4
|
4
|
4
|
|
Power of main motor
|
KW
|
30
|
30
|
30
|
|
Total power
|
KW
|
35.5
|
38.5
|
38.5
|
|
Dimension(L×W×H）
|
MM
|
6400×4800×4400
|
6400×4800×5100
|
6400×4800×5300
|
|
Weight(Without foundation)
|
KGS
|
6100
|
7100
|
7300
|
Product Features
|
|
|
|
|
|
Workbench
|
Lifting Pillars
|
Electrical
|

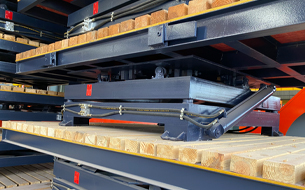

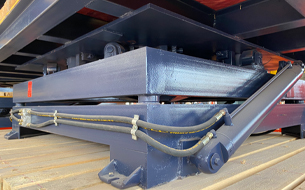

As the carrier of the stone blocks, the workbench must have a good load-bearing capacity; WEIYE uses high-strength H-shaped steel to weld the base of the workbench; a whole piece of thick iron plate is used to make the reference surface of the workbench, which strongly guarantees the workbench’s flatness and load-bearing capacity of the table. The worktable can be rotated 90° in the horizontal direction, and the rotating work is controlled by the hydraulic system, which is powerful and precise.
|

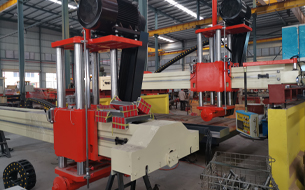

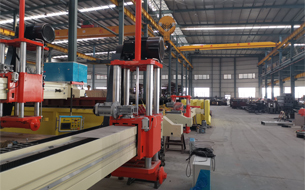

Lifting system of the machine consists of a hydraulic pump station and lifting pillars.After CNC precision machining ,lifting pillars get high accuracy and small error; supplemented by the combination of chrome-plated guide pins and wear-resistant guide sleeves, the gap is small, wear-resistant, beautiful in structure,which can strictly ensure the precise cutting of the machine; the hydraulic pump station is the hub of the lifting, we use a large-capacity oil tank to ensure that the oil is sufficient during the lifting process, and the lifting movement is smooth and free of jams.
|

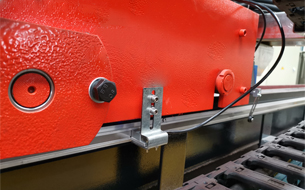

1）Bridge cutting machine series use PLC system and HDMI touch screen control, combined with ultra -high precision magnetic grid to locate and infrared device, uses inverter to control left-right running, adjusts the speed according to the stone material.

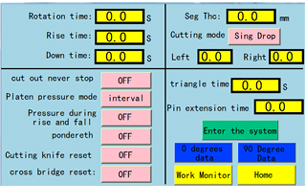

2）The operating program is the soul of the machine. We have equipped this machine with an automated operating program. This program integrates fully automatic operation, fault detection, and data statistics to achieve an intelligent human-computer interaction experience. And it is mounted on the world first class PLC control platform to accurately calculate the cutting path, optimize the cutting efficiency, and ensure the cutting quality.
|
our advantage
1)Average annual sales over 300 sets of bridge cutting machines;
2)Cutting error range is within 0.5mm.
Quality Service
We provide free installation service and one year warranty time to our customers.
Packaging and shipment
Waterproof plastic film, well fixed in container suitable for long transportation.
FAQ
Q: When will you ship my order ?
A: Normally 7-10 days after deposit received, If urgent, it can be negotiated further.
Q: Does this machine pass CE certificate?
A: Yes, this machine passed European CE certificate and meet safety standard.
