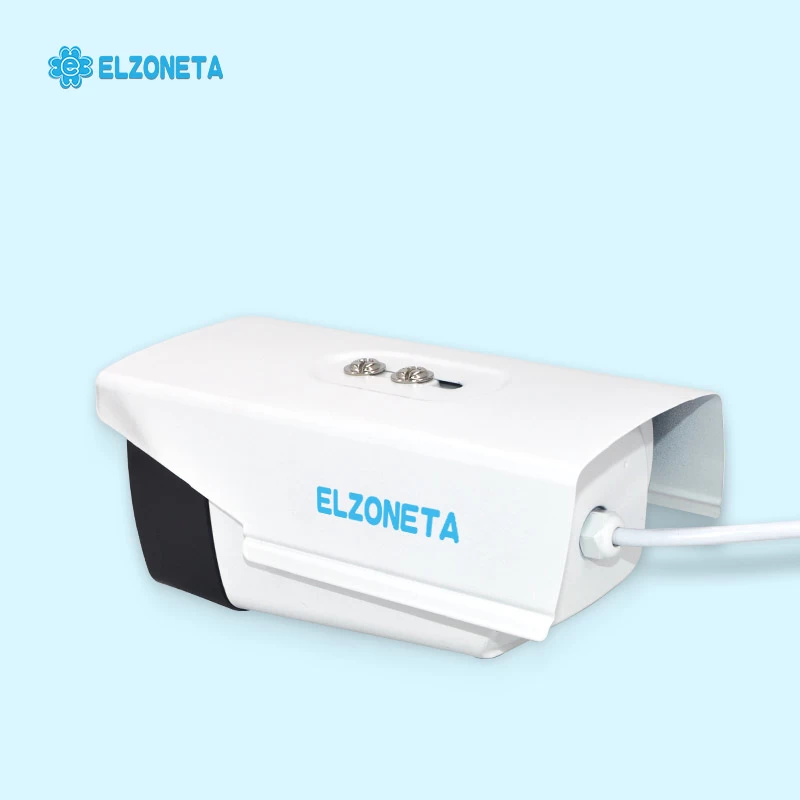

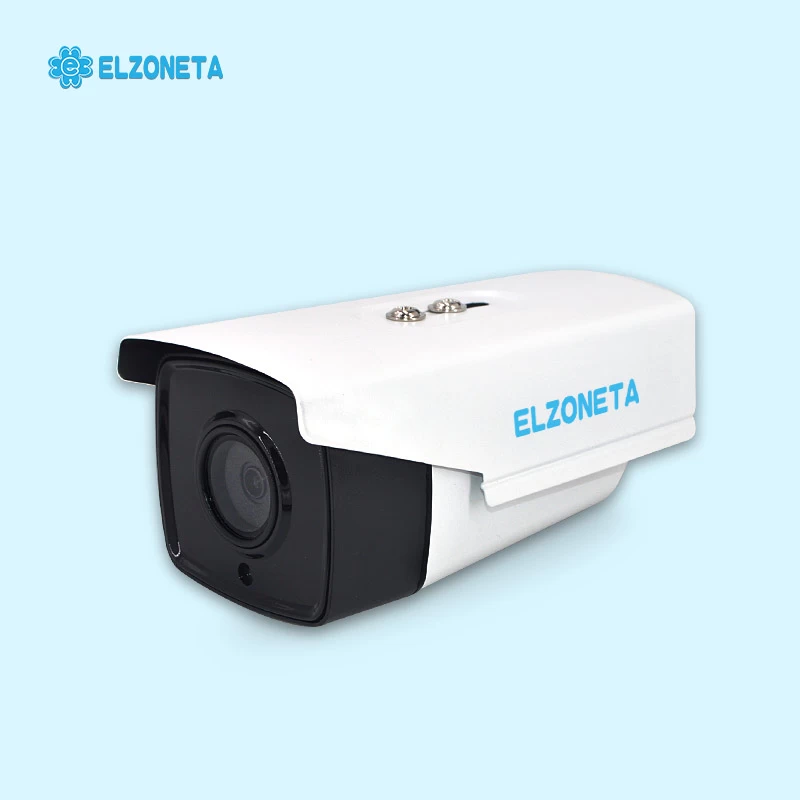

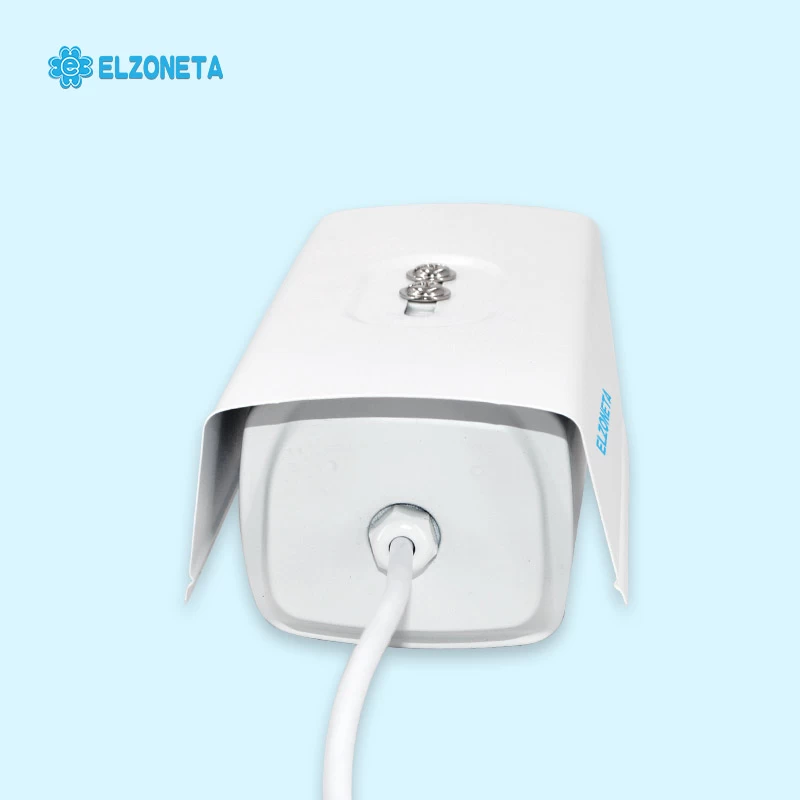

EC-G07S5-CXG Colored night vision Bullet Camera
IP Surveillance Camera is a trend for CCTV Security Camera System now. Especially this Super Light Bullet Camera is the main product recently. It can show you a colorful night vision view when you monitoring, providing a valuable new dimension of detail to security monitoring at night.
Product information
Image sensor:SONY STARVIS 1/2.8"
Video resolution: primary bit stream:1920×1080,1280×960,1280×720，bit stream : 704×576,800×448,640×480,640×360,352×288;
Pixel:2.0MP
Compression:H.265+/H.264/JPEG
Frame rate:25fps，7-30fps adjustable
Video bit rate:56Kbps～6Mbps adjustable ,can storage 4-8G in one day.
Lens
Viewing angle
4mm:horizontal 91.4°vertical 47.7°diagonal 107.3°
6mm:horizontal 56.1°vertical 30.8°diagonal 65.4°
Features
Auto exposure:Support
Auto gain control:Support
Auto white balance:Support
3D DNR:Support
OSD information setting:Support OSD big font function , OSD and time can be set separately
Network timing:Support
QR code scan:Support to create the QR code and scan to add equipment
Timing restart:Support
Intelligent fog removal:Support
ROI coding:Support ROI enhancement coding and enhancement exposure
Privacy masking:Can mask 4 areas at the same time
Motion detection:Support
Image setting:Contrast, Brightness, Saturation, Acutance are adjustable
Scene switching:Support 4 scene switches: indoor, outdoor, default and soft
Day and night function:Colorful at night vision
Screen setting:Support exposure time setting
Night vision optimization:Support
Software WDR:Support
Picture setting:Mirror image, reversal image
IP adaptive technology:Support automatically adapt IP address optional function
Detection alarm:Email alarm push, clients alarm push
Remote control:System management, Bit stream management, User management, Network management
External extended interface:Audio Input
Network
Network:1 RJ45 10M/100Mbps self-adaptable Ethernet port
Video coding:1080P, 720P, Internet
Network Protocol:HTTP,TCP/IP,ICMP.RTSP,RTP,UDP,RTCP,SMTP,FTP,DHCP,DNS,PPPOE
Control protocol:ONVIF
Web Browser:Support IE8+,Chrome18+,Firefox5.0+,Safari5.02+ . Support Chinese and English
Preview video:32 CH at the same time
User rights:Administrator, Ordinary user, Visitor
Other Features
Infrared light:NO
Level of Protection:IP66
Power supply:DC 12V
Operating Temperature:-20℃~+60℃
Operating Humidity:10%~90%
Power consumption:Daytime: ＜3W; Night: ＜6W
Color / Material:Aluminium alloy
Size(W×H×D)(mm):85 × 75 × 160
Weight:500g
Product Guarantee:2 years
