Specification

LIGHT SOURCE

Lamp: Lamp:126pcs*3w LED (R:42 G:42 B:42)

Lifespan: 50,000H

OPTICS

High precision plastic optic system

Beam angle: 10°

COLORS

RGB linear color mixing

Color in each module can be independently controlled

MOVEMENT
Pan movement: 540° optional (16 bit )

Tilt movement: 270°(16 bit )
Advanced moving system: auto repositioning, fast, quiet and smooth

FEATURES

Dimmer: 0-100% linear electronic dimmer

Strobe: 1-25Hz or random

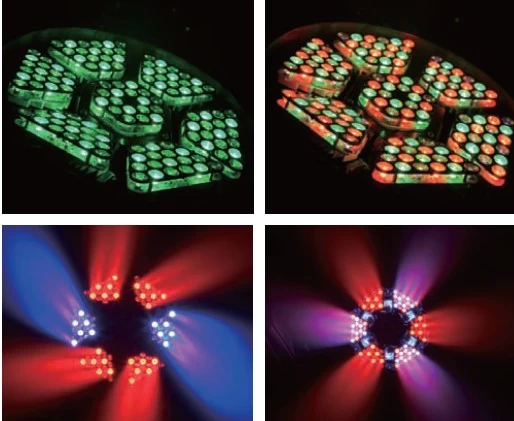

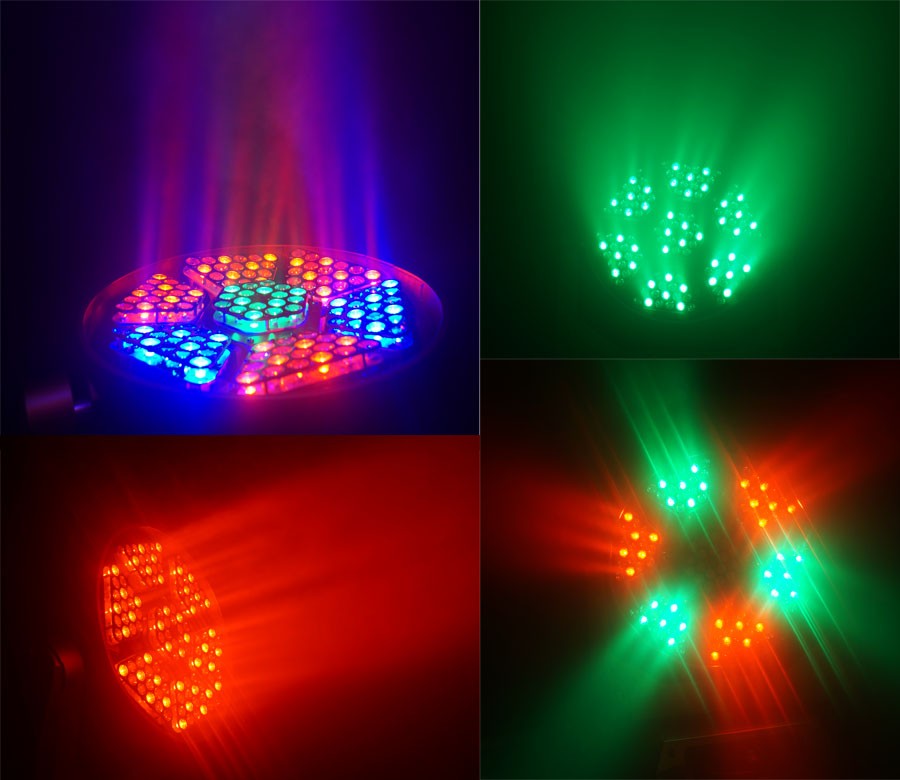

7 individual module controlled by dmx

6 movement module in 30 degree in pan and tilt + 1 static module(in middle)

Surrounding circle connecting 7 module can rotate unlimited

DISPLAY

2.8 inch full color touch LCD screen, show customer logo

15 second standby auto lock

SOFTWARE

Control mode: DMX512, master-slave, auto-run, sound activate

Channel: 23CH/ 21CH（Standard）/ 35CH(image)/78CH(Extensible) / 97CH(RGBW Extensible) / 92CH(Full)

OTHER SPEC

Fixture and lamp usage time display

Highly positioning precision

Adjustable fan speed

Built-in analyzer for easy fault finding, error messages

Input signal isolating protection

Auto thermal protection circuit

Housing: high temperature UV resistant ABS

POWER
Voltage: AC100-240V, 50/60Hz

Power Consumption: 450W@220V

DIMENSIONS AND WEIGHT
Fixture dimension: 58x30x60cm

Packing dimension:

                         66x39x71cm(Carton)

                         63x39x82cm(1 in 1 flightcase)

                         62x70x82cm(2 in 1 flightcase)

Net Weight:         22kg

Gross Weight:

                        24kg(Carton)

                        44kg(1 in 1 flightcase)
