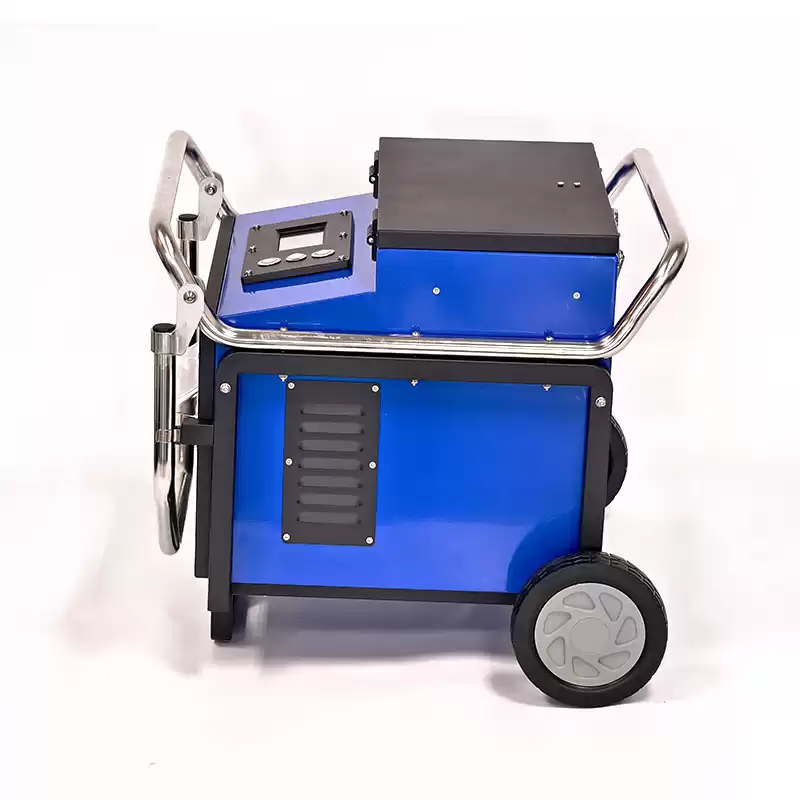

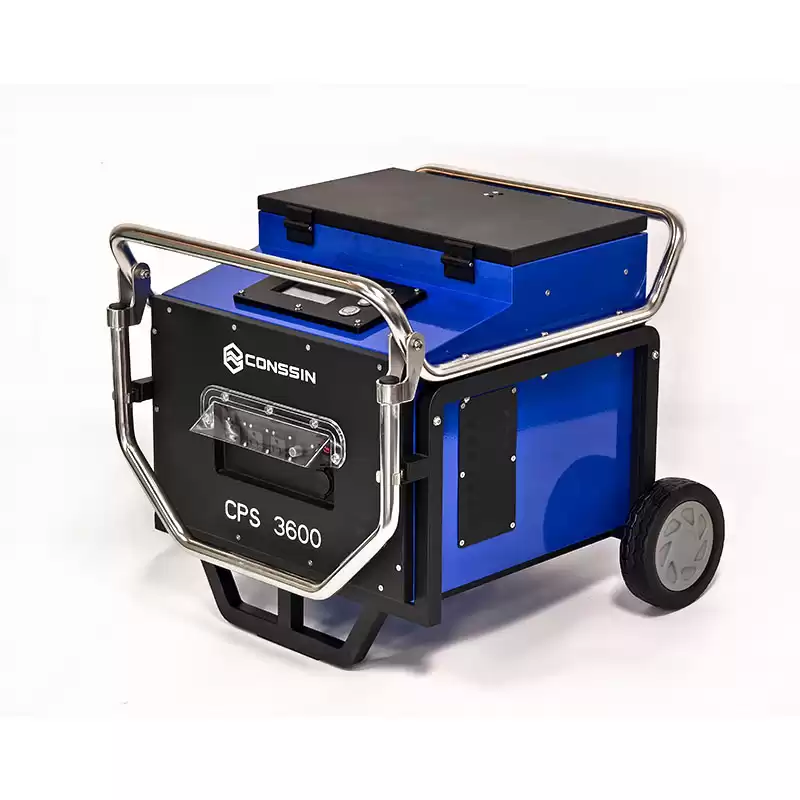

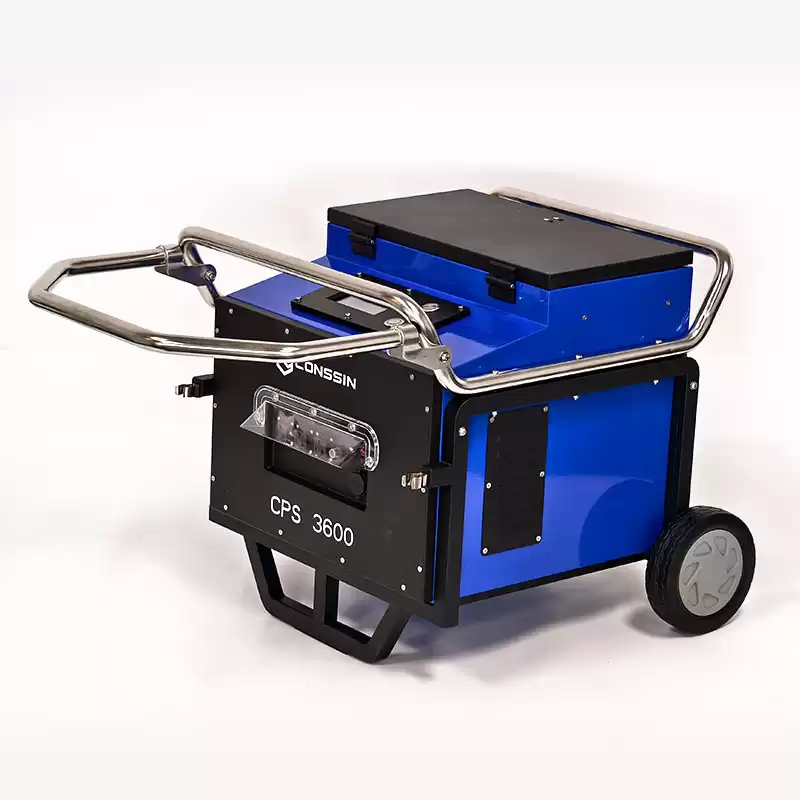

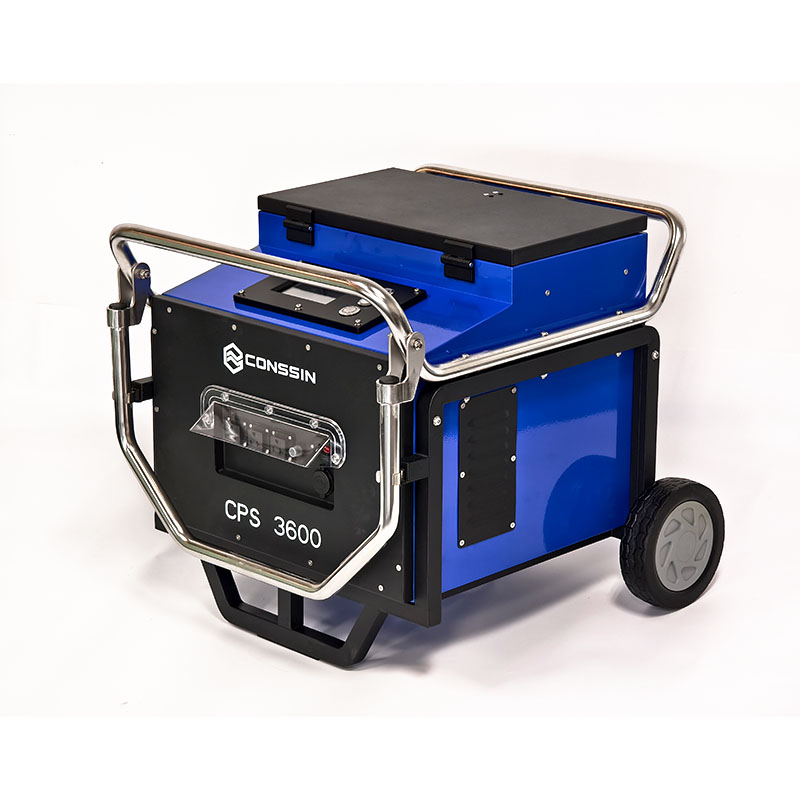

Swappable Power Station CPS-3600

Construction Site, Continuous Operation, Solar Charging, Swappable Cells

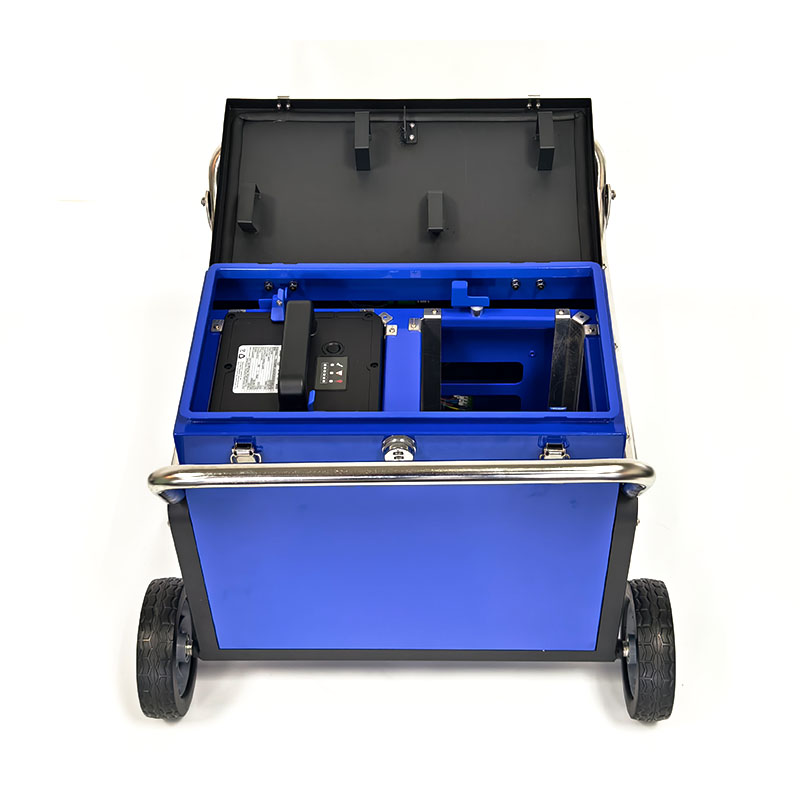

◆ Featuring a double cell slot design that allows you to swap cells at the work site

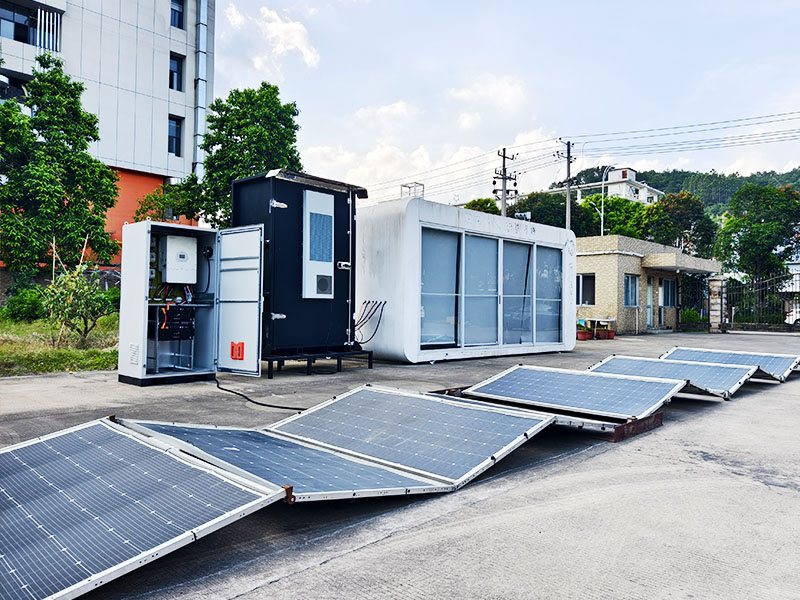

◆ Can be charged via solar panel

◆ It uses highly safe lithium iron phosphate cells

◆ High discharge rate

◆ Two devices can be parallel connected to achieve a maximum power of 12000W

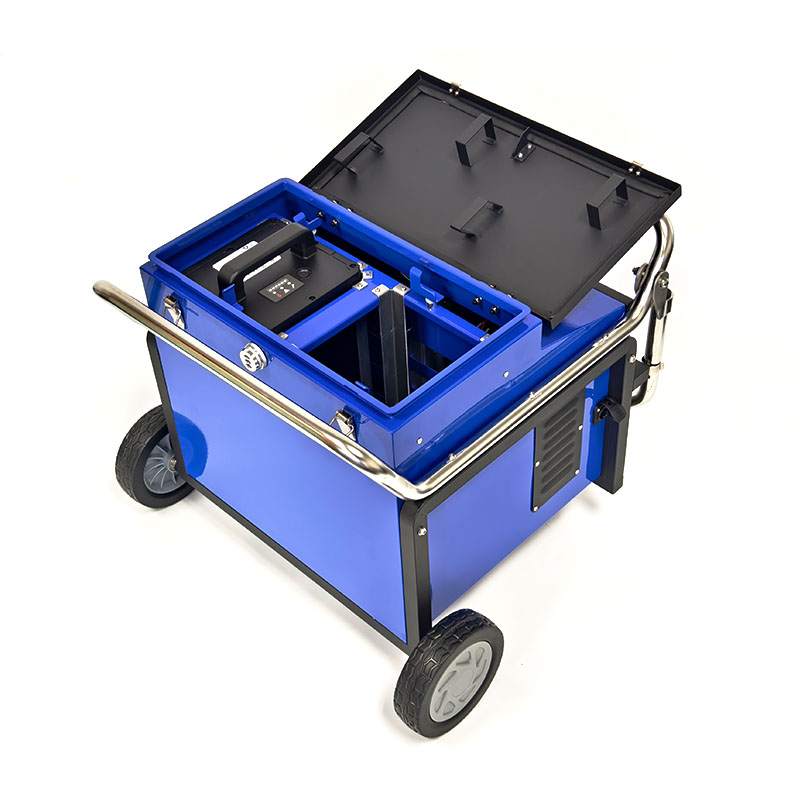

The key feature of CPS-3600 power station is that it contains two swappable cells which can operate simultaneously or solo, allowing you to partially reduce its weight when the load is small, and release its full potential when the work requires prolonged energy supply.









Rated capacity3072Wh

Power: 3600W

Overload power: 3600W

AC outlet: 125V grounded 2P x 2

DC outlet: USB-A x 1, USB-C x 1

AC charging time: 3 hours

Solar charging: up to 800W

Expansion : Use parallel cord to enable parallel operation with two units.

Cycle life: Capacity ≥80% after 2000 charge-discharge cycles (under the condition of 25℃ ambient temperature)

Fire extinguishing device: Aerosol type (oxygen cutoff)

UPS (Uninterruptible Power Supply): Operation switching time ≤10ms (milliseconds)

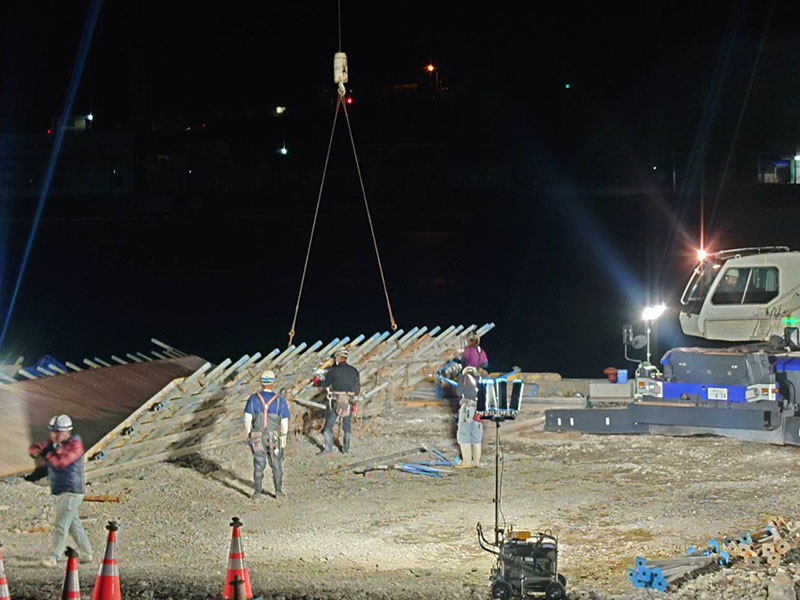

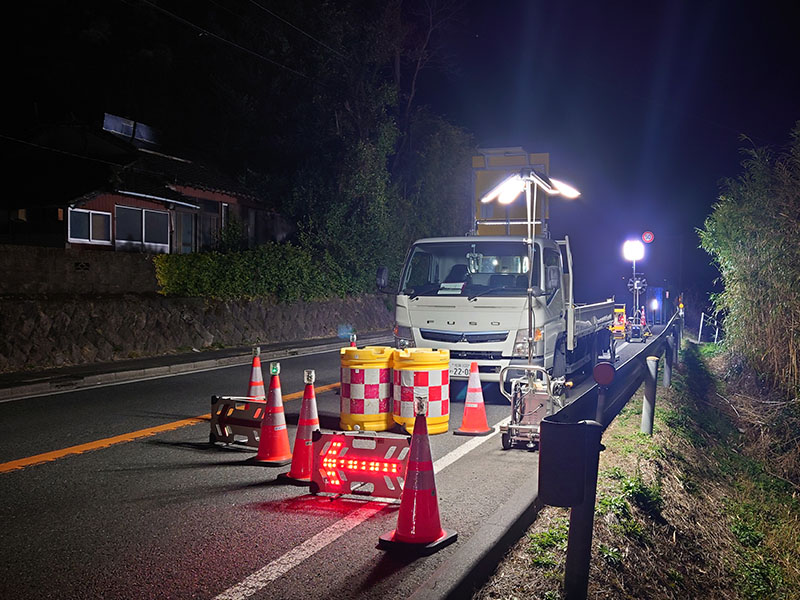

Application scenarios



製品規格

Model  CPS-3600
Rated capacity  3072 Wh
Rated power  3600 W
Charging time  ≈3 hours (under the condition of 25℃ ambient temperature)
Weight  ≈65kg
Dimension  L614 x W642 x H536 mm
Battery type  Lithium iron phosphate ion(LFP)
IP rating  IP54
IK rating  IK09
Rated voltage  100VAC ±4%
Rated current  36A
Frequency  50Hz/60Hz
Outlet type  125V・grounded 2P × 3 port
