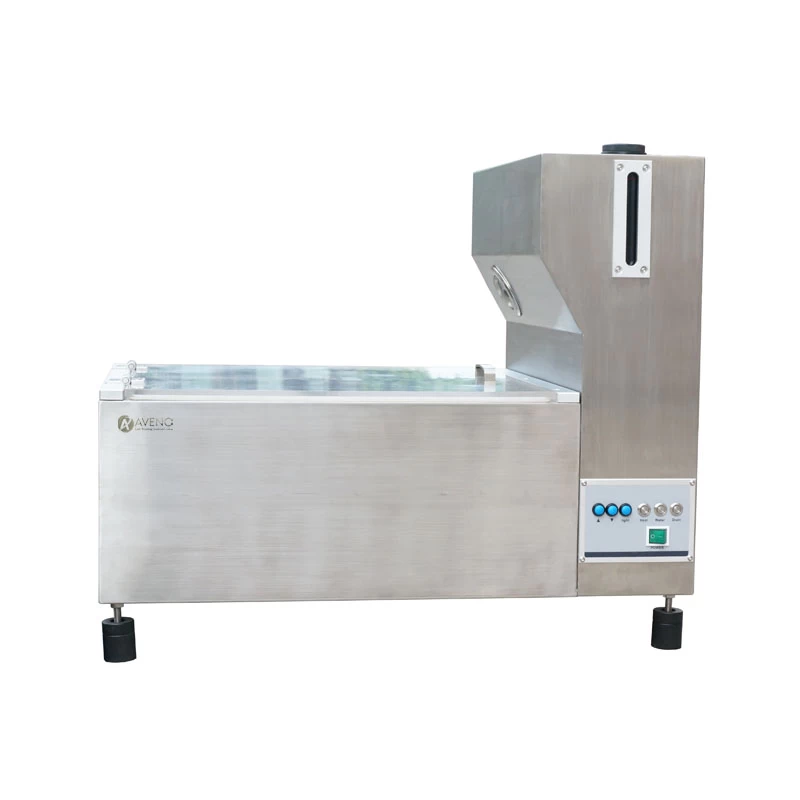

AG48-Sweating Guarded Hot Plate Tester
Application Of Sweating Guarded Hot Plate Tester
Sweating Guarded Hot Plate Tester is used to test the thermal and evaporative of clothing material.
Test Principle Of Sweating Guarded Hot Plate Tester
Under standard test environment, heat the fixed aluminum or copper plate and keep a fixed temperature, test the heating power, then test the power of the same situation after covering the sample cloth, to get the hermal and evaporative of clothing material.
Feather Of Sweating Guarded Hot Plate Tester
-
With a heat plate fully simulated human skin mechanism, Easy to clean.
-
Automatic water supply system, can ensure the stability of the water supply and does not leak do not require any adjustment.
-
Instrument can automatic adjustment of PID control parameters based on sample thickness to achieve the test conditions.
-
Wind speed continuously adjustable from 0-1.2m/s, to meet variety test standard for thermal resistance, wet resistance and heating performance test.
-
The width of the thermal protection ring is 127mm to ensure that the heat flow is transmitted only from the test sample
-
Can connect WIFI with computer.
Standards Of Sweating Guarded Hot Plate Tester
GB/T11048, ISO11092, ASTMF1868-09, BS8515, ASTMD1518-2014, JIS L1096-2010, ASTM F 1868-02
Key Specification Of Sweating Guarded Hot Plate Tester
|
Model
|
AG48
Sweating Guarded Hot Plate Tester
|
|
Thermal resistance (RCT) range
|
0.002~2.0
m2.K/W
|
|
Wet resistance (RET) range
|
0~1000
m2.Pa/W
|
|
Test board temperature range
|
30℃~40℃, adjust
|
|
Temperature precision
|
±0.03℃
|
|
Wind speed
|
0-1.2m/s,
continuous adjustable
|
|
Wind speed precision
|
±1%
|
|
Test sample thickness
|
0-50mm
|
|
Test plate area
|
254mm×254mm
|
|
Sample area
|
512mm×512mm
|
|
Thermal ring width
|
127mm
|
|
Power supply
|
AC220V,
50/60HZ
|
|
Dimension
|
73×61×35cm
|
|
Weight
|
60Kg
|
Accessories Of Sweating Guarded Hot Plate Tester
|
Standard Accessories
|
Lab test analysis software
|
1set
|
|
Test film
|
100pcs
|
|
Power line
|
1pc
|
|
Option Accessories
|
AE01 Temperature & Humidity Test Chamber
|
|
