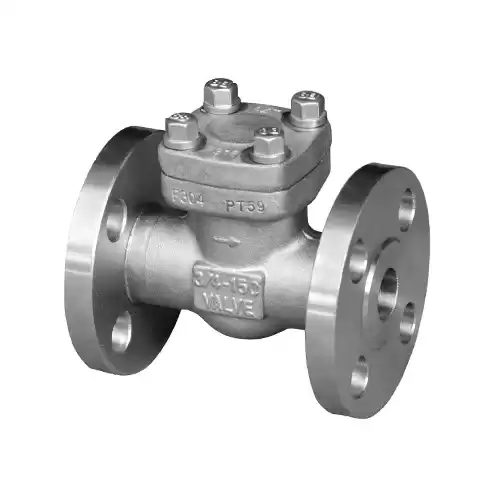

Swing Check Valve ¾Inch 150LB F304

API602 Forge Swing Check Valve

¾Inch, 150LB, F304, F304+STL

Manufacture STAVAL Factory Offers.


  • End ConnectionBW, Flange, SW, NPT, PE
  • BoreFull Bore
  • ConstructionBolt/Weld Cover, Full Open
  • Material RangeCarbon Steel,Stainless Steel,Alloy Steel,Bronze
  • Pressure Range150LB ~ 2500LB (PN16 ~ PN420)
  • Size Range½Inch ~ 2Inch (DN10 ~ DN50)
  • Working Temp.-196°C to +600°C

Key Specification

Type

Swing Check Valve

Size

¾Inch

Pressure

150LB

Construction

Bolt Cover, Full Bore

Connection

RF End

Body/Cover Material

A182 F304

Disc Material

A182 F304

Hinge Material

A182 F304

Seat Material

A182 F304+STL

Bolt/Nut

B8/8

Design Standard

API602

Face to Face Dimension

ASME B16.10

End Connection

ASMEB 16.5

Inspection & Test Std.

API598

Temperature Range

-29℃~+540

Medium

Oil, Water, Gas

EN10204 3.1 Certificate Issued By STAVAL



Inspection Report Issued By STAVAL
