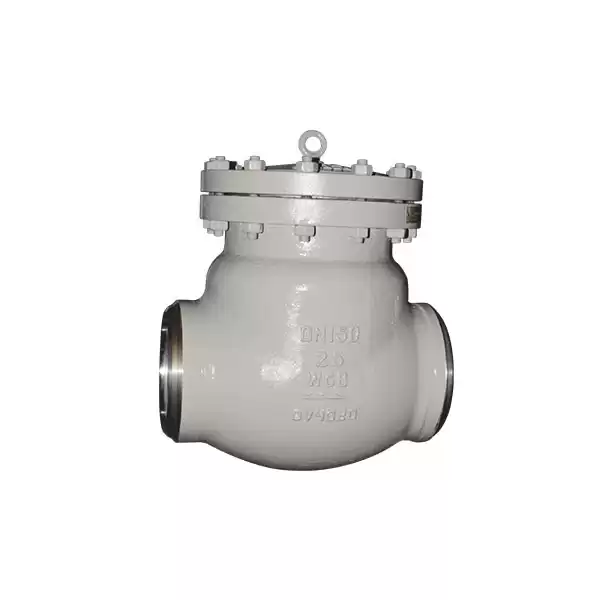

Swing Check Valve DN150 PN25 WCB

BS 1868 Swing Check Valve

DN150,PN25, WCB, WCB+13Cr

Manufacture STAVAL Factory Offers.

Key Specification

Type	Swing Check Valve
Size	DN150
Pressure	PN25
Construction	Bolt Bonnet, Full Bore, Full Open, Internal Hinge
Connection	BW End
Body/Cover Material	A216 WCB+13Cr
Disc Material	A216 WCB+13Cr
Hinge Material	A216 WCB
Hinge Pin Material	A182 F6a
Bolt/Nut	B7/2H
Design Standard	BS1868
Face to Face Dimension	DIN3202
End Connection	EN1092-1
Inspection & Test Std.	EN12266-1
Temperature Range	-29℃~+425℃
Medium	Oil, Water, Gas

EN10204 3.1 Certificate Issued By STAVAL

Inspection Report Issued By STAVAL
