General Description

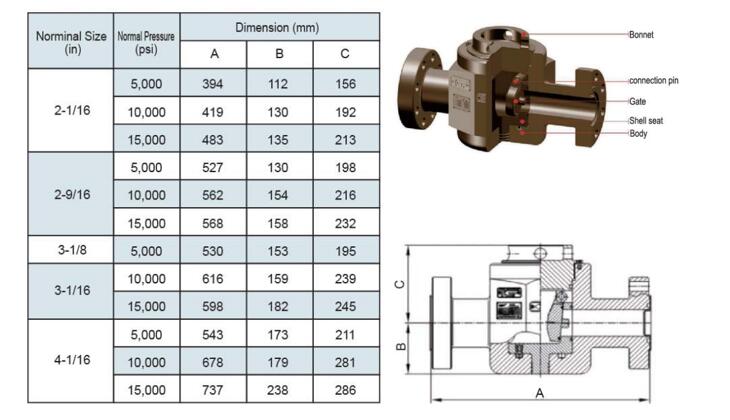

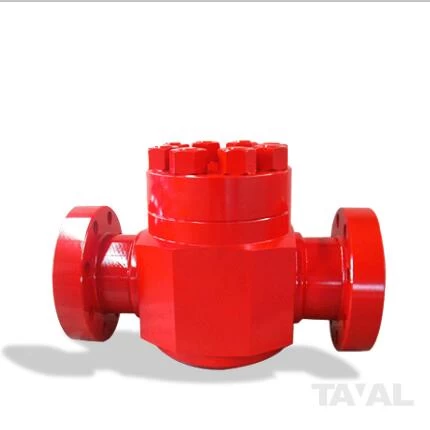

Swing check valve is mainly made up of bonnet,connection pin,gate, shell seat and valve body.It adopts inter rocker arm swing structure. The valve disc rotates around the axis of rotation.
Specifications
Design & Manufacture：API SPC 6A
Connection：Threaded , Flanged or Union connected
Nominal Diameter: 1-13/16''~4-1/16"
Working Pressure: 3000PSI~15000PSI
Material grade: AA-HH
Body Material: Carbon steel 10#,20#,1045; Low-alloy steel ASTM4130; Stainless steel 410,17-4PH,316;YG8;CRA,CRAb
Application
Swing Check Valve is suitable for clean medium. It should not be used for medium containing solid particles or high viscosity. Swign check valve's fluid resistance is generally less than the lift check valve. so it is suitable for large bore application.
Structure Features:
1.Full bore design.Fluid pressure is almost unimpeded when the swing check valve is in fully open condition;
2.Disc could be removed as a whole, effectively reducing the workload of site maintenance;
3.The maintenance-free design eliminates the need for maintenance during the service life;
4.The sealing face is made of hard alloy with great erosion resistance;
5.With Integral forged body the valve could be applied in all pressure ratings;
6.Straight-through structure reduces erosion from medium to valve body.
