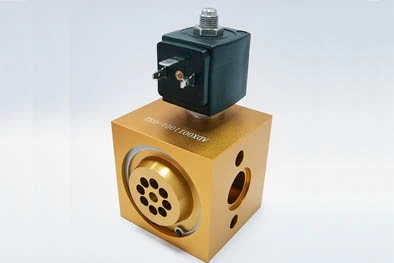

Characteristics MQZ7 Switchgear
Electromagnet Coil
* Easy to fix and connect to
the load
* The risen temperature is
stable so as to prolong lifetime and guarantee excellent performance
* Anti-friction ensures high
efficiency and long lifetime
* MQZ7 is thermosetting
coated with excellent temperature tolerance and protection level IP65
|
Coil voltage
|
220、110、48、12VDC
|
|
Coil aperture × coil height
|
Φ14.5mm×37mm
|
|
Operating frequency
(Power-on duration<1s)
|
Continuous working（ED100%）
|
|
Temperature rise limit
|
≤60 K
|
|
Withstand voltage of insulation
|
AC2000V，1min
|
|
Protection level
|
IP65
|
|
Environment
|
Attitude
|
≤1000m
|
|
Temperature
|
-40℃ ～ +120℃
|
|
Humidity
|
≤95%
|
|
Pollution degree
|
2
|
