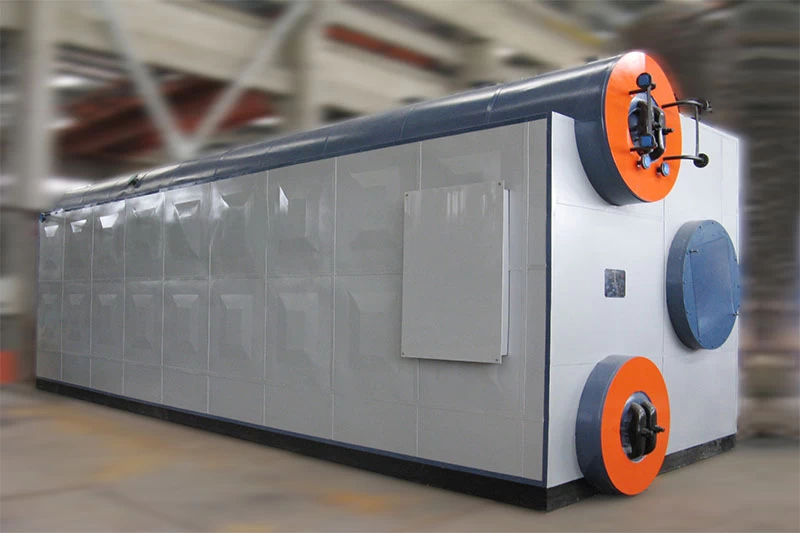

Structural features of SZS Series Gas/Oil Fired Saturated Hot Water Boilers

• The water tube boiler hearth is placed outside the barrel. The volume of the furnace can be large or small, which can meet the requirements of burning and increasing evaporation.
• The water boiler boiler drum is generally not directly heated, and the pipes containing water vapor are placed in the furnace and flue as the heating surface, and the transmission performance and safety performance are significantly improved.
• The preheating, evaporation, and superheating of the water of the boiler boiler are performed in the economizer, water wall, convection tube bundle and superheater.
• The water boiler boiler steam system, combustion system and auxiliary system are more complex, but the structure of a single pressure part is relatively simple.

Advantages of SZS Series Gas/Oil Fired Saturated Water Tube Hot Water Boilers

• Automatic control of ignition, combustion, to whom, load regulation, safety protection, etc. of the boiler, high safety, high reliability, sensitive adjustment, easy operation.
• Compact structure, small size, low metal consumption
• Adopts membrane type water-cooled wall sealing property, no dust pollution in boiler room
• Complete combustion, high thermal efficiency, low dust content in flue gas
• Quick installation, easy installation and mobile, saving infrastructure investment
• Beautiful appearance, easy disassembly, easy maintenance

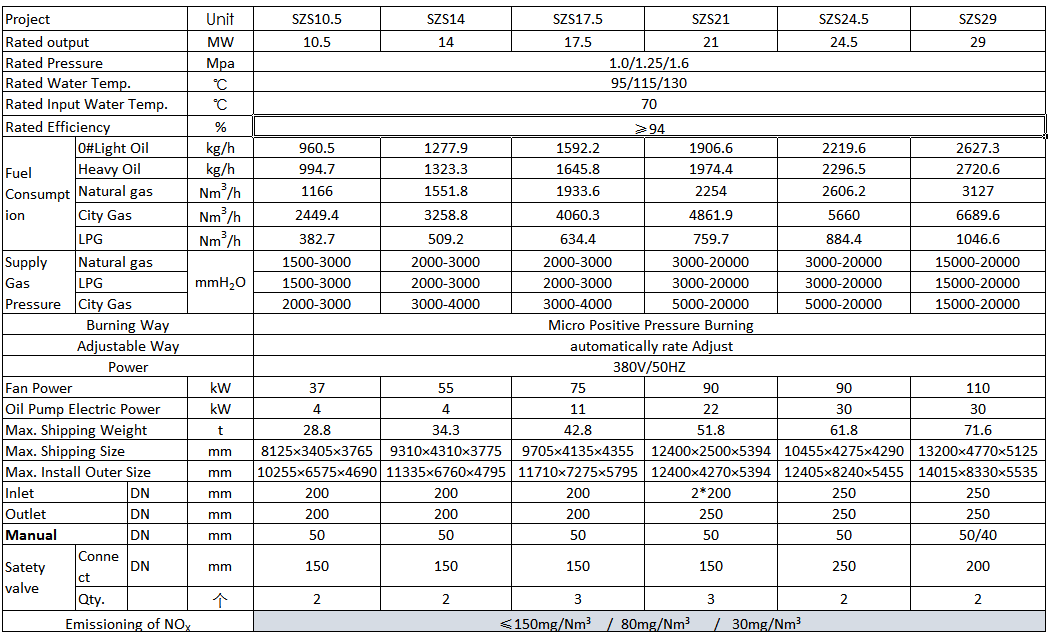

Technical Data of SZS Series Gas/Oil Fired Saturated Water Tube Hot Water Boilers

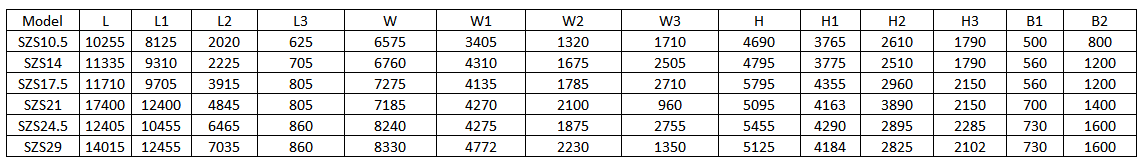

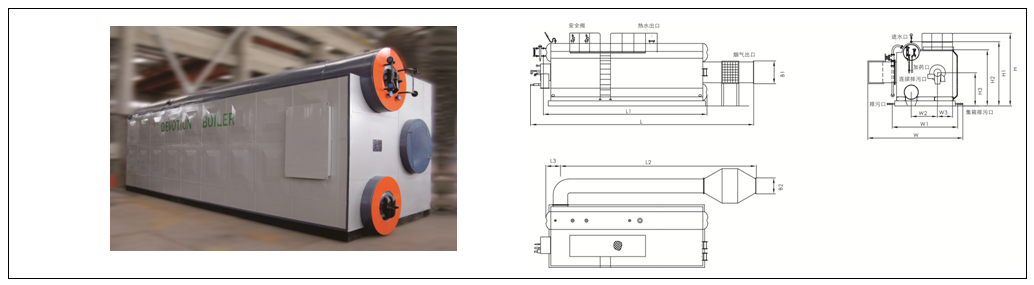

Install Dimension of Technical Data of SZS Series Gas/Oil Fired Saturated Water Tube Hot Water Boilers
