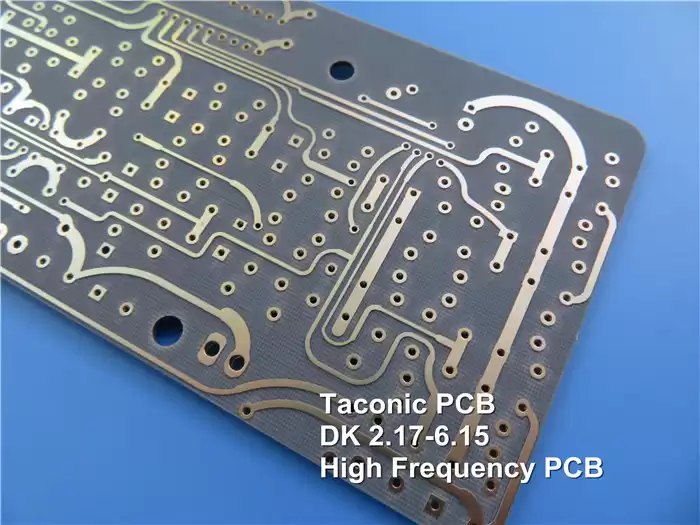

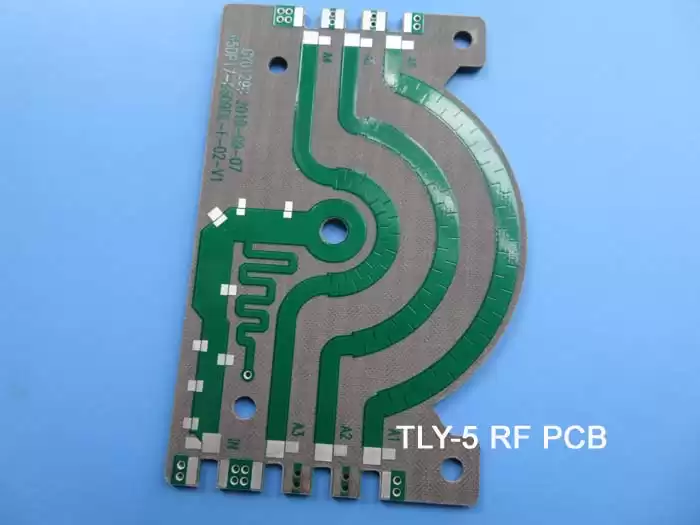

Taconic High Frequency PCB Made on TLY-5 7.5mil
0.191mm With DK2.2 for Automotive Radar
The woven matrix yields a more mechanically stable laminate that is suitable
for high volume manufacturing. The low dissipation factor enables successful
deployment for automotive radar applications designed at 77 GHz as well as other
antennas in millimeter wave frequencies.
The dielectric constant is as low as 2.17-2.20
+/-0.02, and dissipation factor is as low as 0.0009.
Benefits:
Dimensionally stable
Lowest DF
Low moisture absorption
High copper peel strength
Uniform & consistent DK
Laser ablatable
Applications:
Automotive radar
Satellite/cellular communications
Power amplifiers
LNBs, LNAs, LNCs
Aerospace
Ka, E and W band applications
PCB Specifications:
|
PCB SIZE
|
76 x 51mm=1PCS
|
|
BOARD TYPE
|
Double
sided PCB
|
|
Number
of Layers
|
2 layers
|
|
Surface
Mount Components
|
YES
|
|
Through
Hole Components
|
NO
|
|
LAYER STACKUP
|
copper
------- 18um(0.5 oz)+plate TOP layer
|
|
TLY-5 0.191mm
|
|
copper ------- 18um(0.5 oz) + plate BOT Layer
|
|
TECHNOLOGY
|
|
|
Minimum Trace and Space:
|
10
mil / 10 mil
|
|
Minimum
/ Maximum Holes:
|
0.4mm
/ 2.0mm
|
|
Number
of Different Holes:
|
0
|
|
Number
of Drill Holes:
|
0
|
|
Number
of Milled Slots:
|
0
|
|
Number
of Internal Cutouts:
|
0
|
|
Impedance
Control:
|
no
|
|
Number
of Gold finger:
|
0
|
|
BOARD
MATERIAL
|
|
|
Glass
Epoxy:
|
TLY-5
|
|
Final
foil external:
|
1oz
|
|
Final
foil internal:
|
N/A
|
|
Final
height of PCB:
|
0.25
mm ±0.1
|
|
PLATING AND COATING
|
|
|
Surface Finish
|
OSP
|
|
Solder
Mask Apply To:
|
NO
|
|
Solder
Mask Color:
|
N/A
|
|
Solder
Mask Type:
|
N/A
|
|
CONTOUR/CUTTING
|
Routing
|
|
MARKING
|
|
|
Side of
Component Legend
|
N/A
|
|
Colour
of Component Legend
|
White
|
|
Manufacturer
Name or Logo:
|
Marked on the
board in a conductor and leged FREE AREA
|
|
VIA
|
N/A
|
|
FLAMIBILITY RATING
|
UL
94-V0 Approval MIN.
|
|
DIMENSION TOLERANCE
|
|
|
Outline
dimension:
|
0.0059"
|
|
Board
plating:
|
0.0029"
|
|
Drill
tolerance:
|
0.002"
|
|
TEST
|
100%
Electrical Test prior shipment
|
|
TYPE OF ARTWORK TO BE SUPPLIED
|
email
file, Gerber RS-274-X, PCBDOC etc
|
|
SERVICE AREA
|
Worldwide,
Globally.
|
Data Sheet of Taconic TLY Material:
|
TLY TYPICAL VALUES
|
|
Property
|
Test Method
|
Unit
|
Value
|
Unit
|
Value
|
|
DK at 10 GHz
|
IPC-650 2.5.5.5
|
|
2.2
|
|
2.2
|
|
Df at 10 GHz
|
IPC-650 2.5.5.5
|
|
0.0009
|
|
0.0009
|
|
Moisture
Absorption
|
IPC-650 2.6.2.1
|
%
|
0.02
|
%
|
0.02
|
|
Dielectric
Breakdown
|
IPC-650 2.5.6
|
kV
|
>45
|
kV
|
>45
|
|
Dielectric
Strength
|
ASTM D 149
|
V/mil
|
2,693
|
V/mil
|
106,023
|
|
Volume
Resistivity
|
IPC-650
2.5.17.1(after elevated temp.)
|
Mohms/cm
|
1010
|
Mohms/cm
|
1010
|
|
Volume
Resistivity
|
IPC-650
2.5.17.1(after humidity)
|
Mohms/cm
|
1010
|
Mohms/cm
|
109
|
|
Surface
Resistivity
|
IPC-650
2.5.17.1(after elevated temp.)
|
Mohms
|
108
|
Mohms
|
108
|
|
Surface
Resistivity
|
IPC-650
2.5.17.1(after humidity)
|
Mohms
|
108
|
Mohms
|
108
|
|
Flex
Strength(MD)
|
IPC-650 2.4.4
|
psi
|
14,057
|
N/mm2
|
96.91
|
|
Flex
Strength(CD)
|
IPC-650 2.4.4
|
psi
|
12,955
|
N/mm2
|
89.32
|
|
Peel
Stength(½ oz.ed copper)
|
IPC-650 2.4.8
|
Ibs./inch
|
11
|
N/mm
|
1.96
|
|
Peel
Stength(1 oz.CL1 copper)
|
IPC-650 2.4.8
|
Ibs./inch
|
16
|
N/mm
|
2.86
|
|
Peel
Stength(1 oz..CV1 copper)
|
IPC-650 2.4.8
|
Ibs./inch
|
17
|
N/mm
|
3.04
|
|
Peel Stength
|
IPC-650 2.4.8(after
elevated temp.)
|
Ibs./inch
|
13
|
N/mm
|
2.32
|
|
Young's
Modulus(MD)
|
ASTM D 3039/IPC-650
2.4.19
|
psi
|
1.4 x 106
|
N/mm2
|
9.65 x 103
|
|
Poisson's
Ratio(MD)
|
ASTM D 3039/IPC-650
2.4.19
|
|
0.21
|
|
0.21
|
|
Thermal
Conductivity
|
ASTM F 433
|
W/M*K
|
0.22
|
W/M*K
|
0.22
|
|
Dimensional
Stability(MD,10mil)
|
IPC-650
2.4.39(avg.after bake&thermal stress)
|
mils/inch
|
-0.038
|
|
-0.038
|
|
Dimensional
Stability(CD,10mil)
|
IPC-650
2.4.39(avg.after bake&thermal stress)
|
mils/inch
|
-0.031
|
|
-0.031
|
|
Density(Specific
Gravity)
|
ASTM D 792
|
g/cm3
|
2.19
|
g/cm3
|
2.19
|
|
CTE(X
axis)(25-260℃)
|
ASTM D 3386(TMA)
|
ppm/℃
|
26
|
ppm/℃
|
26
|
|
CTE(Y
axis)(25-260℃)
|
ASTM D 3386(TMA)
|
ppm/℃
|
15
|
ppm/℃
|
15
|
|
CTE(Z
axis)(25-260℃)
|
ASTM D 3386(TMA)
|
ppm/℃
|
217
|
ppm/℃
|
217
|
|
NASA
Outgassing(% TML)
|
|
|
0.01
|
|
0.01
|
|
NASA
Outgassing(% CVCM)
|
|
|
0.01
|
|
0.01
|
|
NASA
Outgassing(% WVR)
|
|
|
0.00
|
|
0.00
|
|
UL-94
Flammability Rating
|
UL-94
|
|
V-0
|
|
V-0
|
