Taiwan Style C Purlin Roll Forming Machine

Minimum Width: 75mm . Produce different purlin size without changing rollers or spacers.

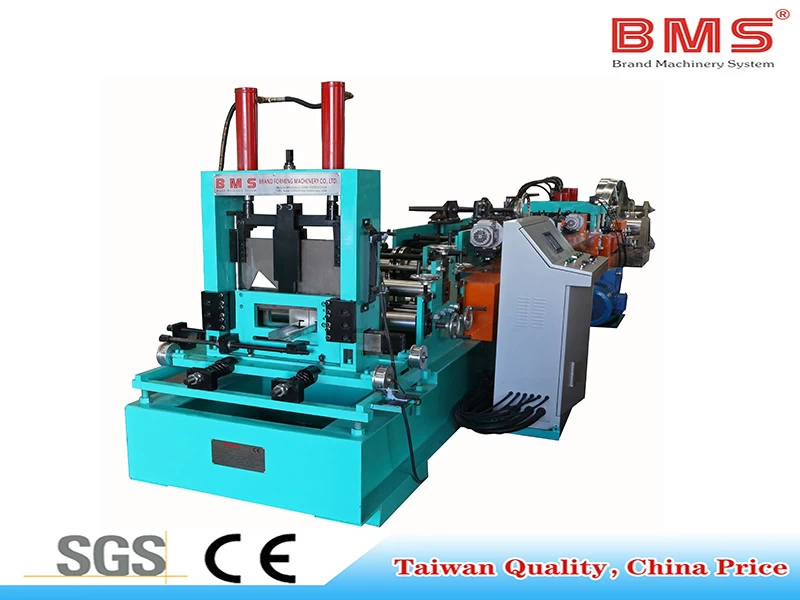

   Taiwan Style Fully Automatic C Purlin Roll Forming Machine





                                     Minimum Width: 75 mm



Click here for Machine Video for reference


1.Main features of fully automatic C purlin roll forming machine


    The advantages of fully automatic C purlin machine are as follows:

    1.Produce different purlin size without changing rollers or spacers.

    2.No need changing cutter for different size.

    3.Easy operation, low maintenance cost

    4.Infinite sizing(any size within machine range),help to save material

    5.Optional Punch hole at any position of purlin web side and flange side


2.Detailed Images of Taiwan style C purlin roll forming machine


    Machine Parts

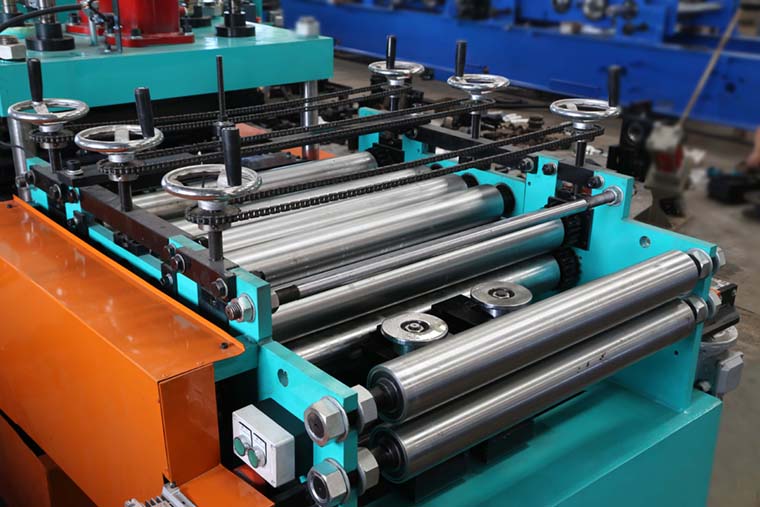

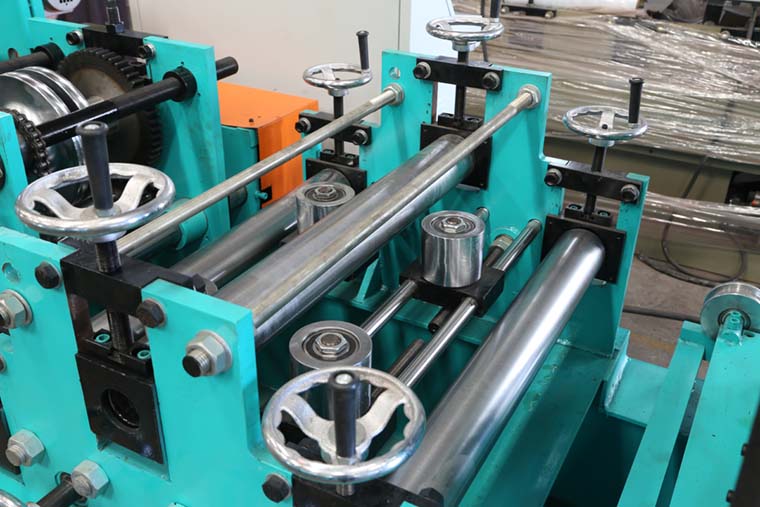

        1) Taiwan style C purlin roll forming machine feeding and leveling device

        Brand: BMS    Original: China

        with motor to control the feeding width ,accurate and convenient.

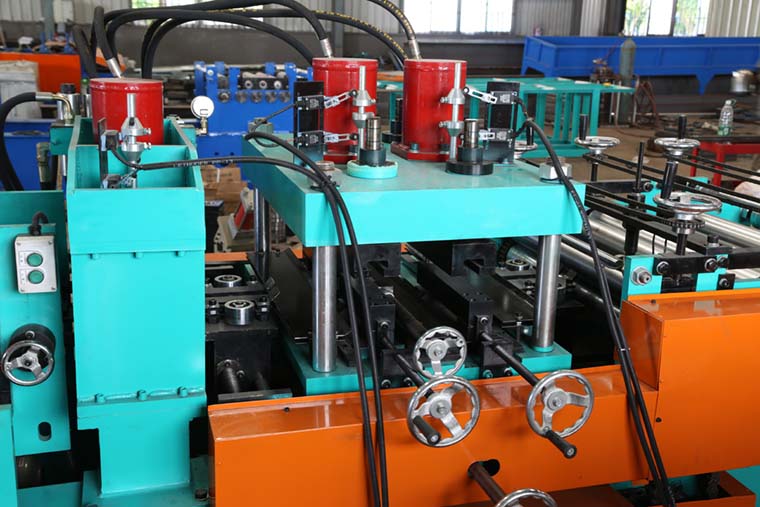

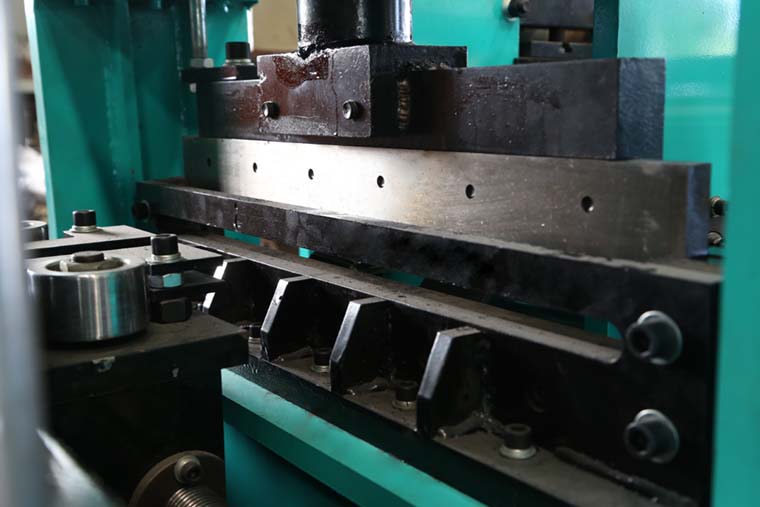

        2) Taiwan style C purlin roll forming machine punching system

        with 3 cylinder(one cylinder for single hole and 2 cylinders for dual-holes.

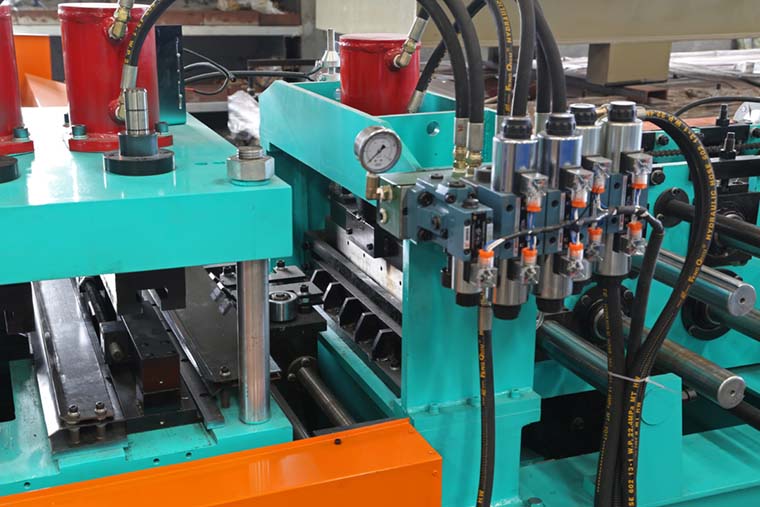

        3) Taiwan style C purlin roll forming machine hydraulic pre-cutter

        Pre-punching & Pre-cutting, stop to punch, stop to cut

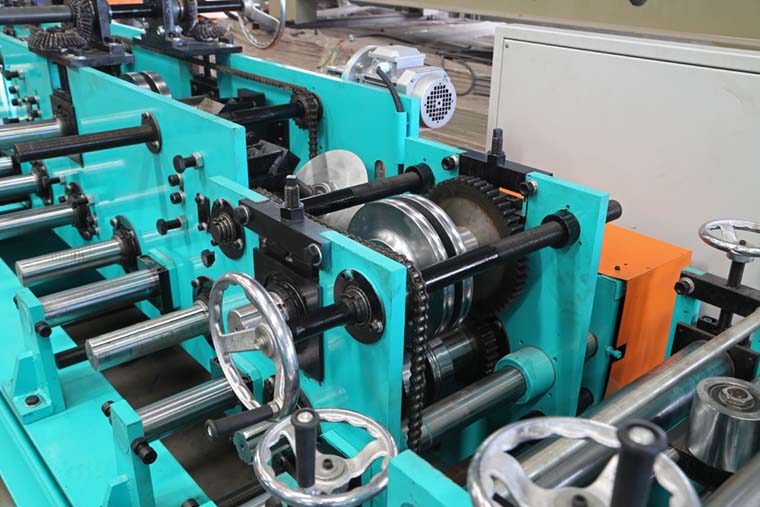

        4) Taiwan style C purlin roll forming machine rollers

        Rollers manufactured from high quality bearing steel GCr15, CNC lathes, Heat Treatment.

        with black treatment or Hard-Chrome Coating for options.

        With feeding material guide, body frame made from 400# H type steel by welding

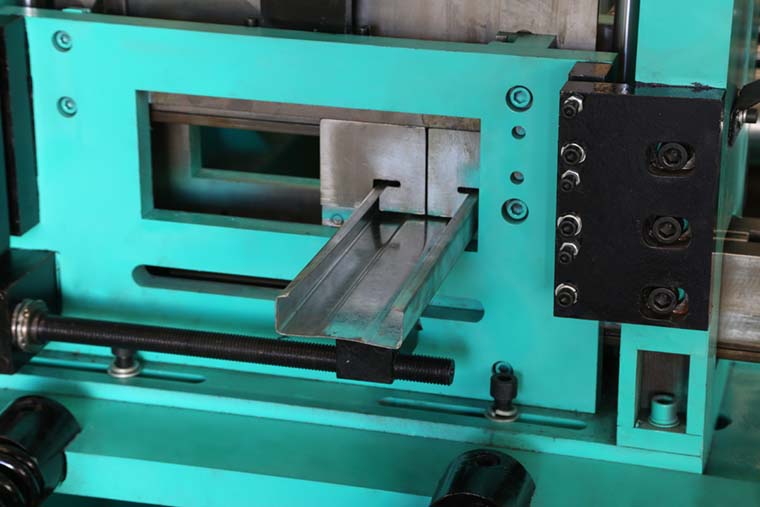

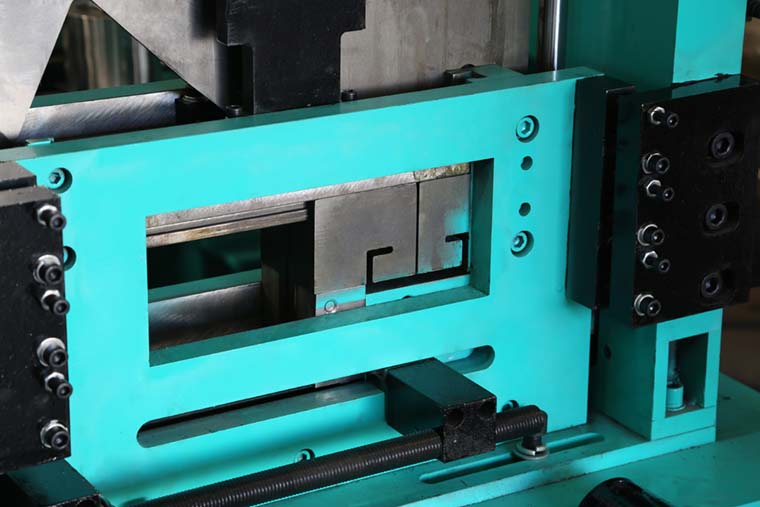

        5) Taiwan style C purlin roll forming machine straightening device before cutting




        6) Taiwan style C purlin roll forming machine post cutter

        No need to change cutter for different size,

        Made by high quality mold steel Cr12 with heat treatment

        Cutter frame made from high quality 30mm steel plate by welding

        Hydraulic motor:7.5KW, Hydraulic pressure range: 0-16Mpa






        7) Taiwan style C purlin roll forming machine decoiler

        Manual Decoiler: one set

        Un-powered,manually control steel coil inner bore shrinkage and stop

        Max. feeding width: 500mm, coil ID range 470mm±30mm

        Capacity: Max. 3Ton






        With 3 tons hydraulic decoiler for option

        8) Taiwan style C purlin roll forming machine exit rack

        Un-powered,two units


Automatic C Purlin Roll Forming Machine



Other details of Taiwan style C purlin roll forming machine


Suitable for material with thickness 1.5-3.0mm

Shafts manufactured from 45#,Main shaft diameter=φ90mm,precision machined

Motor driving,Gear chain transmission, 16 rollers to form

Main motor=18.5KW , Frequency speed control. Forming speed approx.18m/min



PLC Control System (Touch screen brand:German Schneider Electric/Taiwan WEINVIEW,

Inverter brand:Finland VOCAN/Taiwan DELTA/ALPHA,Encoder brand:Japan Koyo/OMRON)

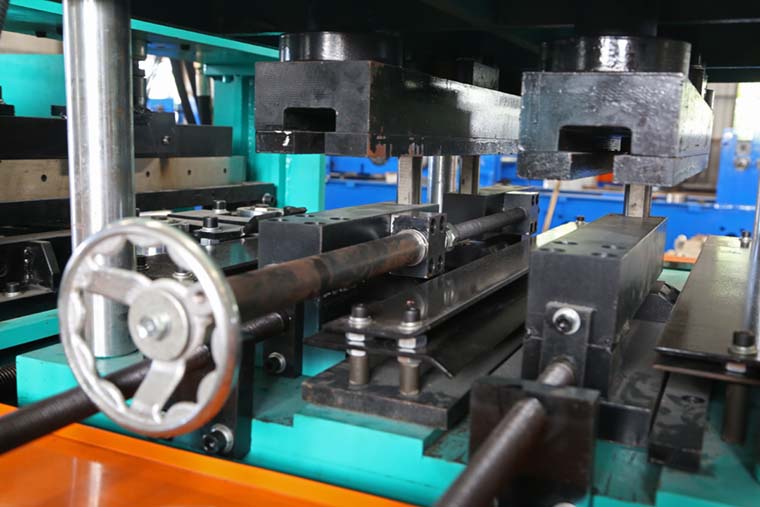

Just adjust required WEB,HEIGHT and LIP by hand wheel with the help of

position clock(with digit display for easy operation) on it,

and then input the required production data on the touch screen.

It takes only 5-10 minutes to finish all. No need to change rollers or spacers or cutters

like traditional old style machine  (which takes over 45 minutes for each production size changing).


Combined with: PLC, Inverter, TouchScreen, Encoder, etc

Cut-to-length tolerance≤±2 mm

Control Voltage 24V

User's manual in English
