Take Up Bearing Units UCST2

UCST  Standard duty,Wider inner ring bearing,Wider slot housing,Setscrew locking,Cast gray iron housing .

Cast DUCTILE iron housing available upon request.

Facebook Twitter Pinterest LinkedIn 分享

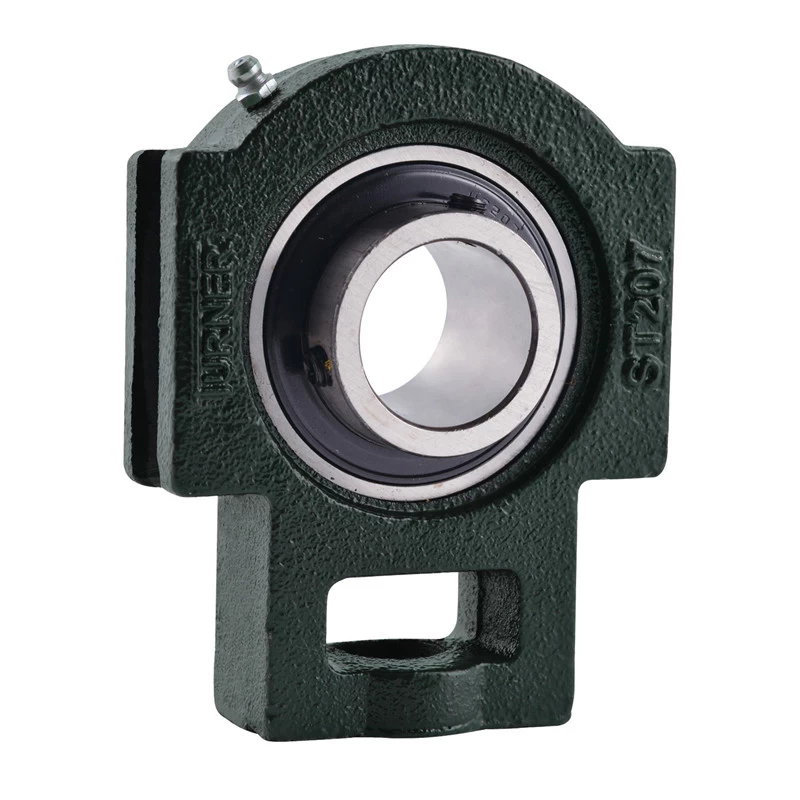

Take Up Bearing Units UCST207

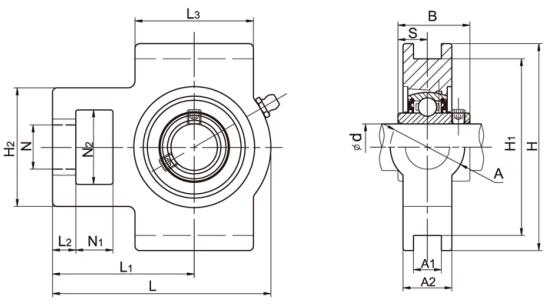

Unit No. Shaft Dia Dimensions (mm) Weight
d N1 L2 H2 N2 N L3 A1 H1 H L A A2 L1 B S (kg)
(in) (mm)  
UCST201   12 16 10 51 32 19 51 13.5 76 89 94 32 21 61 31 12.7 0.8
UCST201-8 1/2   16 10 51 32 19 51 13.5 76 89 94 32 21 61 31 12.7 0.8
UCST202   15 16 10 51 32 19 51 13.5 76 89 94 32 21 61 31 12.7 0.8
UCST202-10  5/8 16 10 51 32 19 51 13.5 76 89 94 32 21 61 31 12.7 0.8
UCST203   17 16 10 51 32 19 51 13.5 76 89 94 32 21 61 31 12.7 0.8
UCST203-11 11/16   16 10 51 32 19 51 13.5 76 89 94 32 21 61 31 12.7 0.8
UCST204   20 16 10 51 32 19 51 13.5 76 89 94 32 21 61 31 12.7 0.8
UCST204-12 3/4   16 10 51 32 19 51 13.5 76 89 94 32 21 61 31 12.7 0.8
UCST205   25 16 10 51 32 19 51 13.5 76 89 97 32 24 62 34 14.3 0.8
UCST205-14 7/8    16 10 51 32 19 51 13.5 76 89 97 32 24 62 34 14.3 0.8
UCST205-15 15/16   16 10 51 32 19 51 13.5 76 89 97 32 24 62 34 14.3 0.8
UCST205-16 1   16 10 51 32 19 51 13.5 76 89 97 32 24 62 34 14.3 0.8
UCST206   30 16 10 56 37 22 57 13.5 89 102 113 37 28 70 38.1 15.9 1.26
UCST206-17  1-1/16    16 10 56 37 22 57 13.5 89 102 113 37 28 70 38.1 15.9 1.26
UCST206-18 1-1/8   16 10 56 37 22 57 13.5 89 102 113 37 28 70 38.1 15.9 1.26
UCST206-19 1-3/16   16 10 56 37 22 57 13.5 89 102 113 37 28 70 38.1 15.9 1.26
UCST206-20 1-1/4   16 10 56 37 22 57 13.5 89 102 113 37 28 70 38.1 15.9 1.26
UCST207   35 16 13 64 37 22 64 13.5 89 102 129 37 30 78 42.9 17.5 1.68
UCST207-20 1-1/4   16 13 64 37 22 64 13.5 89 102 129 37 30 78 42.9 17.5 1.68
UCST207-21 1-5/16   16 13 64 37 22 64 13.5 89 102 129 37 30 78 42.9 17.5 1.68
UCST207-22 1-3/8   16 13 64 37 22 64 13.5 89 102 129 37 30 78 42.9 17.5 1.68
UCST207-23 1-7/16   16 13 64 37 22 64 13.5 89 102 129 37 30 78 42.9 17.5 1.68
UCST208   40 19 16 83 49 29 83 17.5 102 114 144 49 33 88 49.2 19 2.28
UCST208-24 1-1/2   19 16 83 49 29 83 17.5 102 114 144 49 33 88 49.2 19 2.28
UCST208-25 1-9/16   19 16 83 49 29 83 17.5 102 114 144 49 33 88 49.2 19 2.28
UCST209   45 19 16 83 49 29 83 17.5 102 117 144 49 35 87 49.2 19 2.52
UCST209-26  1-5/8    19 16 83 49 29 83 17.5 102 117 144 49 35 87 49.2 19 2.52
UCST209-27 1-11/16   19 16 83 49 29 83 17.5 102 117 144 49 35 87 49.2 19 2.52
UCST209-28 1-3/4   19 16 83 49 29 83 17.5 102 117 144 49 35 87 49.2 19 2.52
UCST210   50 19 16 83 49 29 86 17.5 102 117 149 49 37 90 51.6 19 2.75
UCST210-30 1-7/8   19 16 83 49 29 86 17.5 102 117 149 49 37 90 51.6 19 2.75
UCST210-31 1-15/16   19 16 83 49 29 86 17.5 102 117 149 49 37 90 51.6 19 2.75
UCST210-32 2   19 16 83 49 29 86 17.5 102 117 149 49 37 90 51.6 19 2.75
UCST211   55 25 19 102 64 35 95 27 130 146 171 64 38 106 55.6 22.2 4.1
UCST211-32  2   25 19 102 64 35 95 27 130 146 171 64 38 106 55.6 22.2 4.1
UCST211-34 2-1/8   25 19 102 64 35 95 27 130 146 171 64 38 106 55.6 22.2 4.1
UCST211-35 2-3/16   25 19 102 64 35 95 27 130 146 171 64 38 106 55.6 22.2 4.1
UCST212   60 32 19 102 64 35 102 27 130 146 194 64 42 119 65.1 25.4 4.9
UCST212-36  2-1/4    32 19 102 64 35 102 27 130 146 194 64 42 119 65.1 25.4 4.9
UCST212-38 2-3/8   32 19 102 64 35 102 27 130 146 194 64 42 119 65.1 25.4 4.9
UCST212-39 2-7/16   32 19 102 64 35 102 27 130 146 194 64 42 119 65.1 25.4 4.9
