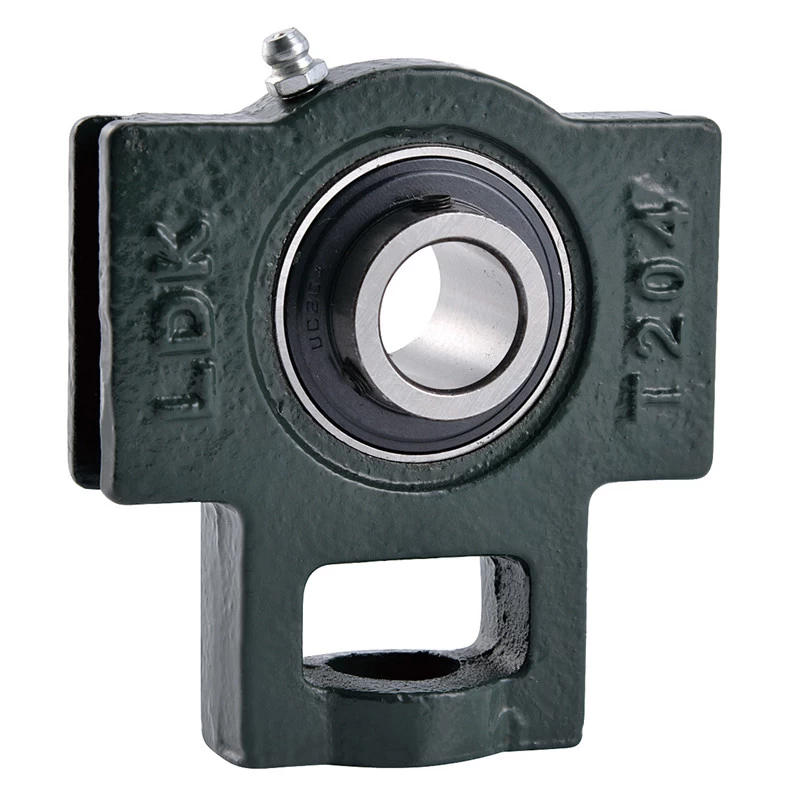

Take Up Bearing Units UCT2



UCT  Standard duty,Wider inner ring bearing,Setscrew locking,Cast gray iron housing .

Cast DUCTILE iron housing available upon request.



Facebook Twitter Pinterest LinkedIn 分享

Take Up Bearing Units UCT208

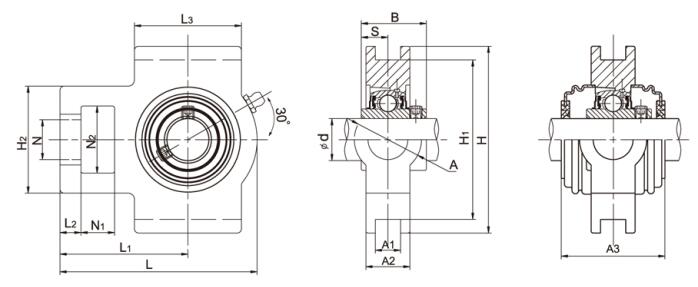

Unit No. Shaft Dia Dimensions(mm) Weight
d N1 L2 H2 N2 N L3 A1 H1 H L A A2 L1 B S A3 (kg)
(in) (mm)
UCWT201   12 15 9 46 31 18 46 12 70 82 88 30 21 58 27.4 11.5 - 0.52
UCWT202   15 15 9 46 31 18 46 12 70 82 88 30 21 58 27.4 11.5 - 0.52
UCWT203   17 15 9 46 31 18 46 12 70 82 88 30 21 58 27.4 11.5 - 0.52
UCT201  12 16 10 51 32 19 51 12 76 89 94 32 21 61 31 12.7 - 0.80
UCT201-8 1/2   16 10 51 32 19 51 12 76 89 94 32 21 61 31 12.7 - 0.80
UCT202   15 16 10 51 32 19 51 12 76 89 94 32 21 61 31 12.7 - 0.79
UCT202-9 9/16   16 10 51 32 19 51 12 76 89 94 32 21 61 31 12.7 - 0.79
UCT202-10 5/8   16 10 51 32 19 51 12 76 89 94 32 21 61 31 12.7 - 0.79
UCT203  17 16 10 51 32 19 51 12 76 89 94 32 21 61 31 12.7 - 0.78
UCT203-11 11/16   16 10 51 32 19 51 12 76 89 94 32 21 61 31 12.7 - 0.78
UCT204  20 16 10 51 32 19 51 12 76 89 94 32 21 61 31 12.7 46.4 0.72
UCT204-12 3/4   16 10 51 32 19 51 12 76 89 94 32 21 61 31 12.7 46.4 0.72
UCT205   25 16 10 51 32 19 51 12 76 89 97 32 24 62 34.1 14.3 48 0.8
UCT205-14  7/8    16 10 51 32 19 51 12 76 89 97 32 24 62 34.1 14.3 48 0.8
UCT205-15 15/16   16 10 51 32 19 51 12 76 89 97 32 24 62 34.1 14.3 48 0.8
UCT205-16 1 16 10 51 32 19 51 12 76 89 97 32 24 62 34.1 14.3 48 0.8
UCT206   30 16 10 56 37 22 57 12 89 102 113 37 28 70 38.1 15.9 23 1.26
UCT206-17 1-1/16   16 10 56 37 22 57 12 89 102 113 37 28 70 38.1 15.9 23 1.26
UCT206-18 1-1/8   16 10 56 37 22 57 12 89 102 113 37 28 70 38.1 15.9 23 1.26
UCT206-19 1-3/16   16 10 56 37 22 57 12 89 102 113 37 28 70 38.1 15.9 23 1.26
UCT206-20 1-1/4   16 10 56 37 22 57 12 89 102 113 37 28 70 38.1 15.9 23 1.26
UCT207   35 16 13 64 37 22 64 12 89 102 129 37 30 78 42.9 17.5 59 1.68
UCT207-20 1-1/4   16 13 64 37 22 64 12 89 102 129 37 30 78 42.9 17.5 59 1.68
UCT207-21 1-5/16   16 13 64 37 22 64 12 89 102 129 37 30 78 42.9 17.5 59 1.68
UCT207-22 1-3/8   16 13 64 37 22 64 12 89 102 129 37 30 78 42.9 17.5 59 1.68
UCT207-23 1-7/16   16 13 64 37 22 64 12 89 102 129 37 30 78 42.9 17.5 59 1.68
UCT208   40 19 16 83 49 29 83 16 102 114 144 49 33 88 49.2 19 68.2 2.28
UCT208-24 1-1/2   19 16 83 49 29 83 16 102 114 144 49 33 88 49.2 19 68.2 2.28
UCT208-25 1-9/16   19 16 83 49 29 83 16 102 114 144 49 33 88 49.2 19 68.2 2.28
UCT209   45 19 16 83 49 29 83 16 102 117 144 49 35 87 49.2 19 70 2.52
UCT209-26  1-5/8    19 16 83 49 29 83 16 102 117 144 49 35 87 49.2 19 70 2.52
UCT209-27 1-11/16   19 16 83 49 29 83 16 102 117 144 49 35 87 49.2 19 70 2.52
UCT209-28 1-3/4   19 16 83 49 29 83 16 102 117 144 49 35 87 49.2 19 70 2.52
UCT210   50 19 16 83 49 29 86 16 102 117 149 49 37 90 51.6 19 76 2.75
UCT210-30  1-7/8    19 16 83 49 29 86 16 102 117 149 49 37 90 51.6 19 76 2.75
UCT210-31 1-15/16   19 16 83 49 29 86 16 102 117 149 49 37 90 51.6 19 76 2.75
UCT210-32 2   19 16 83 49 29 86 16 102 117 149 49 37 90 51.6 19 76 2.75
UCT211   55 25 19 102 64 35 95 22 130 146 171 64 38 106 55.6 22.2 76 4.1
UCT211-32  2   25 19 102 64 35 95 22 130 146 171 64 38 106 55.6 22.2 76 4.1
UCT211-34 2-1/8   25 19 102 64 35 95 22 130 146 171 64 38 106 55.6 22.2 76 4.1
UCT211-35 2-3/16   25 19 102 64 35 95 22 130 146 171 64 38 106 55.6 22.2 76 4.1
UCT212   60 32 19 102 64 35 102 22 130 146 194 64 42 119 65.1 25.4 89 4.9
UCT212-36  2-1/4    32 19 102 64 35 102 22 130 146 194 64 42 119 65.1 25.4 89 4.9
UCT212-38 2-3/8   32 19 102 64 35 102 22 130 146 194 64 42 119 65.1 25.4 89 4.9
UCT212-39 2-7/16   32 19 102 64 35 102 22 130 146 194 64 42 119 65.1 25.4 89 4.9
UCT213  65 32 21 111 70 41 121 26 151 167 224 70 44 137 65.1 25.4 89 6.7
UCT213-40 2-1/2   32 21 111 70 41 121 26 151 167 224 70 44 137 65.1 25.4 89 6.7
UCT214  70 32 21 111 70 41 121 26 151 167 224 70 46 137 74.6 30.2 98 6.9
UCT214-44 2-3/4   32 21 111 70 41 121 26 151 167 224 70 46 137 74.6 30.2 98 6.9
UCT215   75 32 21 111 70 41 121 26 151 167 232 70 48 140 77.8 33.3 97 7.4
UCT215-47 2-15/16   32 21 111 70 41 121 26 151 167 232 70 48 140 77.8 33.3 97 7.4
UCT215-48 3   32 21 111 70 41 121 26 151 167 232 70 48 140 77.8 33.3 97 7.4
UCT216   80 32 21 111 70 41 121 26 165 184 235 70 51 140 82.6 33.3 110 8.1
UCT217  85 38 29 124 73 48 157 30 173 198 260 73 54 162 85.7 34.1 114.2 11
UCT217-52 3-1/4   38 29 124 73 48 157 30 173 198 260 73 54 162 85.7 34.1 114.2 11
UCT218   90 40 30 130 80 48 140 30 190 215 275 80 55 170 96 39.7 - 12.2
UCT218-56 3-1/4   40 30 130 80 48 140 30 190 215 275 80 55 170 96 39.7 - 12.2

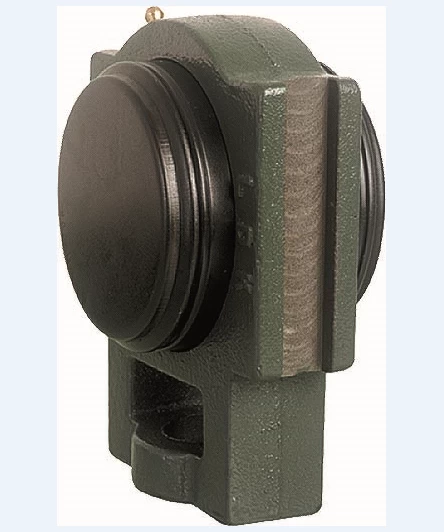

Notes:1.Upon request,pressed steel covers available at both ends.S=Open cap,SM=Close cap. Ordering example:UCT205+SM.
