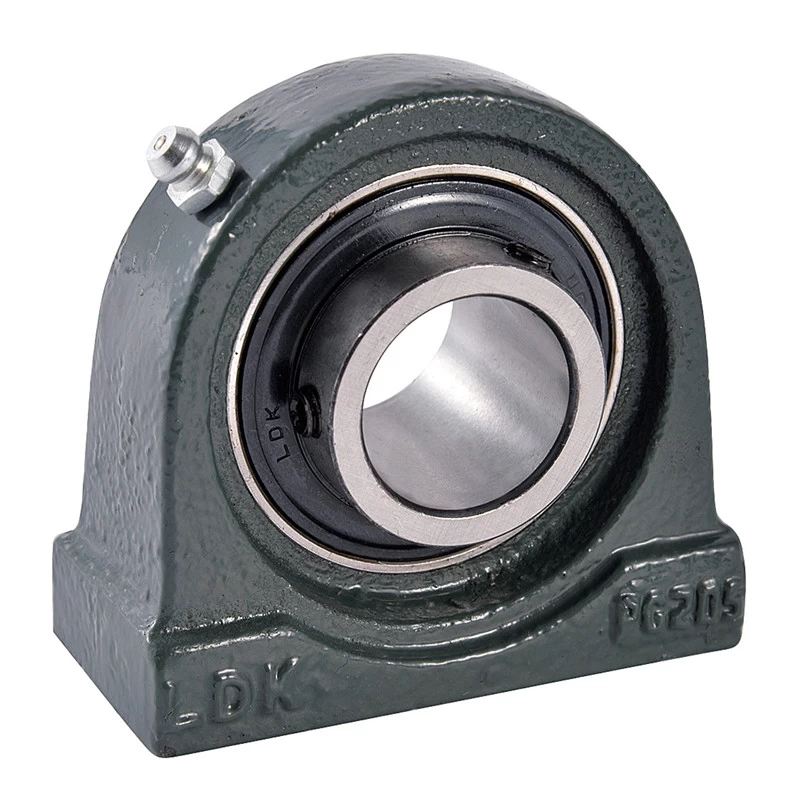

Tapped Base Pillow Block Bearing Units UCPG2


UCPG Standard duty,Wider inner ring bearing,Setscrew locking,Cast gray iron housing .

Cast ductile iron housing available upon request.


Facebook Twitter Pinterest LinkedIn 分享

UCPG210 Tapped Base Pillow Block Bearing Housing

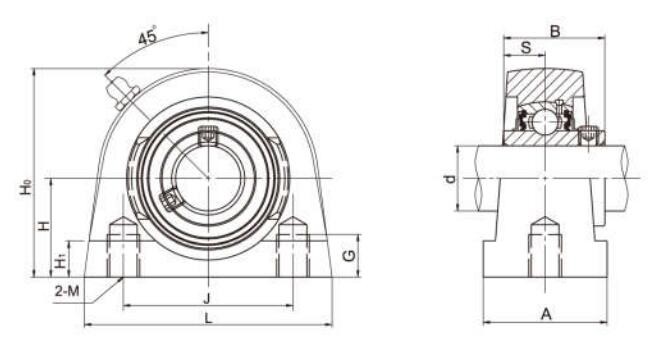

Unit No. Shaft Dia Dimensions (mm) Bolt Size (mm) Weight
d H L J A M G H1 Ho B s
(in) (mm) (kg)
UCPG201  12 33.3 70 49 38 M8 14 11 64 31 12.7 M8 0.8
UCPG201-8 1/2   33.3 70 49 38 M8 14 11 64 31 12.7 M8 0.8
UCPG202   15 33.3 70 49 38 M8 14 11 64 31 12.7 M8 0.79
UCPG202-9 9/16   33.3 70 49 38 M8 14 11 64 31 12.7 M8 0.79
UCPG202-10 5/8   33.3 70 49 38 M8 14 11 64 31 12.7 M8 0.79
UCPG203  17 33.3 70 49 38 M8 14 11 64 31 12.7 M8 0.77
UCPG203-11 11/16   33.3 70 49 38 M8 14 11 64 31 12.7 M8 0.77
UCPG204  20 33.3 70 49 38 M8 14 11 64 31 12.7 M8 0.76
UCPG204-12 3/4   33.3 70 49 38 M8 14 11 64 31 12.7 M8 0.76
UCPG205   25 36.5 75 50 38 M10 15 13 70 34.1 14.3 M10 0.91
UCPG205-14  7/8    36.5 75 50 38 M10 15 13 70 34.1 14.3 M10 0.91
UCPG205-15 15/16   36.5 75 50 38 M10 15 13 70 34.1 14.3 M10 0.91
UCPG205-16 1   36.5 75 50 38 M10 15 13 70 34.1 14.3 M10 0.91
UCPG206   30 42.9 85 60 48 M10 17 13 84 38.1 15.9 M10 1.42
UCPG206-17 1-1/16   42.9 85 60 48 M10 17 13 84 38.1 15.9 M10 1.42
UCPG206-18 1-1/8   42.9 85 60 48 M10 17 13 84 38.1 15.9 M10 1.42
UCPG206-19 1-3/16   42.9 85 60 48 M10 17 13 84 38.1 15.9 M10 1.42
UCPG206-20 1-1/4   42.9 85 60 48 M10 17 13 84 38.1 15.9 M10 1.42
UCPG207   35 47.6 100 68 48 M12 17 13 93 42.9 17.5 M12 1.91
UCPG207-20 1-1/4   47.6 100 68 48 M12 17 13 93 42.9 17.5 M12 1.91
UCPG207-21 1-5/16   47.6 100 68 48 M12 17 13 93 42.9 17.5 M12 1.91
UCPG207-22 1-3/8   47.6 100 68 48 M12 17 13 93 42.9 17.5 M12 1.91
UCPG207-23 1-7/16   47.6 100 68 48 M12 17 13 93 42.9 17.5 M12 1.91
UCPG208   40 49.2 110 78 54 M12 20 14 98 49.2 19 M12 2.28
UCPG208-24 1-1/2   49.2 110 78 54 M12 20 14 98 49.2 19 M12 2.28
UCPG208-25 1-9/16   49.2 110 78 54 M12 20 14 98 49.2 19 M12 2.28
UCPG209   45 53.9 120 85 54 M12 20 14 106 49.2 19 M12 2.61
UCPG209-26  1-5/8    53.9 120 85 54 M12 20 14 106 49.2 19 M12 2.61
UCPG209-27 1-11/16   53.9 120 85 54 M12 20 14 106 49.2 19 M12 2.61
UCPG209-28 1-3/4   53.9 120 85 54 M12 20 14 106 49.2 19 M12 2.61
UCPG210   50 57.2 135 95 60 M16 21 14 114 51.6 19 M16 3.28
UCPG210-30  1-7/8    57.2 135 95 60 M16 21 14 114 51.6 19 M16 3.28
UCPG210-31 1-15/16   57.2 135 95 60 M16 21 14 114 51.6 19 M16 3.28
UCPG210-32 2   57.2 135 95 60 M16 21 14 114 51.6 19 M16 3.28
