Tapped Base Pillow Block Bearing Units UCPW2


UCPW Standard duty,Wider inner ring bearing,Setscrew locking,Cast gray iron housing .

Cast ductile iron housing available upon request.


Facebook Twitter Pinterest LinkedIn 分享

Tapped Base Pillow Block Bearings UCPW208

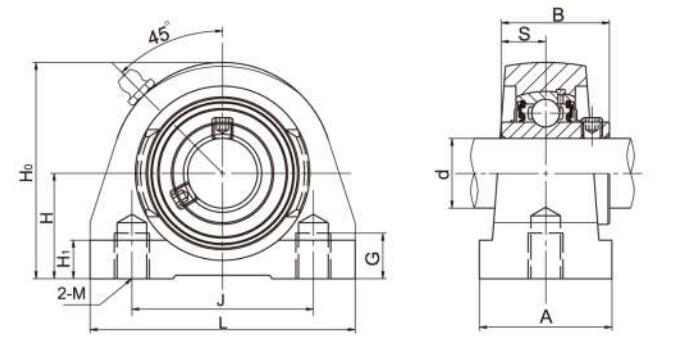

Unit No. Shaft Dia Dimensions (mm) Bolt Size (mm) Weight
d H L J A M G Ho H1 B s (kg)
(in) (mm)  
UCPW201  12 33.3 65 50.8 32 M8 13 64 13 31 12.7 M8 0.8
UCPW201-8 1/2   33.3 65 50.8 32 M8 13 64 13 31 12.7 M8 0.8
UCPW202   15 33.3 65 50.8 32 M8 13 64 13 31 12.7 M8 0.79
UCPW202-9 9/16   33.3 65 50.8 32 M8 13 64 13 31 12.7 M8 0.79
UCPW202-10 5/8   33.3 65 50.8 32 M8 13 64 13 31 12.7 M8 0.79
UCPW203  17 33.3 65 50.8 32 M8 13 64 13 31 12.7 M8 0.77
UCPW203-11 11/16   33.3 65 50.8 32 M8 13 64 13 31 12.7 M8 0.77
UCPW204  20 33.3 65 50.8 32 M8 13 64 13 31 12.7 MS 0.76
UCPW204-12 3/4   33.3 65 50.8 32 M8 13 64 13 31 12.7 MS 0.76
UCPW205   25 36.5 70 50.8 36 M10 13 70 13 34.1 14.3 M10 0.91
UCPW205-14  7/8    36.5 70 50.8 36 M10 13 70 13 34.1 14.3 M10 0.91
UCPW205-15 15/16   36.5 70 50.8 36 M10 13 70 13 34.1 14.3 M10 0.91
UCPW205-16 1   36.5 70 50.8 36 M10 13 70 13 34.1 14.3 M10 0.91
UCPW206   30 42.9 98 76.2 38 M10 16 82 15 38.1 15.9 M10 1.42
UCPW206-17 1-1/16   42.9 98 76.2 38 M10 16 82 15 38.1 15.9 M10 1.42
UCPW206-18 1-1/8   42.9 98 76.2 38 M10 16 82 15 38.1 15.9 M10 1.42
UCPW206-19 1-3/16   42.9 98 76.2 38 M10 16 82 15 38.1 15.9 M10 1.42
UCPW206-20 1-1/4   42.9 98 76.2 38 M10 16 82 15 38.1 15.9 M10 1.42
UCPW207   35 47.6 103 82.6 45 M10 19 93 15 42.9 17.5 M10 1.91
UCPW207-20 1-1/4   47.6 103 82.6 45 M10 19 93 15 42.9 17.5 M10 1.91
UCPW207-21 1-5/16   47.6 103 82.6 45 M10 19 93 15 42.9 17.5 M10 1.91
UCPW207-22 1-3/8   47.6 103 82.6 45 M10 19 93 15 42.9 17.5 M10 1.91
UCPW207-23 1-7/16   47.6 103 82.6 45 M10 19 93 15 42.9 17.5 M10 1.91
UCPW208   40 49.2 116 88.9 48 M12 19 99 15 49.2 19 M12 2.28
UCPW208-24 1-1/2   49.2 116 88.9 48 M12 19 99 15 49.2 19 M12 2.28
UCPW208-25 1-9/16   49.2 116 88.9 48 M12 19 99 15 49.2 19 M12 2.28
UCPW209   45 53.9 120 95.3 48 M12 19 107 18 49.2 19 M12 2.61
UCPW209-26  1-5/8    53.9 120 95.3 48 M12 19 107 18 49.2 19 M12 2.61
UCPW209-27 1-11/16   53.9 120 95.3 48 M12 19 107 18 49.2 19 M12 2.61
UCPW209-28 1-3/4   53.9 120 95.3 48 M12 19 107 18 49.2 19 M12 2.61
UCPW210   50 57.2 135 101.6 54 M16 22 115 18 51.6 19 M16 3.28
UCPW210-30  1-7/8    57.2 135 101.6 54 M16 22 115 18 51.6 19 M16 3.28
UCPW210-31 1-15/16   57.2 135 101.6 54 M16 22 115 18 51.6 19 M16 3.28
UCPW210-32 2   57.2 135 101.6 54 M16 22 115 18 51.6 19 M16 3.28
