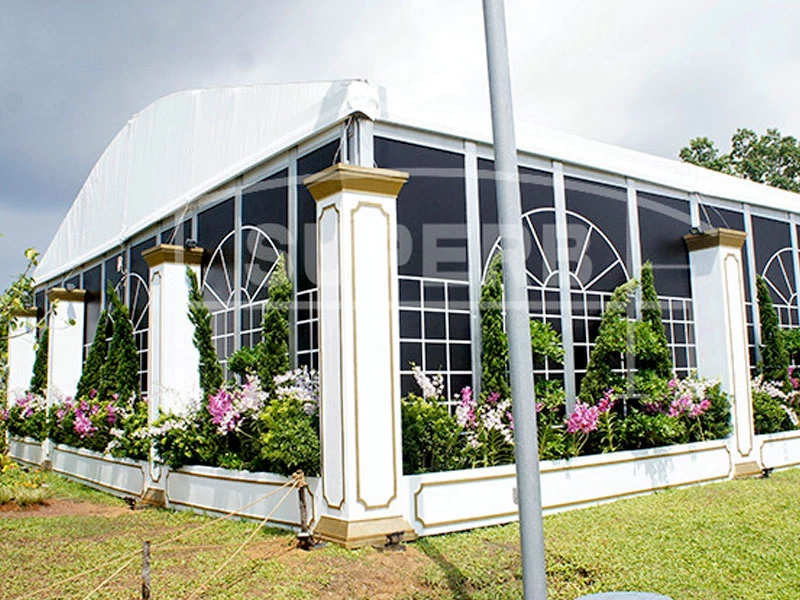

Temporary Arch Sport Hall Tent
Sport Tent's Features:
● Fashionable and beautiful with graceful arc roof lines. Widely used for royal and top grade events & activities accompanied with glass or ABS Hard Walls.
● Elegant design with roof extensions on both long sides helps to keep the interior side of the tent dry and clean in heavy rain & wind situation (with/without sidewalls).
● Wind load: above 100km/h.
● No exterior guy ropes or staking required.
● Accessories available: Transparent PVC roof covers and walls, clear windows sidewalls, glass walls, ABS Hard Walls, sandwich walls, lining decoration, glass door, sliding door, flooring system, weight plates, anchors.
Sport Tent's Available size:
● Clear span available between 10-40m.
● Modular structure, the length is adjustable by 5m unit.

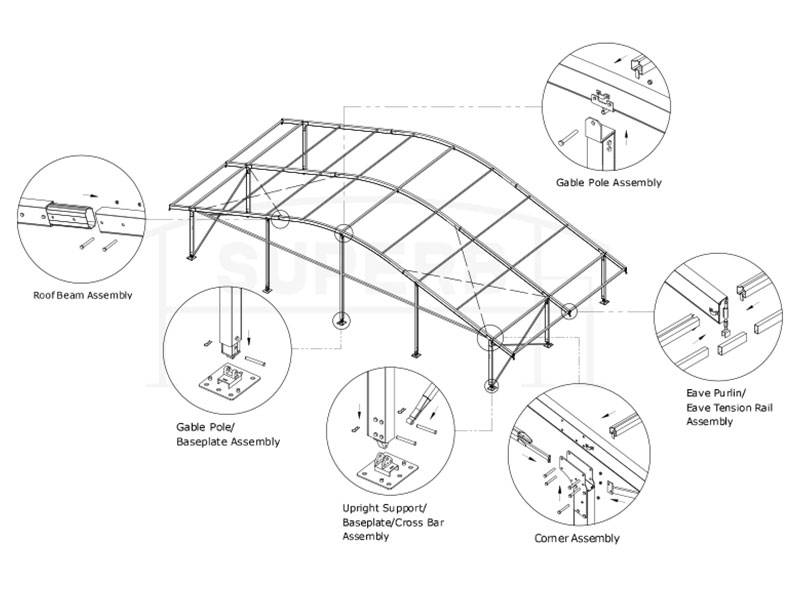

Sport Tent's Frame:
● No maintenance requirement.
● Extruded 4 channel aluminum hollow profiles with anodized finishing above 12um.
● All steel connectors including small parts have galvanized finishing above 60um.
Sport Tent's Cover:
● Kedered roof fabric and sidewalls provide weather-proof tight coverings.
● Bar tensioning roof & sidewalls system.
● Different brand fabric for option: China Fabric, Ferrari, Sioen, Verseidag.
The Specification of Temporary Arch Sport Hall Tent
|
Type
|
Span
(m)
|
Side
height (m)
|
Ridge
height (m)
|
Bay
Distance (m)
|
Roof
Pitch
|
Longest
Component (m)
|
Wind
Load (km/h)
|
|
BS10/4-5AT
|
10
|
3.9
|
4.9
|
5
|
18°
|
9.2
|
100
|
|
BS15/4-5AT
|
15
|
3.9
|
5.7
|
5
|
18°
|
9.2
|
100
|
|
BS20/4-5AT
|
20
|
3.9
|
6.5
|
5
|
18°
|
9.2
|
100
|
|
BS25/4-5AT
|
25
|
3.9
|
7.3
|
5
|
18°
|
11.2
|
100
|
|
Main
frame Profile
|
204x120x4mm（4-Channel)
|
|
Eave
Connection
|
Hot-dip
Galvanized Twin Steel Plate
|
|
Roof
Fixing
|
Bar
Tension
|
|
Frame
Material
|
Hard
Pressed Extruded Aluminum 6061/T6
|
|
Cover
Material
|
Double
PVC coated Polyester textile, flame retardant to DIN4102 B1,M2,750-900g/sq.m
|
