Features
1. Big Building Volume

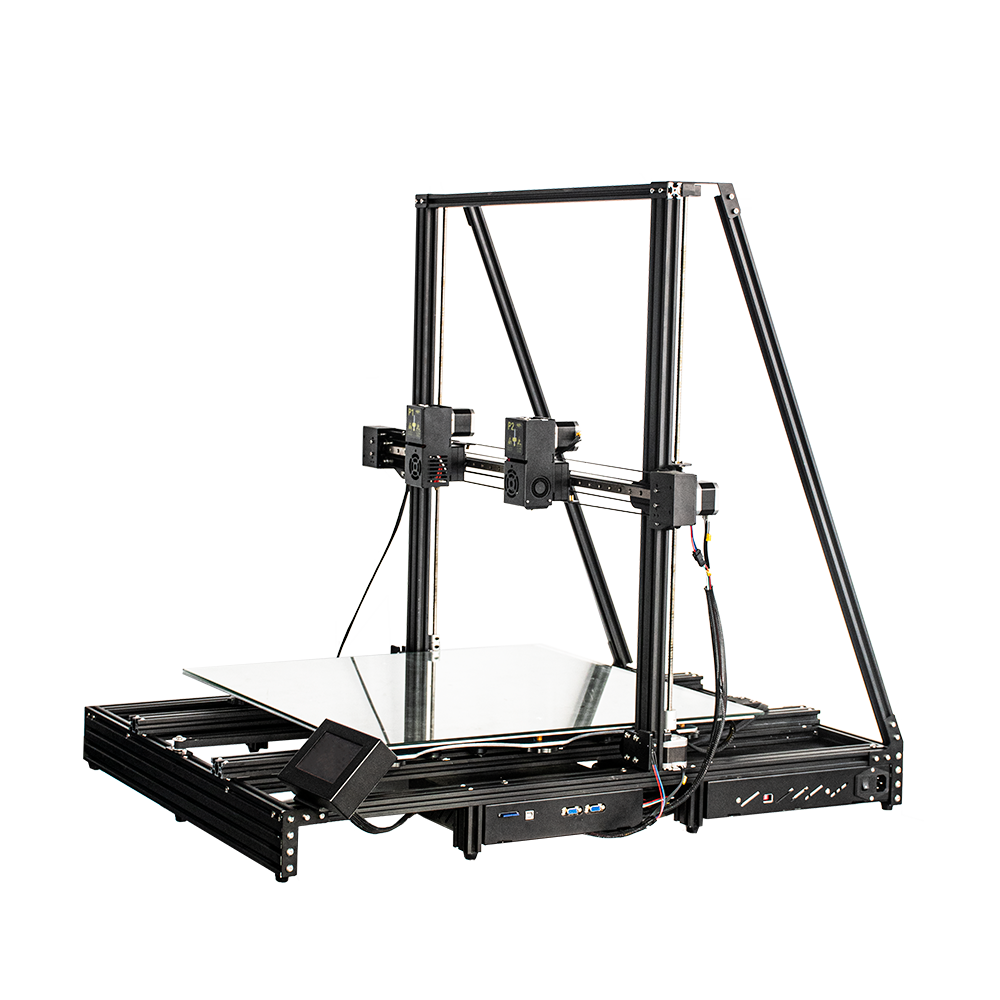

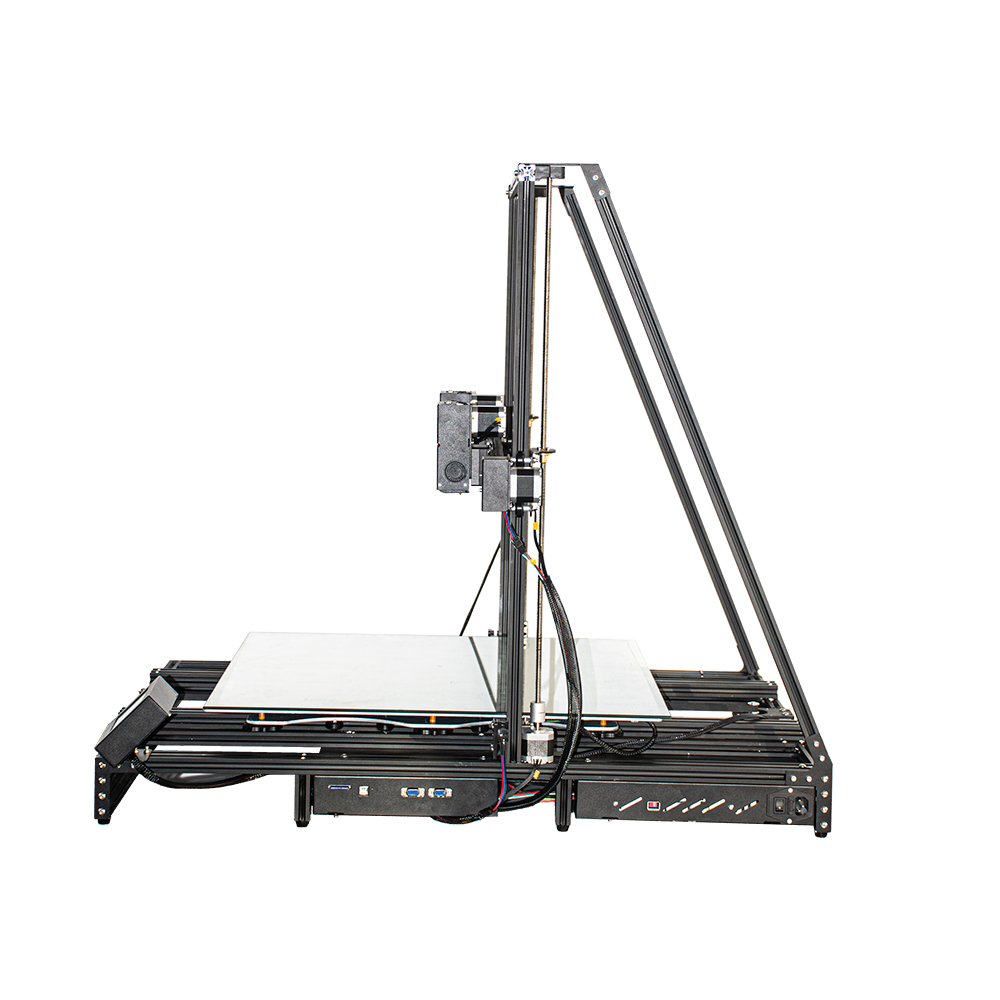

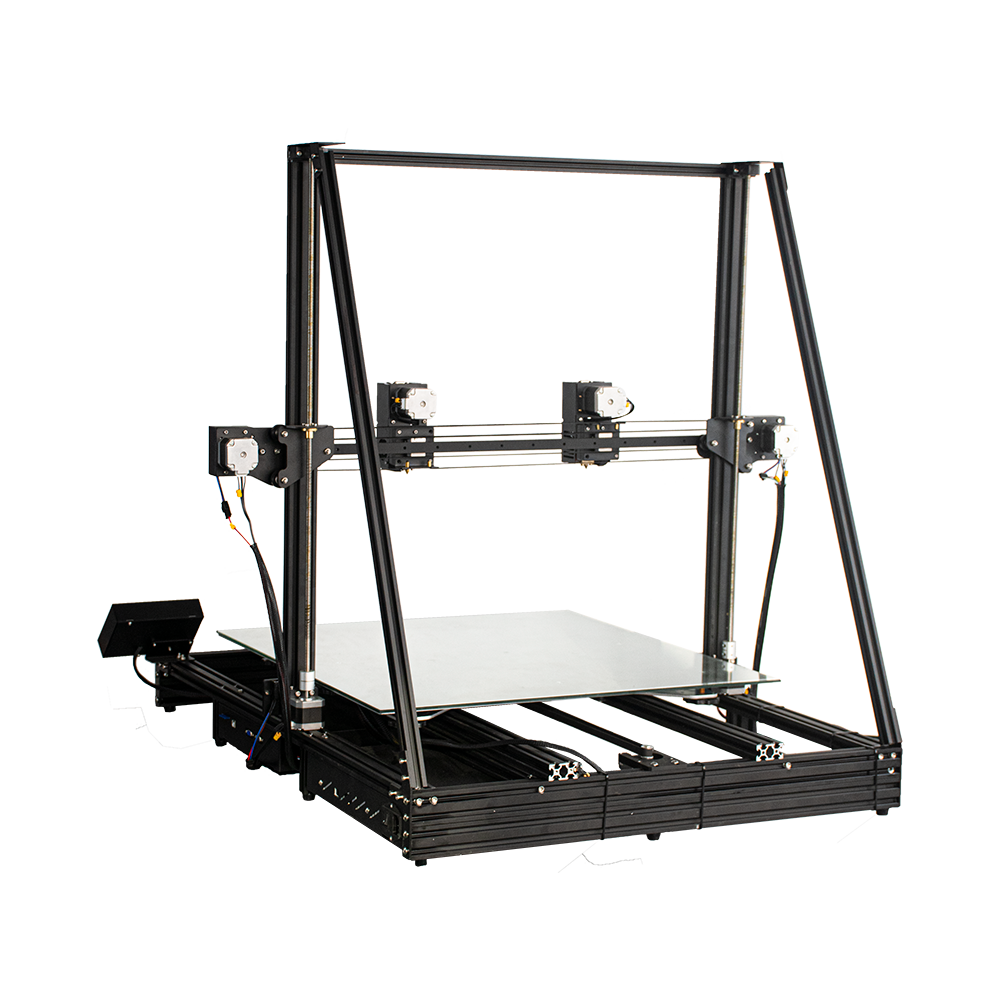

Best Dual Extruder 3D Printer with Large Format 600*mm*600mm*600mm

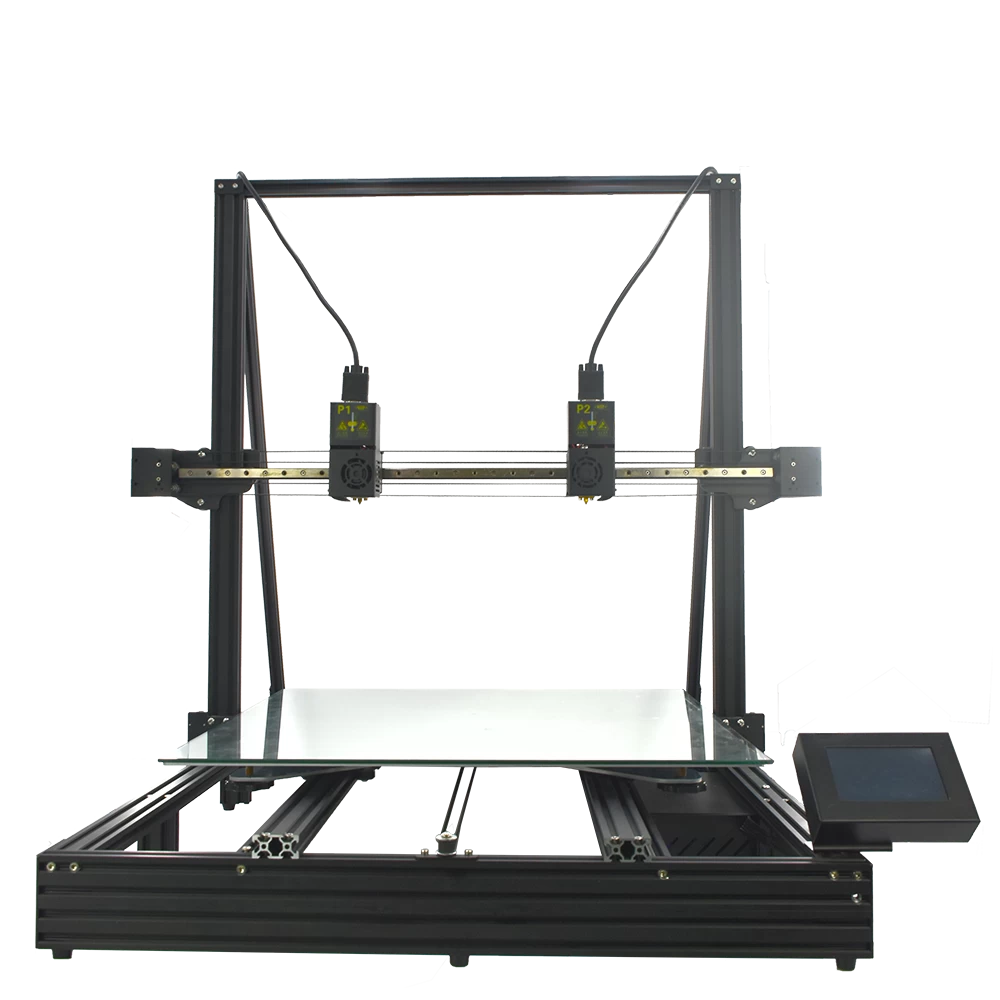

2. Dual Material Printing
3. Duplication Mode Printing
4. Mirror Mode Printing

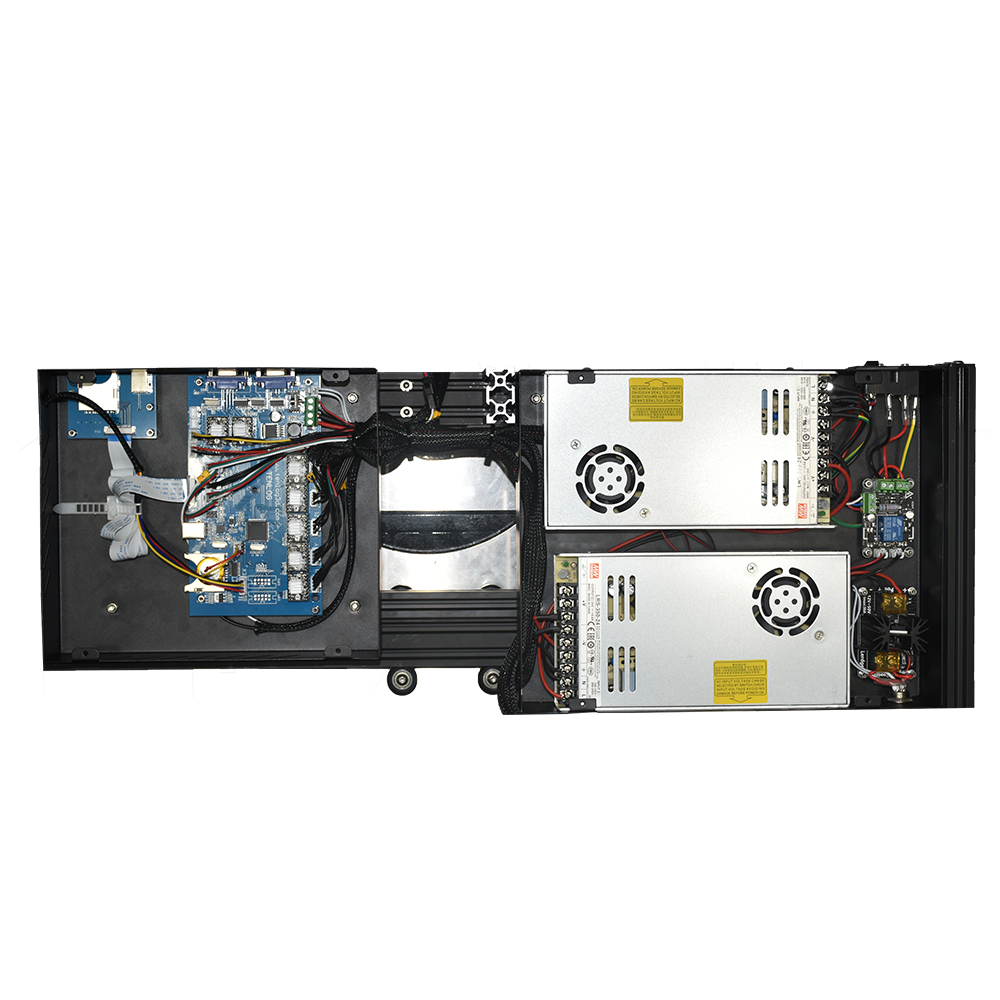

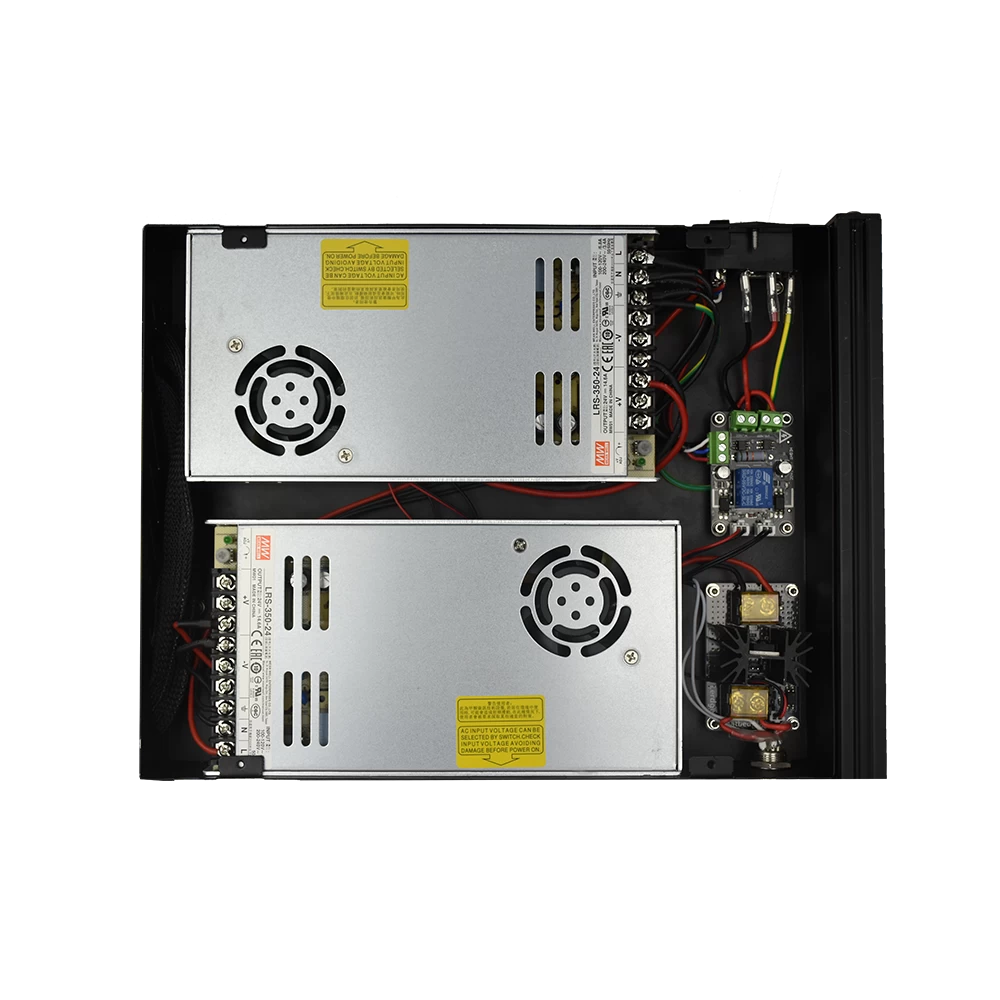

5. Independent 350W power supply for hot bed separately, the maximum temperature of the hot bed can reach 70℃
5. Support only order kits to save on shipping costs
Specifications
|
Model
|
TL-D6
|
|
Additive Manufacturing Accuracy
|
±0.1mm
|
|
Frame Material
|
Aluminum Alloy & Sheet Metal
|
|
Platform Board
|
Aluminum Alloy & Glass
|
|
Nozzle Quantity
|
2
|
|
Nozzle Diameter
|
0.4mm(Support 0.2mm/0.3mm/0.5mm/0.8mm/1.0mm)
|
|
Nozzle Temperature
|
Max 250 ℃
|
|
Build Volume
|
600mm*600mm*600mm
|
|
Layer Thickness
|
0.1mm-0.4mm
|
|
Printer IO
|
8G SD card/USB 2.0
|
|
Screen
|
480*272 Resolution Full Color Capacitive Touch Screen
|
|
Printing Speed
|
10-150mm/s
|
|
Heatbed Temperature
|
MAX 70℃
|
|
Supported Filaments
|
TPU, PVA, PLA, ABS, HIPS, WOOD, PETG, FLEXIBLE
|
|
Filaments Diameter
|
1.75mm
|
|
Language
|
English, Language custom accepted
|
|
Support Files
|
G-code, STL, jpg, etc.
|
|
XY-Axis Positioning Accuracy
|
0.011mm
|
|
Z-Axis Positioning Accuracy
|
0.0025mm
|
|
Input Power
|
100V-240V@50/60Hz
|
|
Output Power
|
24V, Max 15A
|
|
File Preparation Software
|
Cura, Repetier-Host
|
|
Operative Systems
|
XP, WIN7/8/10, Linux
|
|
Voltage Range
|
110-120V / 6.8A, 200 - 240V / 3.4A, 50 / 60Hz
|
|
Machine Size
|
90cm*95cm*104cm(W*D*H)
|
|
Machine Weight
|
30Kg
|
|
Shipping Box Size
|
110cm*100cm*40cm
|
|
Volumetric(Dimensional) Weight
|
88Kg
|
Our Services
Provide a 2-Year Warranty with shipping charges only!
Free shipping for quality problems within 1 year!
Technical support for life!

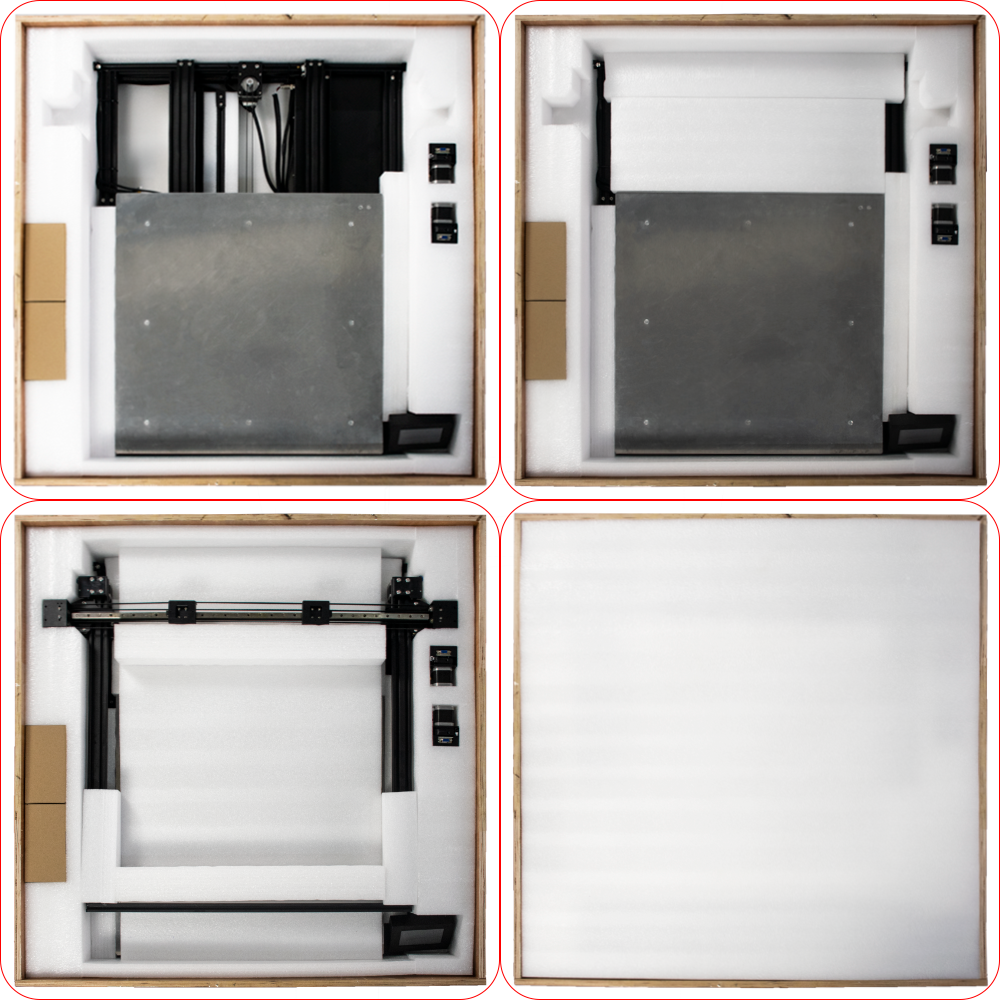

Packaging & Shipping
|
TL-D6 Packing List
|
|
No.
|
Part Name
|
Quantity
|
|
1
|
Printer host
|
1 Set
|
|
2
|
H-linkage kit
|
1 Set
|
|
3
|
Installation & maintenance tool
|
2 Boxes
|
|
4
|
Nozzle Kits
|
2 Sets
|
