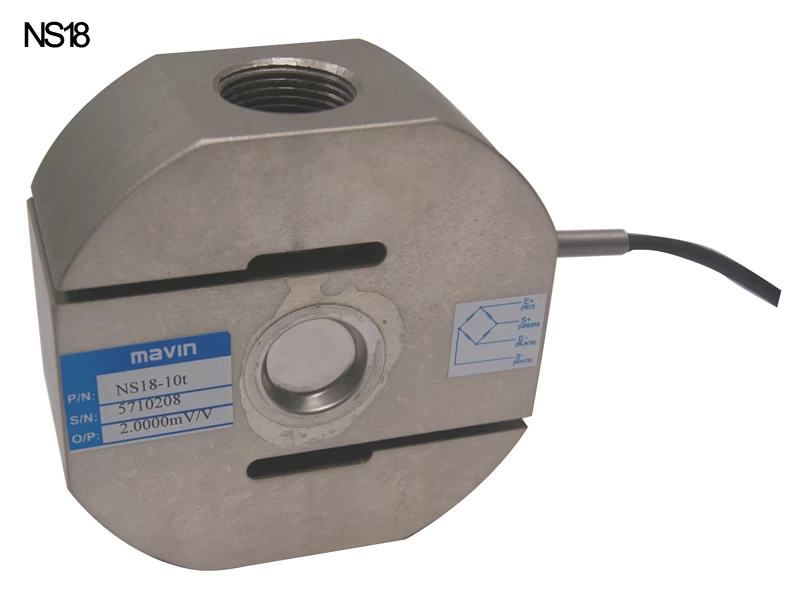

Alloy steel S type Load Cell NS18 (20-1000KG; 1.2-10T)
The tension and compression load cell NS18 offer a high level of corrosive resistance for use in harsh environments with IP67 protection class, available in a wide range of capacities from20kgto over 10 tones. The S type load cell is utilized metal foil strain gauge technology.
Key Features：
Alloy
steel construction with nickel plated treatment
Capacity: 20-1000KG; 1.2-10T
Protection class: IP67
Easy to install, stable & reliable
Usage & Applications：
Hopper
scales
Crane scales
Tension control and machine testing
Batching systems, blending & mixing
systems, belt scales,etc

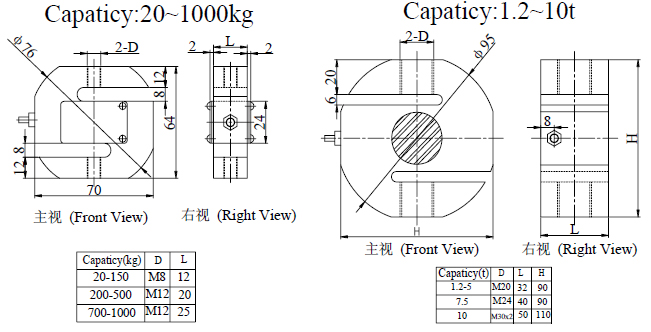

Dimension：
NS18 Specification：
|
Rated
Capacities
|
20,
30, 50, 75, 100, 150, 200, 250, 300, 500, 750 ( kg )
1, 1.2, 1.5, 2, 2.5, 3, 5, 7.5, 10 ( t
)
|
|
Rated
Output
|
2.0
mV/V±0.25%
|
|
Zero
Balance
|
±0.0200
mV/V
|
|
Non-linearity
|
0.02
%R.O.
|
|
Hysteresis
|
0.02
%R.O.
|
|
Repeatability
|
0.02
%R.O.
|
|
30mins
Creep
|
0.02
%R.O.
|
|
30mins
Return
|
0.02
%R.O.
|
|
Safe
Overload
|
150
%R.O.
|
|
Ultimate
Overload
|
200
%R.O.
|
|
Temperature
Effect On Output
|
0.002
%R.O./℃
|
|
Temperature
Effect On Zero
|
0.003
%R.O./℃
|
|
Input
Impedance
|
385±15
Ω
|
|
Output
Impedance
|
350±5
Ω
|
|
Insulation
Impedance
|
≥5000 MΩ/(50VDC)
|
|
Recommended
Excitation
|
5~12
VDC
|
|
Maximum
Excitation
|
15
VDC
|
|
OperatingTemperatureRange
|
-20~60 ℃
|
|
Construction
|
Steel Alloy
|
|
Protection
Class
|
IP67
/ IP68
|
|
Cable
|
φ5×3m（20-1000kg）,
φ6×3m（1.2-10t）
|
|
Recommended
Platform Size
|
|
|
Mode
of Connection
|
Red（EXC+）,Black（EXC-）,Green（SIG+）,White（SIG-）
|
