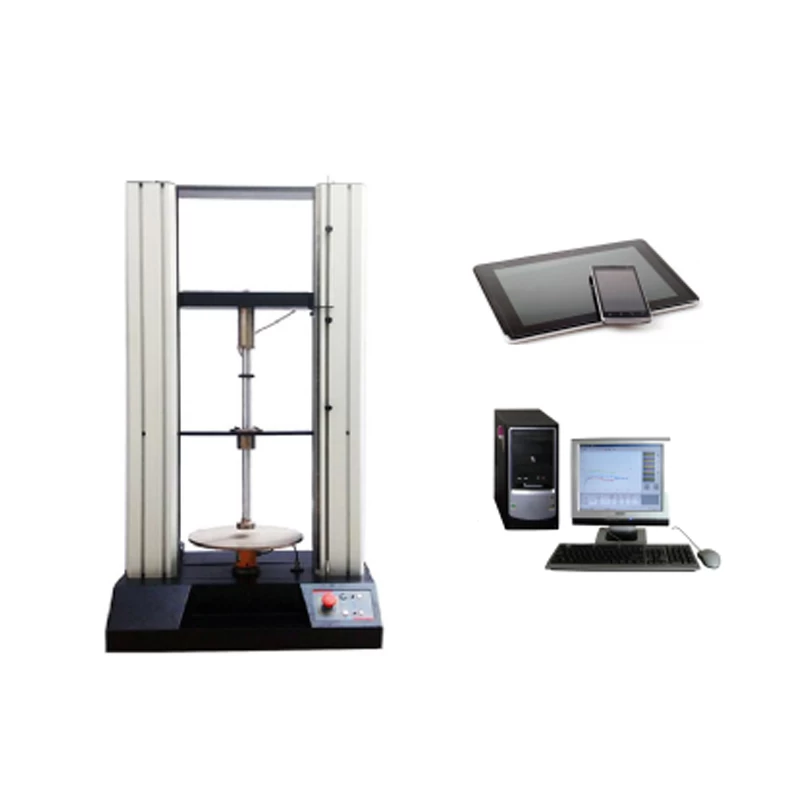

Textile Comprehensive Compress Elastic Tester GT-C01-2

This Textile Comprehensive Compress Elastic Tester is designed for testing function of textile thickness and compress reversion.

Facebook Twitter Pinterest LinkedIn 分享

Textile Comprehensive Compress Elastic Tester GT-C01-2


Product Introduction

Application:

This Textile Comprehensive Compress Elastic Tester is designed for testing function of textile thickness and compress reversion. It is concluding universal test platform and multiple series of pressure finger, which can satisfied the test about multi-index (thickness,compress reversion function), multi-standard, multi-product, and It is a really a machine with multi-function.


Standards:

FZ/T64017, FZ/T64020, FZ/T64003, FZ/T81005

GB/T 24442.1.2, GB/T22796, 24252, 3820, 13761.1, 1089, 1092, 8168, 24218.2,

Feature

  • Adopt test principle of equal speed extension (CRE), double-column gantry structure,
  • With nice & neat aluminium alloy shell.
  • Transmission structure adopt import ball screw, synchronous belt, synchronizing wheel, AC servo system. Can work stability precision with lower noise.
  • Adopt import high precision force cell, can catch testing force change timely.
  • Displacement adopt high precision test of light change railings ruler, error caused by transmission structure & protection device can be excluded.
  • All computer software control, with handy operation, easy understanding, powerful function.

Key Specifications


Model

GT-C01-2

Speed Adjust Range

0.1～200mm/ min

Max Displacement

250mm

Diaplacement Error

≤0.01mm

Force Management Range

1%~100% of Full Range

Force Accuracy

≤±0.2%F·S

Pressure Finger Parallelism

≤±0.1%

Operate Control

Can use operation screen, connecting with computer, pad and cellphone

Power Supply

AC220V 50HZ 450W

Dimensions (WxDxH)

720×520×1750mm

Weight

120kg



Application Industry

All kinds of materials can be tested on theTextile Comprehensive Compress Elastic Tester
