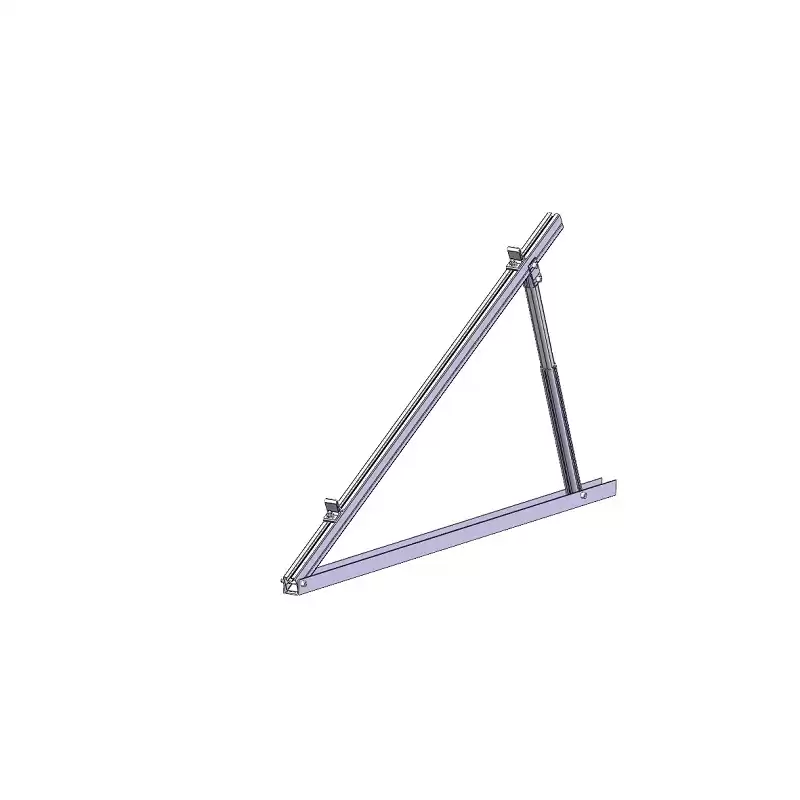

The adjustable angle tripod POW-ATP-X

The tripod system can adjust angle.Adjustment angles of 10-15 degrees, 15-30 degrees and 30 to 60 degrees can be selected in order to maximize energy generation.Tripods can be used on metal roof and concrete roof.And it will be installed before shipment to save you time.





The adjustable angle tripod POW-ATP-X



Product Description:

This tripod is designed to provide a stable platform for mounting equipment on sloped or uneven surfaces.It can adjust the angle, making it ideal for installations on pitched roofs. The tripod is made from high-quality aluminum and stainless steel components.We allow custom angles to meet special installation requirements.



Product Category:

Tilt



Product Code:

POW-ATP-X (X is angle)



BOM:

Product name Material Quantity
The tripod base support  Al6005-T5 1
The tripod upper support  Al6005-T5 1
The tripod H part Al6005-T5
1
27-27 AL tube Al6005-T5
1
32-32 AL tube Al6005-T5
1
M8X55 hex socket head bolt SUS 304
4
M8X15 hex socket head bolt  SUS 304
1
M8 hexagon nuts with flange SUS 304
5
ST6.3x80 hex head wood screw 20# 4

Suitable for:

Metal Roof, Concrete Roof

Why choose us:

Unique designed of Mid&End clamps are used for 30-40mm thickness solar modules.  A design that includes major specifications saves you inventory cost, quick and easy to install.  Innovative design of rail connect base-support can effectively increase the product strength, ensure the safety of the product use.  Powerack have a large variety of tin roof brackets provide customers options.  Customized allowed according to customer needs to meet special installation requirements.


Product Tags Tilt Solar Mounting System          Adjustable Front Leg          Flat Roof Solar Mount System          Adjustable Rear Leg          Tripod Solar Mounting System          Tilt Solar Mounting Structure
