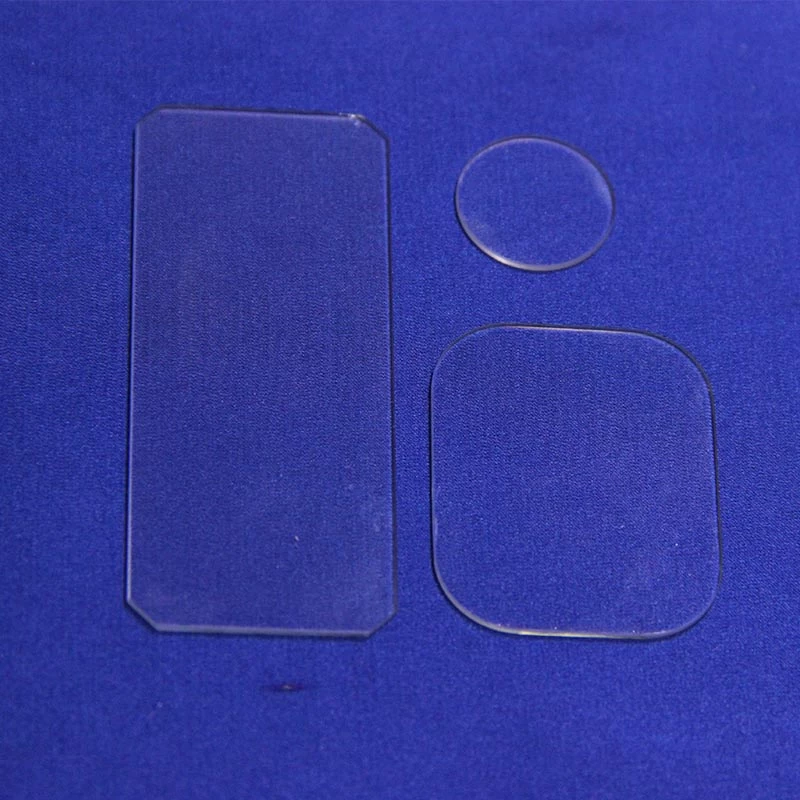

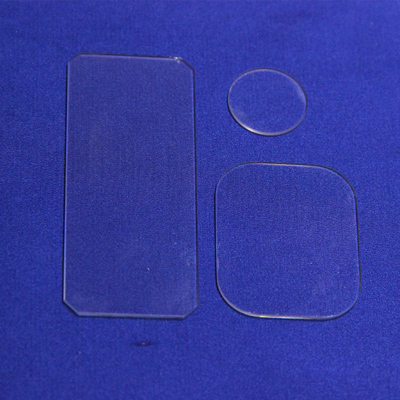

The Most Hard Material Windows Sapphire Windows

Sapphire Windows Transmission in 0.3-5.0μm, no absorption in 2-3μm

Extremely hard and durable

High thermal conductivity

High bulk damage threshold



The Most Hard Material Windows Sapphire Windows


Single crystal sapphire possesses a unique combination of excellent optical, physical and chemical properties. The hardest of the oxide crystals, sapphire retains its high strength at high temperatures, has good thermal properties and excellent transparency. It is chemically resistant to common acids and alkali at temperatures up to 1000 °C as well as to HF below 300 °C . These properties encourage its wide use in hostile environments where optical transmission in the range from the vacuum ultraviolet to the near infrared is required. Sapphire is anisotropic hexagonal crystal. Its properties depend on crystallographic direction (relative to the optical C-axis).

Sapphire Material Advantage:

Transmission in 0.3-5.0μm, no absorption in 2-3μm
Extremely hard and durable
High thermal conductivity
High bulk damage threshold


WTS could make Sapphire Window,sapphire optical window and Sapphire Lens etc. optics sapphire components.


Sapphire Windows Specification:

Material: Sapphire
Dimension Tolerance: +0.0, -0.1mm
Thickness Tolerance: ± 0.1mm
Surface quality: 80/50
Clear Aperture: >85%
Flatness: λper 25mm
Parallelism: 3'
Bevel: <0.25mm X 45°
Coating: Upon requirement



Typical Sizes:
Round Shape Φ5.0; Φ10.0 ; Φ12.7; Φ15.0; Φ20.0;
Diameter(mm): Φ25.4; Φ30.0; Φ38.1; Φ50.8; Φ76.2
Square Shape: 5.0x5.0 ; 10.0x10.0 ; 15.0x15.0 ;
WxH(mm) 20.0x20.0; 25.0x25.0; 50.0x50.0
Thickness(mm):
0.5; 1.0; 1.5; 2.0; 3.0;
4.0; 5.0; 6.0; 8.0; 10.0

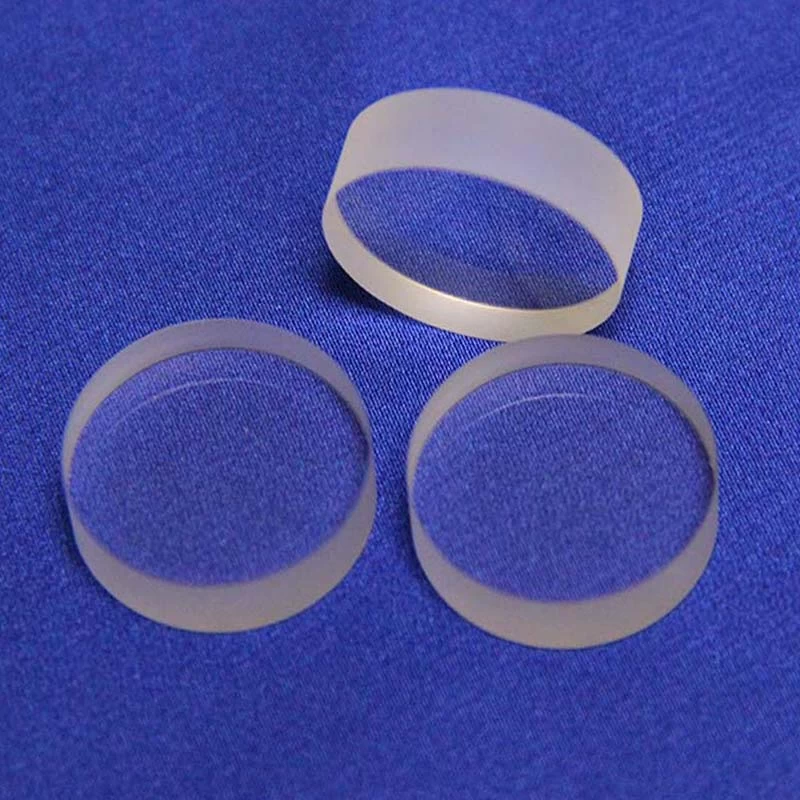

Sapphire WindowsSapphire Lens
