Thermal Printer PCB Board Assembly

PCB SMT Enig PCB Production of Fr4 1-24 Multilayer Printing Machine PCB Board Thermal Inkjet 3D Printer




Thermal Printer PCB Board Assembly



Item NO.

printer

PCB Layers

2 layers

Material

FR4

Thickness of Copper

1oz

Size of Board

85*78mm

Thickness of Board

1.6mm

Solder mask color

Blue

Surface Treatment

HASL

Chip

N32G020K6

Buzzer

Support

Driver

Driver free

Power Supply

3V-5V

Interfaces

USB&UART

Proofing times

2 weeks

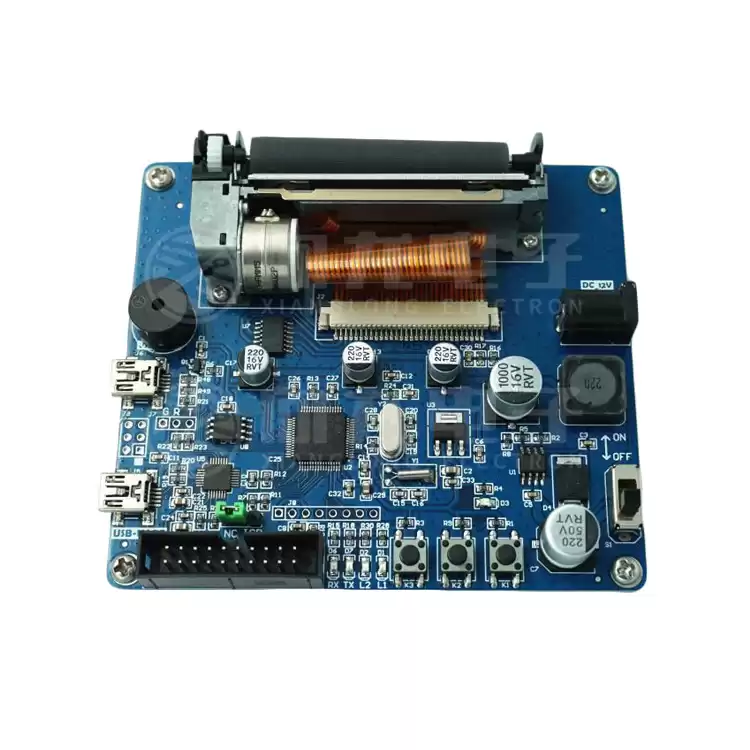

The thermal printer PCBA is mainly composed of two parts, one part is the thermal printer head (FPC connector, thermistor, motor and motor drive). Another control board, this control board mainly controls the functions of the printer (overheat detection, paper out detection and STB), data interaction and system control. The MCU on the motherboard uses the N32G020K6 chip, the ARM cortex-M0 processor core, and supports DMA. It can directly read the USB and UART interface data, reducing the access to the interface data through the CPU (usually, the data will pass through the control board first) The MCU is then sent to the print head through the SPI interface), the font store Flash can reach 32K bytes, the BIOS burner chip and buttons, etc.

Advantages of this plan:

1) Fast calculation speed, the highest main frequency can reach 80MHz;

2) Fast reading and writing speed and many times, with 2KB instruction cache, 32K bytes flash memory, about 200,000 erasing and writing times;

3) Rich interfaces, supporting up to 30 GPIOs;

4) Support multi-mode low power consumption, working voltage 1.8V-5.5V, the minimum can be kept below 0.1uA;

5) Security, built-in hardware storage protection and encryption and decryption algorithm acceleration engine;

6) Support wireless printing, with Bluetooth chip;

Fast printing speed, 4-wire SPI, with an independent DMA, improve data processing speed;

Compared with conventional solutions, our thermal printer PCBA can work at full speed even in standby mode, with low power consumption, small size, low maintenance cost, fast printing speed and stable performance, and is suitable for mid-to-high-end markets.


     Experienced manufacturers and suppliers in China, guarantee first-class quality and service. China quality OEM pcb Board, super fast PCB assembly, great service, quality and price.


   Various stages in the circuit board assembly process including adding solder paste to the board, pick and place components, soldering, inspection and testing. All circuit board assembly processes are required and very important to ensure the highest quality product is produced.
