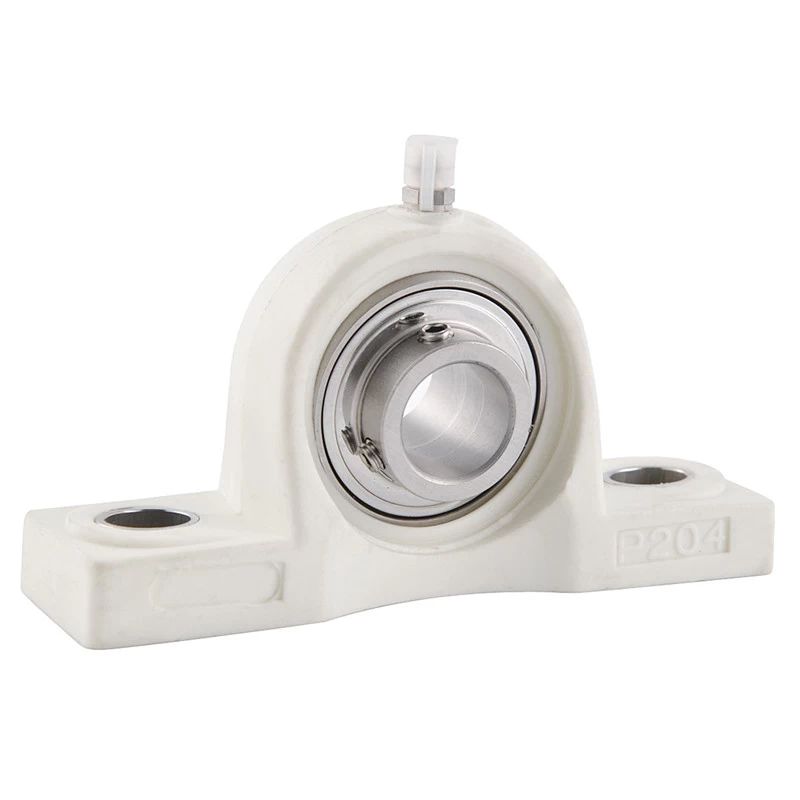

Thermoplastic Bearing Units TP-SUCP2

TP-SUCP  Thermoplastic Pillow blocks,Solid base housing,Stainless steel inserts,With food grade grease and silicon rubber seal,Setscrew locking

Facebook Twitter Pinterest LinkedIn 分享

Thermoplastic Housing TP-SUCP205-16

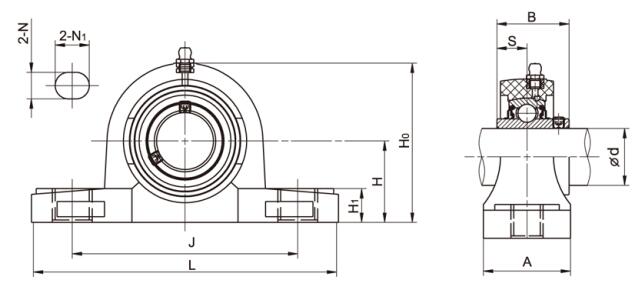

Unit No. Shaft Dia Dimensions(mm) Bolt Size (mm) Weight (kg)
d H L J A N N1 H1 Ho B S
(in) (mm)
TP-SUCP201  12 33.3 127 95 38 11 14 15 65.5 31 12.7 M10 0.29
TP-SUCP201-8 1/2   33.3 127 95 38 11 14 15 65.5 31 12.7 M10 0.29
TP-SUCP202  15 33.3 127 95 38 11 14 15 65.5 31 12.7 M10 0.29
TP-SUCP202-9  9/16    33.3 127 95 38 11 14 15 65.5 31 12.7 M10 0.29
TP-SUCP202-10 5/8   33.3 127 95 38 11 14 15 65.5 31 12.7 M10 0.29
TP-SUCP203  17 33.3 127 95 38 11 14 15 65.5 31 12.7 M10 0.29
TP-SUCP203-11 11/16   33.3 127 95 38 11 14 15 65.5 31 12.7 M10 0.29
TP-SUCP204  20 33.3 127 95 38 11 14 15 65.5 31 12.7 M10 0.29
TP-SUCP204-12 3/4   33.3 127 95 38 11 14 15 65.5 31 12.7 M10 0.29
TP-SUCP205  25 36.5 140 105 38 11 14 16 71 34.1 14.3 M10 0.32
TP-SUCP205-14  7/8    36.5 140 105 38 11 14 16 71 34.1 14.3 M10 0.32
TP-SUCP205-15  15/16    36.5 140 105 38 11 14 16 71 34.1 14.3 M10 0.32
TP-SUCP205-16 1   36.5 140 105 38 11 14 16 71 34.1 14.3 M10 0.32
TP-SUCP206  30 42.9 163 119 46 14 18 18 84 38.1 15.9 M12 0.58
TP-SUCP206-17  1-1/16    42.9 163 119 46 14 18 18 84 38.1 15.9 M12 0.58
TP-SUCP206-18  1-1/8    42.9 163 119 46 14 18 18 84 38.1 15.9 M12 0.58
TP-SUCP206-19  1-3/16    42.9 163 119 46 14 18 18 84 38.1 15.9 M12 0.58
TP-SUCP206-20 1-1/4   42.9 163 119 46 14 18 18 84 38.1 15.9 M12 0.58
TP-SUCP207  35 47.6 168 127 48 14 18 18 94.5 42.9 17.5 M12 0.76
TP-SUCP207-20  1-1/4    47.6 168 127 48 14 18 18 94.5 42.9 17.5 M12 0.76
TP-SUCP207-21  1-5/16    47.6 168 127 48 14 18 18 94.5 42.9 17.5 M12 0.76
TP-SUCP207-22  1-3/8    47.6 168 127 48 14 18 18 94.5 42.9 17.5 M12 0.76
TP-SUCP207-23 1-7/16   47.6 168 127 48 14 18 18 94.5 42.9 17.5 M12 0.76
TP-SUCP208  40 49.2 184 137 54 14 18 19.5 99 49.2 19 M12 0.97
TP-SUCP208-24  1-1/2    49.2 184 137 54 14 18 19.5 99 49.2 19 M12 0.97
TP-SUCP208-25 1-9/16   49.2 184 137 54 14 18 19.5 99 49.2 19 M12 0.97
TP-SUCP209  45 54 192 146 54 17 20 23 106 49.2 19 M16 1.08
TP-SUCP209-26  1-5/8    54 192 146 54 17 20 23 106 49.2 19 M16 1.08
TP-SUCP209-27  1-11/16    54 192 146 54 17 20 23 106 49.2 19 M16 1.08
TP-SUCP209-28 1-3/4   54 192 146 54 17 20 23 106 49.2 19 M16 1.08
TP-SUCP210  50 57.2 206 159 60 17 20 24 114 51.6 19 M16 1.24
TP-SUCP210-30  1-7/8    57.2 206 159 60 17 20 24 114 51.6 19 M16 1.24
TP-SUCP210-31  1-15/16    57.2 206 159 60 17 20 24 114 51.6 19 M16 1.24
TP-SUCP210-32 2   57.2 206 159 60 17 20 24 114 51.6 19 M16 1.24
TP-SUCP211 55 63.5 217 172 60 17 20 22 124 55.6 22.2 M16 1.6
TP-SUCP211-32  2   63.5 217 172 60 17 20 22 124 55.6 22.2 M16 1.6
TP-SUCP211-34  2-1/8    63.5 217 172 60 17 20 22 124 55.6 22.2 M16 1.6
TP-SUCP211-35 2-3/16   63.5 217 172 60 17 20 22 124 55.6 22.2 M16 1.6
TP-SUCP212    60 69.9 238 186 66 18 24 24 137 65.1 25.4 M16 2.4
TP-SUCP212-36  2-1/4    69.9 238 186 66 18 24 24 137 65.1 25.4 M16 2.4
TP-SUCP212-38  2-3/8    69.9 238 186 66 18 24 24 137 65.1 25.4 M16 2.4
TP-SUCP212-39 2-7/16   69.9 238 186 66 18 24 24 137 65.1 25.4 M16 2.4
