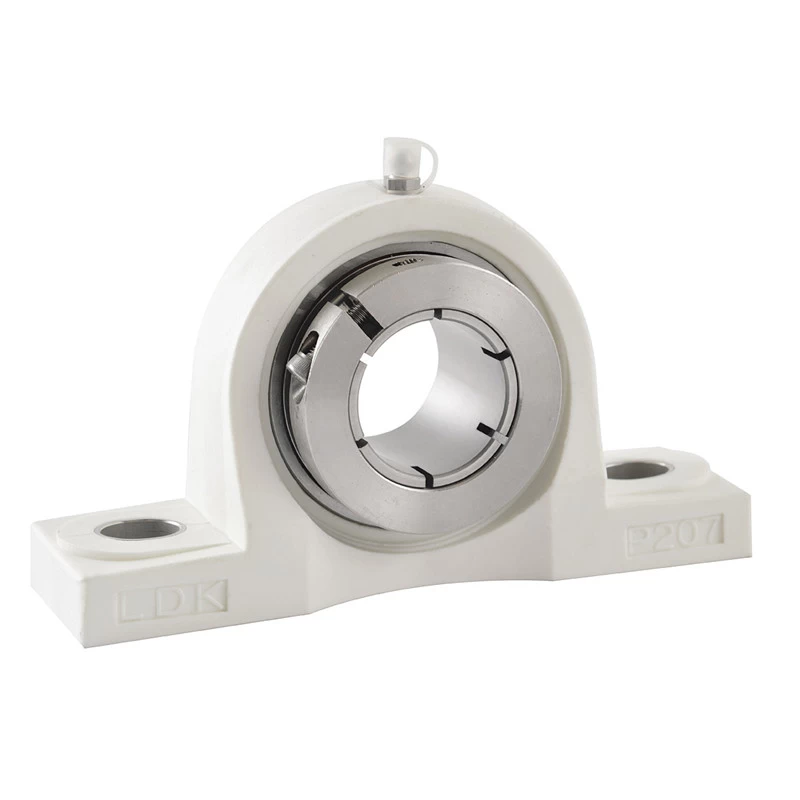

Thermoplastic Bearing Units TP-SUEP2

Thermoplastic pillow blocks,Solid base housing in WHITE,BLACK,GREEN or other specified color.Various type and sizes for selection
Stainless steel inserts,With food grade grease and silicon rubber seal,Concerntric locking

Facebook Twitter Pinterest LinkedIn 分享

TP-SUEP204-12 Thermoplastic Housing

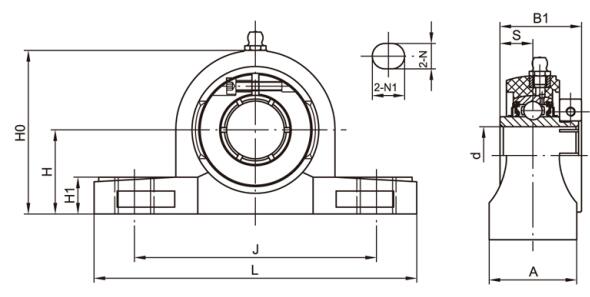

Unit No. Shaft Dia Dimensions(mm) Bolt Size (mm) Weight (kg)
d H L J A N N1 H1 Ho B1 S
(in) (mm)
TP-SUEP204    20 33.3 127 95 38 11 14 15 65.5 33 12.7 M10 0.13
TP-SUEP204-12 3/4   33.3 127 95 38 11 14 15 65.5 33 12.7 M10 0.13
TP-SUEP205    25 36.5 140 105 38 11 14 16 71   14.3 M10 0.14
TP-SUEP205-14  7/8    36.5 140 105 38 11 14 16 71   14.3 M10 0.14
TP-SUEP205-15  15/16    36.5 140 105 38 11 14 16 71   14.3 M10 0.14
TP-SUEP205-16 1   36.5 140 105 38 11 14 16 71   14.3 M10 0.14
TP-SUEP206    30 42.9 163 119 46 14 18 18 84 39.8 15.9 M12 0.25
TP-SUEP206-17  1-1/16    42.9 163 119 46 14 18 18 84 39.8 15.9 M12 0.25
TP-SUEP206-18  1-1/8    42.9 163 119 46 14 18 18 84 39.8 15.9 M12 0.25
TP-SUEP206-19  1-3/16    42.9 163 119 46 14 18 18 84 39.8 15.9 M12 0.25
TP-SUEP206-20 1-1/4   42.9 163 119 46 14 18 18 84 39.8 15.9 M12 0.25
TP-SUEP207    35 47.6 168 127 48 14 18 18 94.5 43.9 17.5 M12 0.29
TP-SUEP207-20  1-1/4    47.6 168 127 48 14 18 18 94.5 43.9 17.5 M12 0.29
TP-SUEP207-21  1-5/16    47.6 168 127 48 14 18 18 94.5 43.9 17.5 M12 0.29
TP-SUEP207-22  1-3/8    47.6 168 127 48 14 18 18 94.5 43.9 17.5 M12 0.29
TP-SUEP207-23 1-7/16   47.6 168 127 48 14 18 18 94.5 43.9 17.5 M12 0.29
TP-SUEP208    40 49.2 184 137 54 14 18 19.5 99 50.2 19 M12 0.34
TP-SUEP208-24  1-1/2    49.2 184 137 54 14 18 19.5 99 50.2 19 M12 0.34
TP-SUEP208-25 1-9/16   49.2 184 137 54 14 18 19.5 99 50.2 19 M12 0.34
TP-SUEP209    45 54 192 146 54 17 20 23 106 50.2 19 M16 0.38
TP-SUEP209-26  1-5/8    54 192 146 54 17 20 23 106 50.2 19 M16 0.38
TP-SUEP209-27  1-11/16    54 192 146 54 17 20 23 106 50.2 19 M16 0.38
TP-SUEP209-28 1-3/4   54 192 146 54 17 20 23 106 50.2 19 M16 0.38
TP-SUEP210    50 57.2 206 159 60 17 20 24 114   19 M16 0.46
TP-SUEP210-30  1-7/8    57.2 206 159 60 17 20 24 114   19 M16 0.46
TP-SUEP210-31  1-15/16    57.2 206 159 60 17 20 24 114   19 M16 0.46
TP-SUEP210-32 2   57.2 206 159 60 17 20 24 114   19 M16 0.46
TP-SUEP211    55 63.5 217 172 60 17 20 22 124 56.6 22.2 M16 0.53
TP-SUEP211-32  2   63.5 217 172 60 17 20 22 124 56.6 22.2 M16 0.53
TP-SUEP211-34  2-1/8    63.5 217 172 60 17 20 22 124 56.6 22.2 M16 0.53
TP-SUEP211-35 2-3/16   63.5 217 172 60 17 20 22 124 56.6 22.2 M16 0.53
TP-SUEP212    60 69.9 238 186 66 18 24 24 137 66.6 25.4 M16 0.72
TP-SUEP212-36  2-1/4    69.9 238 186 66 18 24 24 137 66.6 25.4 M16 0.72
TP-SUEP212-38  2-3/8    69.9 238 186 66 18 24 24 137 66.6 25.4 M16 0.72
TP-SUEP212-39 2-7/16   69.9 238 186 66 18 24 24 137 66.6 25.4 M16 0.72
