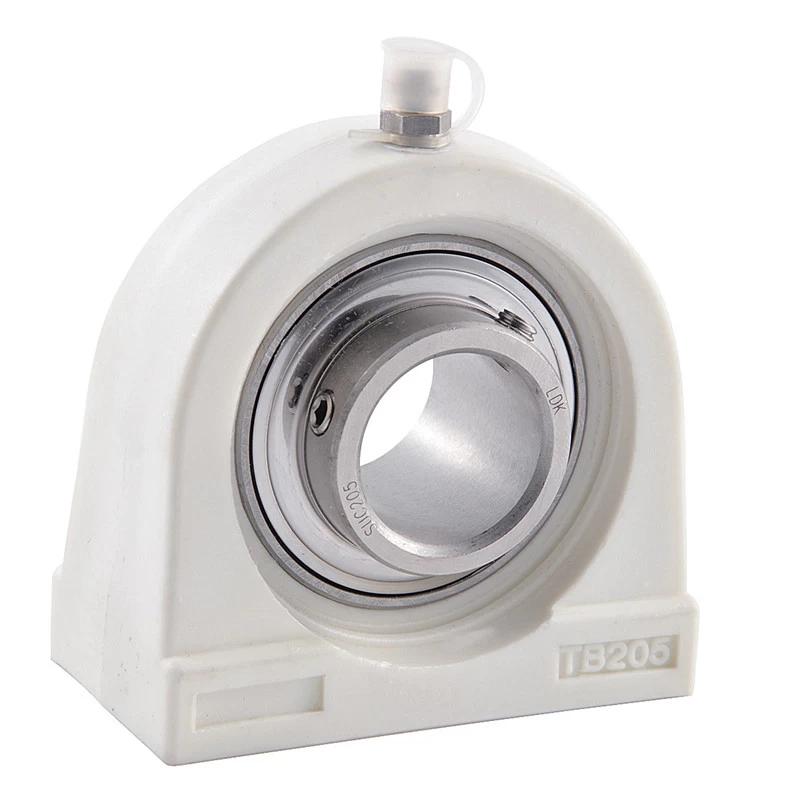

Thermoplastic Bearing Units TP-SUCTB2

TP-SUCTB   Thermoplastic pillow blocks,Tapped base,Stainless steel inserts,With food grade grease and silicon rubber seal,Setscrew locking

Facebook Twitter Pinterest LinkedIn 分享

Thermoplastic Mounted Units TP-SUCTB210

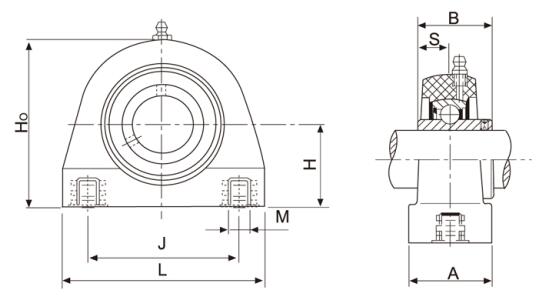

Unit No. Shaft Dia Dimensions(mm) Weight
d H A Ho J L M B S (kg)
(in) (mm)
TP-SUCTB201  12 33.3 34.5 66 50.8 73 3/8-16 31 12.7 0.26
TP-SUCTB201-8 1/2   33.3 34.5 66 50.8 73 3/8-16 31 12.7 0.26
TP-SUCTB202-9 9/16   33.3 34.5 66 50.8 73 3/8-16 31 12.7 0.26
TP-SUCTB202   15 33.3 34.5 66 50.8 73 3/8-16 31 12.7 0.26
TP-SUCTB202-10 5/8   33.3 34.5 66 50.8 73 3/8-16 31 12.7 0.26
TP-SUCTB203  17 33.3 34.5 66 50.8 73 3/8-16 31 12.7 0.26
TP-SUCTB203-11 11/16   33.3 34.5 66 50.8 73 3/8-16 31 12.7 0.26
TP-SUCTB204-12  3/4 33.3 34.5 66 50.8 73 3/8-16 31 12.7 0.26
TP-SUCTB204   20 33.3 34.5 66 50.8 73 3/8-16 31 12.7 0.26
TP-SUCTB205-14 7/8   36.5 39.7 73.4 50.8 76.2 3/8-16 34.1 14.3 0.32
TP-SUCTB205-15  15/16 36.5 39.7 73.4 50.8 76.2 3/8-16 34.1 14.3 0.32
TP-SUCTB205   25 36.5 39.7 73.4 50.8 76.2 3/8-16 34.1 14.3 0.32
TP-SUCTB205-16 1   36.5 39.7 73.4 50.8 76.2 3/8-16 34.1 14.3 0.32
TP-SUCTB206-17 1-1/16   42.9 42.5 84 76.2 101.6 7/16-14 38.1 15.9 0.53
TP-SUCTB206-18 1-1/8   42.9 42.5 84 76.2 101.6 7/16-14 38.1 15.9 0.53
TP-SUCTB206   30 42.9 42.5 84 76.2 101.6 7/16-14 38.1 15.9 0.53
TP-SUCTB206-19 1-3/16   42.9 42.5 84 76.2 101.6 7/16-14 38.1 15.9 0.53
TP-SUCTB206-20 1-1/4   42.9 42.5 84 76.2 101.6 7/16-14 38.1 15.9 0.53
TP-SUCTB207-20 1-1/4   47.6 47.6 95 82.6 111 1/2-13 42.9 17.5 0.73
TP-SUCTB207-21 1-5/16   47.6 47.6 95 82.6 111 1/2-13 42.9 17.5 0.73
TP-SUCTB207-22 1-3/8   47.6 47.6 95 82.6 111 1/2-13 42.9 17.5 0.73
TP-SUCTB207   35 47.6 47.6 95 82.6 111 1/2-13 42.9 17.5 0.73
TP-SUCTB207-23 1-7/16   47.6 47.6 95 82.6 111 1/2-13 42.9 17.5 0.73
TP-SUCTB208-24 1-1/2   49.2 47.6 100.4 88.9 120 1/2-13 49.2 19 0.93
TP-SUCTB208-25 1-9/16   49.2 47.6 100.4 88.9 120 1/2-13 49.2 19 0.93
TP-SUCTB208   40 49.2 47.6 100.4 88.9 120 1/2-13 49.2 19 0.93
TP-SUCTB209-26 1-5/8   54.2 50 108.5 95.3 124 1/2-13 49.2 19 1.06
TP-SUCTB209-27  1-11/16    54.2 50 108.5 95.3 124 1/2-13 49.2 19 1.06
TP-SUCTB209-28 1-3/4   54.2 50 108.5 95.3 124 1/2-13 49.2 19 1.06
TP-SUCTB209   45 54.2 50 108.5 95.3 124 1/2-13 49.2 19 1.06
TP-SUCTB210-30 1-7/8   57.2 54 115 101.6 135 5/8-11 51.6 19 1.25
TP-SUCTB210-31  1-15/16   57.2 54 115 101.6 135 5/8-11 51.6 19 1.25
TP-SUCTB210   50 57.2 54 115 101.6 135 5/8-11 51.6 19 1.25
TP-SUCTB210-32 2   57.2 54 115 101.6 135 5/8-11 51.6 19 1.25
