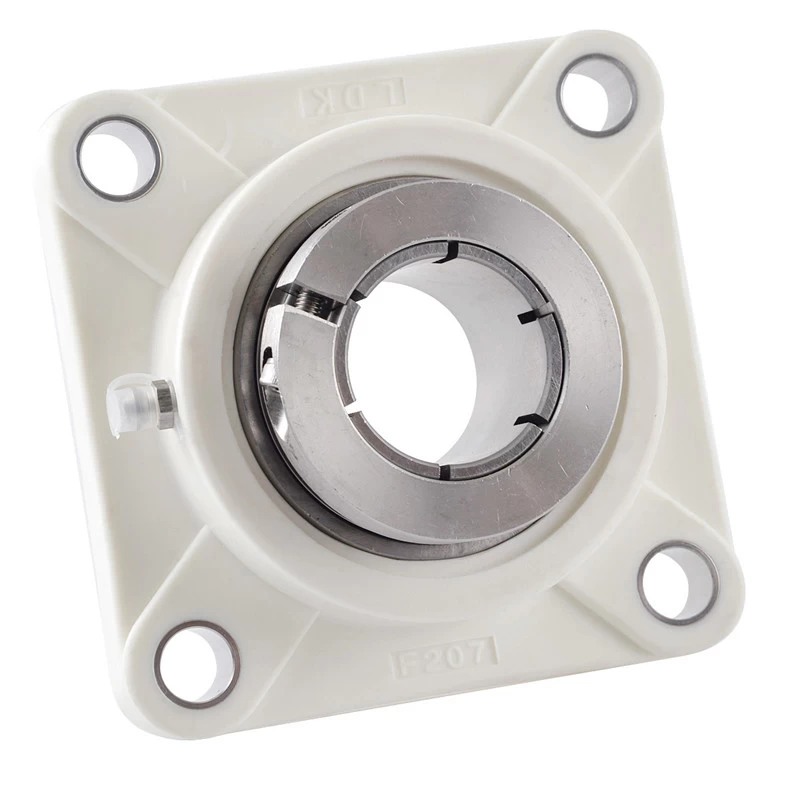

Thermoplastic Bearing Units TP-SUEF2


TP-SUEF  Thermoplastic flange 4-bolt,Solid bade housing,Stainless steel inserts,With food grade grease and silicon rubber seal,Concerntric locking


Facebook Twitter Pinterest LinkedIn 分享

TP-SUEF205-16 Thermoplastic Bearing Housing

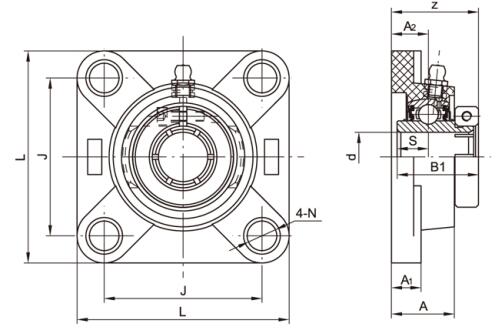

Unit No. Shaft Dia Dimensions(mm) Bolt Size (mm) Weight (kg)
d L J A2 Al A N B1 S z
(in) (mm)
TP-SUEF204    20 86 63.5 18 13.4 27.8 11 33 12.7 32.3 M10 0.3
TP-SUEF204-12 3/4   86 63.5 18 13.4 27.8 11 33 12.7 32.3 M10 0.3
TP-SUEF205    25 95 70 17 14 28 11 35.4 14.3 38 M10 0.35
TP-SUEF205-14  7/8    95 70 17 14 28 11 35.4 14.3 38 M10 0.35
TP-SUEF205-15  15/16    95 70 17 14 28 11 35.4 14.3 38 M10 0.35
TP-SUEF205-16 1   95 70 17 14 28 11 35.4 14.3 38 M10 0.35
TP-SUEF206    30 108 83 19.2 14.3 31.5 11 39.8 15.9 43.1 M10 0.53
TP-SUEF206-17  1-1/16    108 83 19.2 14.3 31.5 11 39.8 15.9 43.1 M10 0.53
TP-SUEF206-18  1-1/8    108 83 19.2 14.3 31.5 11 39.8 15.9 43.1 M10 0.53
TP-SUEF206-19  1-3/16    108 83 19.2 14.3 31.5 11 39.8 15.9 43.1 M10 0.53
TP-SUEF206-20 1-1/4   108 83 19.2 14.3 31.5 11 39.8 15.9 43.1 M10 0.53
TP-SUEF207    35 118 92 21.5 15.5 34.8 13 43.9 17.5 47.9 M12 0.76
TP-SUEF207-20  1-1/4    118 92 21.5 15.5 34.8 13 43.9 17.5 47.9 M12 0.76
TP-SUEF207-21  1-5/16    118 92 21.5 15.5 34.8 13 43.9 17.5 47.9 M12 0.76
TP-SUEF207-22  1-3/8    118 92 21.5 15.5 34.8 13 43.9 17.5 47.9 M12 0.76
TP-SUEF207-23 1-7/16   118 92 21.5 15.5 34.8 13 43.9 17.5 47.9 M12 0.76
TP-SUEF208    40 130 102 23 18 37.5 14 50.2 19 54.2 M12 1.02
TP-SUEF208-24  1-1/2    130 102 23 18 37.5 14 50.2 19 54.2 M12 1.02
TP-SUEF208-25 1-9/16   130 102 23 18 37.5 14 50.2 19 54.2 M12 1.02
TP-SUEF209    45 137 105 24 19 41 17 50.2 19 55.2 M16 1.18
TP-SUEF209-26  1-5/8    137 105 24 19 41 17 50.2 19 55.2 M16 1.18
TP-SUEF209-27  1-11/16    137 105 24 19 41 17 50.2 19 55.2 M16 1.18
TP-SUEF209-28 1-3/4   137 105 24 19 41 17 50.2 19 55.2 M16 1.18
TP-SUEF210    50 143 111 25 21 43 17 52.6 19 58.6 M16 1.3
TP-SUEF210-30  1-7/8    143 111 25 21 43 17 52.6 19 58.6 M16 1.3
TP-SUEF210-31  1-15/16    143 111 25 21 43 17 52.6 19 58.6 M16 1.3
TP-SUEF210-32 2   143 111 25 21 43 17 52.6 19 58.6 M16 1.3
TP-SUEF211    55 162 130 25 20 43 17 56.6 22.2 59.4 M16 1.77
TP-SUEF211-32  2   162 130 25 20 43 17 56.6 22.2 59.4 M16 1.77
TP-SUEF211-34  2-1/8    162 130 25 20 43 17 56.6 22.2 59.4 M16 1.77
TP-SUEF211-35 2-3/16   162 130 25 20 43 17 56.6 22.2 59.4 M16 1.77
TP-SUEF212    60 175 143 29 19 48 17 66.6 25.4 70.2 M16 2.32
TP-SUEF212-36  2-1/4    175 143 29 19 48 17 66.6 25.4 70.2 M16 2.32
TP-SUEF212-38  2-3/8    175 143 29 19 48 17 66.6 25.4 70.2 M16 2.32
TP-SUEF212-39 2-7/16   175 143 29 19 48 17 66.6 25.4 70.2 M16 2.32
