THHN THWN PVC Insulated Nylon Sheathed Electrical Wires

PRODUCTS KEY-WORDS

THHN cable, THWN cable, THWN-2 electrical wire, nylon wire and cables, PVC insulated nylon sheath electric cables, UL 83 listed nylon cables

APPLICATION SELLING-POINT

THHN THWN THWN-2 are primarily used in conduit and cable trays for services, feeders and branch circuits in commercial or industrial applications as specified in the National Electrical Code. THHN is rated at a conductor temperature of 90℃ dry, THWN is rated at a conductor temperature of 75℃ dry or wet, THWN-2 is rated at a conductor temperature of 90℃ dry or wet, they are permitted for 600V application.

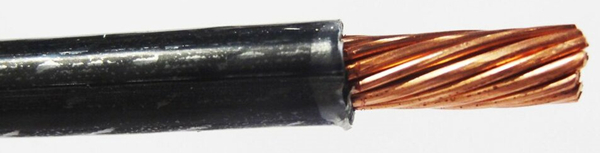

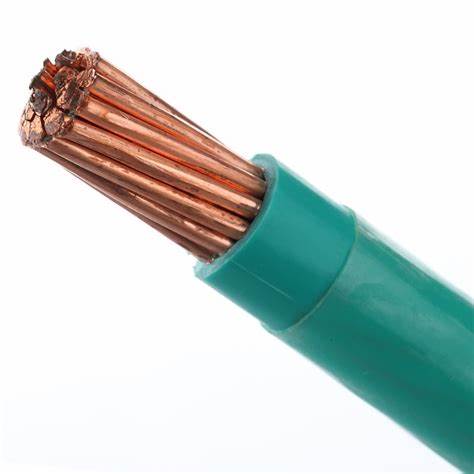

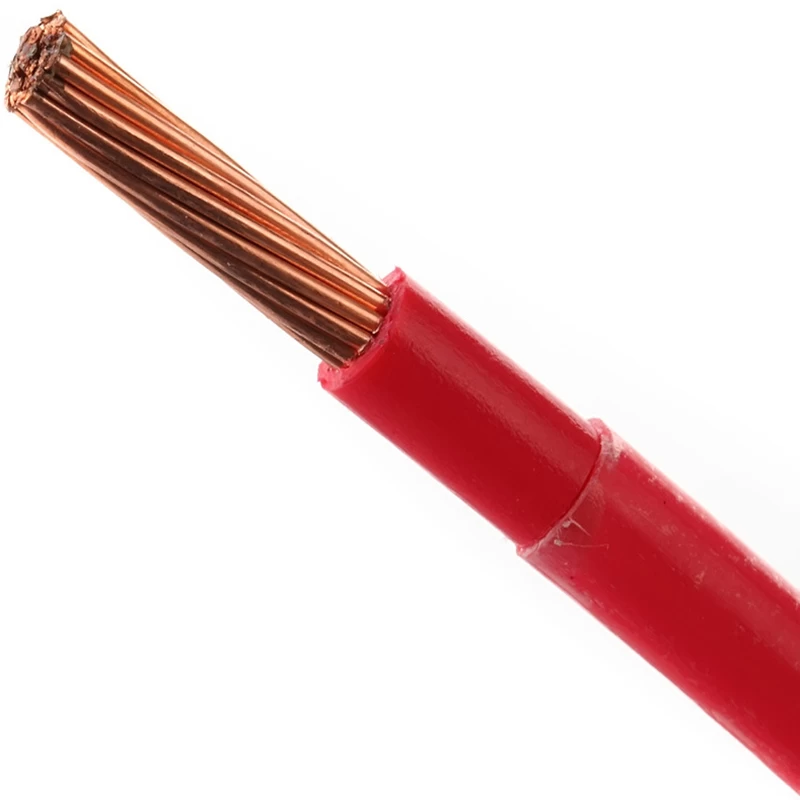

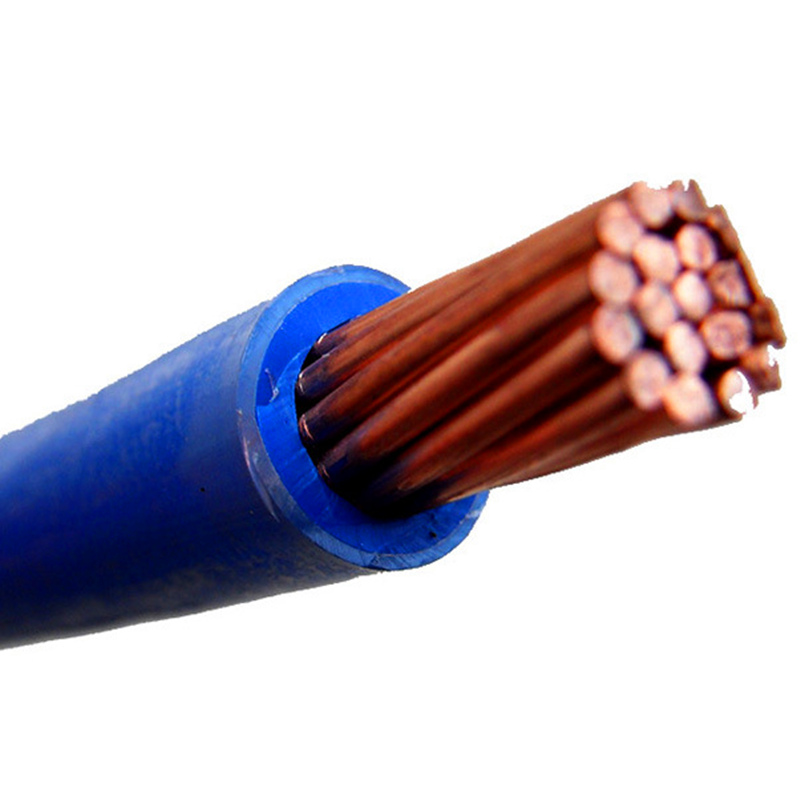

Construction: annealed un-coated copper conductor, PVC insulation, nylon jacket, surface printed.

PRODUCTS STRUCTURE

---Conductor Material

   Pure annealed copper wire, solid, class 1; strand, class 2.

---Insulation Material

   PVC (Polyvinyl chloride).

---Insulation Color

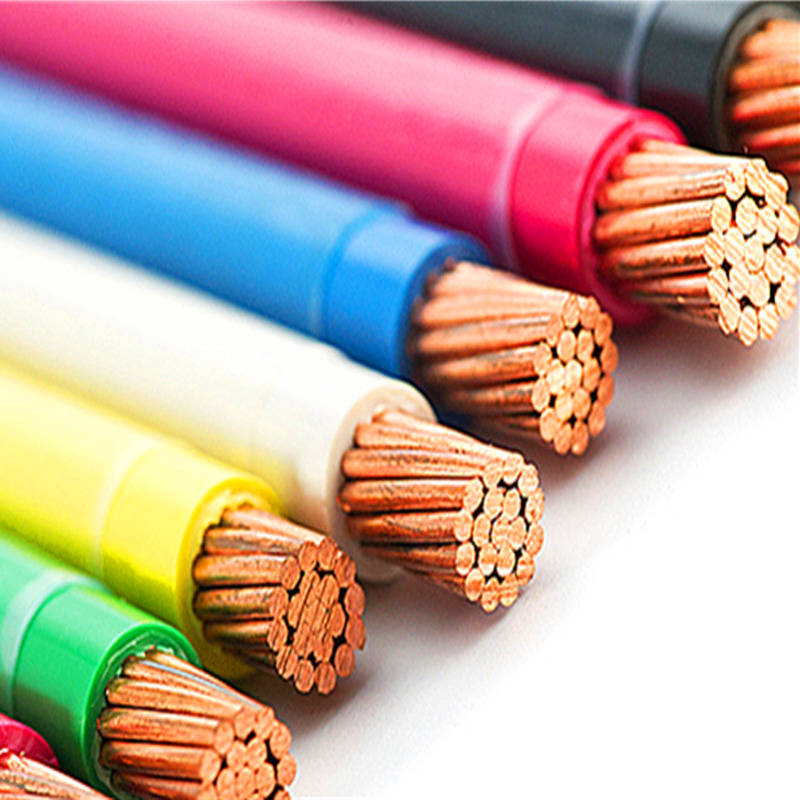

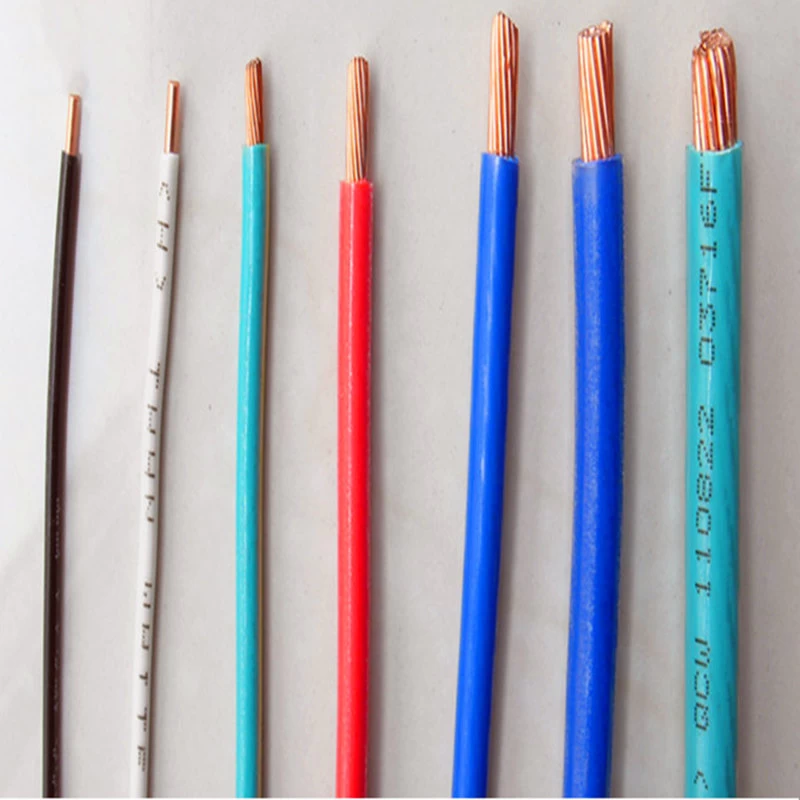

   Red, yellow, blue, green, black, brown, yellow/green, and other colors.

---Sheath Material

   Nylon

---Core Number

   Single core, 1C.

---Voltage Rate (U₀/U)

    600V.

---Working Temperature

   -15℃～+70℃ (THWN), THWN-2: 90℃.

---Minimum Bending Radius

   Up to 10 mm²: 3 x O.D.; 10 mm² to 25mm²: 4 x O.D.; Above 25 mm²: 5 x O.D.

---Production Standard

   UL 83, type THHN Wire 90°C in dry locations, type THWN Wire 75°C in wet locations.

---Product Packing

   100 meters each roll, reel, plastic reel, wooden pallet, wooden drum, or others.

---Product MOQ

   ≥10000 meters.

---Product Delivery

   Within 5-7 working days as soon as we received the deposit.

REMARK

---The above information is for reference only, please refer to the exact technical parameters according to the actual product.

---The product can have flame retardant and fire-resistant properties, the working temperature can be 90 degree, but the production process, materials and production standard maybe has a few of different.

---The OEM or OBM service will be accepted, but the customer should be provided the authorization letter to us in advance, and the authorization letter must be true and valid.

---Hante Cable: Embrace New Times, Co-create Xintiandi; Focus on Quality, Foremost Service.

---Hante Cable: Good Material, Reasonable Weight, Enough Length, well-known brand wins your trust.

MAIN ADVANTAGE

HOT-SELLING PRODUCTS

RAW MATERIAL

PRODUCTION PROCESS

INSPECTION PROCESS

FREQUENTLY ASKED QUESTIONS

1. Are you the manufacturer or trading company?

Wuhan Xitiandi Electrical Technology Co., Ltd (Hante Cable), is the professional in wire and cables manufacturer. We can control your order from the first begining to the last. Welcome to visit Hante Cable, we'll pick you up in Wuhan airport or high-speed Railways Station.

2. How can I get a sample to test your quality?
Hante Cable can provide the free sample to you, but you will pay the express charges.

3. What’s your Minimum Order Quantity?
For electrical wire, the MOQ is 1000 meters; for power cable, the MOQ is 200 meters; of cources, the MOQ can be negotiated. But in order to save the shipment space and cost for you, Hante cable suggests that the MOQ of electrical wires should be more than 3000 meters, and the MOQ of power cable should be more than 500 meters.

4. Can I get a discount?
It depends on your quantity, we can make a discount and afford the freight. Pls kindly contact us.

5. Does your company accept OEM production?
Yes, could print your company name, we even custom the quality card to promote your company.
