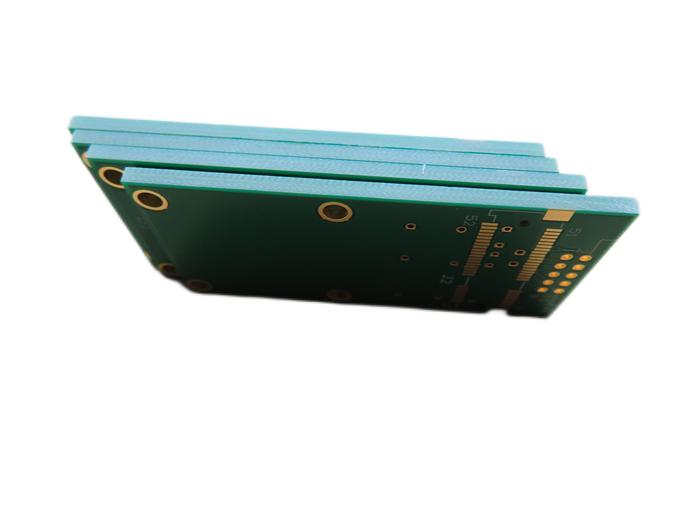

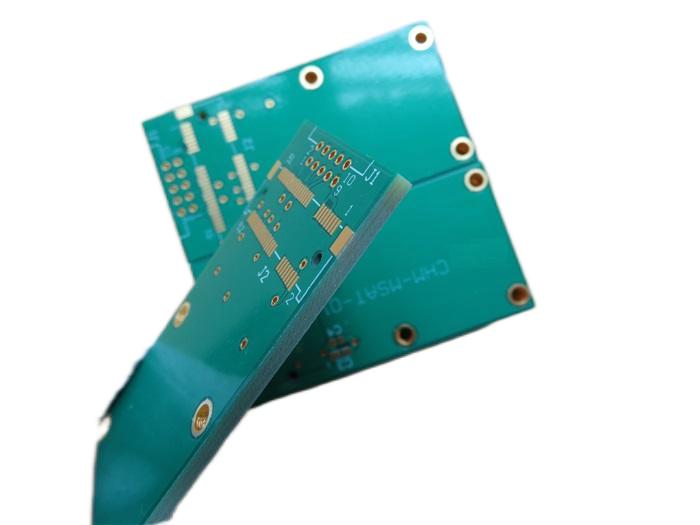

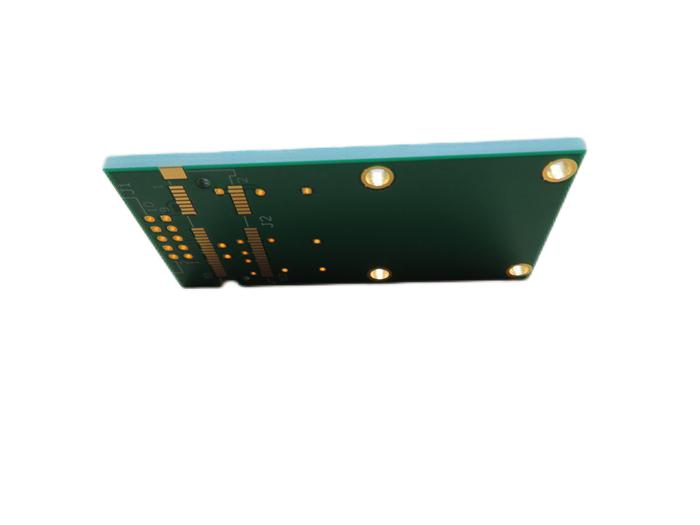

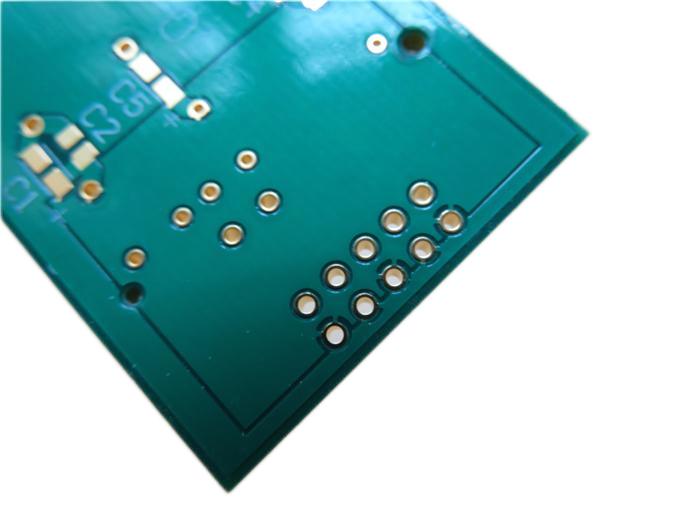

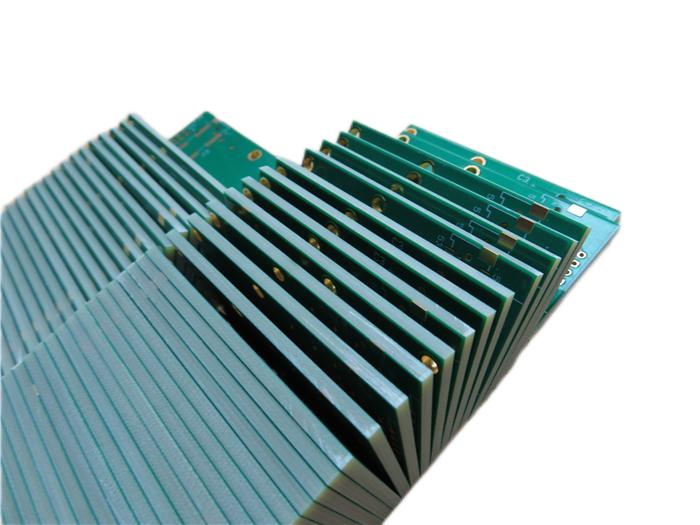

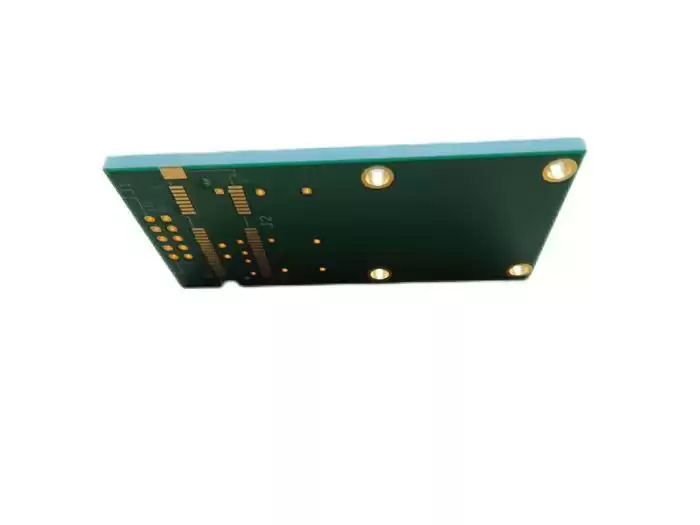

Thick
PCB 2.4mm Circuit Board Dual Layer PCB Board Built on FR-4 With 2oz Copper
(Printed
circuits boards are custom-made products, the picture and parameters shown are
just for reference)
1.1
General description
It's 2.4 mm thick with white
silkscreen(Taiyo) on green solder mask (Taiyo) and immersion gold(4 microinch
gold) on pads. The base material is from ITEQ supplying single PCB. They're
fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 20 panels are
packed for shipment.
1.2
Features and benefits
1. Mid
Tg substrate with Very Low moisture absorption and better CAF resistance;
2.
Immersion gold has high solderability, no stressing of circuit boards and less
contamination of PCB surface.
3. ISO9001,
ISO14001, IATF16949, ISO13485, UL Certified;
4.
16000㎡workshop and 30000㎡output capability per month;
5.
Experienced sales persons provide skilled customer services;
6. IPC
Class 2 / IPC Class 3;
7.
Prototype PCB capability and Volume Production capability;
8.
More than 18+ years of PCB experience.
1.3
Applications
Splitter
Alarm
System
Security
Alarm
Long
Range WiFi Antenna
Modem
4G WiFi
Vehicle
GPS
PLC
Programming Tutorial
Security
Access
Modular
Oscilloscope
Fiber
optic receptors
1.4
PCB Parameter
|
PCB SIZE
|
65.5 x
33.75mm=1PCS
|
|
BOARD TYPE
|
Double
Sided PCB
|
|
Number
of Layers
|
2 Layers
|
|
Surface
Mount Components
|
YES
|
|
Through
Hole Components
|
YES
|
|
LAYER STACKUP
|
copper
------- 52.5um(1.5oz)+plate TOP layer
|
|
FR-4 2.3mm
|
|
copper ------- 52.5um(1.5oz)+plate BOT layer
|
|
TECHNOLOGY
|
|
|
Minimum Trace and Space:
|
23
mil / 7.7 mil
|
|
Minimum
/ Maximum Holes:
|
0.7
mm / 3.2 mm
|
|
Number
of Different Holes:
|
6
|
|
Number
of Drill Holes:
|
23
|
|
Number
of Milled Slots:
|
0
|
|
Number
of Internal Cutouts:
|
0
|
|
Impedance
Control:
|
no
|
|
Number
of Gold finger:
|
0
|
|
BOARD
MATERIAL
|
|
|
Glass
Epoxy:
|
FR-4 Tg150℃,
er<5.4.IT-158, ITEQ Supplied
|
|
Final
foil external:
|
2
oz
|
|
Final
foil internal:
|
2
oz
|
|
Final
height of PCB:
|
2.4
mm ±0.2
|
|
PLATING AND COATING
|
|
|
Surface Finish
|
Immersion gold
(12.1% ) 0.1µm over 3µm nickel
|
|
Solder
Mask Apply To:
|
TOP and Bottom,
12micron Minimum
|
|
Solder
Mask Color:
|
Green,
PSR-2000GT600D, Taiyo Supplied.
|
|
Solder
Mask Type:
|
LPSM
|
|
CONTOUR/CUTTING
|
Routing
|
|
MARKING
|
|
|
Side of
Component Legend
|
TOP
and Bottom.
|
|
Colour
of Component Legend
|
White, IJR-4000
MW300, Taiyo brand
|
|
Manufacturer
Name or Logo:
|
Marked on the
board in a conductor and leged FREE AREA
|
|
VIA
|
Plated
through hole(PTH), minimum size 0.7mm.
|
|
FLAMIBILITY RATING
|
UL
94-V0 Approval MIN.
|
|
DIMENSION TOLERANCE
|
|
|
Outline
dimension:
|
0.0059"
|
|
Board
plating:
|
0.0029"
|
|
Drill
tolerance:
|
0.002"
|
|
TEST
|
100%
Electrical Test prior shipment
|
|
TYPE OF ARTWORK TO BE SUPPLIED
|
email
file, Gerber RS-274-X, PCBDOC etc
|
|
SERVICE AREA
|
Worldwide,
Globally.
|
1.5
Our PCB Capability (2022)
|
Parameter
|
Value
|
|
Layer Counts
|
1-32
|
|
Substrate Material
|
RO4350B, RO4003C, RO4730G3, RO4360G2,
RO4533, RO3003, RO3006, RO3010, RO3035, RO3203, RO3210; RT/Duriod 5880;
RT/Duriod 5870, RT/Duriod 6002, RT/Duroid 6010, RT/duroid 6035HTC; TMM4,
TMM10, Kappa 438; TLF-35; RF-35TC, RF-60A, RF-60TC, RF-35A2, RF-45, RF-10,
TRF-45; TLX-0, TLX-6, TLX-7, TLX-8; TLX-9, TLY-3, TLY-5; PTFE F4B (DK2.2
DK2.65 DK2.85 DK2.94, DK3.0, DK3.2, DK3.38, DK3.5, DK4.0, DK4.4, DK6.15,
DK10.2); AD450, AD600, AD1000, TC350; Nelco N4000, N9350, N9240; FR-4 ( High
Tg S1000-2M, TU-872 SLK, TU-768, IT-180A etc.), FR-4 High CTI>600V;
Polyimide, PET; Metal Core etc.
|
|
Maximum Size
|
Flying test: 900*600mm, Fixture
test 460*380mm, No test 1100*600mm
|
|
Board Outline Tolerance
|
±0.0059"
(0.15mm)
|
|
PCB Thickness
|
0.0157"
- 0.3937" (0.40mm--10.00mm)
|
|
Thickness Tolerance(T≥0.8mm)
|
±8%
|
|
Thickness Tolerance(t＜0.8mm)
|
±10%
|
|
Insulation Layer Thickness
|
0.00295"
- 0.1969" (0.075mm--5.00mm)
|
|
Minimum Track
|
0.003"
(0.075mm)
|
|
Minimum Space
|
0.003" (0.075mm)
|
|
Outer Copper Thickness
|
35µm--420µm (1oz-12oz)
|
|
Inner Copper Thickness
|
17µm--350µm (0.5oz - 10oz)
|
|
Drill Hole(Mechanical)
|
0.0059"
- 0.25" (0.15mm--6.35mm)
|
|
Finished Hole(Mechanical)
|
0.0039"-0.248"
(0.10mm--6.30mm)
|
|
DiameterTolerance(Mechanical)
|
0.00295"
(0.075mm)
|
|
Registration (Mechanical)
|
0.00197"
(0.05mm)
|
|
Aspect Ratio
|
12:1
|
|
Solder Mask Type
|
LPI
|
|
Min Soldermask Bridge
|
0.00315"
(0.08mm)
|
|
Min Soldermask Clearance
|
0.00197"
(0.05mm)
|
|
Plug via Diameter
|
0.0098"
- 0.0236" (0.25mm--0.60mm)
|
|
Impedance Control Tolerance
|
±10%
|
|
Surface Finish
|
HASL,HASL
LF,ENIG,Imm Tin,Imm Ag, OSP, Gold Finger
|
