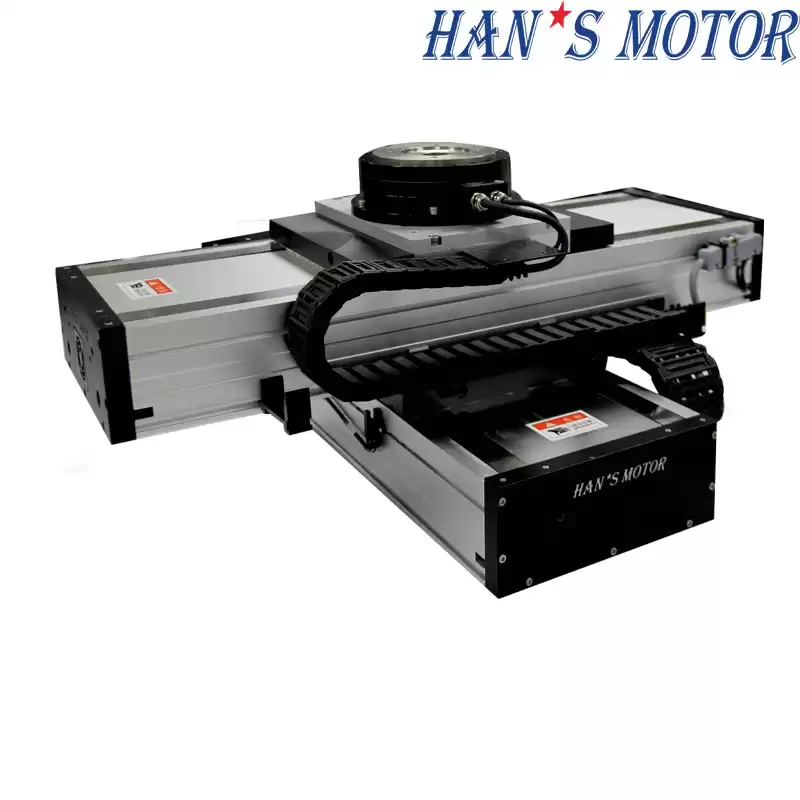

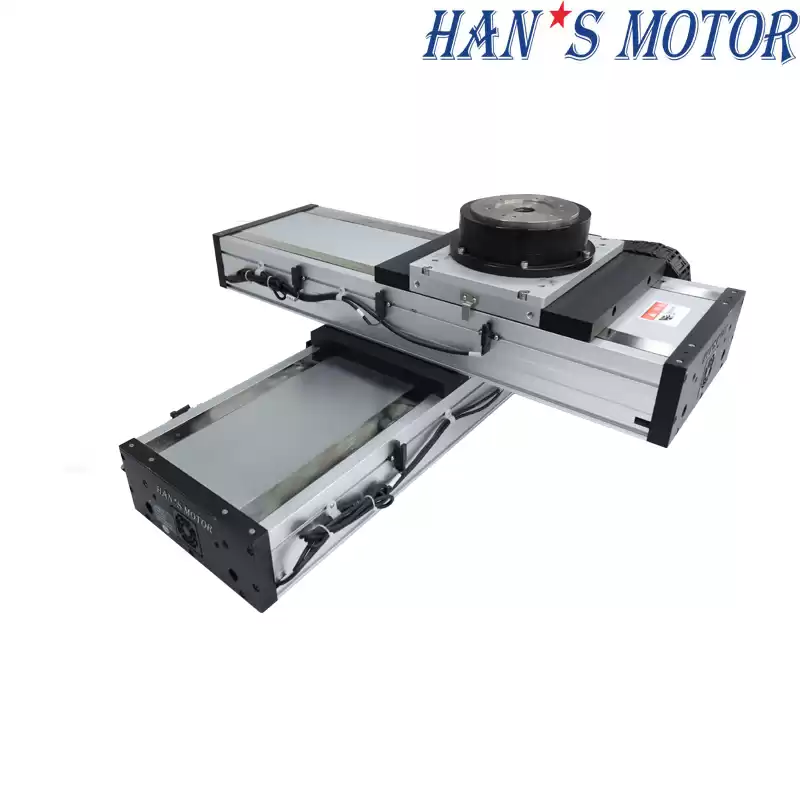

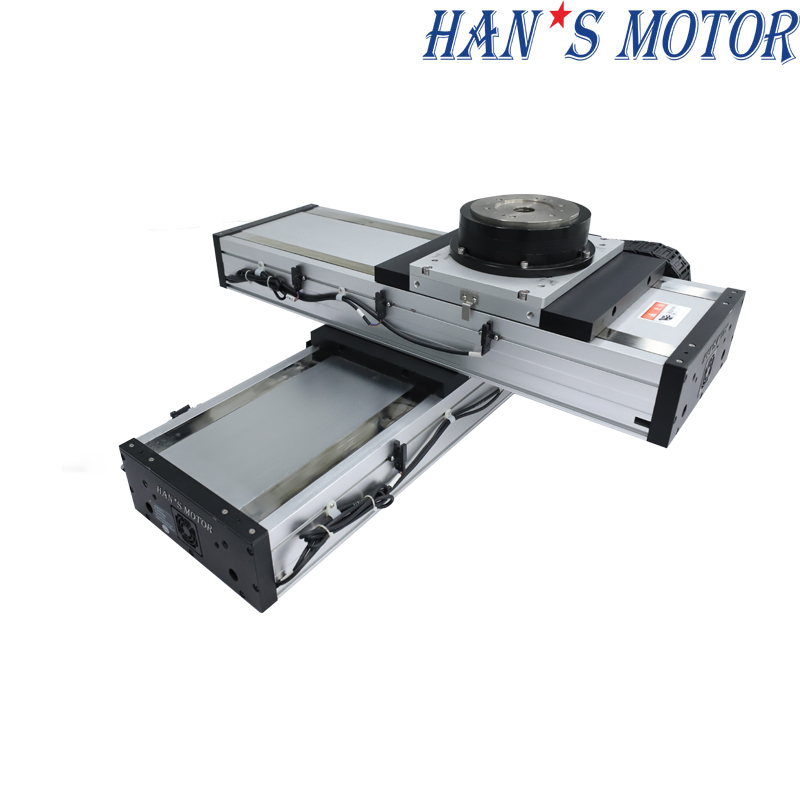

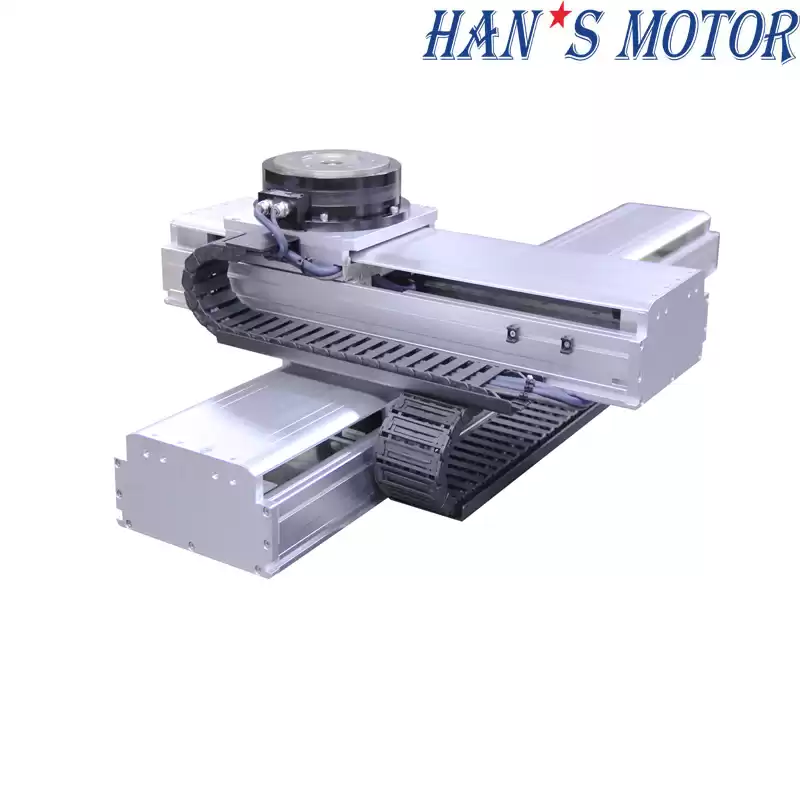

Product name：Three-axis direct drive linear motor stage for laser marking machine
Characteristic:
• It is composed of a stardard cross-type stage and a DDR motor,which is fully protected and has good dust-proof etc
• Continuous current 2.6Arms, peak current 7.8Arms
• Adopt HAN’s self-developed encoders and adtech driver
• Base width is 230mm, stroke 450mm, which can be used in medium and large loads of machine
• High precision optical grating feedback system, repeatability position accuracy ±1um
• Han’s production capacity 5000-10000 pieces per month
Motor and Stage Specifications
|
Stage parameters
|
X-axis
|
Y-axis
|
T-axis
|
|
Effective stroke（mm）
|
450
|
450
|
180°
|
|
Limit stroke（mm）
|
480
|
480
|
\
|
|
Max. speed（m/s）
|
1
|
1
|
500rpm
|
|
Acceleration(g)
|
1
|
1
|
\
|
|
Repeatabiltiy postioning accuracy（μm）
|
±5
|
±5
|
±5arcsec
|
|
Payload（kg）
|
\
|
\
|
10
|
|
Motor type
|
FL22
|
FL21
|
HANS-H-005
|
|
Continuous force（N）
|
196
|
118
|
5
|
|
Peak force（N）
|
517
|
314
|
15
|
|
Continuous current（Arms）
|
2.6
|
2.6
|
2.3
|
|
Peak Current（Arms）
|
7.8
|
7.8
|
7
|
|
Polar distance (N-N) mm
|
20
|
20
|
0.0021Kg*m2
|
Kindly instruct us your requirements of linear motion stage, and we would provide product manual and 3D model to you. Some parameters you can provide:
1. Effective stroke
2. Maximum speed
3. Maximum acceleration
4. Load
5. Repeatability accuracy
6. Straightness
7. Stages structure
Free product manual and 3D model and good quality with a reasonable price can be provided.
Industry Applications:
Laser marking machine motion system, automatic assembly, testing equipment, semiconductor precision inspection equipment, etc .
Laser Group Show
Production Center Show
Packaging & Delivery
Packaging Details.: plywood packing
Port.: Shenzhen ( Sea / Air shipping, TNT, UPS, FedEx and DHL ect.)
Leading time: According to the order quantity, 10 days for the small order and 20 days for the bulk order
