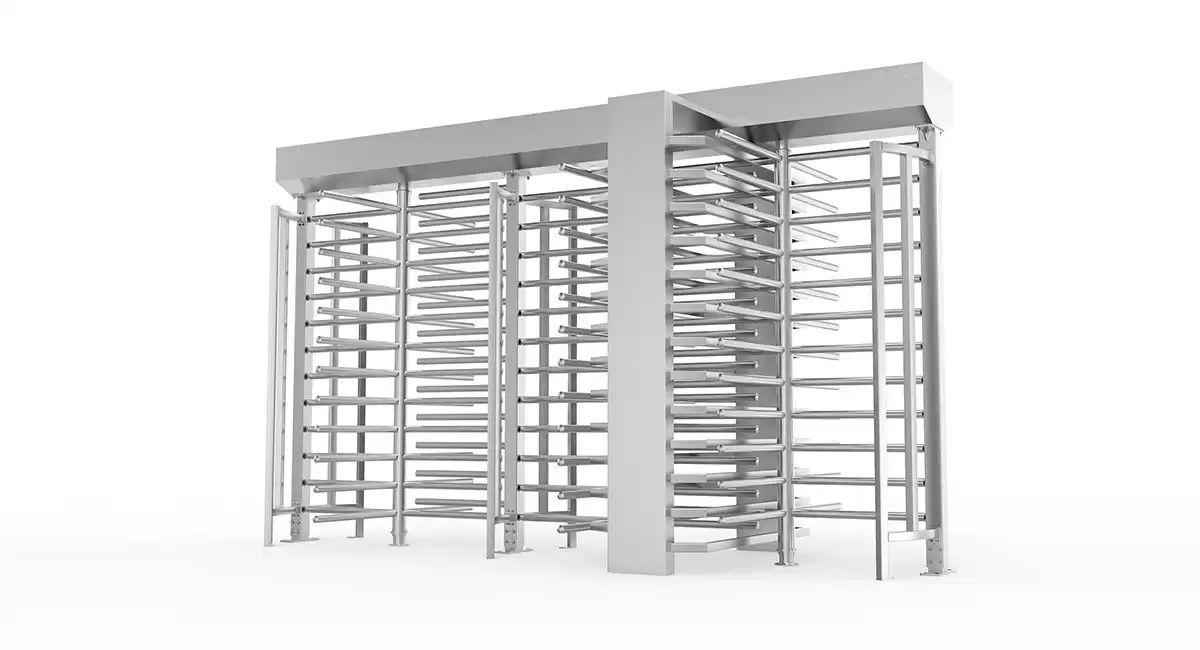

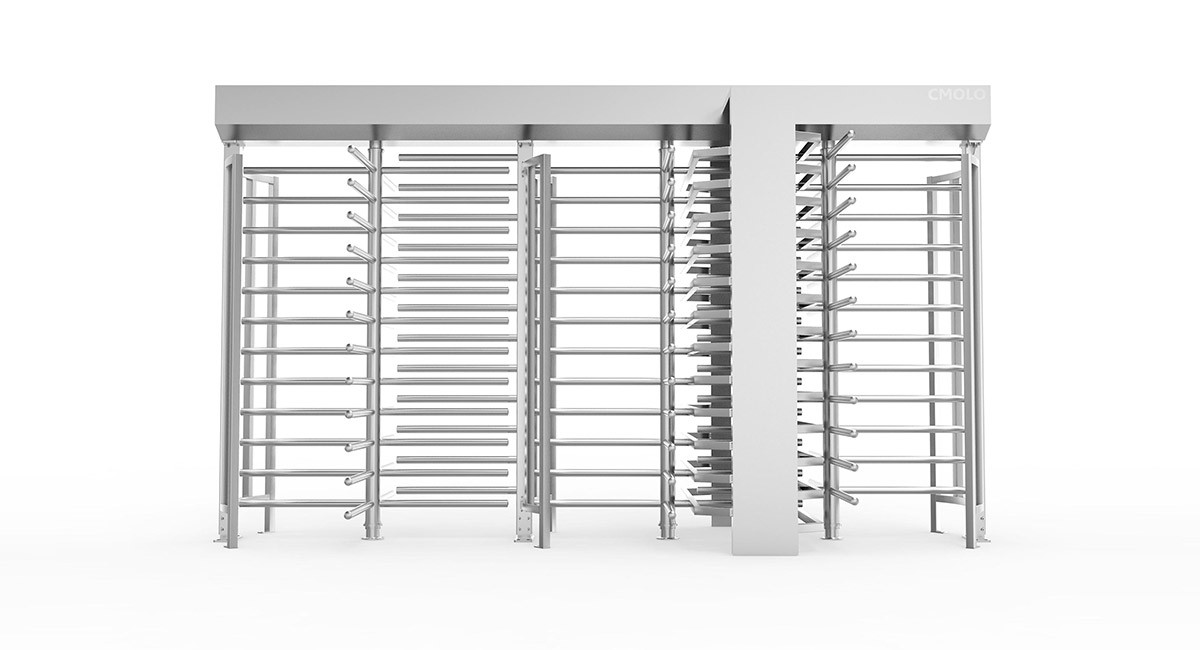

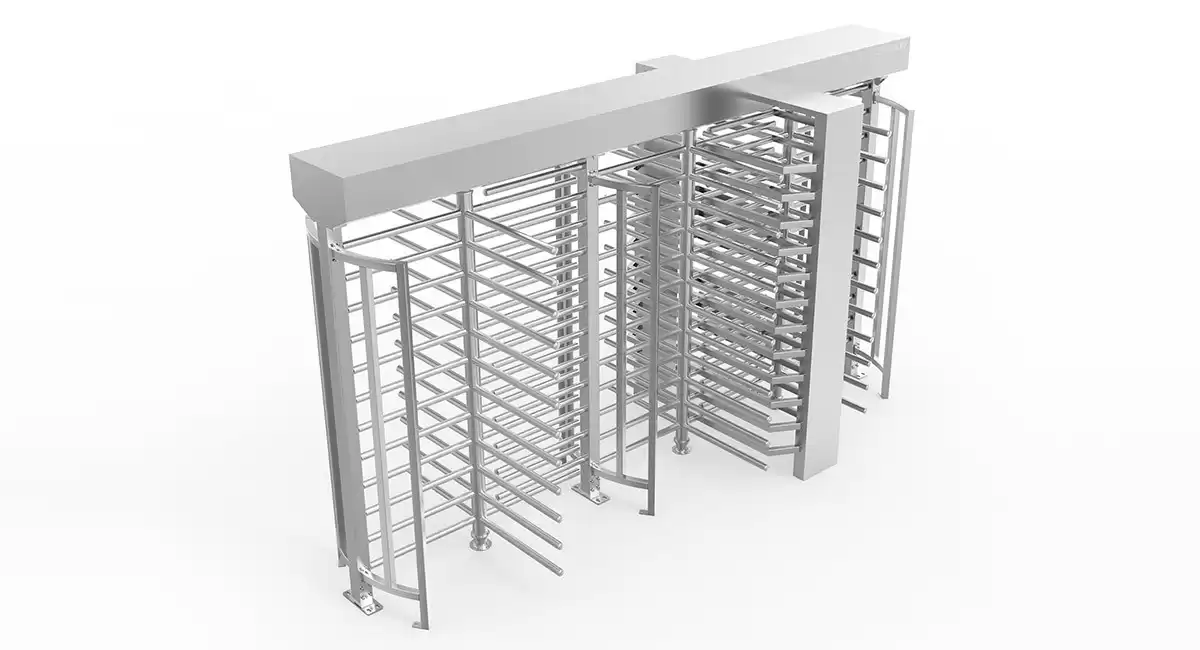

Three Lanes Security Door Full High Turnstile

Three lanes security door full high turnstile CPW-223B can be divided into fully-automatic full height turnstile and semi-automatic full height turnstile.

The mechanism module of the fully automatic three lanes security door full high turnstile CPW-223B adopts brushless DC motor and the accurate positioning encoder, combined with the advanced secondary transmission mechanical structure and the rotating column runs quickly, accurately, smoothly and silently.

The semi-automatic three lanes security door full high turnstile CPW-223B adopts an original professional-grade buffer design, which makes the operation more efficient and stable, reduces losses, and ensures the reliability of the mechanism.

Both fully automatic full-height turnstile and semi-automatic full high turnstile adopt mechanical anti-tailgating design, which can effectively realize that only one person passes at a time, with very high anti-tailgating performance. The cabinet is high and large to form a closed structure to control passage, prevent pedestrian from climbing and creeping, so as to realize unattended operation and have a very high security level.The cabinet and the rotating column are detachable for easy transportation and installation.

Facebook Twitter Pinterest LinkedIn 分享

Description

advanced core patented technology	high stability, optimize the mechanism structure	long life, longer than 10 million times	accurate & fast detection

IP65	high temperature resistance	low temperature resistance	condensation resistance

modular design, easy maintenance	high compatibility, high integration	unattended

Core Technology of Intelligent & Advanced Full Height Turnstile

Type	Fully-auto full height turnstile	Semi-auto full height turnstile
Core control algorithm	Using advanced servo control system and DSP+ARM motor control technology, combined with the motor control algorithm independently developed by CMOLO, to achieve precise control and positioning of the obstacle.	The main control adopts the advanced algorithm based on ARM core, with advanced photoelectric sensors and high-quality solenoids, to achieve efficient and accurate control logic.
Strong mechanism structure	The lossless modular mechanism structure independently developed by CMOLO adopts CNC machining technology to ensure the high precision of each module of the mechanism.
Strong mechanism structure	The mechanism adopts the mechanical structure of secondary transmission. The gear transmission ratio is precise, efficient and stable, which can precisely control the rotation angle of the arm and reduce the loss, ensure the reliability of the mechanism and enhance the service life of the mechanism.	The mechanism adopts advanced hydraulic buffer, with advanced buffer design structure, which effectively reduces the noise and mechanical vibration, makes the operation more efficient and stable, and reduces the loss, ensures the reliability of the mechanism and enhances the service life of the mechanism.
Passing prompt of Automatic rotation	After the pedestrian provides a legal door opening signal, the arm rotates at a certain angle in the opening direction, indicating that the pedestrian can pass, and then the pedestrian gently pushes the arm, and the arm automatically rotates in the opening direction.	--
Arms status monitoring	Three lanes security door full high turnstile adopts a closed-loop feedback control system to monitor the movement status of the arm, which can sensitively detect behaviors that threaten the safety of the passageway, such as illegally hitting the arm and reverse passage, and then issue warnings in the form of sound and light, and can be linked with other security systems.	--
Prevent reverse passage	Mechanical electric control locking structure design, anti-illegal collision arm and reverse passage.	Mechanical electric control locking structure design, anti-illegal collision arm and reverse passage.
Long service life	The mechanism and control system of three lanes security door full high turnstile have been passed 10 million times life test.
Unattended guard	The cabinet is high and large to form a closed structure to control passage, prevent pedestrian from climbing and creeping, so as to realize unattended operation.
Anti-tailgating	Three lanes security door full high turnstile adopts a mechanical anti-tailgating design, which can realize one person passing through at a time.

All-around Pedestrian Safety Protection

Type	Fully-auto full height turnstile	Semi-auto full height turnstile
Unlock the gate when power failure	The advanced mechanical structure is independently developed by CMOLO. When the power is cut off, the arm is automatically unlocked, and pedestrians can freely push the arm to quickly evacuate the crowd.
Anti-electric shock	All electric modules are designed to operate under the safety voltage of 24V, and configured with residual current protective device to prevent pedestrian from being injured by electric shocks.
Emergency open	The three lanes security door full high turnstile equips with emergency escape control device, to make the system automatically open the gate to evacuate pedestrian.

Customization

Functions	Built-in or external counter TCP / IP communication function
Appearance	Cabinet size, material and surface treatment process etc. of turnstile can be moderately customized.
Direction Indicator	The installation position of direction indicator can be adjusted. The pattern of direction indicator can be customized.
System integration	Integrate with access control system, human body temperature measurement system, ticketing system, time attendance system, visitor system etc. Integrate with QR code, face, fingerprint, ID/IC card, passport identification system etc. Integrate with card collection system, and customize card collection device.
Gate Open Button	External gate open button Install the gate open button with wireless remote control
