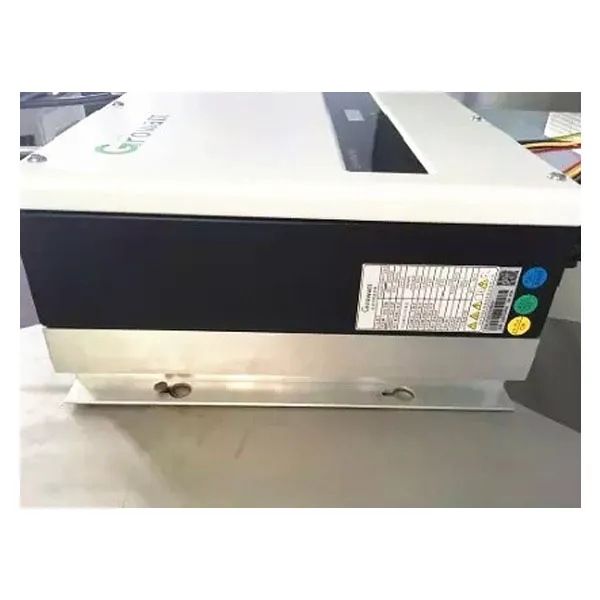

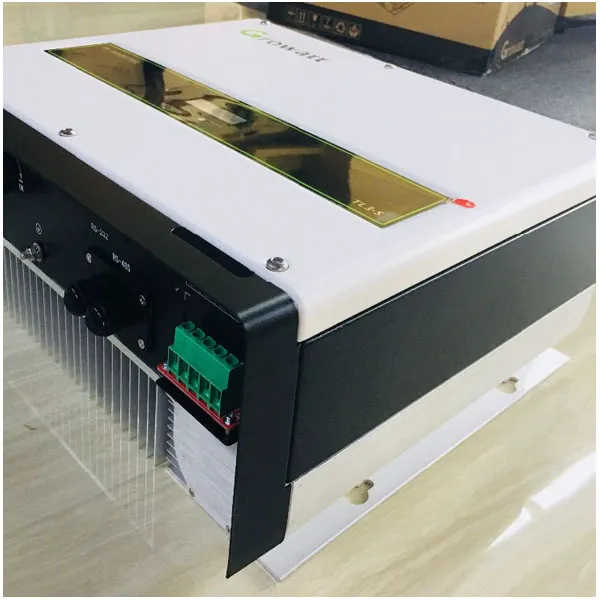

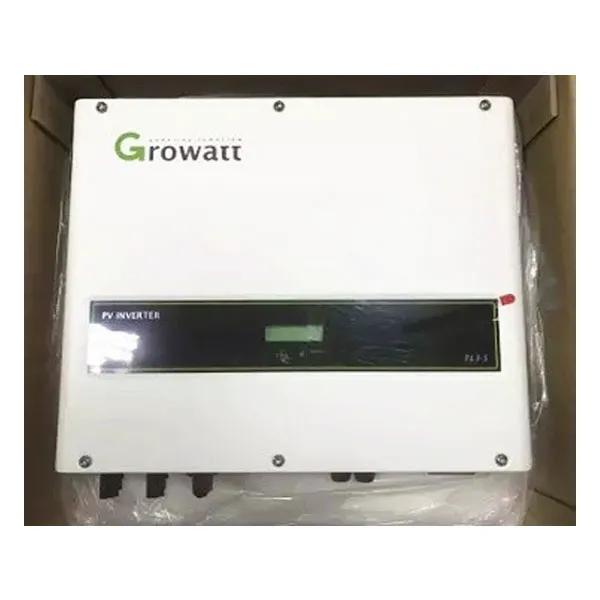

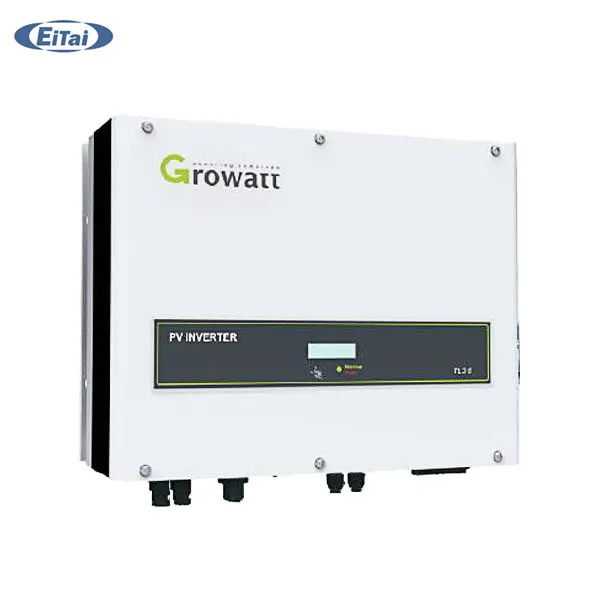

Three Phase On Grid Converter Solar Inverter

This is a multifunctional on grid solar inverter, with dual independent MPPT solar charge controller, high frequency of 97.5%, which is perfect for on grid back up power and self-consumption applications. The wifi /GPRS module is a plug-and-play monitoring device to be installed on the inverter.With this device , users can monitor the status of the PV system from phone or from the website anywhere.

Size 480/448/200 mm
Output TypeThree Phase
CertificateCE
Warranty5years

Facebook Twitter Pinterest LinkedIn 分享

Description

Three Phase On Grid Converter Solar Inverter

Growatt 8KW 10KW 12KW On Grid HIgh Quality PV Grid Tie Three Phase Inverter with 2 MPPT

Grid tie inverter

Product Description :

Datasheet	Growatt 8000TL3-S	Growatt 10000TL3-S	Growatt 12000TL3-S
Input data
Max. recommended PV power (for module STC	9600W	12000W	14400W
Max. DC voltage	1000V	1000V	1000V
Start Voltage	160V	160V	160V
PV voltage range	160V-1000V	160V-1000V	160V-1000V
Nominal voltage	600V	600V	600V
MPP voltage range at Full Power	320V-850V	320V-850V	320V-850V
Max. input current	11.5A/11.5A	13A/13A	13A/13A
Number of independent MPP trackers/ strings per MPP tracker	2/1	2/1	2/1
Output (AC)
Max AC apparent power	8kW	10kW	12kW
Max AC apparent power	8.8kVA	11kVA	13.2kVA
Max. output current	13.3A	16.7A	19A
AC nominal voltage;range	230V/400V ; 320-478V	230V/400V ; 320-478V	230V/400V ; 320-478V
AC grid frequency	50 /60Hz ±5Hz	50 /60Hz ±5Hz	50 /60Hz ±5Hz
Adjustable power factor	0.8leading - 0.8laging	0.8leading - 0.8laging	0.8leading - 0.8laging
THDi	<3%	<3%	<3%
AC grid connection type	3W+N+PE	3W+N+PE	3W+N+PE
Efficiency
Max.efficiency	98.30%	98.40%	98.40%
Euro - eta	97.80%	98%	98%
MPPT efficiency	99.50%	99.50%	99.50%
Protection Devices
DC reverse polarity protection	yes	yes	yes
DC switch	yes	yes	yes
Output over current protection	yes	yes	yes
Output AC overvoltage Protection -Varistor	yes	yes	yes
Ground fault monitoring	yes	yes	yes
Grid monitoring	yes	yes	yes
Integrated all-pole sensitive leakage current monitoring unit	yes	yes	yes
General Data
Dimensions(W/H/D)	480/448/200 mm	480/448/200 mm	480/448/200 mm
Weight	21.6kg	21.6kg	23.5kg
Operating temperature range	-25 °C ... +60 °C	-25 °C ... +60 °C	-25 °C ... +60 °C
Noise emission (typical)	≤35 dB(A)	≤35 dB(A)	≤35 dB(A)
Altitude	3000m	3000m	3000m
Self-consumption night	< 0.5W	< 0.5W	< 0.5W
Topology	Transformerless	Transformerless	Transformerless
Cooling concept	Natural	Natural	Natural
Environmental Protection Rating	IP65	IP65	IP65
Relative humidity	0~100%	0~100%	0~100%
Features

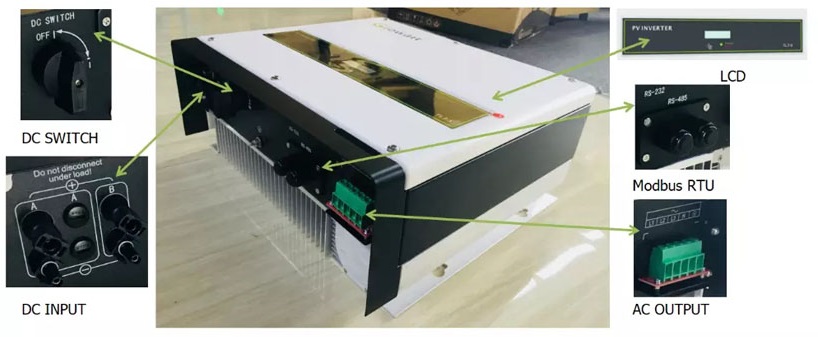

DC connection	H4/MC4(opt)	H4/MC4(opt)	H4/MC4(opt)
AC connection	Screw terminal	Screw terminal	Screw terminal
Display	LCD	LCD	LCD
Interfaces:RS232/RS485/RF/Ethernet/Wi-Fi	yes/yes/opt/opt/opt	yes/yes/opt/opt/opt	yes/yes/opt/opt/opt
Warranty:5 years/10 years	Warranty:5 years/10 years	Warranty:5 years/10 years	Warranty:5 years/10 years
Certificates and Approvals	CE, IEC 62109-1/2, VDE 0126-1-1, Greece, VFR 2014, VDE-AR-N4105, G83, EN50438, CEI 0-21, AS4777, IEC 61727, IEC 62116, CQC

Product Detail :

Category : Solar Inverter

Solar grid inverter

Product Application：

Inverter solar power
