Overview

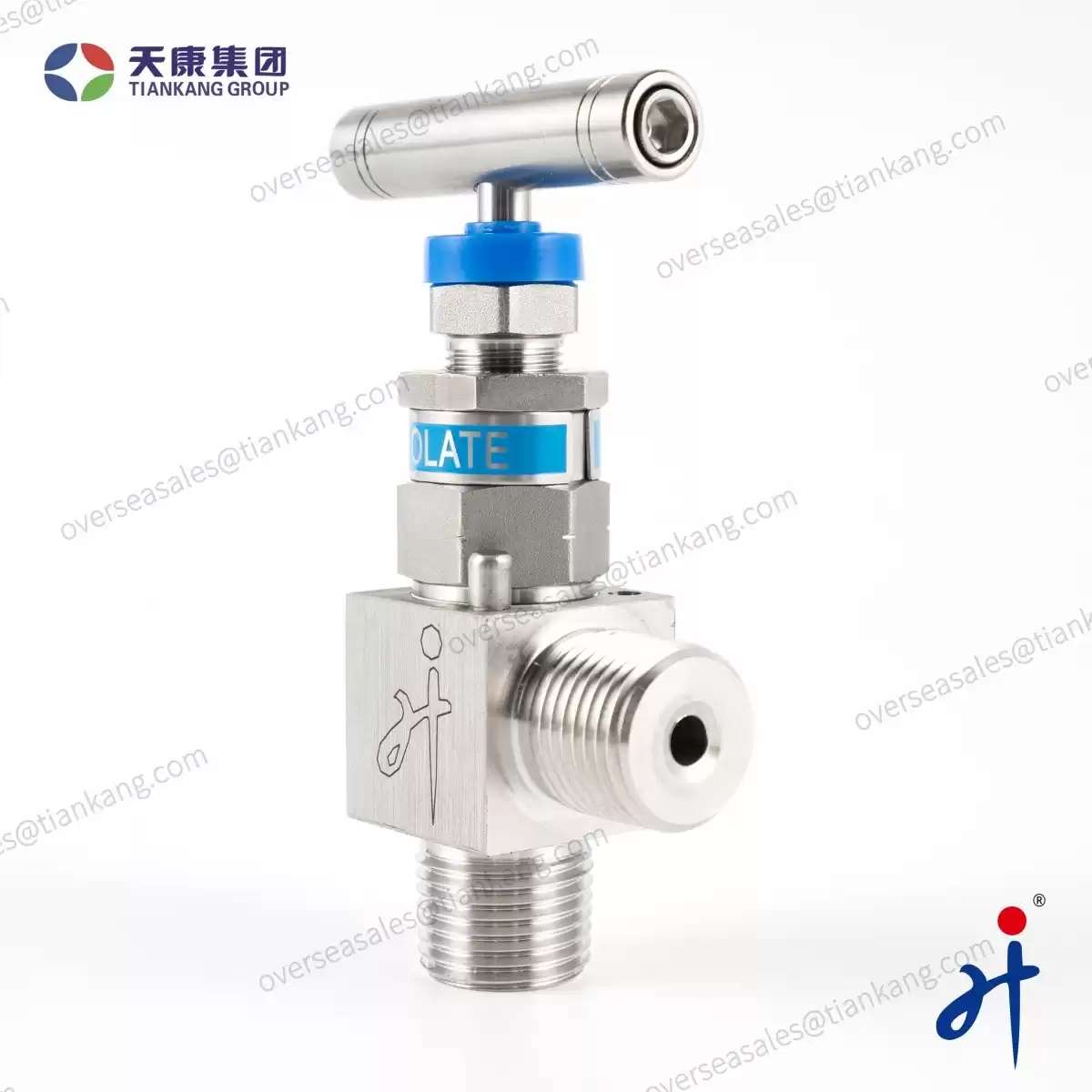

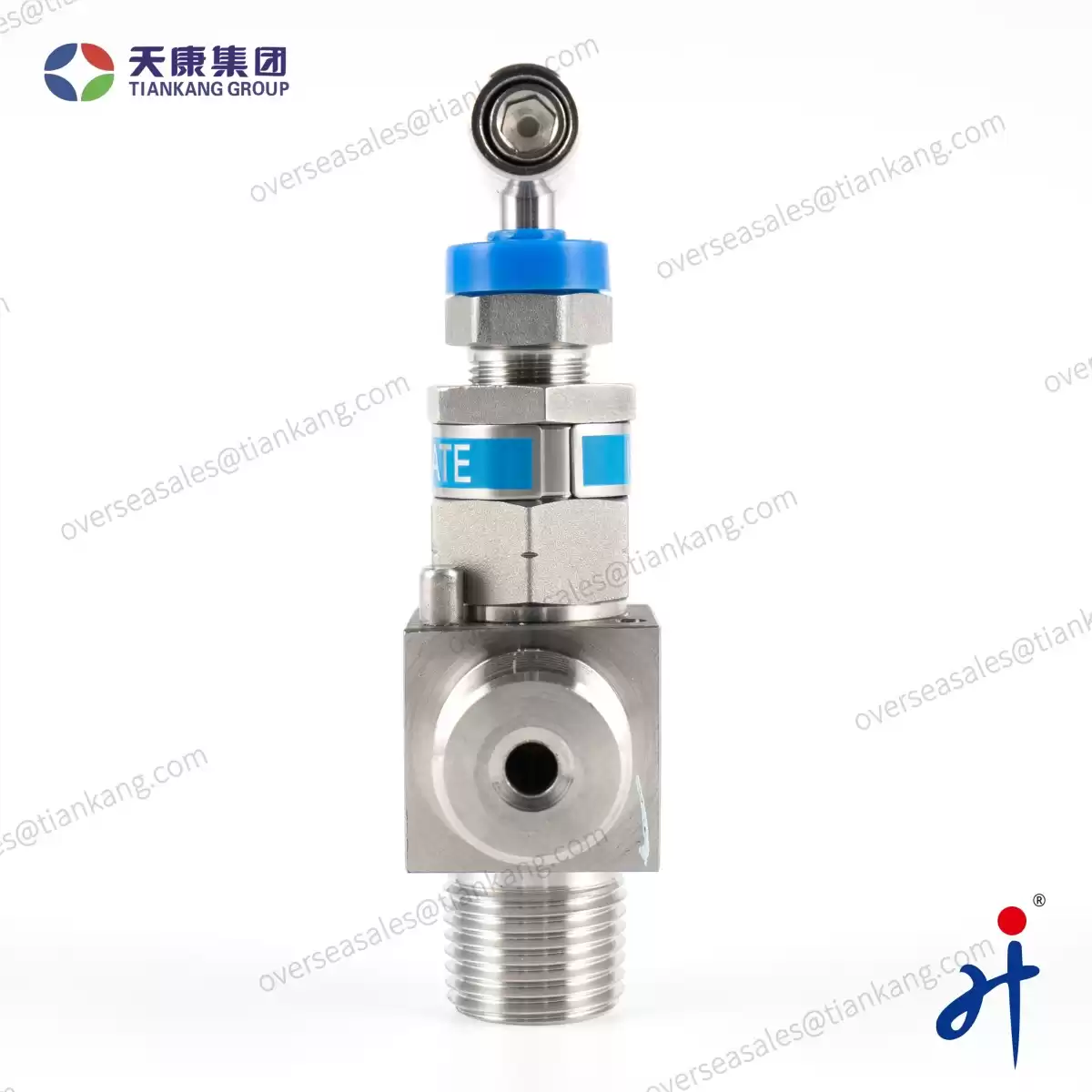

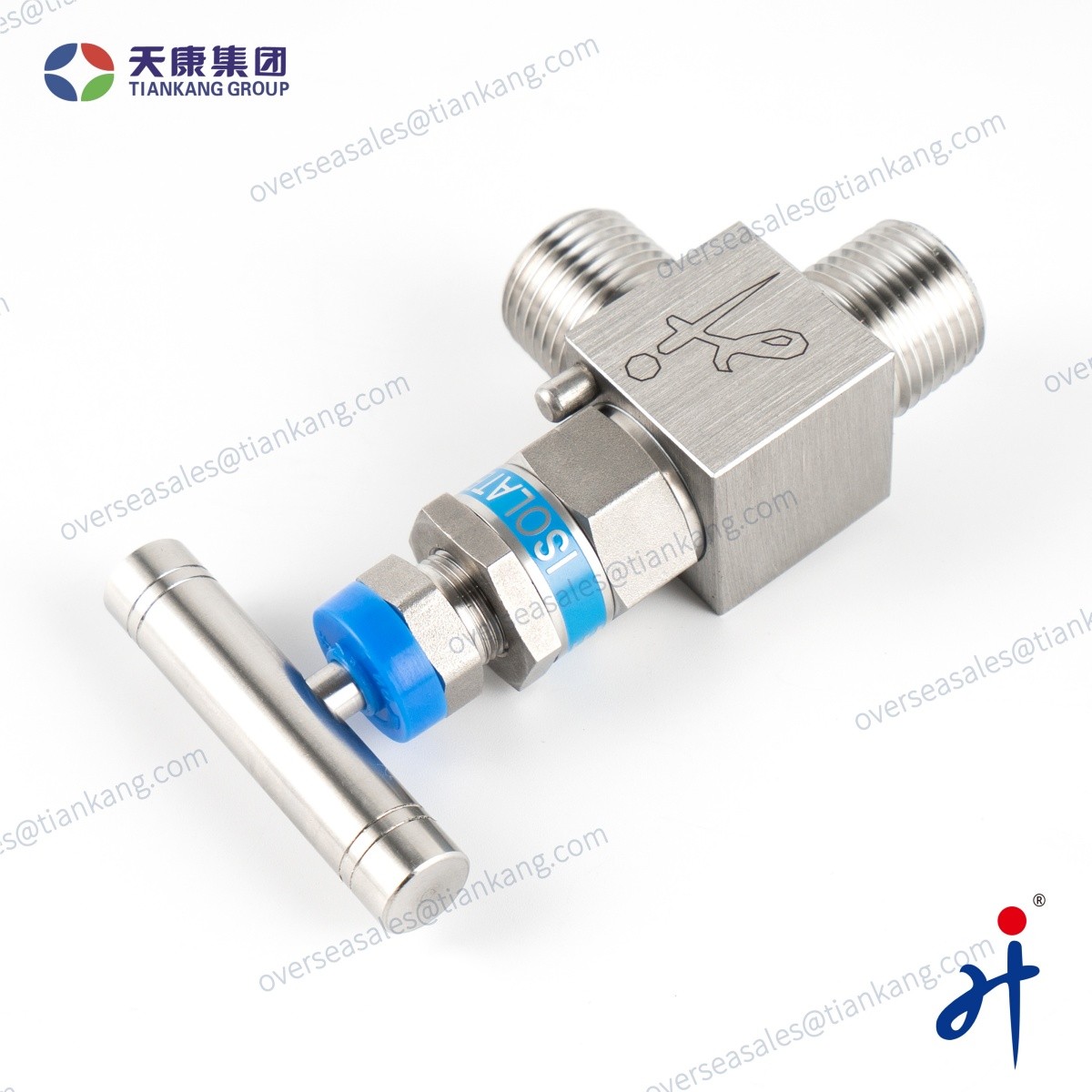

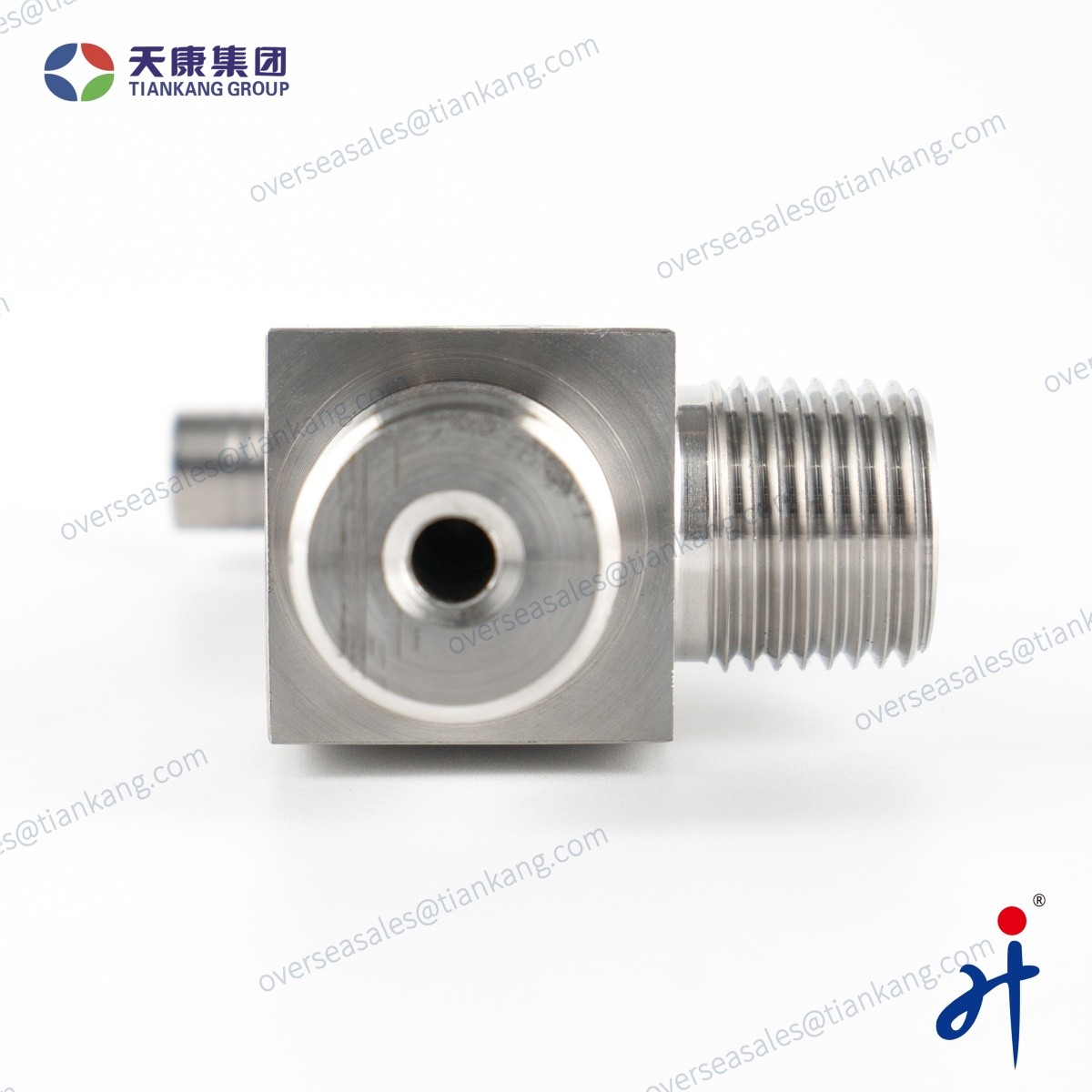

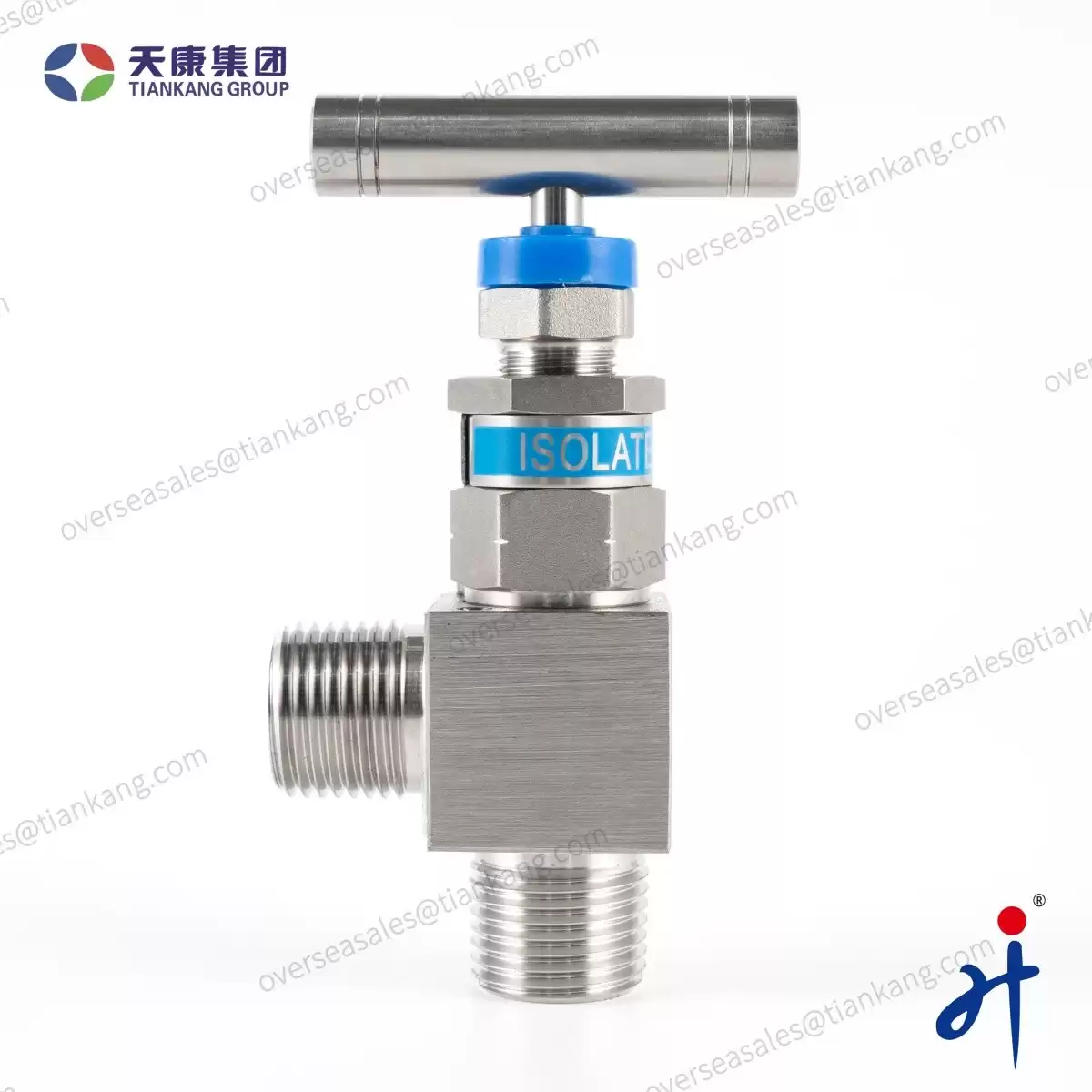

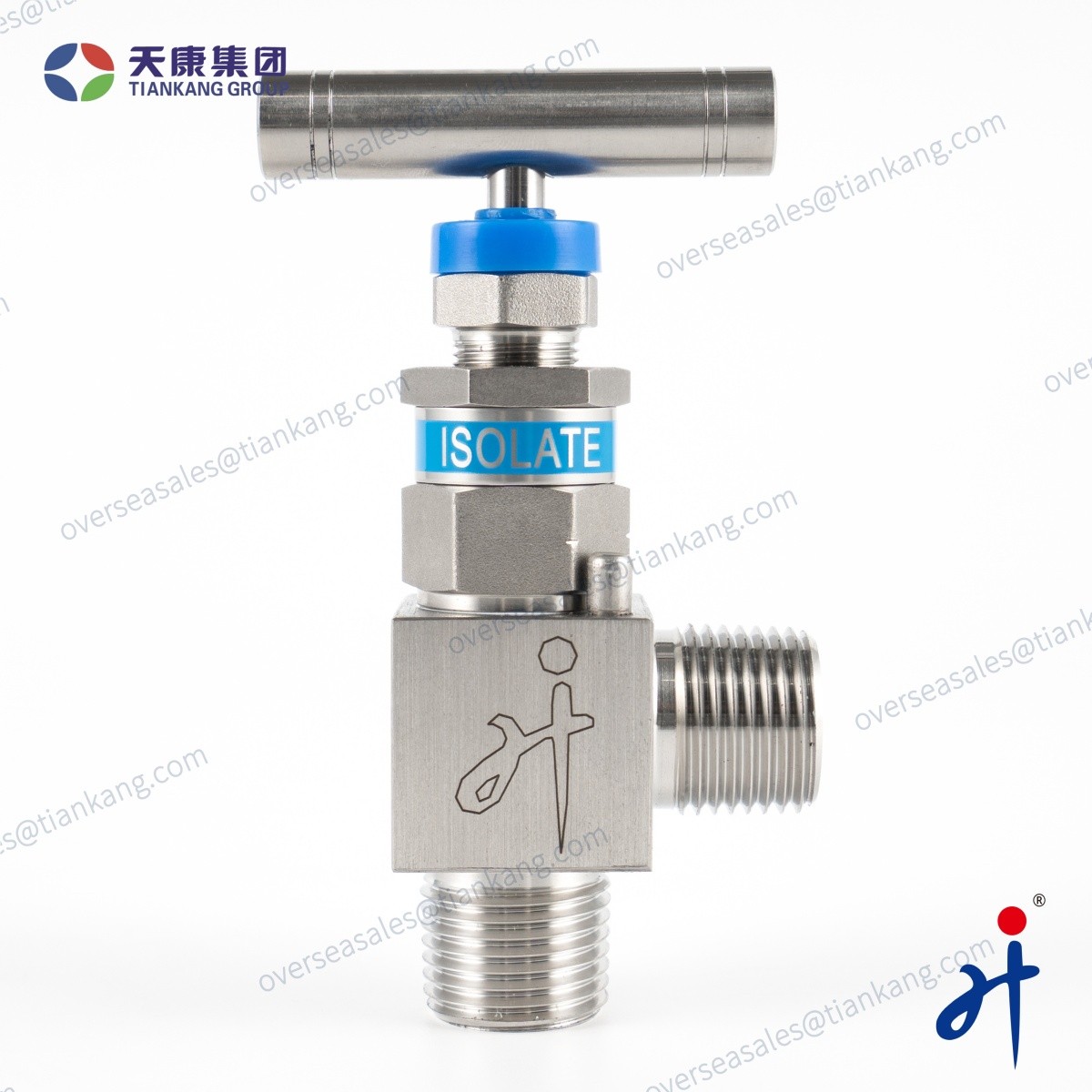

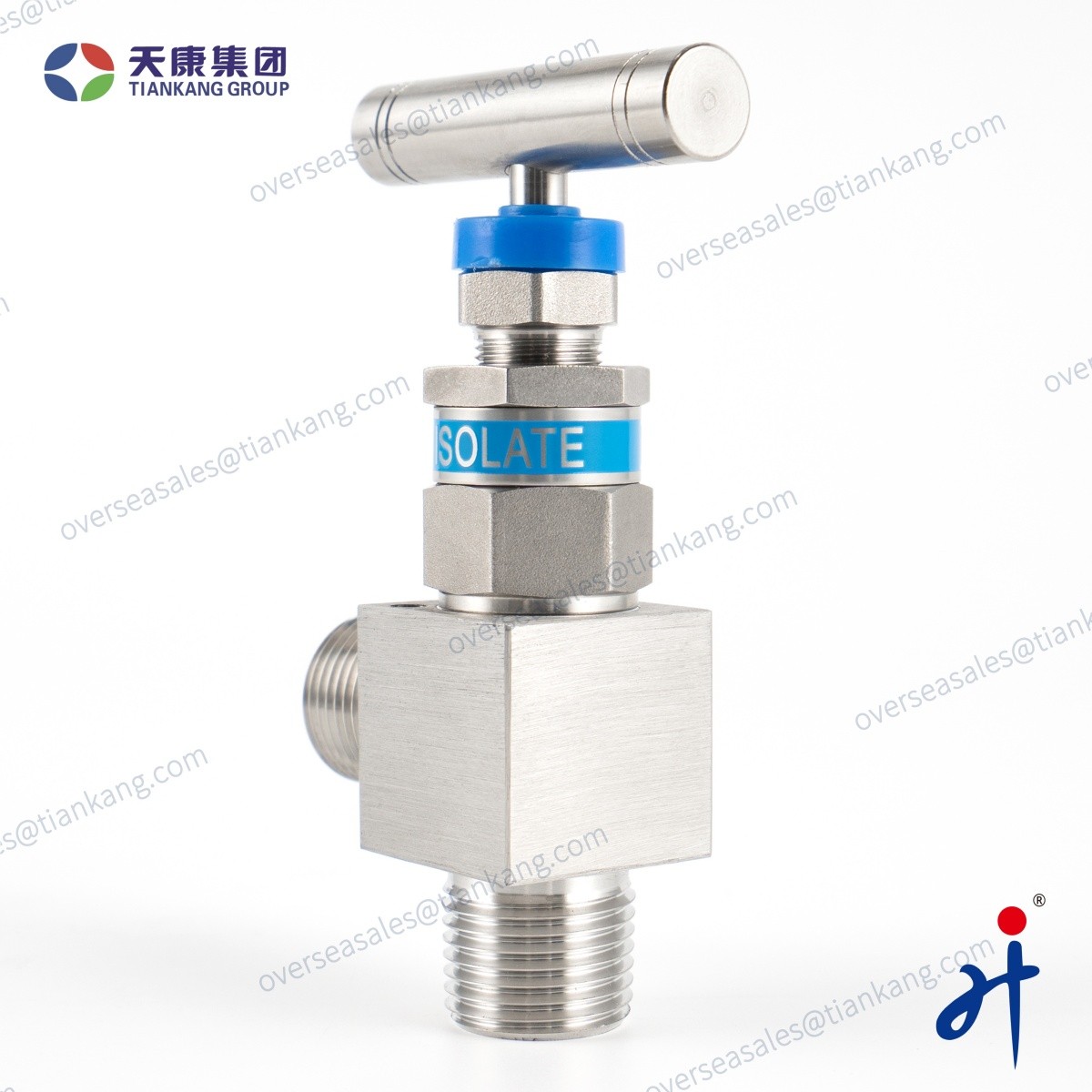

Tiankang Hongji Screwed Bonnet Needle Valves are types of valves used for precise flow control of liquids or gases in a system. It is designed with a long, tapered needle-like plunger that fits into a similarly shaped seat. The valve’s construction allows for very fine adjustments to the flow, making it ideal for applications where precise control is needed.
Technical Specifications
| Prameters |
Specifications |
| Body material |
SS316; Alloy |
| Type of connection |
Male thread |
| Packing material |
PTFE/ Graphite |
| Medium |
Liquid; Gas; Steam; Oil |
| Working pressure |
6000-10000psi |
| Working temperature |
Graphite: -65 °F to 1200 °F (-54 °C to 649 °C)
PTFE:-65 °F to 450 °F (-54 °C to 232 °C)
|
| Port size |
1/2 NPT |
Applications
- Flow Regulation: Used in systems where the flow needs to be controlled very precisely, such as in gas or liquid pipelines.
- Testing and Calibration: Frequently used in instrumentation, laboratories, and process control applications to calibrate equipment and regulate test fluids.
- Gas and Liquid Distribution: Hongji Needle valves are common in gas and liquid distribution systems, including those in pharmaceuticals, food and beverage, and oil and gas industries.
- Pressure Control: Screwed bonnet needle valves often used for controlling the pressure and flow of sensitive or hazardous fluids in applications like fuel systems, high-pressure systems, or critical fluid handling systems.

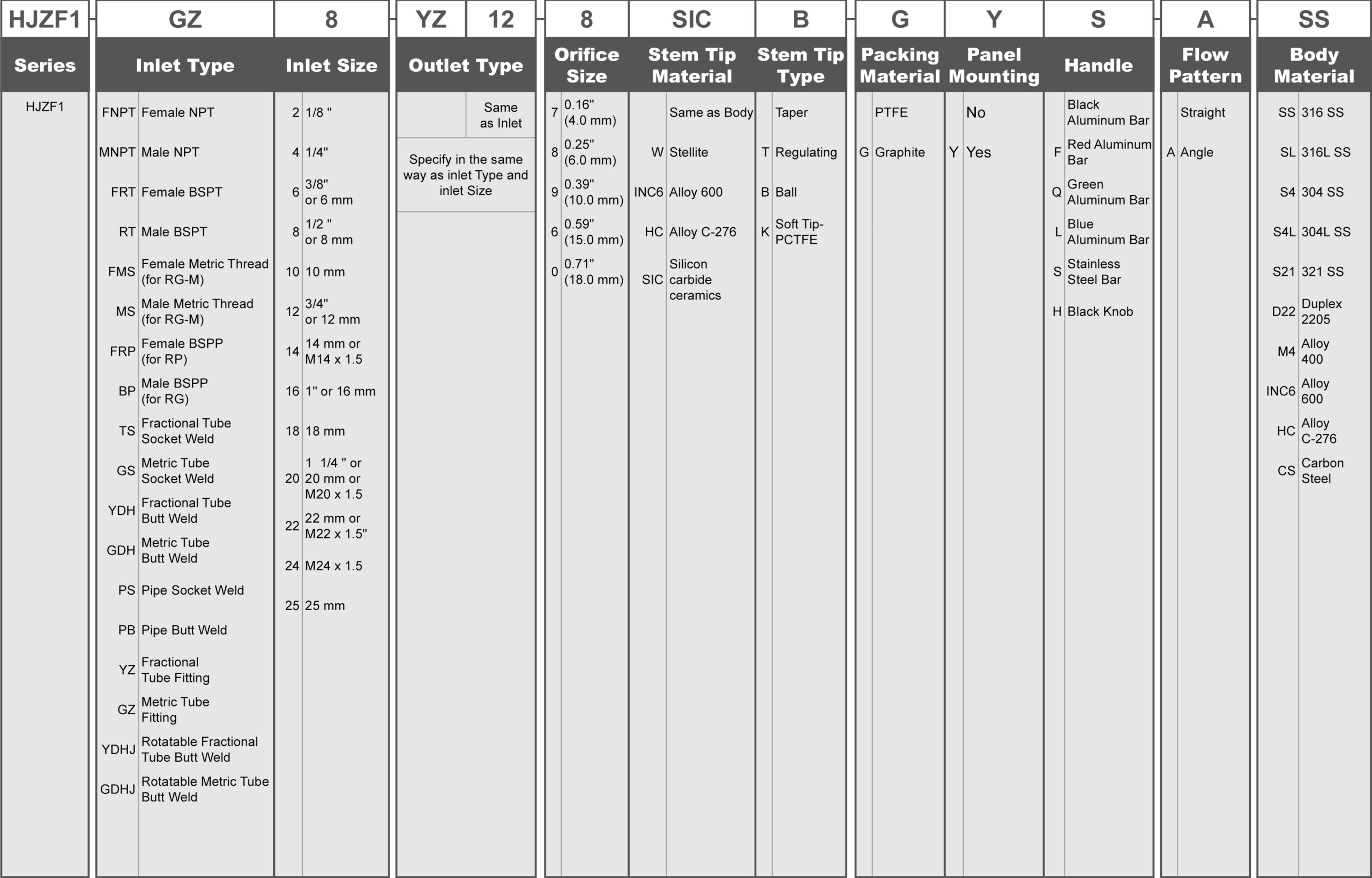

Ordering Number Description:
Note:1. Standard thread pitch for metric threads are as follows:
M10 and below: 1 mm
M12 to M24: 1.5 mm
2. If a connection size larger than 25mm is required, or if valves of different materials are needed, please contact the Hongji sales personnel.

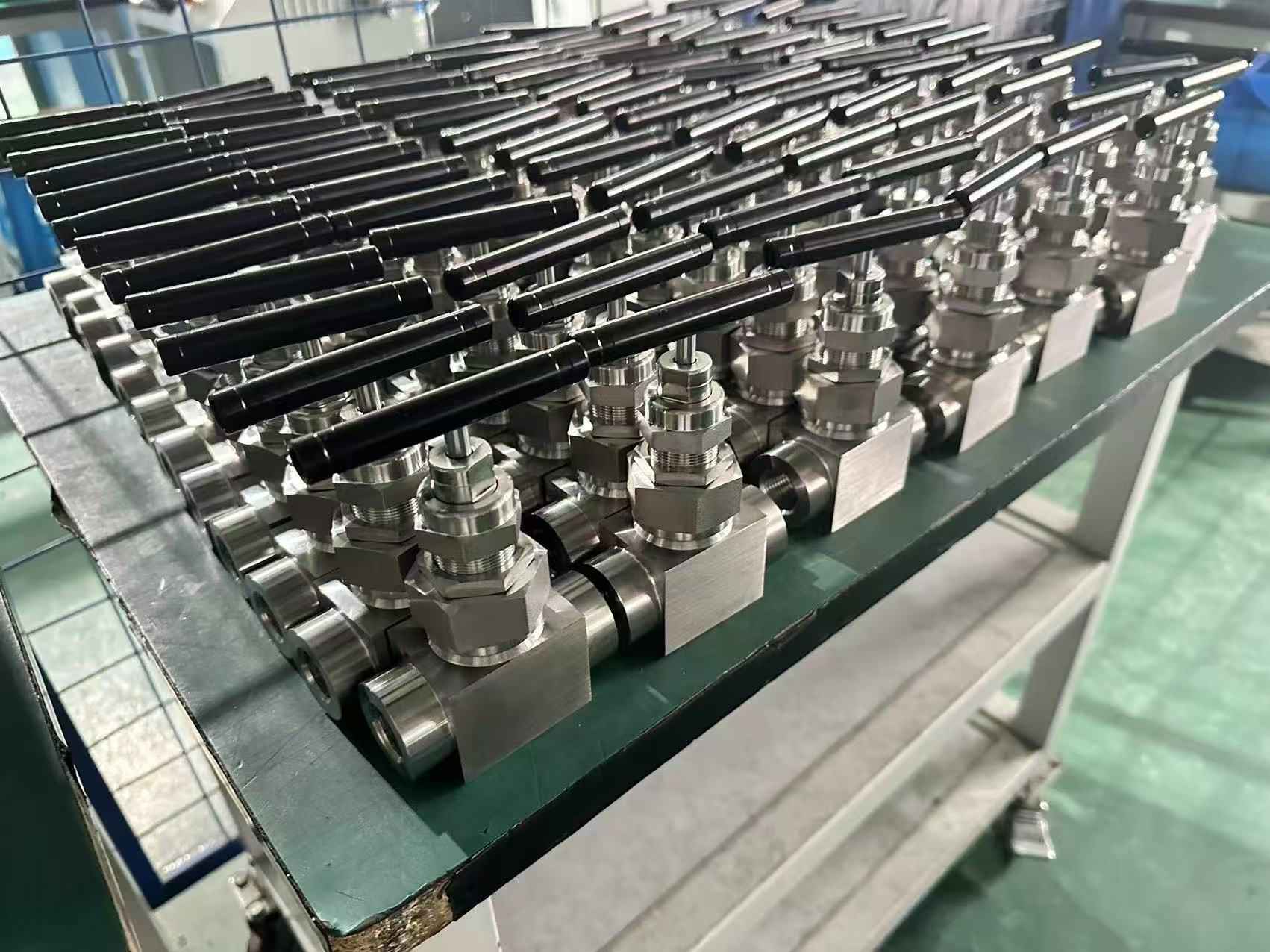

Factory photos
