Overview:

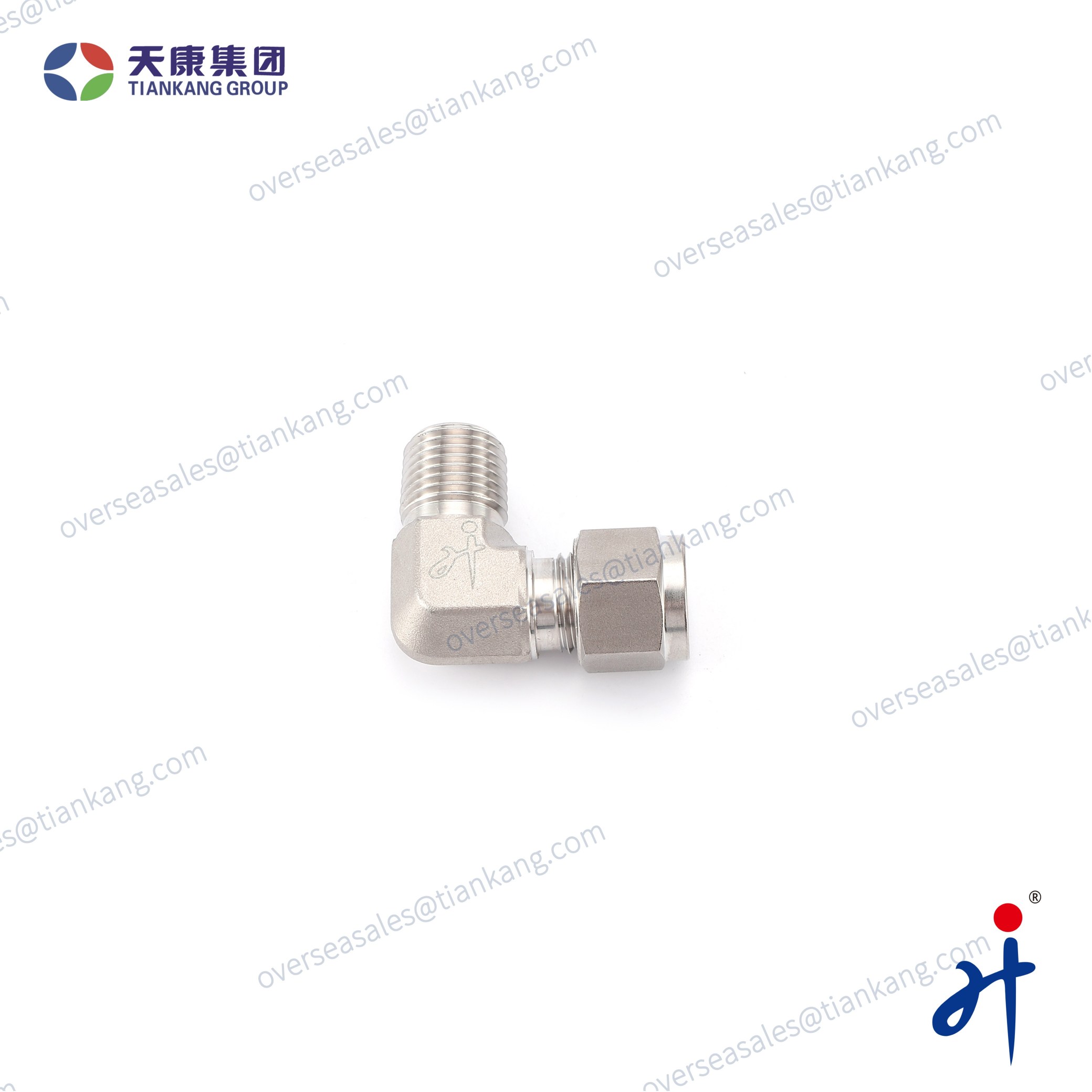

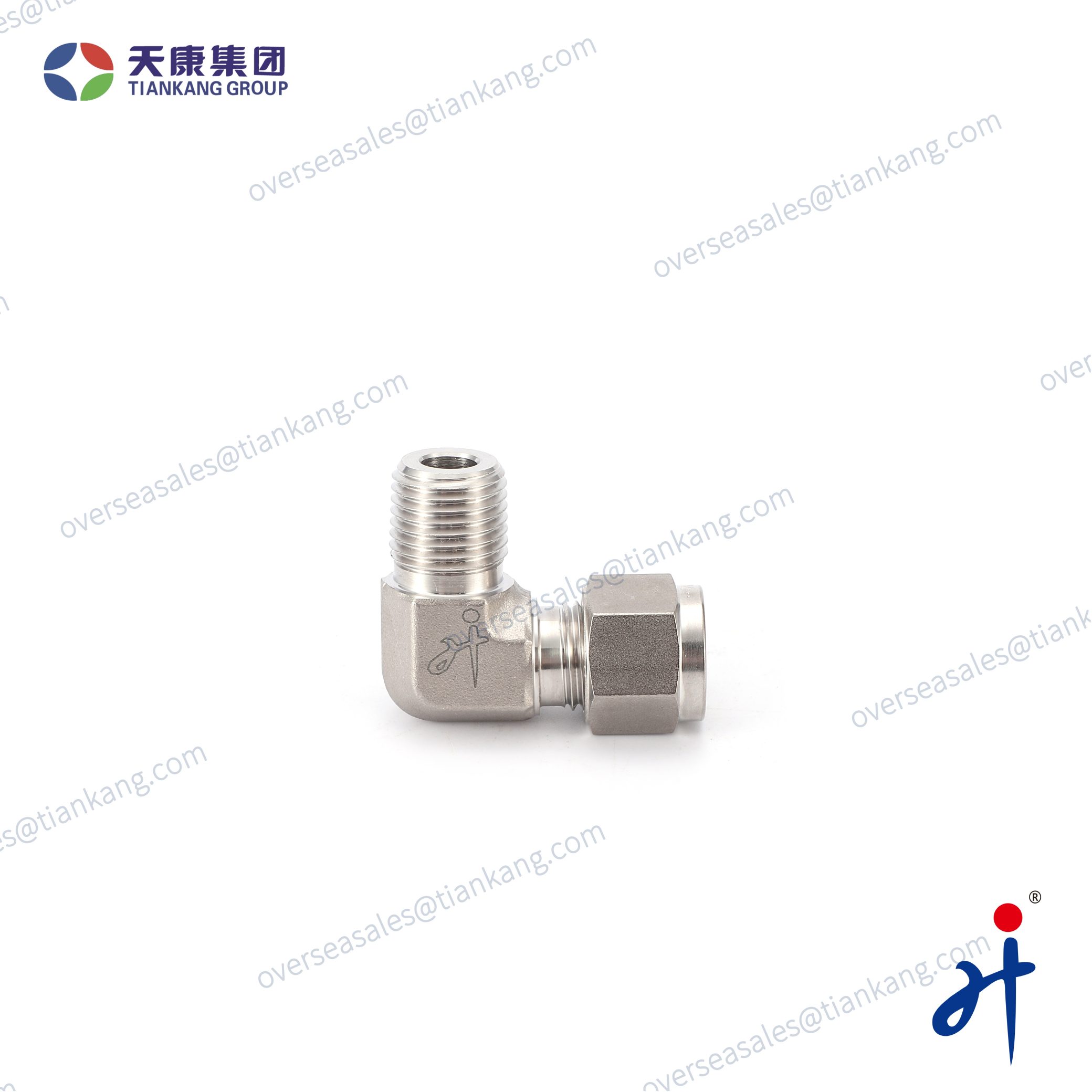

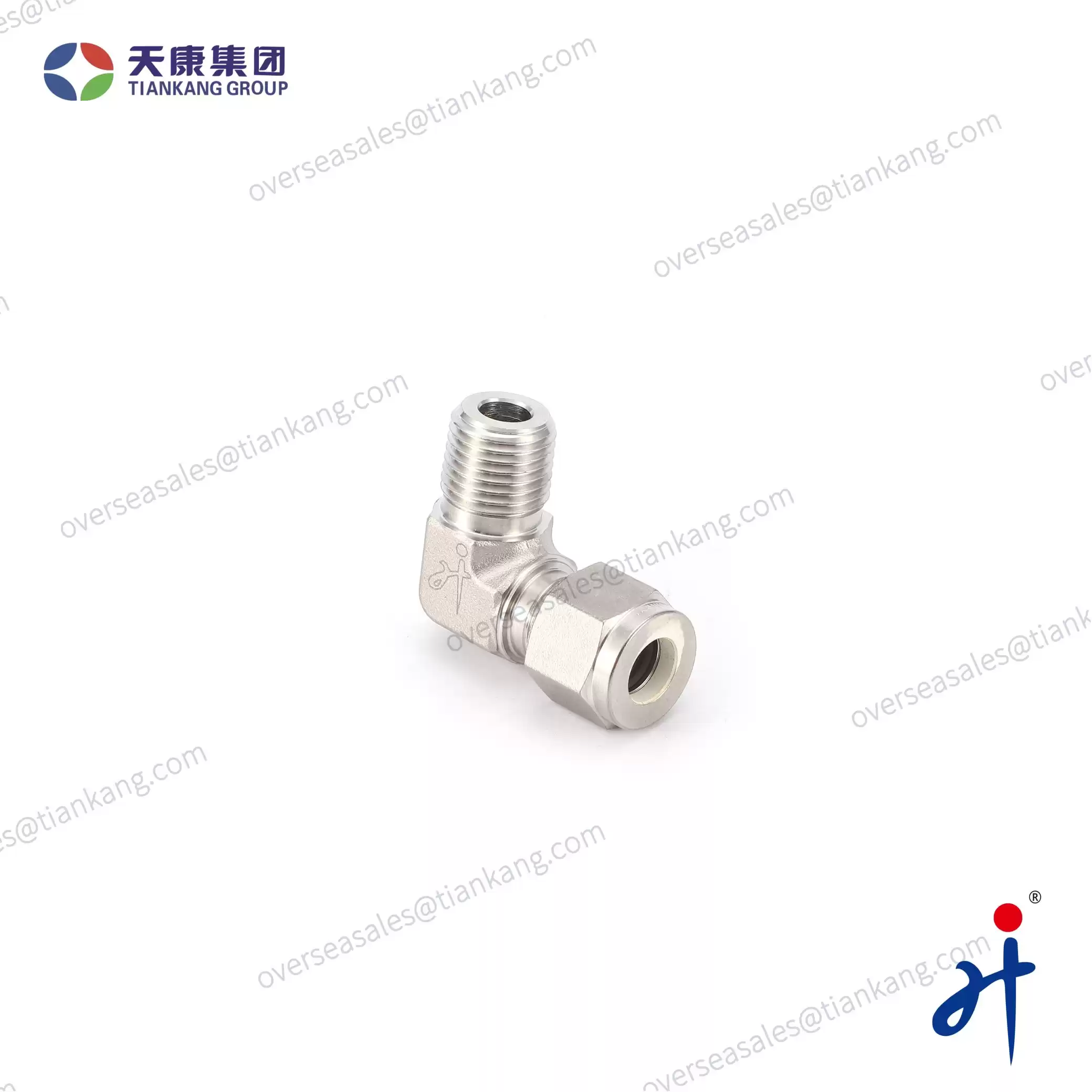

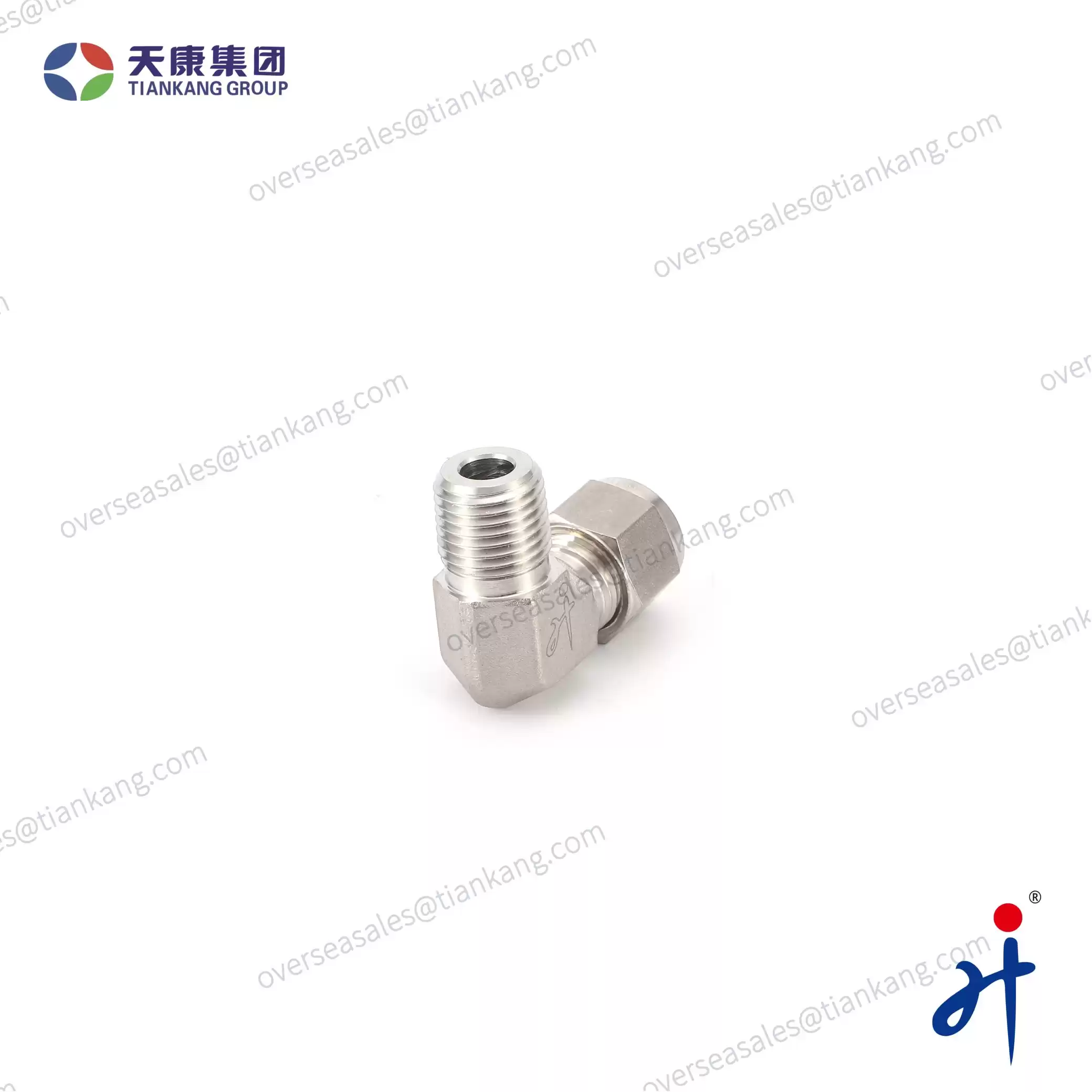

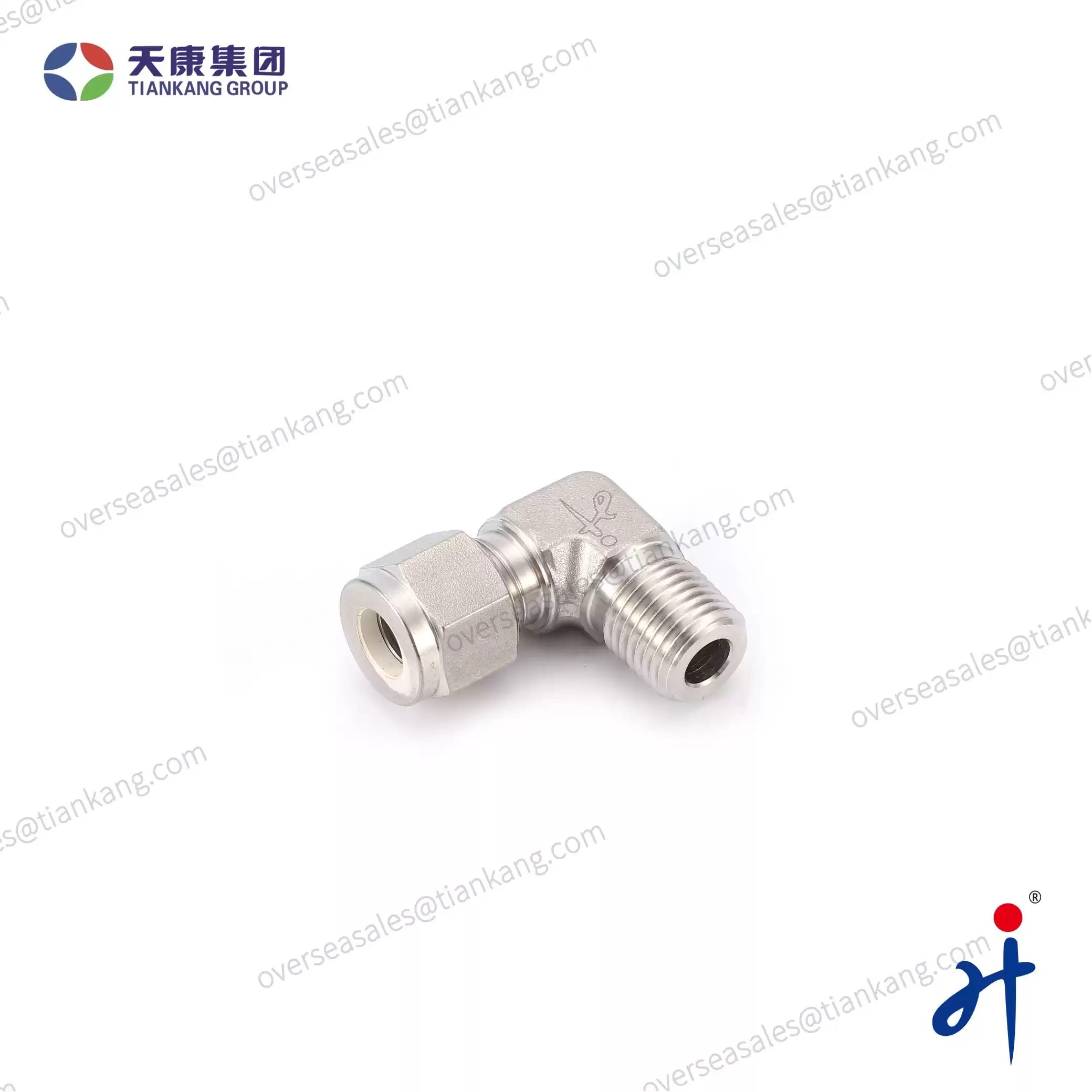

The design of the Tiankang Hongji 90° Male Elbow Hydraulic Fitting incorporates Hongji’s unique technology, ensuring safe, reliable sealing while also offering convenient installation and disassembly. They are often used in high-pressure and high-temperature environments, such as in the chemical, petroleum, and natural gas industries.
Technical Specifications:
| Type |
90° Male Elbow Hydraulic Fitting |
Net Weight |
0.15kg |
| Body Material |
Stainless steel, alloy, etc. |
Manufacturing Capacity |
4000 pics/Month |
| Type of Connection |
Ferrule And Thread |
Warranty |
1 year |
| Connection 1 Dimensions |
1/2″ |
Connection 1 Type |
Ferrule |
| Connection 2 Dimensions |
1/2″NPT |
Connection 2 Type |
Thread |
Applications:
• Fluid and Gas Systems: Used to connect various pipe sizes and hoses in fluid and gas transport systems.
• Water Treatment: They are used to connect pipes in water distribution and filtration systems.
• Oil and Gas Industry: 90° male elbows help in connecting pipelines and other equipment in oil and gas transport networks.
• HVAC Systems: 90° male elbows hydraulic fitting used for connecting air or water pipes in heating, ventilation, and air conditioning systems.
• Chemical Processing: They provide secure connections between pipes carrying chemicals, ensuring safe and efficient fluid transfer.

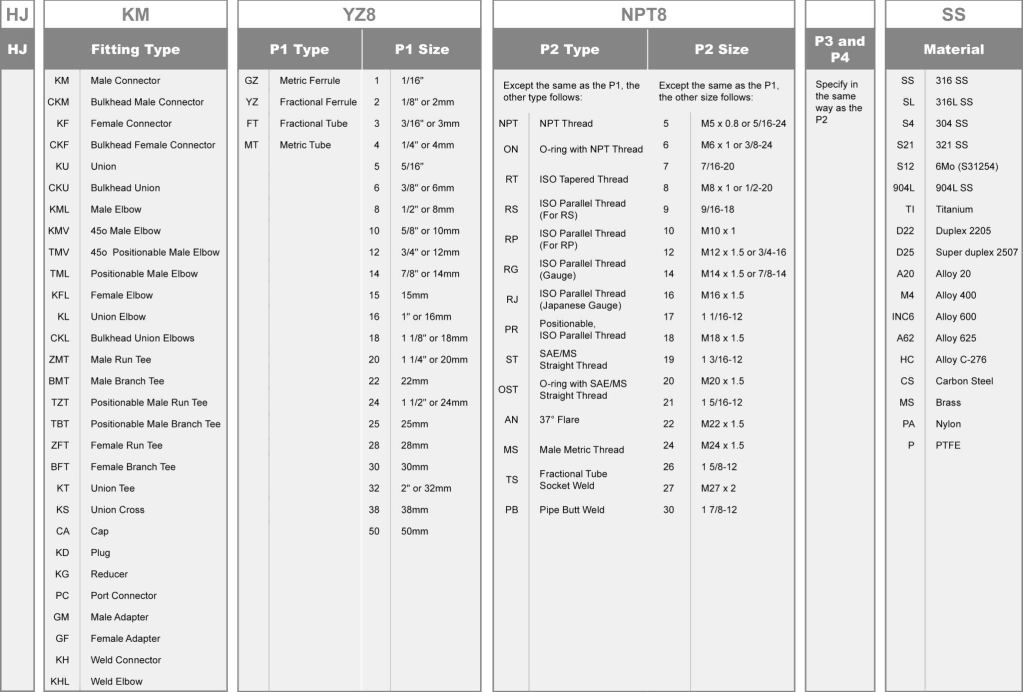

Ordering Number Description:
Note:
1. P1, P2, P3 and P4 shall be described in the following orders.
2. Ferrule – Tube – NPT Thread – ISO Tapered Thread – ISO Parallel Thread – SAE/MS Straight Thread – 37o Flare – Pipe Butt Weld – Fractional Tube Socket Weld – Others.
3. Describe in descending order as per size if the end connection types are the same.
4. Describe the end of P1 if all end connections are the same.
