PRODUCT:HNI-series,HNI-5G
MAIN FEATURE
Tiger 0.9mm small diameter nylon drive belt is only made of both sides of faric cover,polyamide tension layer.
TECHNICAL DATAS
|
Type
|
HNI-5G
|
|
Belt thickness
|
0.9mm
|
|
Color
|
green
|
|
Surface
|
rough structure
|
|
Weight
|
1.0kg/m2
|
0.2046 lbs./ft.2
|
|
Force at 1% elongation
|
3N/mm
|
16.797 lbs./in.
|
|
Temperature range
|
-10 to 110°C
|
14 to 230°F
|
|
Min. pulley diameter
|
25mm
|
0.984in.
|
|
Standard roll belt width
|
500mm
|
19.685in.
|
|
Max. roll belt width
|
540mm
|
21.26in.
|
|
Processing
|
Rubber coated on the top or other special processing requirement.
|
|
Endless instructions
|
Hot splicing with overlap is
always preferable.
|

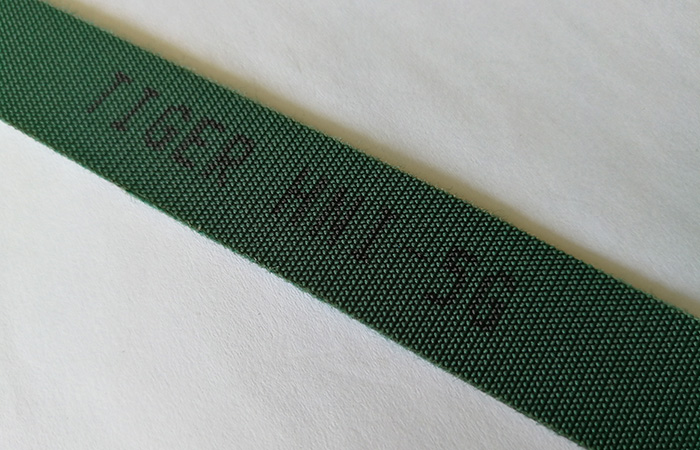

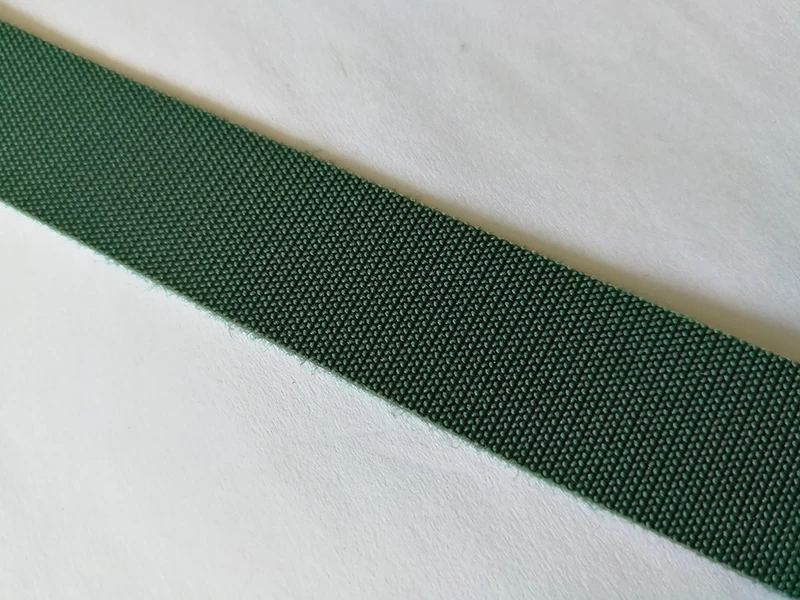

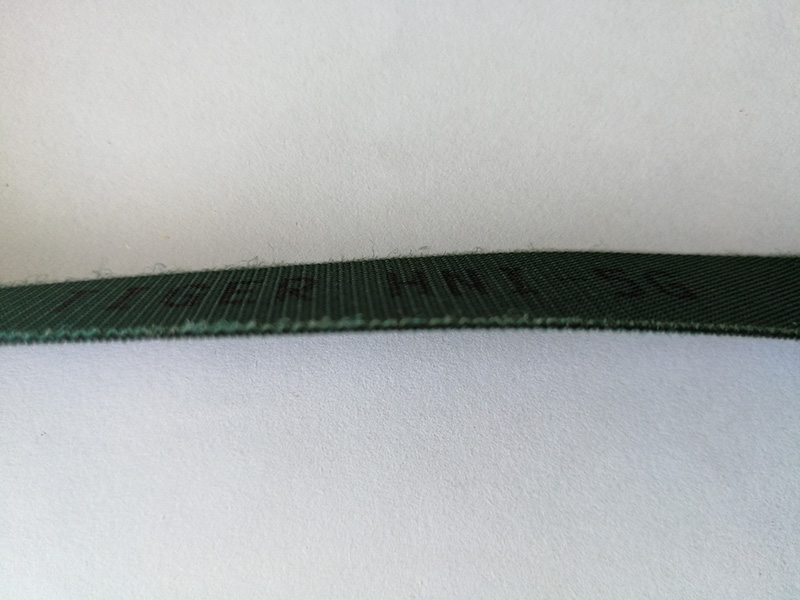

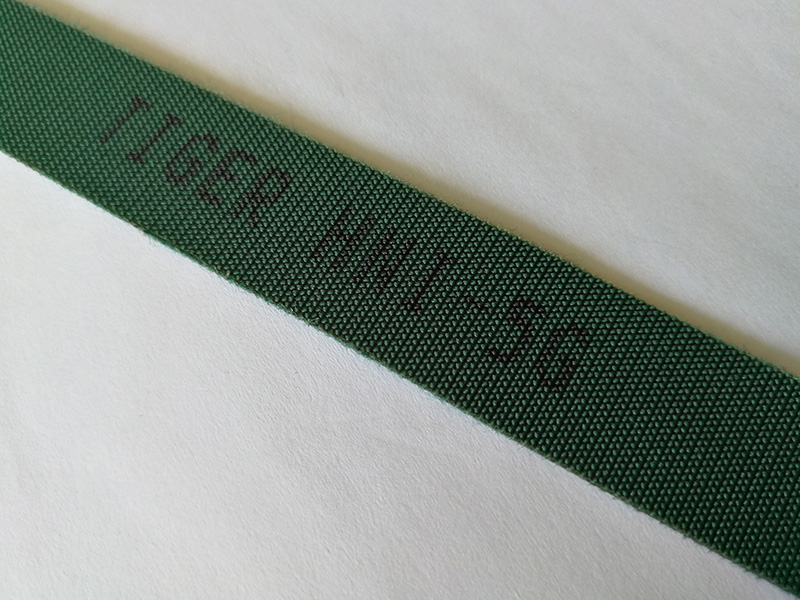

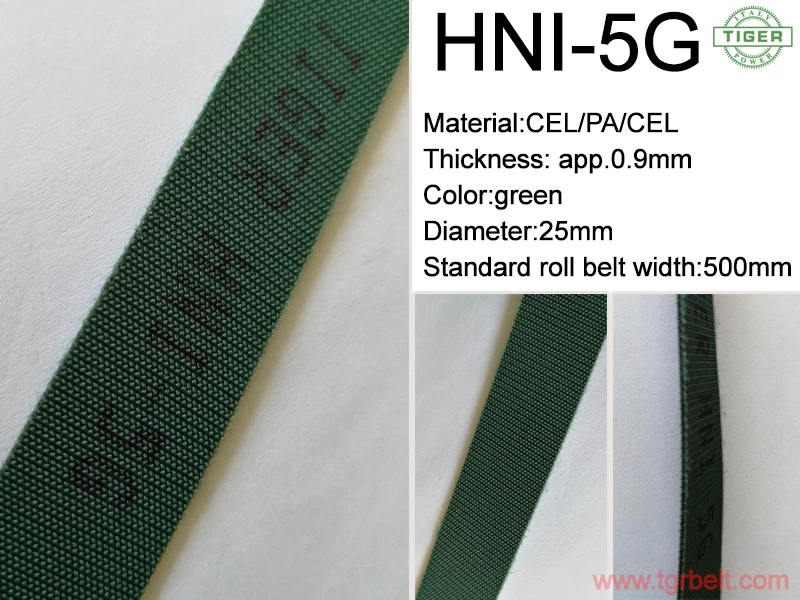

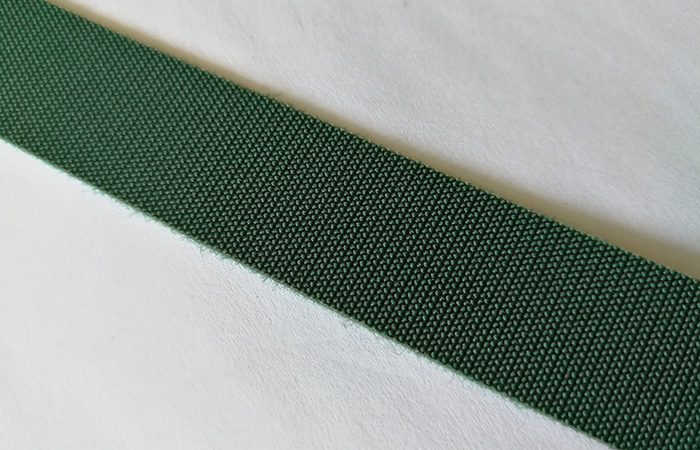

PRODUCT PICTURES
