PRODUCT: impregnated fabric PVC conveyor belt,P-20EB/ZZ
Main Feature

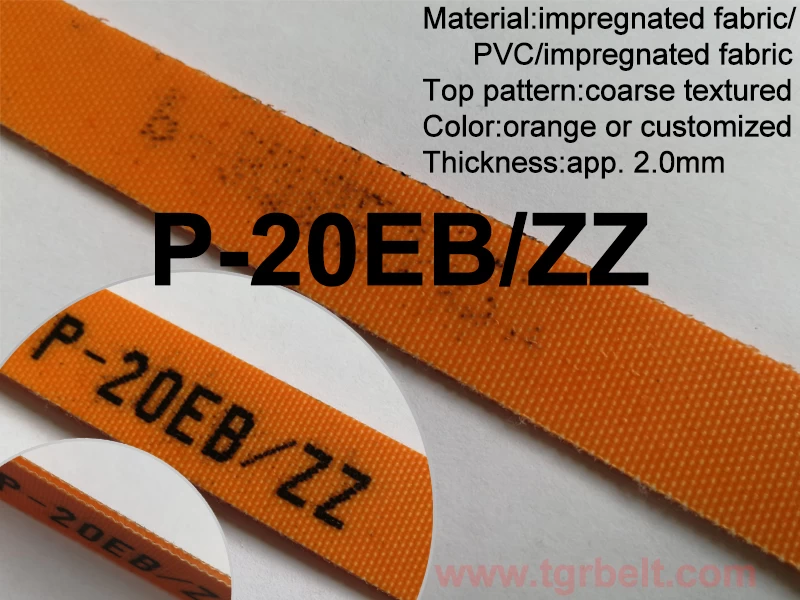

Tiger 2.0mm orange impregnated fabric PVC conveyor belt is both sides of impregnated fabric,but middle of PVC coating. The color can be orange,blue,yellow or tailor-made.
Technical datas
|
Type
|
P-20EB/ZZ
|
|
Belt thickness
|
2.0mm
|
|
Color
|
orange
|
|
Surface
|
coarse textured
|
|
Weight
|
2.3kg/m2
|
0.47 lbs./ft.2
|
|
Force at 1% elongation
|
8N/mm
|
44.79 lbs./in.
|
|
Temperature range
|
-10 to 80°C
|
14 to 176°F
|
|
Min. pulley diameter
|
30mm
|
1.18in.
|
|
Standard roll belt width
|
2000mm
|
78.74in.
|
Application as shutter door curtain belt
Expert support of over 10 years belting
experience.
95% of the online suppliers are trading
companies, but we are a light-duty conveyor belt and timing belts manufacture
specialty on designing, producing and processing the belting products.
We make sure the following conditions:
QUALITY
ASSURANCE
Guarantee that the
commodity hereof complies in all respects with the quality and specification
stipulated in the contract.
DELIVERY GUARANTEE
Ship the goods
within the shipment time from the port of shipment to the destination in the
contract.
FACTORY PRICE
Prices refer to
the cost of raw materials directly from factory.
TEAM OF
PROFESSIONALS
Offer experienced
customer service and technical support including belts selection, calculation,
application and after-sale service.
FABRICATION
WORKSHOP
Provide belts
cutting, jointing, as well as belt perforations, belt sealed, belt coated with
rubber and sponge, belt guides,etc.
