Tile roof hook POW-TRH-T04
Product Description:

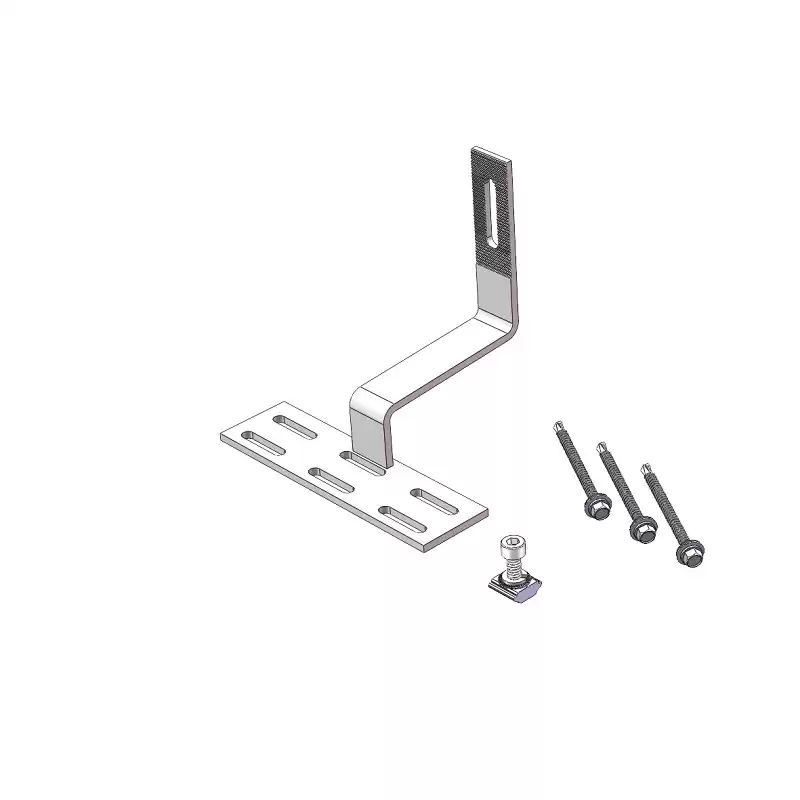

A tile roof hook is a type of metal bracket that is used to secure a rail clamp to a tile roof. The hook features a curved design that allows it to fit snugly over the edge of the tile. The hook is then secured with screws or nails into the roof , providing a secure connection for the rail.
Product Category:
Tile interface
Product Code:
POW-TRH-T04
BOM:
| Product name |
Material |
Quantity |
| 4# tile roof hook |
SUS 304
|
1 |
| M8X25 hex socket head bolt |
SUS 304 |
1 |
| M8 spring washer |
SUS 304
|
1 |
M8 lock washer
|
SUS 304
|
1 |
| POW nuts |
Al6005-T5
|
1 |
SC6.3x80 hex head wood screw
|
20#
|
3 |
Suitable for:
Tile roof, Flat tile roof, Slate roof;
Why choose us:
Powerack have many types of Tile Roof Hooks, suitable for most roof types of Tile, Flat Tile, Slate Tile, Asphalt Shingle Tile. Unique designed of Mid&End clamps are used for 30-40mm thickness solar modules. A design that includes major specifications saves you inventory cost, quick and easy to install. Innovative design of rail connect base-support can effectively increase the product strength, ensure the safety of the product use. Powerack have a large variety of roof hooks provide customers options. Customized allowed according to customer needs to meet special installation requirements.
