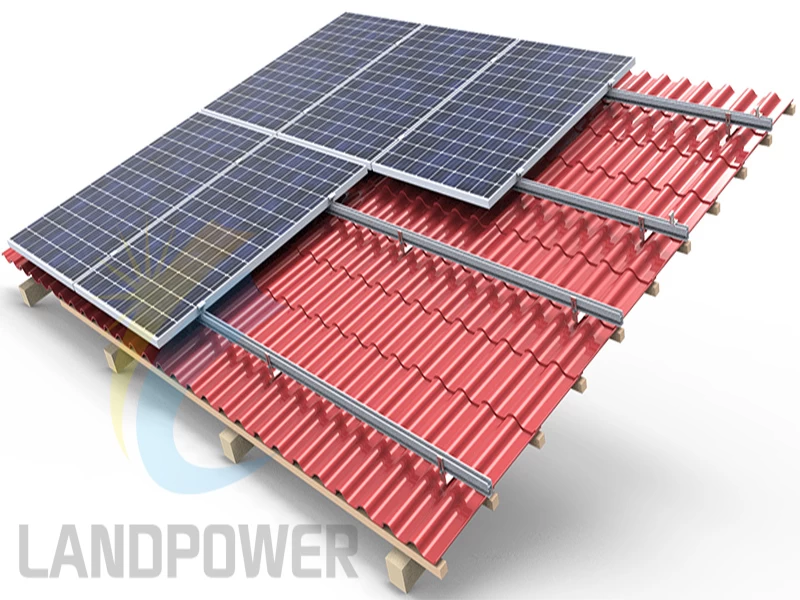

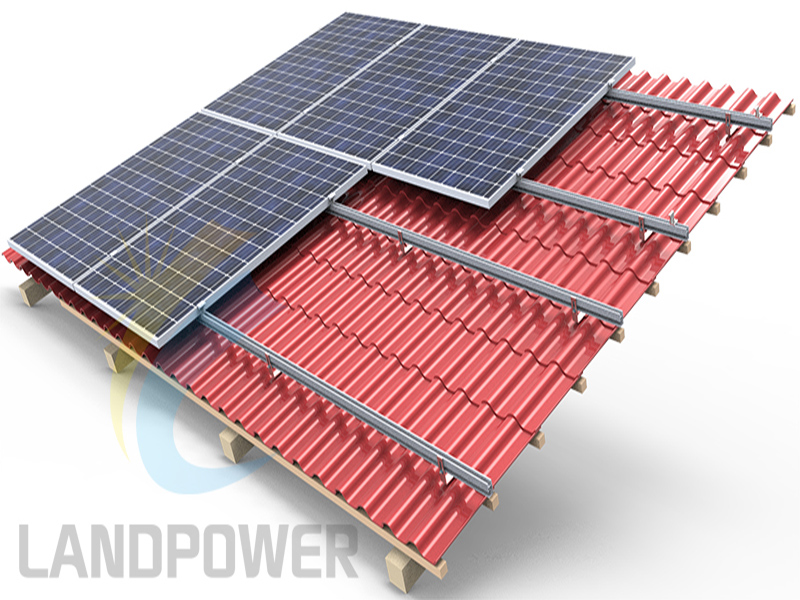

Landpower Tile Roof Mounting is engineered for the maximum flexibility possible in designing and planning for various tile roof PV installations, like pantiles,plain tile, and slate roofing etc. It is applicable to install the usual module to flush with the various tiled roof. Using our innovative Rail and pre-assembled components like tilt-in T module, clamp kit and various hooks,our tile roof mounting makes the installation easy and quick to save your labor cost and time.

TECHNICAL INFORMATION

Install site ：Various Roof

Tilt Angle ：Flushed with the roof （10~60 deg）

Building Height：Up to 20 m

Max Wind Speed：<60m/s

Snow Load：<1.4KN/m2

Standard ：AS/NZS 1170 and other international Standard

Material ：High Class Aluminum alloy Al6005-T5& Stainless steel 304

Color: Natural or Customized

Anticorrosive: Anodized aluminum & stainless steel

Warranty：12 years warranty and twenty- year service life

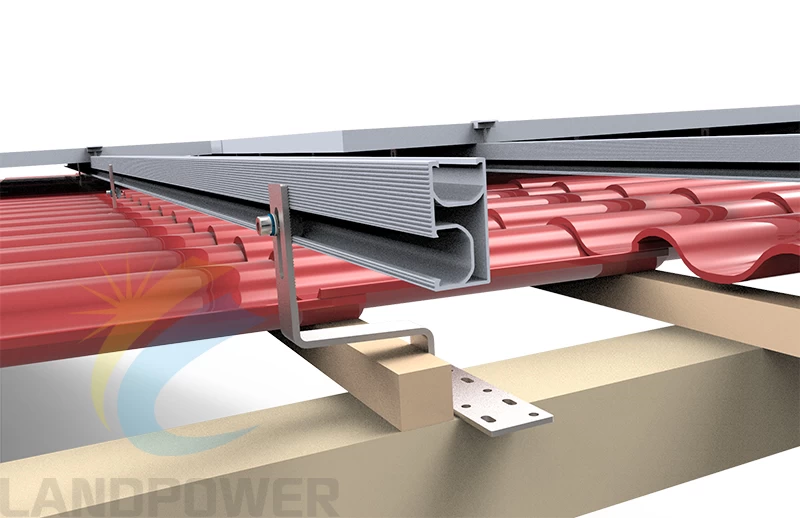

Tilt-in rail structure:

This solar mounting rail allow mounting nut insert into rail at any position,it is quick and conveninet to use.

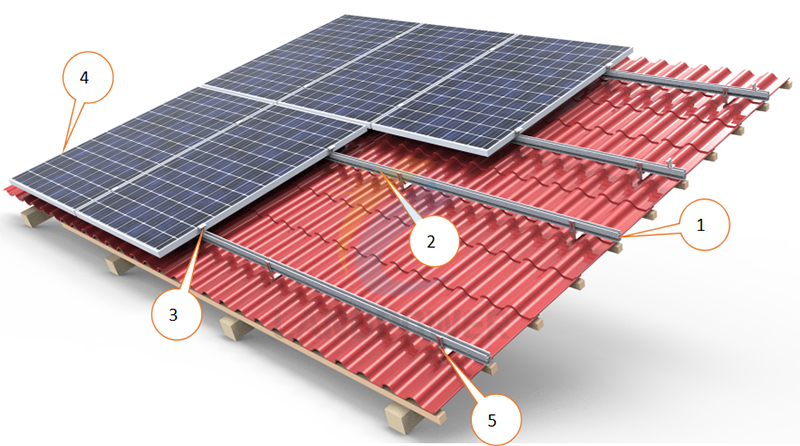

Tile Roof Mounting Systems Overview:

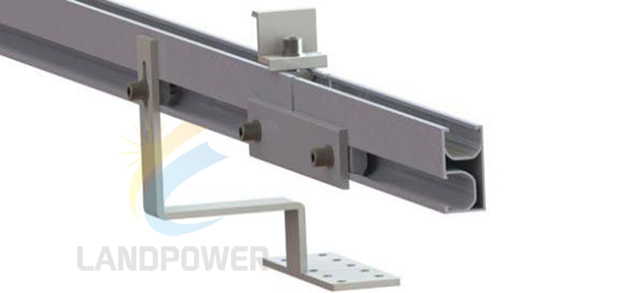

1, Mounting Rail ü length can be customized ü 6005-T5 extruded aluminum ü 2560,3400mm for 808-826mm module ü 3200,4200mm for 990-1020mm module
2, Rail Splice Kit ü Fastened with a 6mm Allen key
3, Mid (Inter) Clamp Kit for Framed Modules ü Fit between two panels ü Fastened with a 6mm Allen key ü Standard pre-assembly for the usual panels with thickness 30~35, 35~40, 45~50, 57~60mm
4, End Clamp Kit for Framed Modules ü Hold the edge of each end panels ü Fastened with a 6mm Allen key üStandard pre-assembly for the usual panels with thickness 30, 35, 40, 46, 50, 57mm

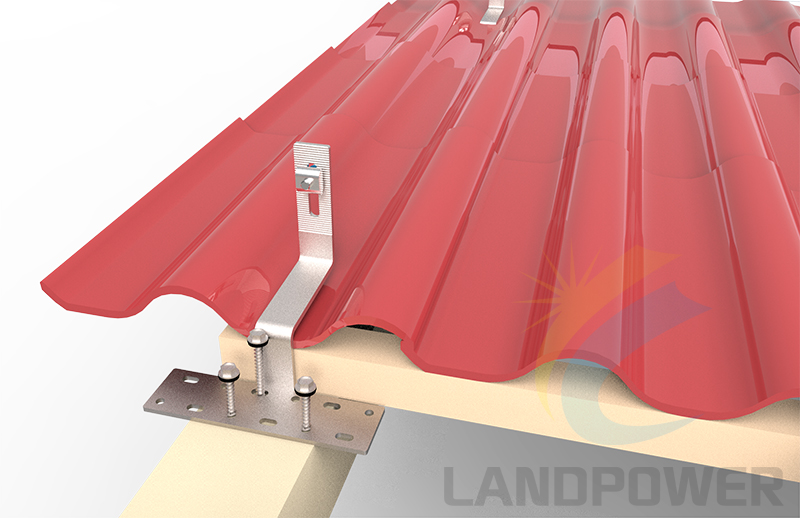

5, Stainless Steel Roof Hook ü Fix to the rafter below Roman tile roof ü Include 3pcs st6.3x60 wood screws
