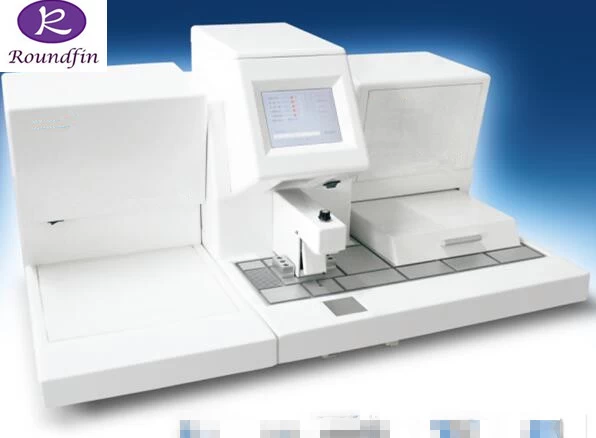

Tissue Cassettes Paraffin embedding center
with cold plate with capacity 6L
Model Number: RD-99
Design Feature:
--- Automatic program control, It can be setting the operation
time for any day, any time, any minute in a week.
--- Dual overheating protection for the wax cylinder. It is safe enough.
--- Large capacity for the wax cylinder. It can support 400pcs tissue embedding
at one time.
---Two ways for operation: Manual operation, and pedal control
--- Special LED lighting for the embedding position, in order to accurately
embedding for the small tissue.
---There are five zones: wax cylinder; hawfinch; working table; left
preservation box; right preservation.
---The cryo table is separated designed. It is easy to maintance.
Technical Specification:
---Heater temperature setting range: ambient to 99 ℃
---Temperature for the heat preservation tank: ambient to 99 ℃
---Temperature for the operation table: ambient to 99 ℃
---Temperature for the cryo table: Ambient to - 5 ℃
---Working environmental temperature: 0 ℃ - 45 ℃
---Heater temperature displaying error: ± 2% ≤ measured values
---Heating time to reach the setting temperature: ≤ 60 minutes
---Automatic operation timing setting range: any day, any time, any minute in a week.
---Wax cylinder volume: 6L
---Power: 1500W
---Dimensions: 600 x 650 x 450mm
---Weight: 40kgs.
Model No.: Cooling plate for Embedding Center RD-99:
----The size for the cooling surface: 365x330mm
---The size for the whole unit: 380x600x420mm
---Power: 120W
---Voltage: 110v-240v; 50Hz-60Hz
---The temperature for the cooling plate: -20 degree
---Operation: “Switch on” the machine, then it start to work; once “Switch off” it, it stop to work.
