TNC Male to F Female Straight RF Connector Adapter

TNC adapters Features:

  • Allow to interface TNC connectors with 7-16 DIN, BNC, MCX, N, SMA, TNC or UHF connectors;
  • Has female to female, female to jack, female to male, female to plug, female to sexless, male to female, male to jack, male to male, male to plug or male to sexless gender varieties;
  • Has standard polarity or reverse polarity options;
  • Has bulkhead, 4 hole panel or mountless configurations;
  • Has quick disconnect (QD) or standard interfaces;
  • A miniature, threaded weatherproof;
  • With a constant 50ohm impedance and a frequency range of DC to 11GHz;
  • TNC contact design same as BNC, higher frequency performance than the BNC.

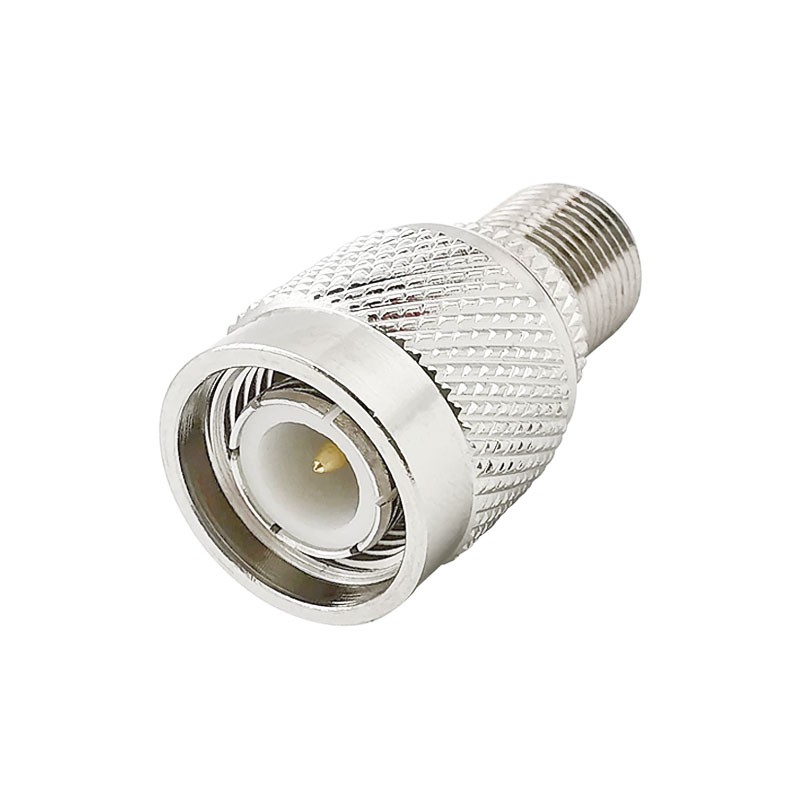

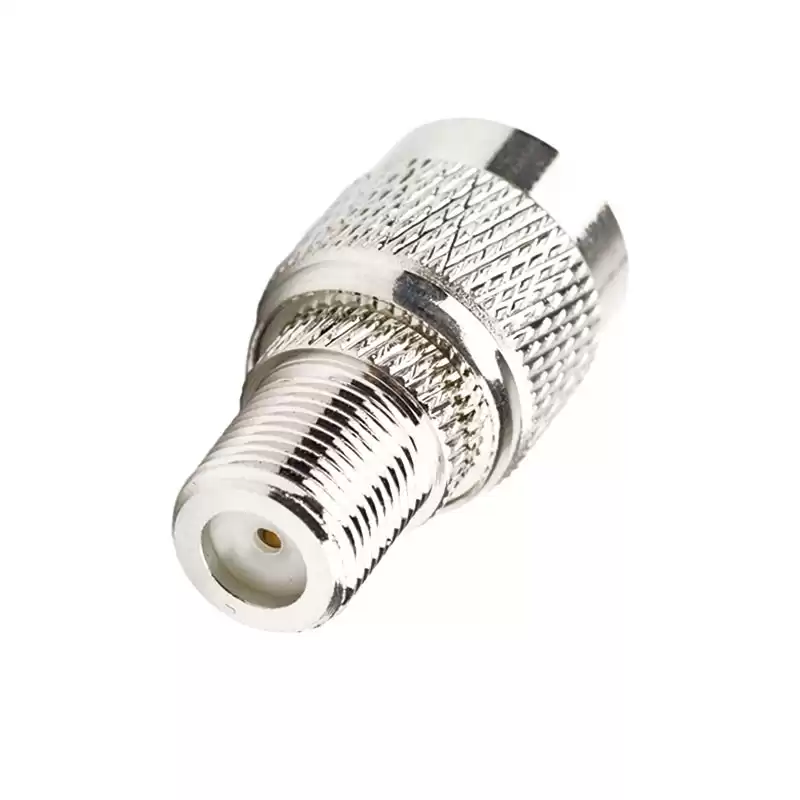

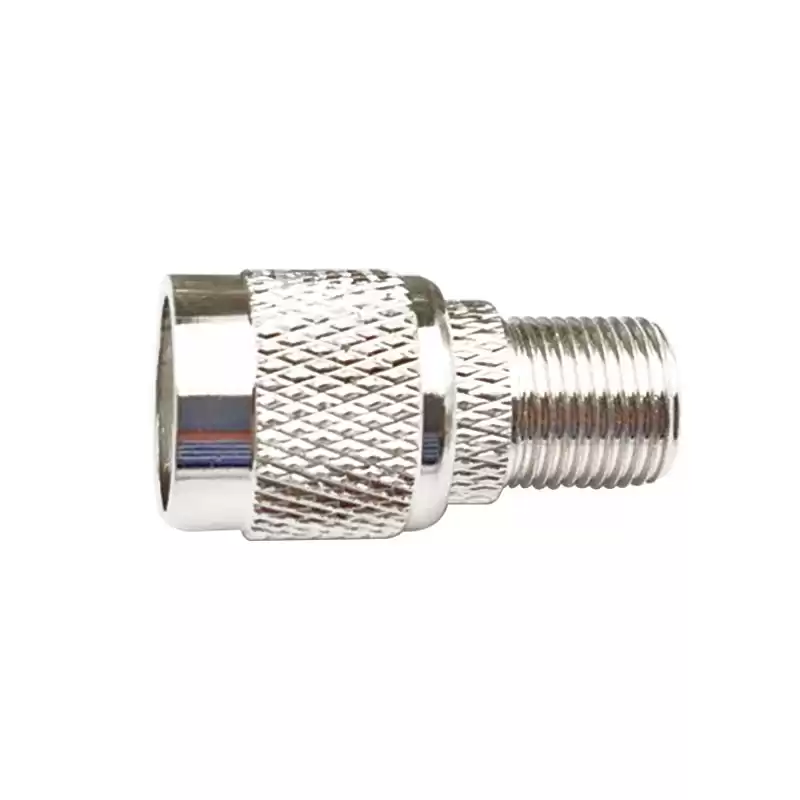

TNC Male to F Female Straight RF Connector Adapter



The TNC Adapter has different TNC to F adapter gender, that is a series coaxial adapter, The TNC to F adapters has female to female, female to male, male to female or male to male gender designs. it has straight or right angle body, and has bulkhead or mountless configurations. ROHO's TNC to F adapters offers standard polarity or reverse polarity options, it is available in quick disconnect (QD) or standard interfaces.This TNC male to F female adapter has a maximum frequency of 2GHz, and is a straight body adapter.



Specifications

ELECTRICAL DATA
Adapter Side 1 Series TNC
Adapter Side 1 Style Male
Adapter Side 2 Series F
Adapter Side 2 Style Female
Frequency (Max GHz) 2
Impedance (Ohms) 50 or 75
Low PIM No
Orientation Straight
Temp (Max Degrees Celsius) 165
Temp (Min Degrees Celsius) -65
MATERIAL DATA
Body Material
Brass
Body Finish
Nickel/Ternary alloy
Contact Material
Phosphor Bronze/Beryllium Copper
Contact Finish
Gold/Silver
Insulator Material
PTFE



Applications

  • Antenna
  • CCTV, Radios
  • Wi-Fi,Broadcast
  • Telecom,LMR
  • Wireless LAN Devices
  • Microwave Applications
  • Digital Communication System
