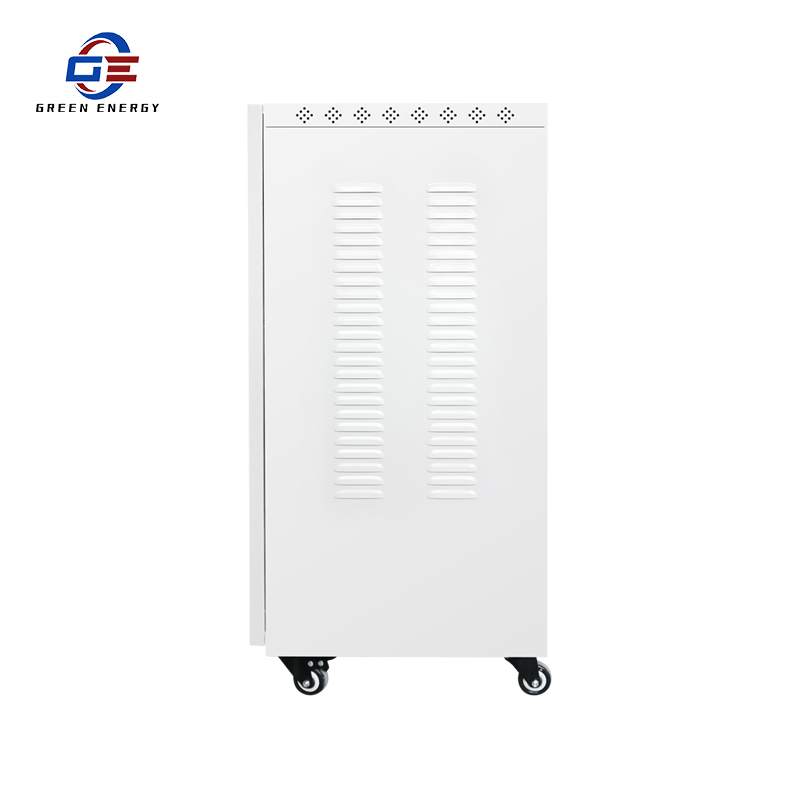

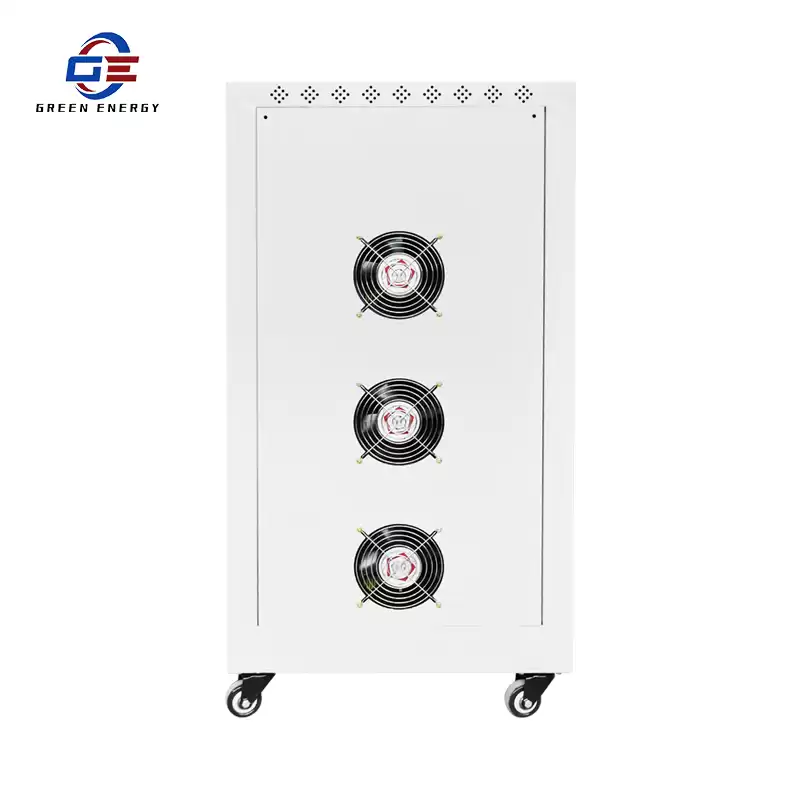

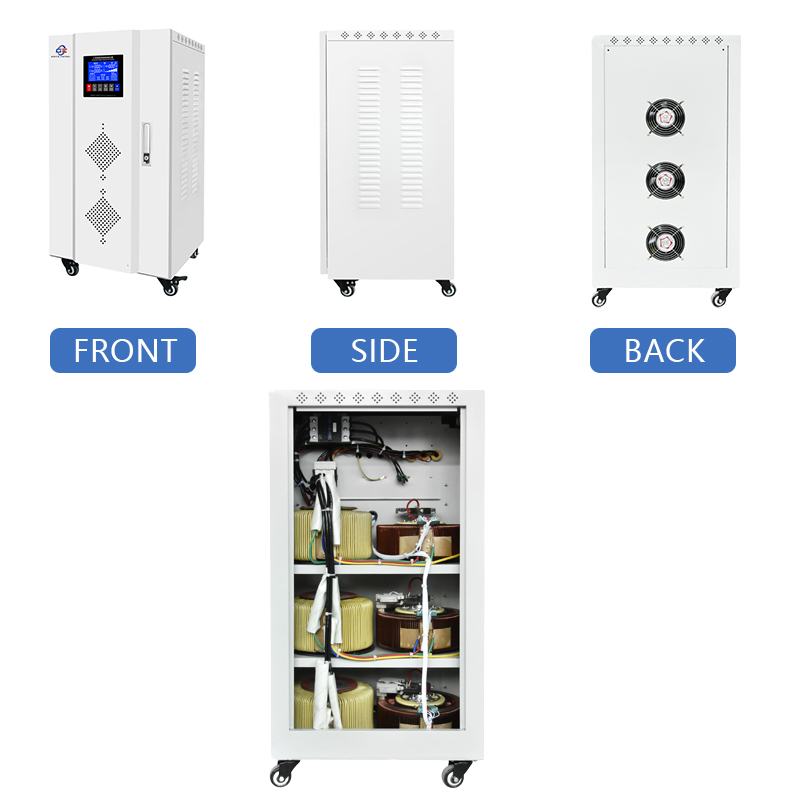

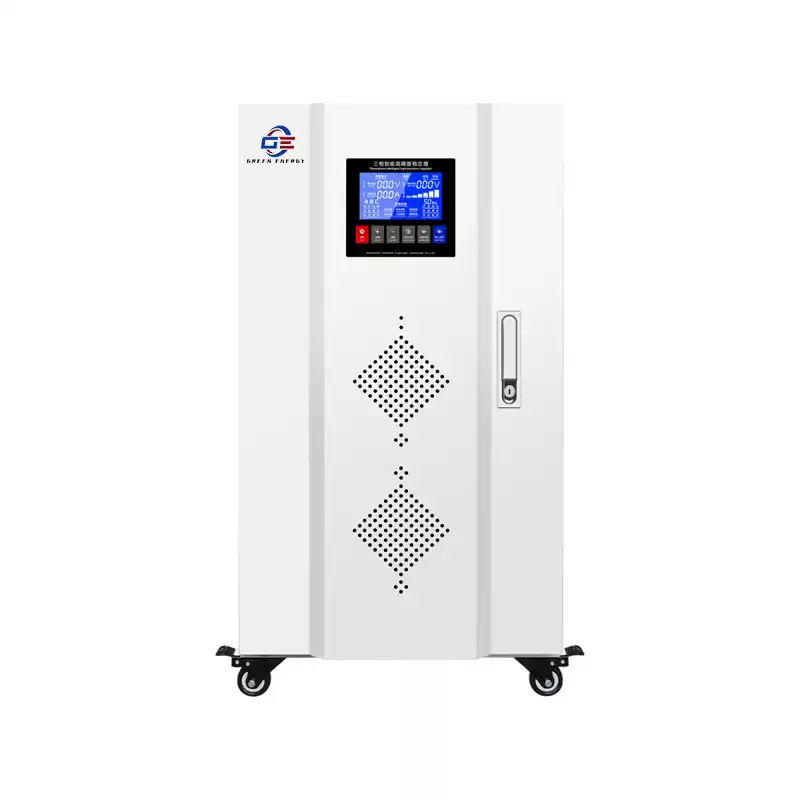

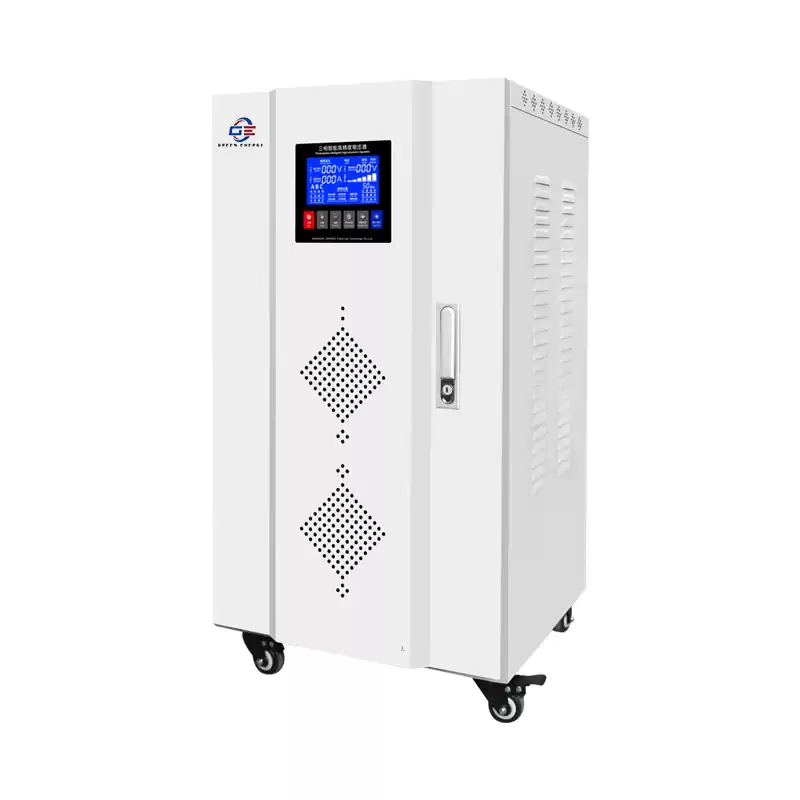

TNS Industrial Automatic Compensation Three-Phase High-Power AC Voltage Stabilizer
⇒ PRODUCT DESCRIPTION

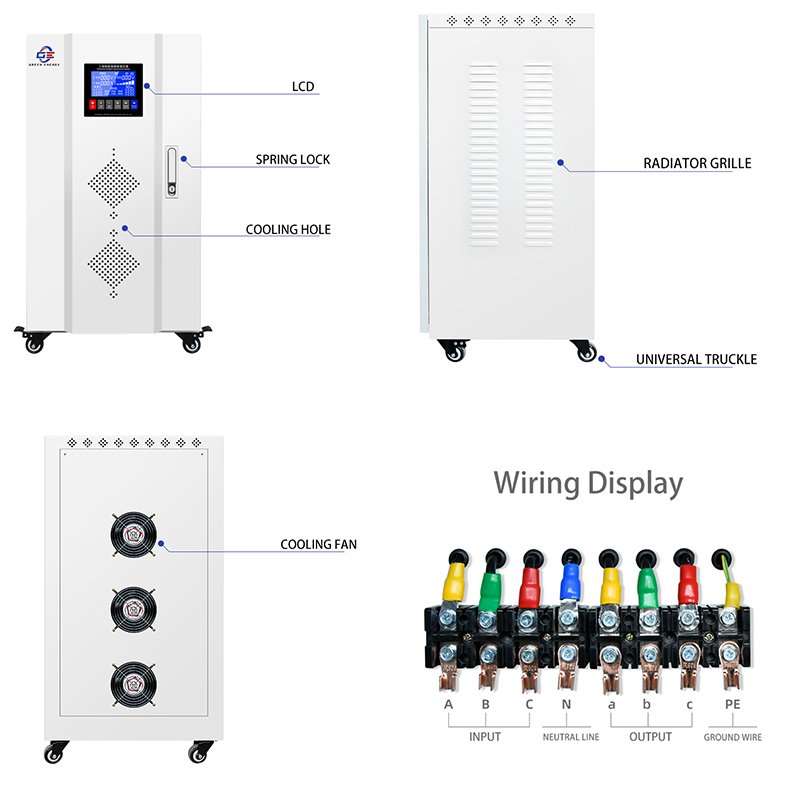

TNS series high-precision automatic three-phase AC stabilized power supply is composed of single-phase TND series high-precision automatic stabilized power supply. Star (Y-shaped) connection method, the output can be three-phase four-wire system or three-phase three-wire system, the output current of each phase is indicated by three ammeters respectively, and the output of each phase is detected by a transfer switch and a voltmeter. line voltage.

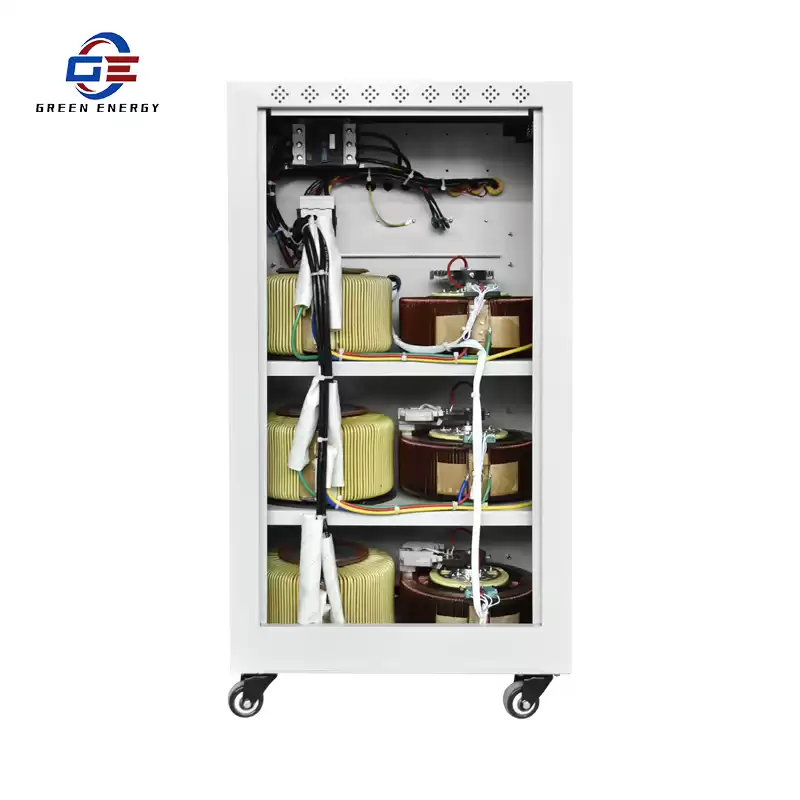

When the grid voltage is unstable or the load changes, the automatic sampling control circuit sends a signal to drive the servo Motor, adjust the position of the carbon brush of the auto voltage regulator, so that the output voltage is adjusted to the rated value and reaches a stable state. This series of voltage stabilizers have the function of mains pass-through. It has the advantages of many varieties, complete specifications and beautiful appearance. It has the advantages of undistorted waveform, high efficiency, reliable performance, and long-term operation. It has protection functions such as short delay and overvoltage. Long delay and undervoltage protection functions can be added according to user needs. The product can be widely used in any place where electricity is used, and is an ideal regulated power supply to ensure the normal operation of your electrical equipment.
Field of Use
♦CNC machining center
♦SMT placement machine equipment
♦PCB drilling machine
♦Laser cutting machine
♦CT medical equipment
♦Printing machine
♦Spark machine
♦CNC punch
♦Various industrial production equipment
|
Input Voltage
|
Regular models 260-450V/500V, Customized ultra low voltage models
|
|
Output Voltage
|
380V
|
|
Voltage Regulation Accuracy
|
3%
|
|
Frequency
|
50Hz/60Hz
|
|
Overvoltage Protection Value
|
Output voltage 430V±4V
|
|
Undervoltage Protection Value
|
Output voltage 320V±4V, regularly not set undervoltage protection
|
|
Load Power Factor
|
0.8
|
|
Adjust Time
|
When the voltage change by10%<1S
|
|
Waveform Distortion
|
No additional waveform distortion
|
|
Dielectric Strength
|
1500V/1min
|
|
Insulation Resistance
|
Three phase >2MΩ
|
|
Insulation Class
|
Class E
|
|
Working Environment
|
Temperature :-10℃ to +40℃, Humidity: <95%
|
|
Effectiveness
|
>95%
|
|
Temperature Rise
|
<60℃
|

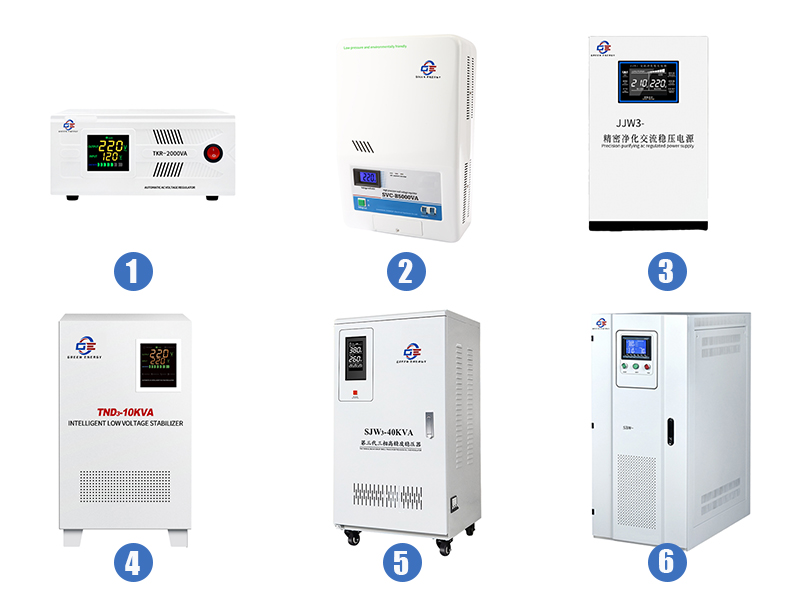

⇒ RELATED PRODUCT
