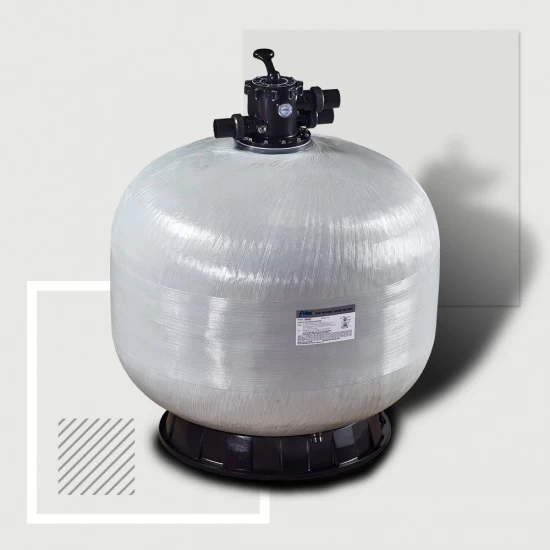

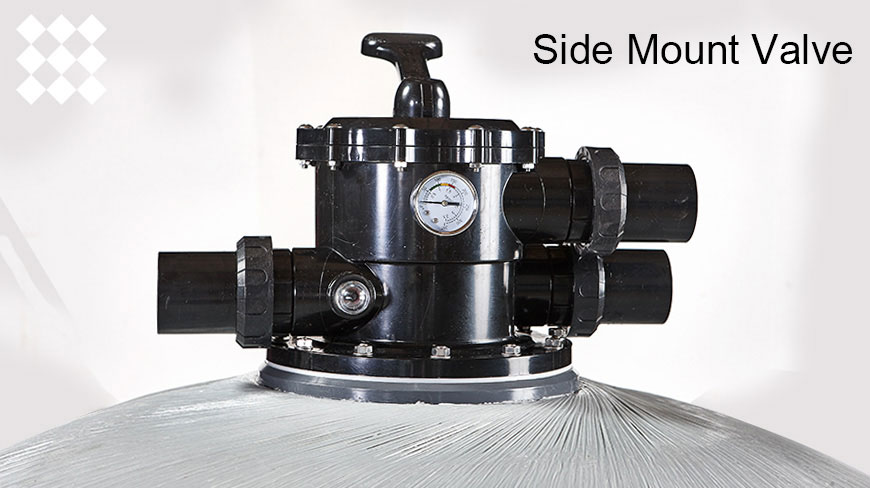

Swimming pool sand filter is still the most popular standard in the industry after all.With UV-resistant surface finish, it is able to operate under prolong sunlight for years of reliability.Swimming Pool sand filter with 2'' multi-port value.

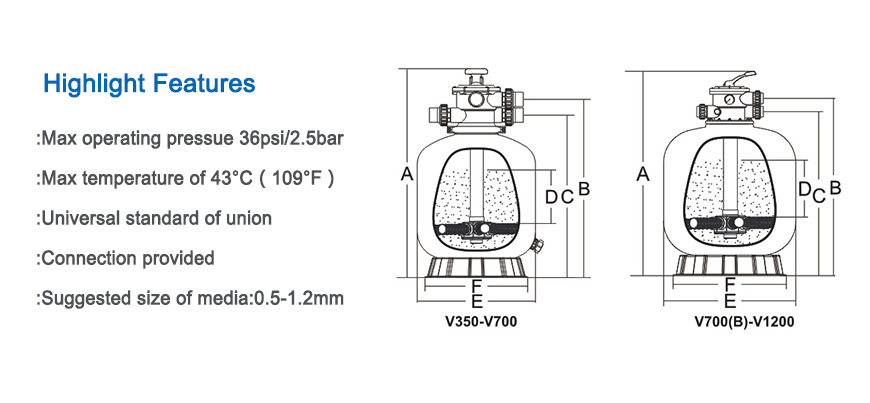

Technical Characteristics
|
|
Mode
|
Filter Area (㎡)
|
Vatve Connections
|
Max Flow Rate
|
Gravel (kg)
|
A mm
|
B mm
|
|
P700B
|
0.40
|
2.0inch 63mm
|
21m³/h
|
215
|
1150
|
700
|
|
P750
|
0.45
|
2.0inch 63mm
|
23m³/h
|
300
|
1180
|
750
|
|
P800
|
0.50
|
2.0inch 63mm
|
25m³/h
|
355
|
1310
|
800
|
|
P900
|
0.64
|
2.0inch 63mm
|
31m³/h
|
470
|
1380
|
900
|
|
P1000
|
0.79
|
2.0inch 63mm
|
36m³/h
|
620
|
1495
|
1000
|
|
P1100
|
0.96
|
2.0inch 63mm
|
42m³/h
|
800
|
1580
|
1100
|
|
P1200
|
1.13
|
2.0inch 63mm
|
45m³/h
|
900
|
1600
|
1200
|
|
P1400
|
1.54
|
2.0inch 63mm
|
56m³/h
|
1350
|
1810
|
1400
|
Instruction of install our swimming pool sand filter :
INSTALLATION
Installation had been made simple, the only tools
needed is a screwdriver and pipe sealant for plastic.
Locate the Filter on hard, level surface, preferably in a
dry, shaded, and well-ventilated area.
1/ Place the empty tank in position.
2/ Fill the tank with
water to the level that covers the laterals
about 1/3 of the tank is recommended. This will avoid damages to the laterals by the force of the
sand when pouring into the filter.
