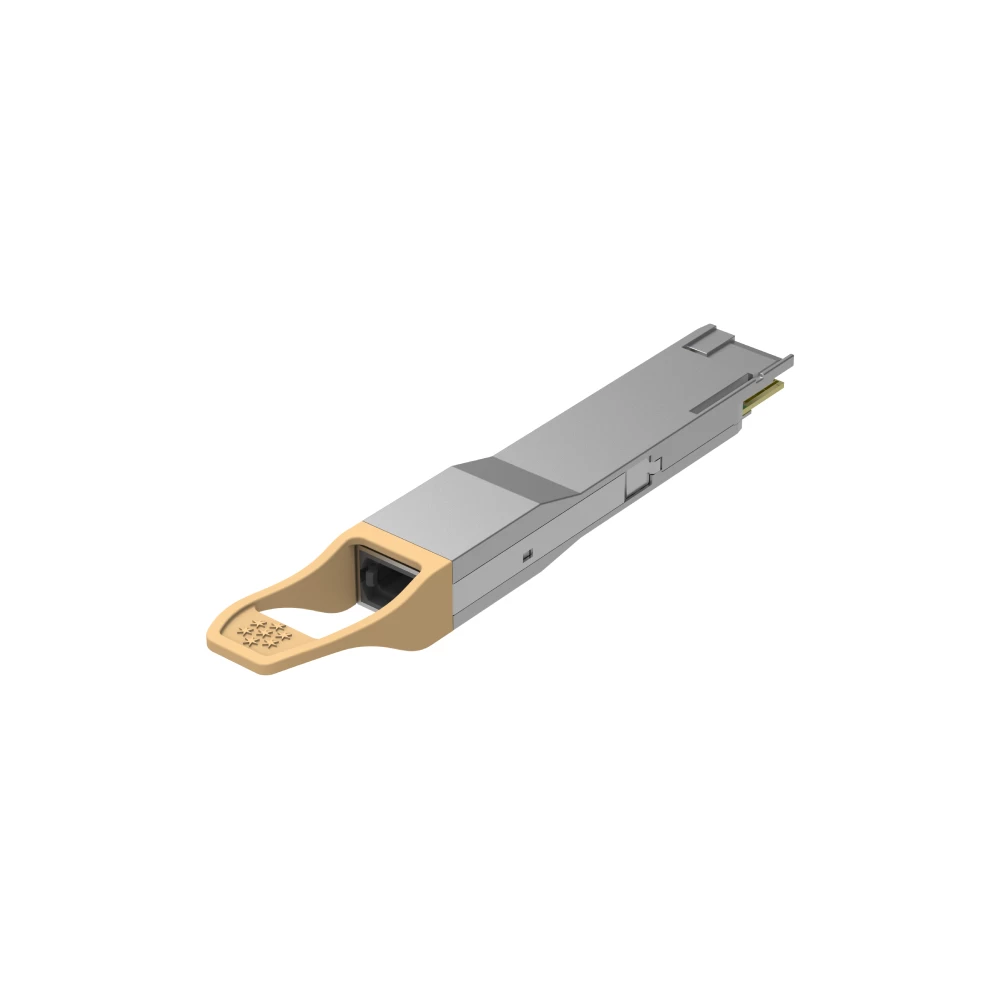

TOPSTAR Compatible Cisco Brocade 400G QSFP-DD SR8 100m Optical Transceiver

Product Feature:

Hot-pluggable QSFP-DD form factor

 8 channels full-duplex transceiver module

 8x 850nm VCSEL array and PIN photo-detector array

 Internal DSP CDR circuits on both receiver and transmitter channels

 Compliant with QSFP-DD MSA, CMIS and IEEE 802.3cd 200GBASE-SR4

 Data rate up to 425Gbps (8x 50G PAM4)

 Reach up to 70m (OM3) or 100m (OM4) over MMF with FEC

 Power consumption < 10W

 MPO24 receptacle

 Built-in digital diagnostic functions

 Operating case temperature range from 0°C to 70°C

 3.3V power supply voltage

 RoHS compliant (lead free)


  • Warranty3 Years
  • ConditionNew
  • Temperature0-70
  • Data Rate400G
  • Distance100m
  • Wavelength850nm
  • ConnectorLC

Product Feature:

Hot-pluggable QSFP-DD form factor

 8 channels full-duplex transceiver module

 8x 850nm VCSEL array and PIN photo-detector array

 Internal DSP CDR circuits on both receiver and transmitter channels

 Compliant with QSFP-DD MSA, CMIS and IEEE 802.3cd 200GBASE-SR4

 Data rate up to 425Gbps (8x 50G PAM4)

 Reach up to 70m (OM3) or 100m (OM4) over MMF with FEC

 Power consumption < 10W

 MPO24 receptacle

 Built-in digital diagnostic functions

 Operating case temperature range from 0°C to 70°C

 3.3V power supply voltage

 RoHS compliant (lead free)



TOP-SFP28-25G
TOP-SFP28-25G-SR 850nm 100m
TOP-SFP28-25G-LR 1310nm 10km
TOP-SFP28-25G-ER 1310nm 30km/40km
TOP-SFP28-25G-CWDM-LR 1271nm/1291nm/1311nm /1331nm  10km
TOP-SFP28-25G-CWDM-ER

1271NM/1291NM/1311NM

/1331NM/1351NM/ 1371NM

40km
TOP-SFP28-25G-DWDM-LR/ER C21-C60-40 10km/40km
TOP-SFP28-BIDI-25G-LR 1270/1330nm 10km
TOP-SFP-40G
Top-QSFP+-40G-SR 850nm 300m/150m
Top-QSFP+-40G-LRM/LR 1310nm 2km/10km/20km
Top-QSFP+-40G-ER CWDM 1270-1330  40km
Top-QSFP+-40G-ZR 1550nm 80km
TOP-CFP2-100G
Top-cfp2-100G-LR4 1310nm 10km/20km/30km/40km
TOP-CFP4-100G
 Top-cfp4-100G-LR4  1310nm 10km
TOP-QSFP28-100G
Top-QSFP28-100G-SR4 850nm 100m
Top-QSFP28-100G-LR4 1294-1310nm LWDM DFB 10km
TOP-QSFP-DD 200G
TOP-QSFP-DD 200G SR8  850nm 100m
TOP-QSFP-DD- 200G LR8
TOP-QSFP-DD 400G
TOP-QSFP-DD 400G-AOC 850nm , 10-60°C 3-100M
 TOP-QSFP-DD 400G-SR8 850nm  VCSEL   100M
TOP-QSFP-DD 400G-DR4 1310nm EML 500M
TOP-QSFP-DD 400G-DR4+ 1310nm  EML 2km
TOP-QSFP-DD 400G-FR4+ EML CWDM4 2km
TOP-QSFP-DD 400G-LR4+ EML CWDM4 10km







TopStar proudly own 3,000 Square Meters complete Dust-Free workshop. Together with our 30 dedicated engineering experts in the R&D, we create excellent products. Applying the industrial best Management Practice combined with full range of test equipments, we stand to be the expert in Optical Transceiver field. These expertise enabling us the ability to supply almost full series of High Quality products.



Our Top-Trans product ranges cover:
SFP, SFP+ ,XFP

BIDI, CWDM / DWDM

40G / 100G QSFP+
40G / 100G CFP
X2, Xenpak
Epon/Gpon/Xgpon
CSFP, ESFP

1*9, SFF, Gbic
etc..



Product Tags 400g fr4 qsfp dd qsfp          400g 40km qsfp dd qsfp          400g er8 qsfp dd qsfp          400g 2km qsfp dd qsfp          400g qsfp dd fr8 pam4 2km          qsfp dd          osfp          200g fr4 qsfp dd qsfp          200g er4 40km qsfp dd qsfp
