Toray T700 Full Suspension Electric Bike Carbon Fiber Frame Fit For Shimano DU-EP800 Motor

-Type: Full Suspension All Mountain E-bike Frame

-Size: 16"/17.5"/19"/20.5"

-Head Tube: Upper 52 mm lower,66mm

(Headset PT-1864D-078 ZOOM)

-Weight :3700g±50g




Toray T700 Full Suspension Electric bike Carbon Fiber Frames Fit For Shimano DU-EP800 Motor


  • Type: Full Suspension All Mountain E-bike Frame
  • Size: 16"/17.5"/19"/20.5"
  • Head Tube: Upper 52 mm lower,66mm
  •                   (Headset PT-1864D-078 ZOOM)
  • Weight :3700g±50g
  • Seat tube Diameter :φ31.6mm(37mm seat clamp)
  • Motor System:SHIMANO DU-EP800 mid drive engine
  • Battery :  SHIMANO BT-E8036(630WH)
  • Max Tire Clearance :  29”*2.6" / 27.5” * 3.0"
  • Brake Type :  Post Mount Disc brake
  • Finish :UD/Color
  • Rear travel:150mm
  • Max Chainring:34T
  • Rear shock size: 205*65mm (30*φ8mm,54*φ8mm)
  • Test Standard : ISO4210/EN15194

Full Suspension Carbon Bike Frame



Many kinds of frame size for customer more option,please send email to sales@tourdecycling.com for more frames size geometry.

Size
16"
17.5"
19"
20.5"
Stack 610 619 628 637
Reach 443 460 483 505
Head Tube Angle 64.5 64.5 64.5 64.5
Head Tube Length 105 115 125 135
Seat Tube Angle 76.5 76.5 76.5 76.5
Seat Tube Length 400 440 480 520
Top Tube Length 585 605 630 655
BB Drop 20 20 20 20
Rear To BB Center 450 450 450 450
Fork To BB Center 781 803 830 856
Fork Built Height 572 572 572 572
Fork Rake 51 51 51 51
Wheel Base 1230 1252 1279 1305

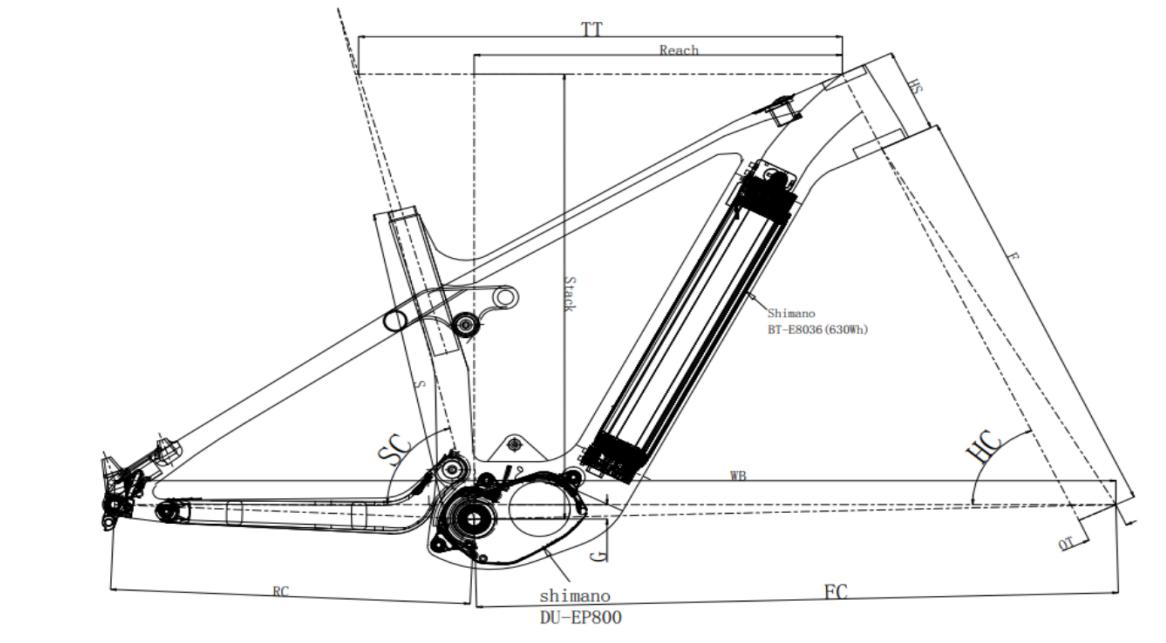

Technical drawings can help customer find the frame detail parameters and structure they are interested.

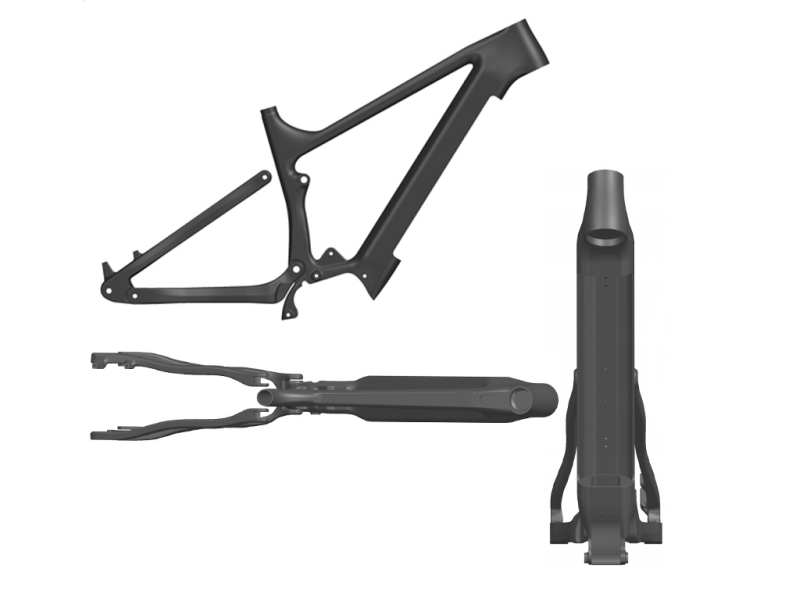

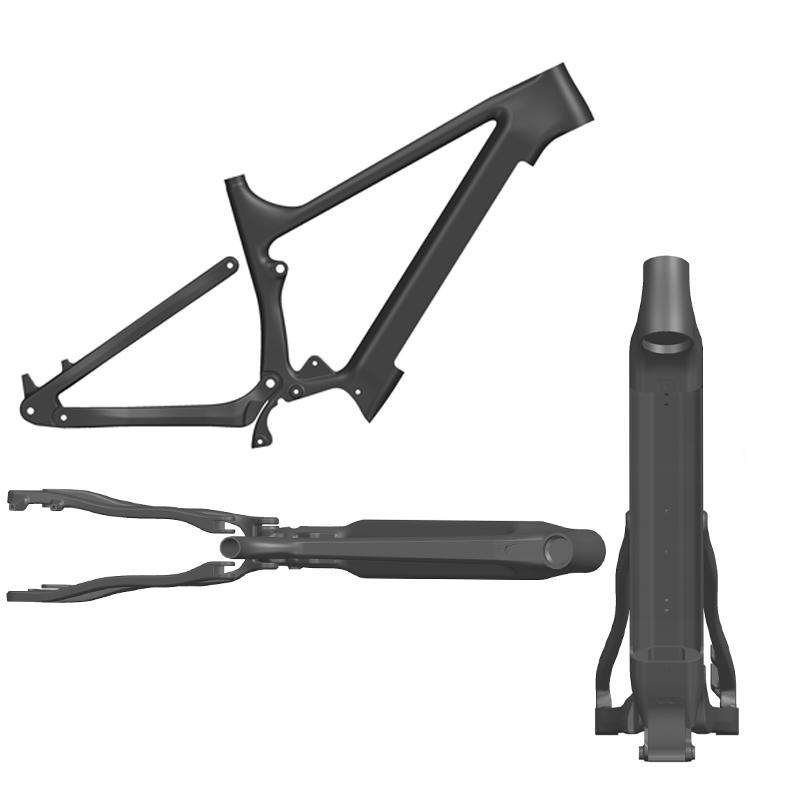

TDC-EM07 Full Suspension Electric Bike Frame

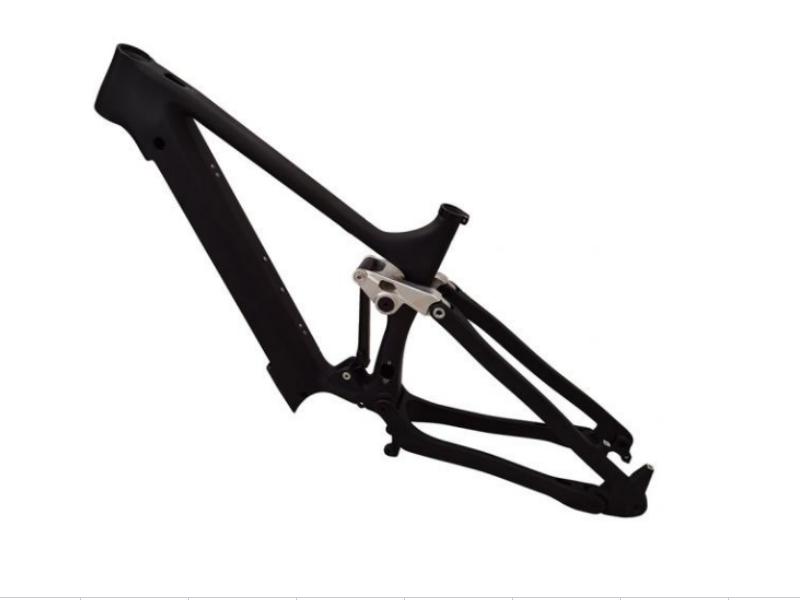

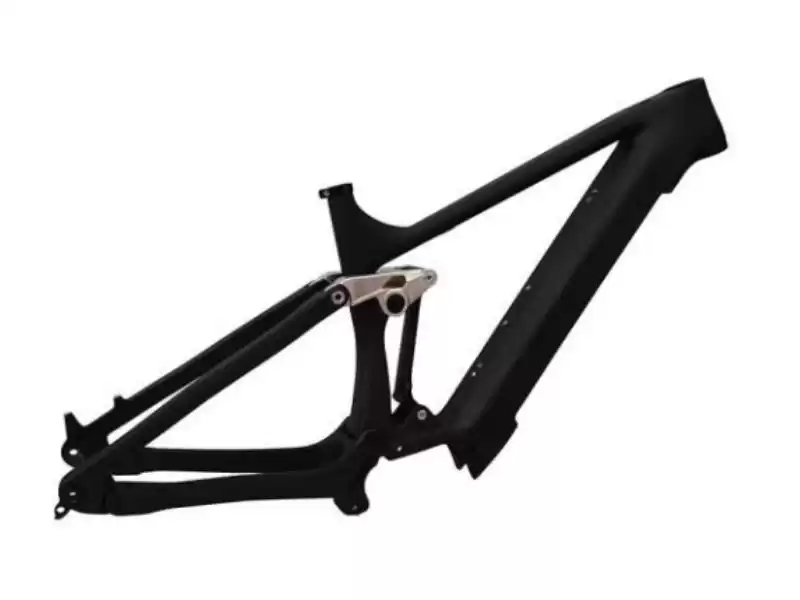

Electric Mountain Bike Frames

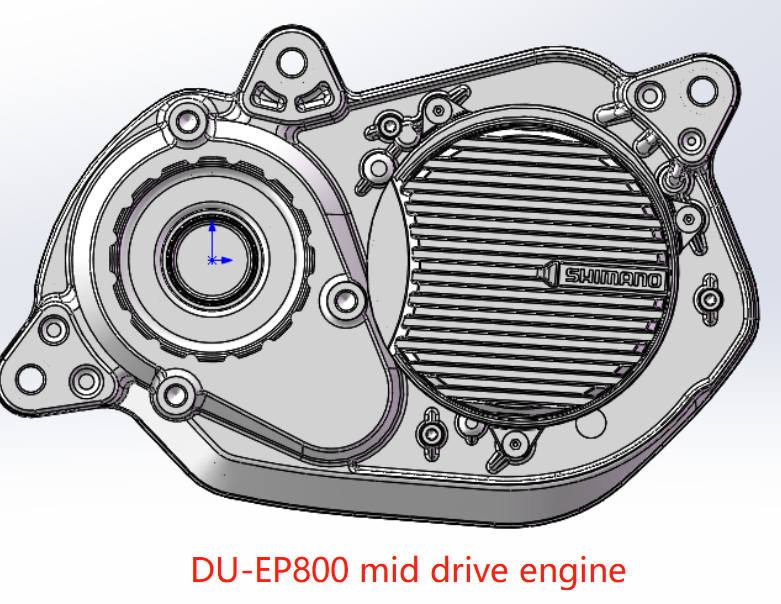

Fit for Motor Shimano DU-EP800 mid drive engine


E-Bike Motor

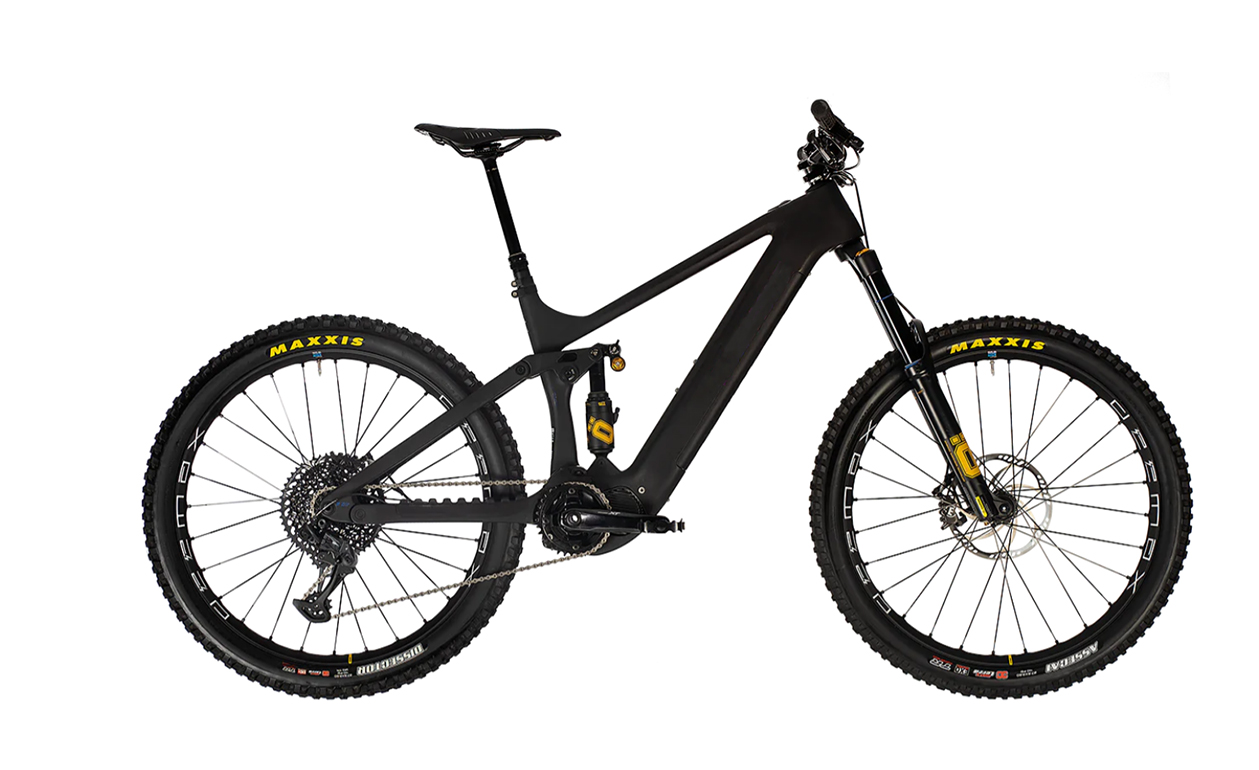

Build complete bike of TDC-EM07 Enduro bike frame


MTB E-Bike Frames



TECHNOLOGY


carbon fiber frames design

Italy Design Team

we invited Italy professional engineer to develop new moulding each year. More than 10 years design experience can supply more accurate design which is developed according to the customer’s requests and specifications, focusing on the targets and providing functional solutions.


bicycle frame 3D print

3D latex mandrel technology

we added new 3D latex mandrel technology. 3D latex mandrel technology than traditional EPS or airbag technology can make frames more smooth without wrinkle inner wall.


carbon fiber Tory for bicycle frameset

Carbon Fiber Material

Premium Japan Toray T700/T800 carbon fiber is used in our carbon bike frame.

Combining with stable resin system to make consistent quality and light weight frame.

BIKE FRAMES TEST LAB

Lab Test

All tour de cycling carbon frame are rigorously tested under international standard ISO4210/EN15194.We will also be sent sample to the 3rd External Organization for SGS testing upon customer’s requirement. All new frames will be tested at least 10% more strictly during the development phase on the basis of EN15194 or ISO4210, thus it can ensure the safety of all products.


Bicycle frameset wrannty

2-Year Warranty

We have very strict mass production management system, IQC, PQC, OQC and Lab Testing process. We insist on making high quality.

For all carbon rims and carbon wheels sold by ProX, 2 years’ quality warranty is offered (starting from the date of package being signed).

Click Warranty  to see more details in another page.


Why choose us ?

Tour De Cycling has more than 17 years of production experience in carbon frame developing and manufacturing.. Our factory has mature technology and patents, can be customized design for brand companies, and provide OEM services. More than 100 kinds of frame products have been developed and produced, and more than 95% of them are exported overseas.


FAQ:

Q1:How tall should you be for a 29 inch bike?

A1:I think 29er model are fit for the height in 5inch-6inch or taller. Riders more than 6' tall can enjoyable: You'll definitely enjoy a more natural riding situation with this size and frame geometry of a 29er.


Q2:What size MTB frame do I need?

A2:Please check the size and height as follows:

Small 14-16inch 162cm-170cm (5ft 4in-5ft 7in)

Medium 16-18inch 171cm-178cm (5ft 7in-5ft 10in)

Large 18-20inch 179cm-185cm (5ft 10in-6ft 1in)


Q3:Is it worth getting a carbon MTB?

A3:Yes,If you want the premium look and an exceptional ride quality, a carbon mountain bike is very fit for you. It also can take your skills to the new next level in mountain bike technology, a carbon MTB bike can help you do it all.


Q4:How long do mountain bikes last?

A4:A good mountain bike can last over 20 years when you keep proper maintenance . This situation is highly dependent on where you ride and how much you ride it. Some items will wear out, tires, chains, brake pads and drivetrains will not last forever. So careful maintenance is very important.


Q5: Can you ride long distances on a mountain bike?

A5:Mountain bike are so strong, so it can take a beating and are reliable. It might take a bit more effort than road bike.
